Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
78615/9C TRANSFORMER 1CT:1CT 10MH 56VUS Murata Power Solutions Inc.	3,774	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	10mH	56VµS	1CT:1CT	Through Hole	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78604/9C TRANSFORMER 2:1 10MH 56VUS Murata Power Solutions Inc.	3,955	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	10mH	56VµS	2:1	Through Hole	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78604/4C TRANSFORMER 2:1 100UH 4VUS Murata Power Solutions Inc.	2,453	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	67µH	4VµS	2:1	Through Hole	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78602/9C TRANSFORMER 1:1:1 10MH 56VUS Murata Power Solutions Inc.	616	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	10mH	56VµS	1:1:1	Through Hole	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78602/2C TRANSFORMER 1:1:1 500UH 10VUS Murata Power Solutions Inc.	2,401	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	500µH	10VµS	1:1:1	Through Hole	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78602/9JC XFRMR 1:1:1 56VUS SMD TOROID Murata Power Solutions Inc.	2,646	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	10mH	56VµS	1:1:1	Surface Mount	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78604/4JC XFRMR 2:1 4VUS SMD TOROID Murata Power Solutions Inc.	2,028	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	67µH	4VµS	2:1	Surface Mount	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78604/9JC XFRMR 2:1 56VUS SMD TOROID Murata Power Solutions Inc.	2,199	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	10mH	56VµS	2:1	Surface Mount	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78615/16JC XFRMR 1CT:1CT 28VUS SMD TOROID Murata Power Solutions Inc.	3,270	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	4mH	28VµS	1CT:1CT	Surface Mount	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78601/16C TRANSFORMER 1:1:1 5000UH 28VUS Murata Power Solutions Inc.	2,911	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	4mH	28VµS	1:1	Through Hole	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78601/2C TRANSFORMER 1:1 500UH 10VUS Murata Power Solutions Inc.	3,958	1.57	RFQ	Datasheet	Bulk	786	Active	General Purpose	500µH	10VµS	1:1	Through Hole	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78602/9MC TRANSFORMER 1:1:1 10000UH 56VUS Murata Power Solutions Inc.	144	1.57	RFQ	Datasheet	Tube	786	Not For New Designs	General Purpose	10mH	56VµS	1:1:1	Surface Mount	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78615/2C TRANSFORMER 1CT:1CT 500UH 10VUS Murata Power Solutions Inc.	3,059	1.57	RFQ	Datasheet	Bulk	786	Active	General Purpose	500µH	10VµS	1CT:1CT	Through Hole	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
DA102MC DIGITAL AUDIO TX 1:1 3MH SMD Murata Power Solutions Inc.	3,737	1.57	RFQ	Datasheet	Box	DA100	Not For New Designs	-	3.9mH	20VµS	1:1	Surface Mount	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)

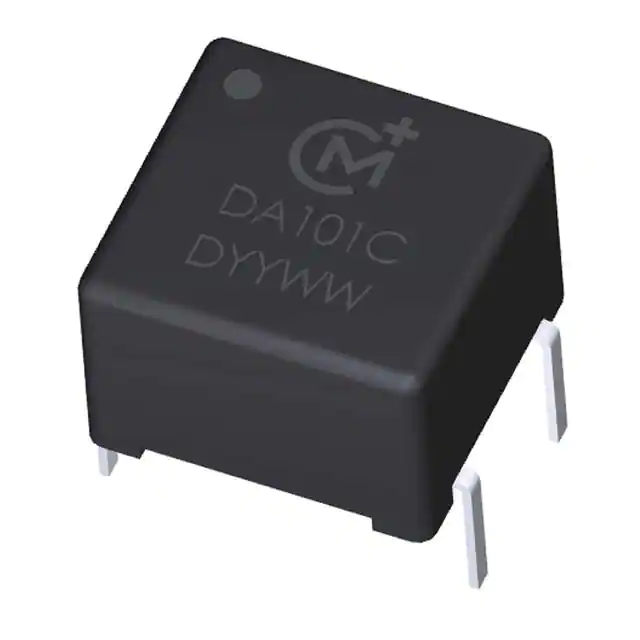

DA103C DIGITAL AUDIO TX 1:1 5MH DIP Murata Power Solutions Inc.	3,419	1.57	RFQ	Datasheet	Box	DA100	Active	-	7.75mH	28VµS	1:1	Through Hole	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
DA103MC DIGITAL AUDIO TX 1:1 5MH SMD Murata Power Solutions Inc.	3,920	1.57	RFQ	Datasheet	Box	DA100	Not For New Designs	-	7.75mH	28VµS	1:1	Surface Mount	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78601/16JC PULSE XFMR 1:1 3.65MH Murata Power Solutions Inc.	3,340	1.57	RFQ	Datasheet	Tube	786J	Active	General Purpose	3.65mH	28VµS	1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78601/1MC PULSE XFMR 1:1 2MH Murata Power Solutions Inc.	2,943	1.57	RFQ	Datasheet	Tube	786	Not For New Designs	General Purpose	2mH	20VµS	1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78601/3C PULSE XFMR 1:1 200UH Murata Power Solutions Inc.	2,367	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	200µH	6VµS	1:1	Through Hole	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78601/3JC PULSE XFMR 1:1 150UH Murata Power Solutions Inc.	2,694	1.57	RFQ	Datasheet	Tube	786J	Active	General Purpose	150µH	6VµS	1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
