Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

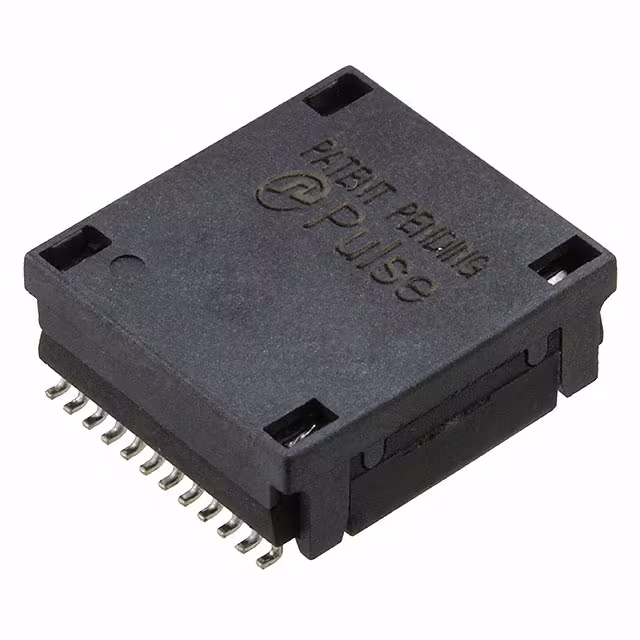

H7008FNL TRANSFORMER MODULE 10GBASE-T Pulse Electronics Network	592	9.90	RFQ	Datasheet	Tube	-	Active	LAN 10G Base-T	200µH	-	1:1	Surface Mount	0.591 L x 0.539 W (15.00mm x 13.70mm)	0.230 (5.85mm)
749023015 WE-LAN 10/100/1000 BASE-T SMT TR Würth Elektronik	3,484	10.89	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	-	0.720 L x 0.480 W (18.30mm x 12.20mm)	0.250 (6.35mm)
H5079NL MODULE MINI-MAG 1PORT 1000BASE-T Pulse Electronics Network	3,636	11.30	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.785 L x 0.551 W (19.94mm x 14.00mm)	0.100 (2.54mm)
HX5020NLT TRANSFORMER MODULE GIGABIT 2PORT Pulse Electronics Network	750	18.05	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	1.100 L x 0.297 W (27.94mm x 7.54mm)	0.341 (8.66mm)

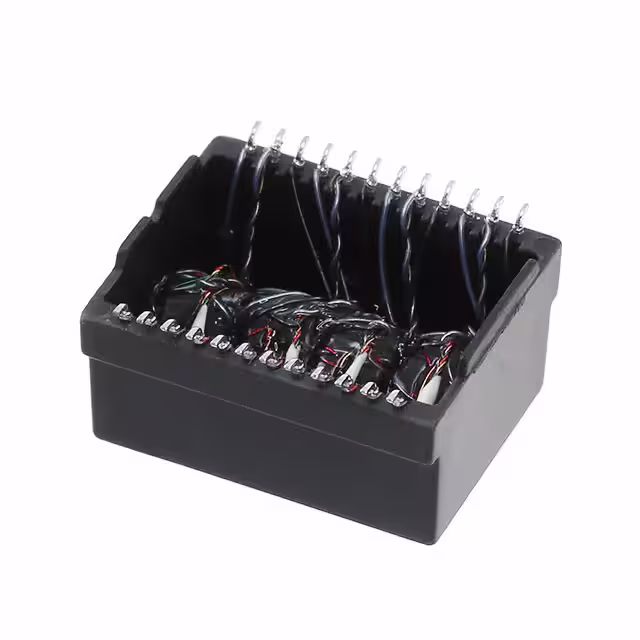

HX5224CNL PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics Network	254	14.85	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.728 L x 0.604 W (18.50mm x 15.34mm)	0.385 (9.77mm)

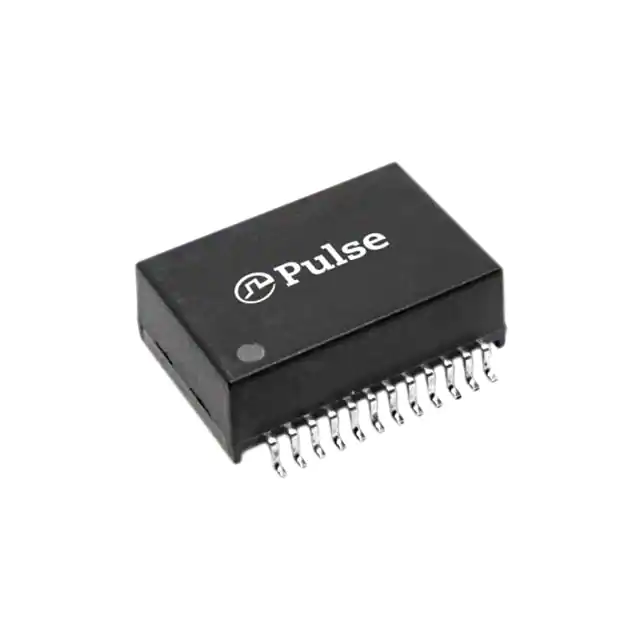

HX4019NL TRANSF MOD 2.5G 4CH 60W POE Pulse Electronics Network	3,728	16.43	RFQ	Datasheet	Tube	-	Active	General Purpose	150µH	-	1:1	Surface Mount	0.715 L x 0.480 W (18.16mm x 12.20mm)	0.260 (6.60mm)

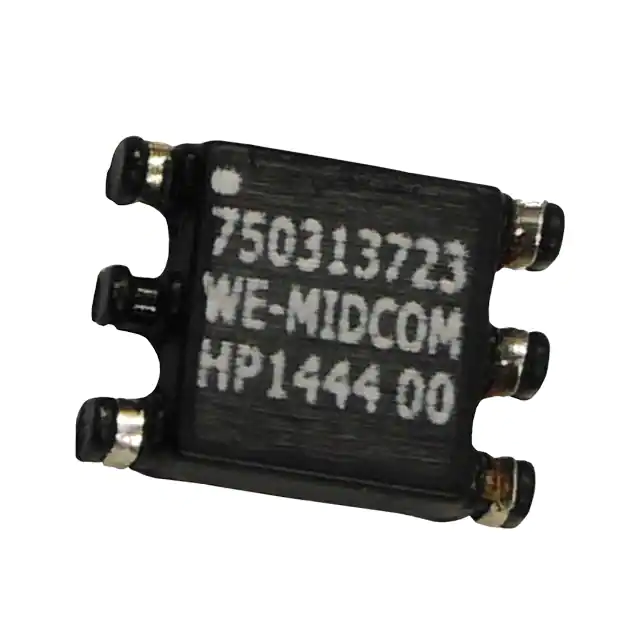

750313723 PWR XFMR 1:1 GATE-DRIVE 700UH Würth Elektronik	3,733	1.62	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	-	-	-
78601/2MC-R PULSE XFMR 1:1 500UH Murata Power Solutions Inc.	2,605	1.16	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	786	Not For New Designs	General Purpose	500µH	10VµS	1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78601/8JC-R PULSE XFMR 1:1 850UH Murata Power Solutions Inc.	3,481	2.79	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	786J	Active	General Purpose	850µH	15VµS	1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78602/16JC-R PULSE XFMR 1:1:1 3.35MH Murata Power Solutions Inc.	2,205	2.79	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	786J	Active	General Purpose	3.35mH	28VµS	1:1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78615/9JC-R PULSE XFMR 1CT:1CT 10MH Murata Power Solutions Inc.	2,584	2.79	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	786J	Active	General Purpose	10mH	56VµS	1CT:1CT	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78601/8JC PULSE XFMR 1:1 850UH Murata Power Solutions Inc.	2,306	1.57	RFQ	Datasheet	Tube	786J	Active	General Purpose	850µH	15VµS	1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78604/1JC PULSE XFMR 2:1 1.84MH Murata Power Solutions Inc.	2,625	1.57	RFQ	Datasheet	Tube	786J	Active	General Purpose	1.84mH	20VµS	2:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78615/4C PULSE XFMR 1CT:1CT 67UH Murata Power Solutions Inc.	3,481	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	67µH	4VµS	1CT:1CT	Through Hole	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78602/8C PULSE XFMR 1:1:1 1MH Murata Power Solutions Inc.	2,654	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	1mH	15VµS	1:1:1	Through Hole	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78601/4C PULSE XFMR 1:1 67UH Murata Power Solutions Inc.	3,478	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	67µH	4VµS	1:1	Through Hole	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78615/8JC PULSE XFMR 1CT:1CT 1MH Murata Power Solutions Inc.	2,394	1.57	RFQ	Datasheet	Tube	786J	Active	General Purpose	1mH	15VµS	1CT:1CT	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78615/16MC PULSE XFMR 1CT:1CT 4MH Murata Power Solutions Inc.	2,540	1.57	RFQ	Datasheet	Tube	786	Not For New Designs	General Purpose	4mH	28VµS	1CT:1CT	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78613/1C PULSE XFMR 1CT:1 2MH Murata Power Solutions Inc.	3,486	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	2mH	20VµS	1CT:1	Through Hole	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78601/4JC PULSE XFMR 1:1 58UH Murata Power Solutions Inc.	2,006	1.57	RFQ	Datasheet	Tube	786J	Active	General Purpose	58µH	4VµS	1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
