Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
76615/1C XFRMR 1CT:1CT 3200UH 45VUS D Murata Power Solutions Inc.	2,498	2.05	RFQ	Datasheet	Tube	766	Active	General Purpose	3.2mH	45VµS	1CT:1CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.260 (6.60mm)
76602/1C XFRMR 1:1:1 2060UH 17.5VUS C Murata Power Solutions Inc.	3,069	2.05	RFQ	Datasheet	Tube	766	Active	General Purpose	2.06mH	17.5VµS	1:1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.260 (6.60mm)
76601/3C XFRMR 1:1 219UH 5.5VUS B Murata Power Solutions Inc.	3,539	2.05	RFQ	Datasheet	Tube	766	Active	General Purpose	219µH	5.5VµS	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.260 (6.60mm)

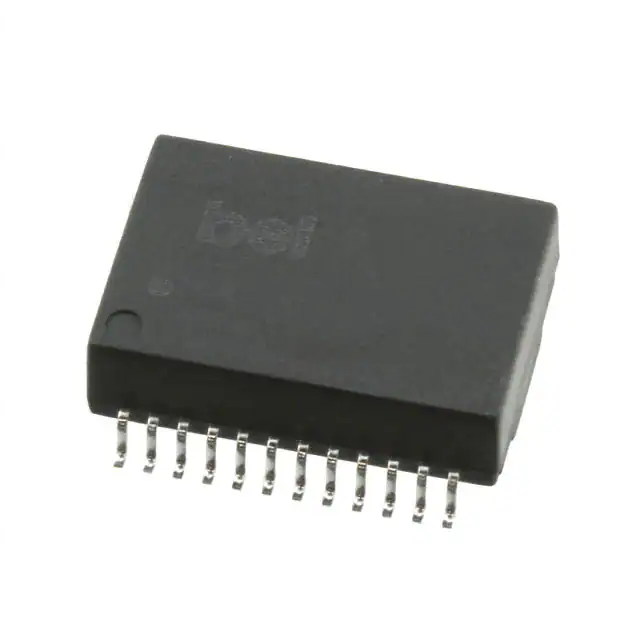

S558-5500-JD XFRMR LAN 2.5G 60W POE SMD Bel Fuse Inc.	1,140	2.67	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 2.5G Base-T, Power over Ethernet (PoE)	180µH	-	1CT:1CT	Surface Mount	0.690 L x 0.600 W (17.53mm x 15.24mm)	0.225 (5.71mm)
PH9185.021NLT TRANSFORMER 880UH 2:1 SMD Pulse Electronics Power	150	4.55	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9185	Active	-	-	-	-	Surface Mount	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.492 (12.50mm)

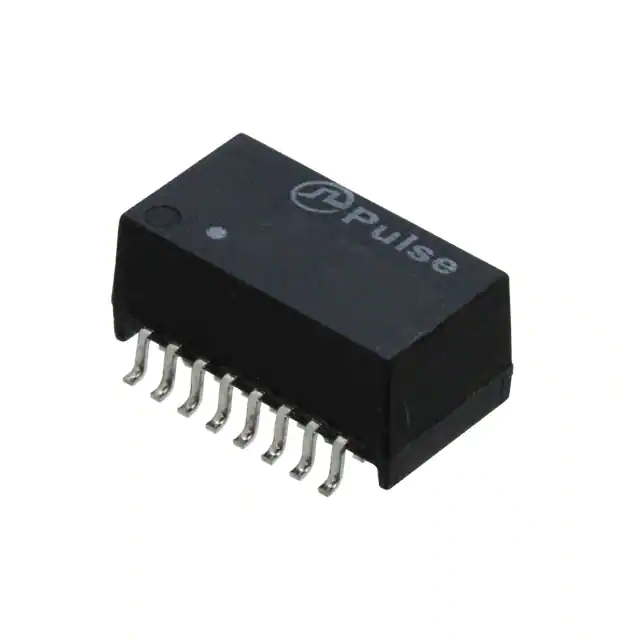

H1197NLT XFRMR MAGNT MOD 1PORT POE 10/100 Pulse Electronics Network	600	5.72	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.500 L x 0.265 W (12.70mm x 6.73mm)	0.245 (6.22mm)
H1183NLT XFRMR MAGNETIC 1PORT 1:1 10/100 Pulse Electronics Network	1,210	5.92	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)

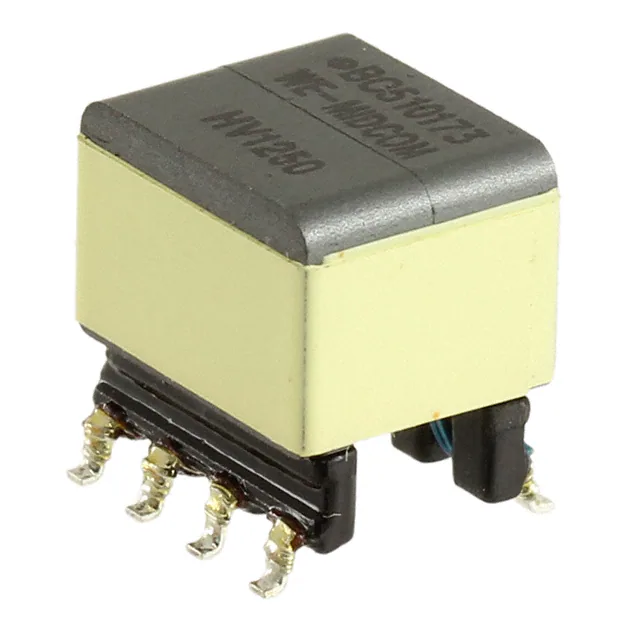

750510173 XFRM WE-DSL ISDN DAUGHTERBRD Würth Elektronik	3,849	5.06	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MID-DSLIKN	Active	VDSL	220µH	-	1:1	Surface Mount	0.385 L x 0.360 W (9.78mm x 9.14mm)	0.415 (10.54mm)
ILR-11-0001 ILR1 PULSE TRANSFORMER THT 1A SCHURTER Inc.	156	4.62	RFQ	Datasheet	Bulk	ILR	Active	SCR and Triac Trigger (Encapsulated)	2.5mH	300VµS	1:1	Through Hole	0.689 L x 0.728 W (17.50mm x 18.50mm)	0.453 (11.50mm)
23Z467SMNL TRANSFORMER 10BASE-T LAN 16SOIC Pulse Electronics Network	2,038	5.14	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	140µH	-	1CT:2CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.450 L x 0.265 W (11.43mm x 6.73mm)	0.215 (5.46mm)
760301305 XFRMR GATE DRIVE SMD Würth Elektronik	2,646	7.85	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-GDT	Active	Gate Drive	735µH	99VµS	1.5:1:1	Surface Mount	0.413 L x 0.413 W (10.50mm x 10.50mm)	0.433 (11.00mm)
77202C PULSE XFMR 1:1:1 1MH Murata Power Solutions Inc.	2,246	6.95	RFQ	Datasheet	Tube	-	Active	SCR and Triac Trigger (Encapsulated)	1mH	120VµS	1:1:1	Through Hole	1.000 L x 0.799 W (25.40mm x 20.30mm)	0.484 (12.30mm)
77205C PULSE XFMR 1:1:1 4MH Murata Power Solutions Inc.	3,112	6.95	RFQ	Datasheet	Tube	-	Active	SCR and Triac Trigger (Encapsulated)	4mH	240VµS	1:1:1	Through Hole	1.000 L x 0.799 W (25.40mm x 20.30mm)	0.484 (12.30mm)
77208C PULSE XFMR 1:1:1 16.3MH Murata Power Solutions Inc.	209	6.95	RFQ	Datasheet	Tube	-	Active	SCR and Triac Trigger (Encapsulated)	16.3mH	482VµS	1:1:1	Through Hole	1.000 L x 0.799 W (25.40mm x 20.30mm)	0.484 (12.30mm)
IT243 XFRMR PULSE 1:1:1 DL 2.5MH .1A Schaffner EMC Inc.	3,625	7.15	RFQ	Datasheet	Tray	IT	Active	Data/Voice Coupling	2.5mH	-	1:1:1	Through Hole	0.693 L x 0.657 W (17.60mm x 16.70mm)	0.445 (11.30mm)
PE-68515LNL XFRMR MODULE 1PORT 1:1 10/100B-T Pulse Electronics Network	1,214	7.56	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	1.000 L x 0.350 W (25.40mm x 8.89mm)	0.370 (9.40mm)
77203HVC PULSE XFMR 2:1:1 1MH Murata Power Solutions Inc.	2,790	7.99	RFQ	Datasheet	Tube	-	Active	SCR and Triac Trigger (Encapsulated)	1mH	120VµS	2:1:1	Through Hole	1.000 L x 0.799 W (25.40mm x 20.30mm)	0.484 (12.30mm)
G500 TRANSFORMER 5.0MH 1:1:1 PULSE Tamura	3,475	11.27	RFQ	Datasheet	Tube	G5	Active	Isolation and Data Interface (Encapsulated)	5mH	25VµS	1:1:1 Ter	Through Hole	0.350 L x 0.500 W (8.90mm x 12.70mm)	0.250 (6.35mm)
G508 TRANSFORMER 2.0MH 1CT:1CT PULSE Tamura	3,072	11.27	RFQ	Datasheet	Tube	G5	Active	Isolation and Data Interface (Encapsulated)	2mH	16VµS	1CT:1CT	Through Hole	0.350 L x 0.500 W (8.90mm x 12.70mm)	0.250 (6.35mm)

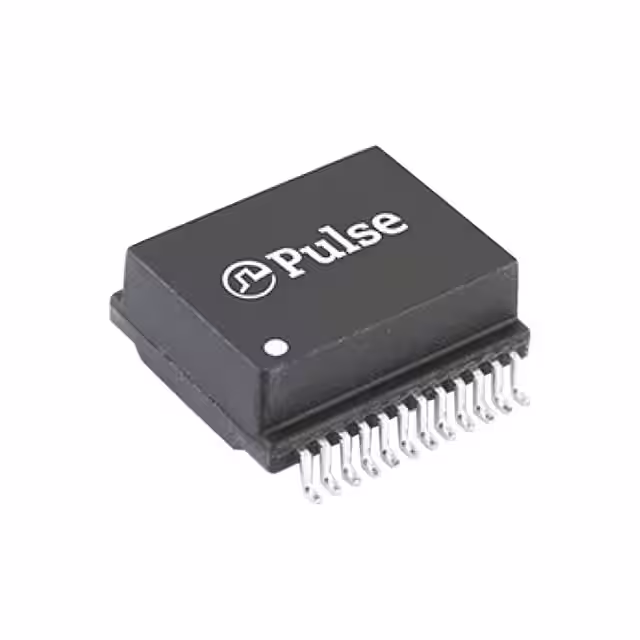

HDX8005NL MDL,SIN, HDBASET, 100W, SMT Pulse Electronics Network	240	11.73	RFQ	Datasheet	Tube	-	Active	HDBase-T	120µH	-	1:1	Surface Mount	-	0.225 (5.72mm)
