Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
ILR-11-0003 ILR3 IMPULSTRAFO KONVENTIONELL SCHURTER Inc.	2,503	4.62	RFQ	Datasheet	Bulk	ILR	Active	SCR and Triac Trigger (Encapsulated)	5mH	200VµS	3:1	Through Hole	0.689 L x 0.728 W (17.50mm x 18.50mm)	0.453 (11.50mm)
ILR-11-0002 ILR2 PULSE TRANSFORMER THT 1A SCHURTER Inc.	2,983	4.62	RFQ	Datasheet	Bulk	ILR	Active	Isolation and Data Interface (Encapsulated)	2.5mH	-	2:1	Through Hole	0.689 L x 0.728 W (17.50mm x 18.50mm)	0.453 (11.50mm)
ALAN-508 PULSE XFMR 1CT:1CT 350UH Abracon LLC	3,123	5.07	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.234 (5.95mm)
T60403D4721X005 GATE DRIVE TRANSFORMER PTH 2:1 2 VACUUMSCHMELZE	2,964	2.35	RFQ	Datasheet	Box	-	Active	Gate Drive	3.4mH	250VµS	2:1	Through Hole	0.701 L x 0.669 W (17.80mm x 17.00mm)	0.531 (13.50mm)
HM1238NL XFMR CMC MODULE AECQ BATT MNGT Pulse Electronics Network	2,361	5.08	RFQ	Datasheet	Tube	-	Active	-	300µH	-	1:1	Surface Mount	0.413 L x 0.330 W (10.50mm x 8.38mm)	0.167 (4.25mm)
T1114NLT XFRMR T1/E1/CEPT/ISDN-PRI 1:2CT Pulse Electronics Network	2,913	10.64	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	T1/E1 (Quad)	1.2mH, 1.2mH	-	1:2CT Transmitter, 1CT:2 Receiver	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)
G515 TRANSFORMER 0.20MH 2CT:1CT PULSE Tamura	3,483	11.27	RFQ	Datasheet	Tube	G5	Active	Isolation and Data Interface (Encapsulated)	200µH	5VµS	2CT:1CT	Through Hole	0.350 L x 0.500 W (8.90mm x 12.70mm)	0.250 (6.35mm)
H5G1002NL PULSE XFMR 180UH Pulse Electronics Network	2,184	11.35	RFQ	Datasheet	Tube	-	Active	-	180µH	-	-	Surface Mount	0.715 L x 0.480 W (18.16mm x 12.19mm)	0.260 (6.60mm)
GDE25-4 TRANSF .650 OHM DUAL GATE DRIVE Triad Magnetics	2,674	17.31	RFQ	Datasheet	Bulk	GDE25	Active	Gate Drive	1.5mH	840VµS	1.5:1:1	Through Hole	1.100 L x 1.040 W (27.94mm x 26.42mm)	1.200 (30.48mm)
HCTSM80101AAL-E1 XFMR 3.3-5V/3.3-15V,350MA PK TR Bourns Inc.	5,000	3.13	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HCT	Active	Isolation and Data Interface (Encapsulated)	250µH	11.0VµS	1:1	Surface Mount	0.484 L x 0.425 W (12.30mm x 10.80mm)	0.256 (6.50mm)

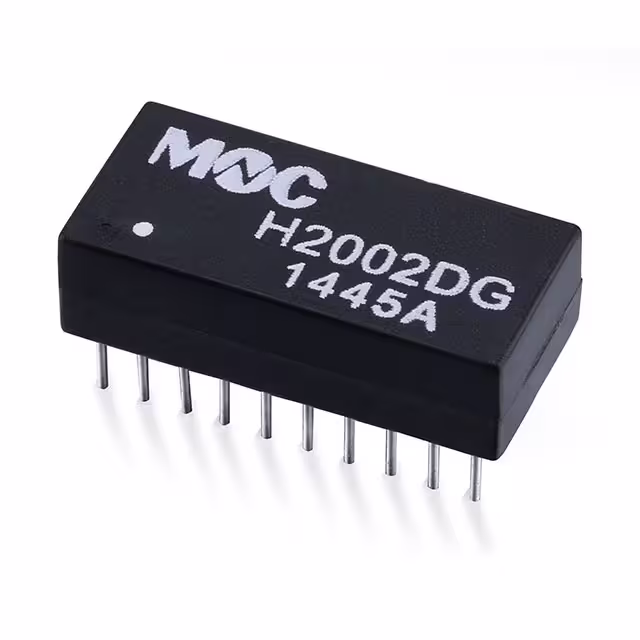

H2002DG DUAL LAN XFMR 10/100 BASE-T Mentech Technology USA Inc.	2,966	2.16	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Through Hole	0.854 L x 0.413 W (21.70mm x 10.50mm)	0.266 (6.75mm)
PM2155.045NLT XFMR PUSH-PULL SIDE CAR S NPB Pulse Electronics Power	900	3.81	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PM2155.XXXNLT	Active	Isolation and Data Interface (Encapsulated)	3.2mH	109VµS	4CT:5CT	Surface Mount	0.630 L x 0.591 W (16.00mm x 15.00mm)	0.295 (7.50mm)
ALANL100X1-EF10ET 10/100BASE-TX LAN XFMR Abracon LLC	2,924	4.69	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)

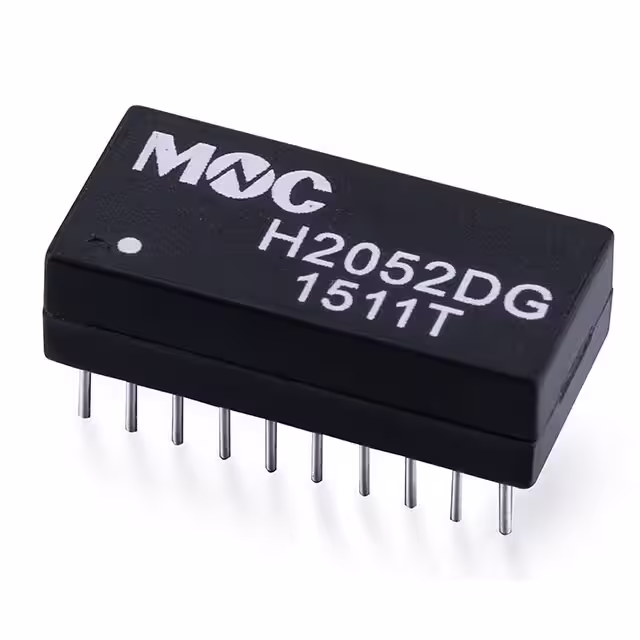

H2052DG DUAL LAN XFMR 10/100 BASE-T Mentech Technology USA Inc.	2,633	2.48	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Through Hole	0.854 L x 0.413 W (21.70mm x 10.50mm)	0.266 (6.75mm)
PH9185.083NLT TRANSFORMER 560UH 8:3 SMD Pulse Electronics Power	2,595	3.97	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9185	Active	-	-	-	-	Surface Mount	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.492 (12.50mm)
HM2108NLT MDL, SIN, XFMR-CMC, 1:1, 4.3KV Pulse Electronics Network	1,200	1200.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	135µH	-	1:1	Surface Mount	0.335 L x 0.524 W (8.50mm x 13.31mm)
HX5164NLT TRANS MOD 1G 70W POE SMD Pulse Electronics Network	2,205	5.72	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HX5164NL	Active	LAN 1000 Base-T, Power over Ethernet (PoE)	350µH	-	1:1	Surface Mount	-	0.340 (8.64mm)
ITNF-0249-D101 ITNF PULSE TRANSFORMER THT 0.1A SCHURTER Inc.	3,310	3.87	RFQ	Datasheet	Bulk	ITNF	Active	Isolation and Data Interface (Encapsulated)	1.4mH	-	1:1:1	Through Hole	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.512 (13.00mm)
PA2417NL PULSE XFMR 530UH Pulse Electronics Power	3,241	3.95	RFQ	Datasheet	Tray	-	Active	-	530µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
S558-5999-AA-F MODULE XFRMR LAN 10/100B-TX SMD Bel Fuse Inc.	1,280	7.07	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.100 L x 0.476 W (27.94mm x 12.09mm)	0.236 (5.99mm)
