Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
H5009FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	257	11.75	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.538 L x 0.726 W (13.67mm x 18.44mm)	0.231 (5.87mm)
H5400NL MODULE XFORMR QUAD GIGABIT SMD Pulse Electronics Network	720	22.29	RFQ	Datasheet	Tray	-	Active	-	-	-	1CT:1CT	Surface Mount	1.120 L x 0.680 W (28.45mm x 17.27mm)	0.438 (11.12mm)
Q1553-20 TRANSFORMER PBC iNRCORE, LLC	2,993	35.83	RFQ	Datasheet	Bulk	-	Active	MIL-STD-1553	-	-	1:1.41	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
78602/3JC PULSE XFMR 1:1:1 180UH Murata Power Solutions Inc.	2,212	1.57	RFQ	Datasheet	Tube	786J	Active	General Purpose	180µH	6VµS	1:1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78604/8C PULSE XFMR 2:1 1MH Murata Power Solutions Inc.	2,324	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	1mH	15VµS	2:1	Through Hole	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78602/4JC PULSE XFMR 1:1:1 53UH Murata Power Solutions Inc.	3,746	1.57	RFQ	Datasheet	Tube	786J	Active	General Purpose	53µH	4VµS	1:1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78601/4MC PULSE XFMR 1:1 67UH Murata Power Solutions Inc.	3,752	1.57	RFQ	Datasheet	Tube	786	Not For New Designs	General Purpose	67µH	4VµS	1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78602/2MC PULSE XFMR 1:1:1 500UH Murata Power Solutions Inc.	3,521	1.57	RFQ	Datasheet	Tube	786	Not For New Designs	General Purpose	500µH	10VµS	1:1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78613/1JC PULSE XFMR 1CT:1 2MH Murata Power Solutions Inc.	2,350	1.57	RFQ	Datasheet	Tube	786J	Active	General Purpose	2mH	20VµS	1CT:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78613/9C PULSE XFMR 1CT:1 10MH Murata Power Solutions Inc.	3,780	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	10mH	56VµS	1CT:1	Through Hole	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78613/9MC PULSE XFMR 1CT:1 10MH Murata Power Solutions Inc.	3,426	1.57	RFQ	Datasheet	Tube	786	Not For New Designs	General Purpose	10mH	56VµS	1CT:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)

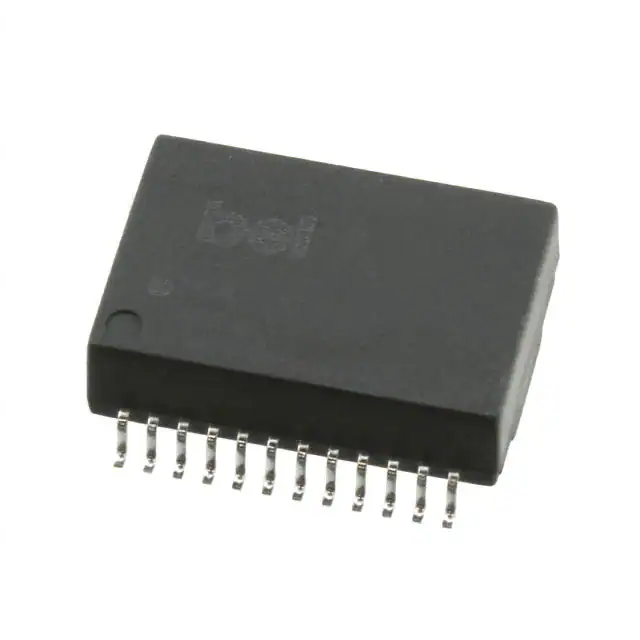

S558-5500-JV XFRMR LAN 5G 60W POE SMD Bel Fuse Inc.	3,185	3.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 5G Base-T, Power over Ethernet (PoE)	180µH	-	1CT:1CT	Surface Mount	0.690 L x 0.600 W (17.53mm x 15.24mm)	0.225 (5.71mm)
ITNA-0249-D104 ITNA PULSE TRANSFORMER THT 0.1A SCHURTER Inc.	2,875	3.20	RFQ	Datasheet	Bulk	IT	Active	SCR and Triac Trigger (Encapsulated)	3.5mH	300VµS	1:1	Through Hole	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.512 (13.00mm)
TX1089NLT XFRMR 1CT:1CT/1CT:1CT 1.2/1.2MH Pulse Electronics Network	3,399	5.52	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1CT, 1CT:1CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
IL-10-0002 IL7 PULSE TRANSFORMER THT SPEZ SCHURTER Inc.	2,822	3.48	RFQ	Datasheet	Bulk	IL	Active	SCR and Triac Trigger (Encapsulated)	16.5mH	200VµS	3:1:1	Through Hole	0.689 L x 0.728 W (17.50mm x 18.50mm)	0.453 (11.50mm)
ISNA-0249-D104 ISNA PULSE TRANSFORMER SMD 0.1A SCHURTER Inc.	3,998	3.73	RFQ	Datasheet	Bulk	IS	Active	SCR and Triac Trigger (Encapsulated)	3.5mH	300VµS	1:1	Surface Mount	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.532 (13.50mm)
B82806D0060A240 P300868 EFD20 POE TRANSFORMER EPCOS - TDK Electronics	3,556	6.13	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82806D	Active	-	-	-	-	Surface Mount	0.866 L x 1.181 W (22.00mm x 30.00mm)	-
ISNF-0249-D101 ISNF PULSE TRANSFORMER SMD 0.1A SCHURTER Inc.	3,486	4.12	RFQ	Datasheet	Bulk	IS	Active	SCR and Triac Trigger (Encapsulated)	1.4mH	250VµS	1:1:1	Surface Mount	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.532 (13.50mm)
IL-20-0001 IL5 PULSE TRANSFORMER THT 0.25A SCHURTER Inc.	2,636	4.36	RFQ	Datasheet	Bulk	IL	Active	SCR and Triac Trigger (Encapsulated)	3mH	300VµS	1:1:1	Through Hole	1.102 L x 0.906 W (28.00mm x 23.00mm)	0.571 (14.50mm)
ILR-10-0001 IL5 PULSE TRANSFORMER THT 0.25A SCHURTER Inc.	3,341	4.42	RFQ	Datasheet	Bulk	ILR	Active	SCR and Triac Trigger (Encapsulated)	500µH	150VµS	1:1:1	Through Hole	0.689 L x 0.728 W (17.50mm x 18.50mm)	0.453 (11.50mm)
