Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
AOZ7000 ACDC STR CORELESS PULSE TRANSFOR Alpha & Omega Semiconductor Inc.	2,665	0.29	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	50nH	-	3:10	Surface Mount	0.374 L x 0.217 W (9.50mm x 5.50mm)	0.078 (1.98mm)
ALANC10001-CDB3ET LAN SGL XFMR 8PIN Abracon LLC	2,349	0.43	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	200µH	-	1CT:1CT	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.138 (3.50mm)

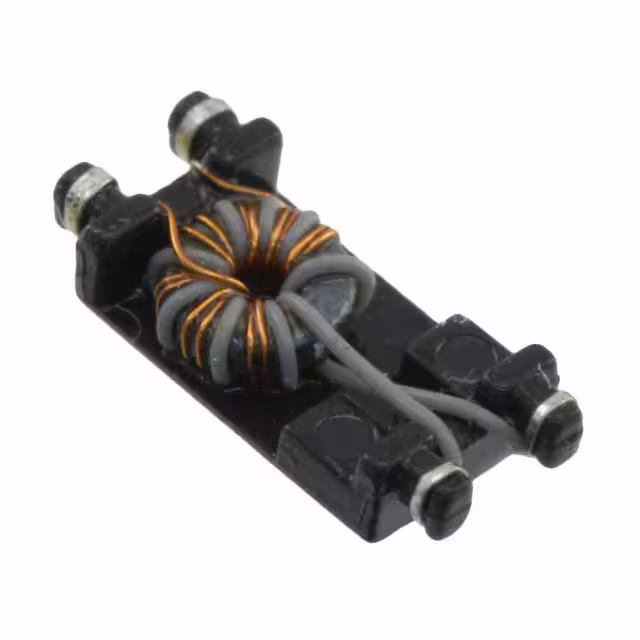

750110007 TRANS ANALOG MODE SMART DAA SMD Würth Elektronik	3,751	0.88	RFQ	Datasheet	Tape & Reel (TR)	WE-AMT, MID-DAA	Active	-	30µH	-	1.67:1	Surface Mount	0.173 L x 0.360 W (4.39mm x 9.14mm)	0.078 (1.98mm)
S554-6500-25-F PULSE XFMR 1:1 40UH 60UH 80UH Bel Fuse Inc.	3,710	0.88	RFQ		Bulk	-	Active	-	40µH, 60µH, 80µH	-	1:1	Surface Mount	0.300 L x 0.285 W (7.62mm x 7.24mm)	0.225 (5.72mm)
TC2500 TRANSFORMER LAN 2.5GB PHY Pulse Electronics Network	3,295	0.97	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PulseChip™	Active	LAN 2.5G Base-T	180µH	-	1:1	Surface Mount	0.185 L x 0.134 W (4.70mm x 3.40mm)	0.118 (3.00mm)
TC1000 TRANSFORMER LAN 1GB PHY Pulse Electronics Network	3,346	0.98	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PulseChip™	Active	LAN 1000 Base-T	200µH	-	1:1	Surface Mount	0.185 L x 0.134 W (4.70mm x 3.40mm)	0.118 (3.00mm)
TC5000 TRANSFORMER LAN 5GB PHY Pulse Electronics Network	2,845	0.99	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PulseChip™	Active	LAN 5G Base-T	180µH	-	1:1	Surface Mount	0.185 L x 0.134 W (4.70mm x 3.40mm)	0.118 (3.00mm)
POE012-EP13120S POE TRANSFORMER, 12W, EP13, 127U Bourns Inc.	2,189	1.00	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
TC2500P TRANSFORMER LAN 2.5GB PHY POE Pulse Electronics Network	2,407	1.02	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PulseChip™	Active	LAN 2.5G Base-T, Power over Ethernet (PoE)	180µH	-	1:1	Surface Mount	0.185 L x 0.134 W (4.70mm x 3.40mm)	0.118 (3.00mm)

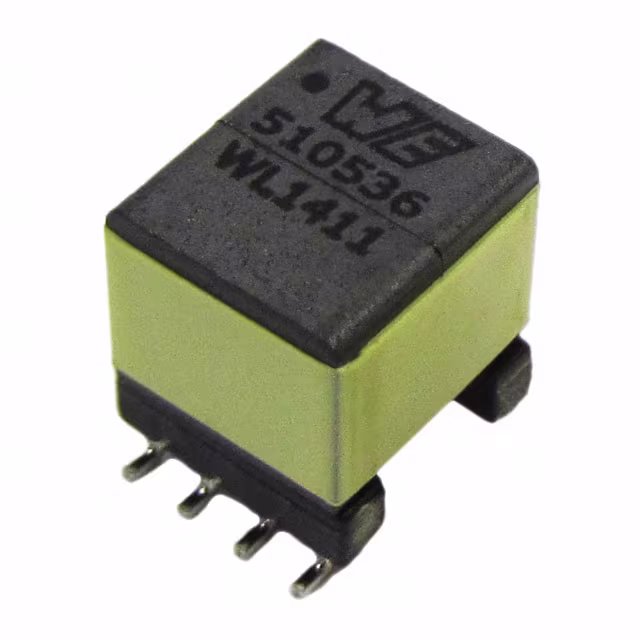

750510536 WE-DSL TRANSFORMER Würth Elektronik	3,471	1.03	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MID-DSLITL	Active	ADSL	1.44mH	-	1.31:1	Surface Mount	0.310 L x 0.355 W (7.87mm x 9.02mm)	0.400 (10.16mm)
TC5000P TRANSFORMER LAN 5GB PHY POE Pulse Electronics Network	2,132	1.04	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PulseChip™	Active	LAN 5G Base-T, Power over Ethernet (PoE)	180µH	-	1:1	Surface Mount	0.185 L x 0.134 W (4.70mm x 3.40mm)	0.118 (3.00mm)

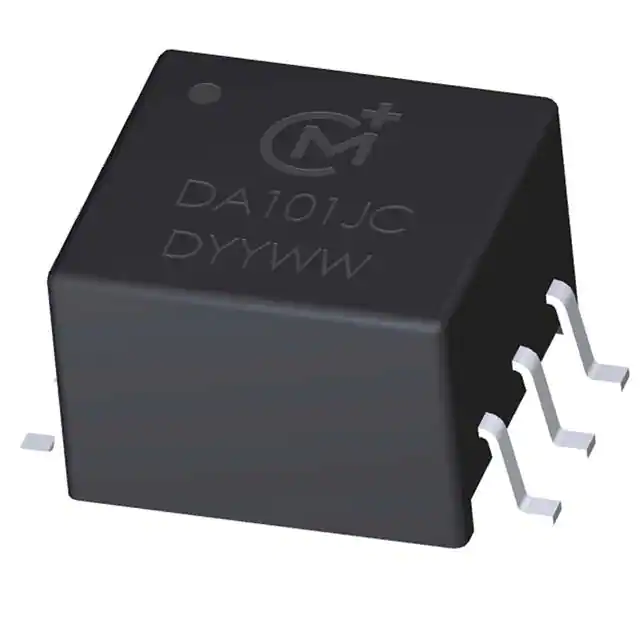

DA103JC-R DIGITAL AUDIO TX 1:1 5MH DIP Murata Power Solutions Inc.	2,247	1.12	RFQ	Datasheet	Bulk	DA100J	Active	-	7.75mH	28VµS	1:1	Surface Mount	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)

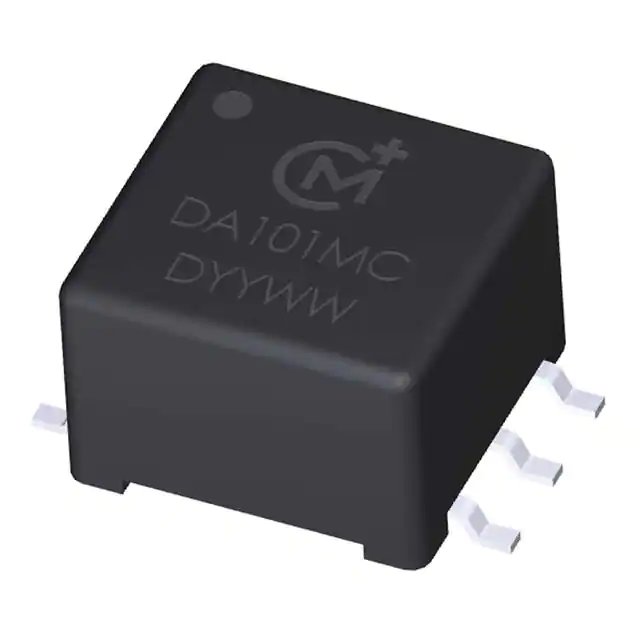

DA103MC-R DIGITAL AUDIO TX 1:1 5MH SMD Murata Power Solutions Inc.	2,839	1.12	RFQ	Datasheet	Bulk	DA100	Not For New Designs	-	7.75mH	28VµS	1:1	Surface Mount	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
TC10000P TRANSFORMER LAN 10GB PHY POE Pulse Electronics Network	3,453	1.15	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PulseChip™	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	1:1	Surface Mount	0.185 L x 0.134 W (4.70mm x 3.40mm)	0.120 (3.04mm)

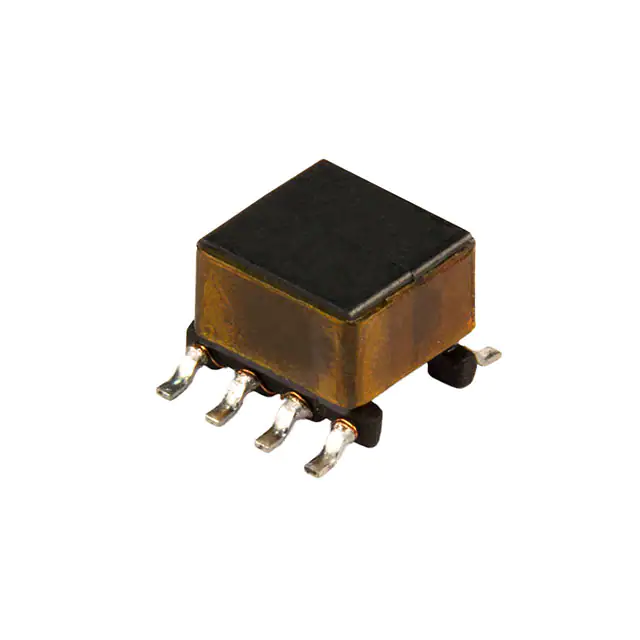

SM51430EL TRANSFORMER G FAST 8SMD Bourns Inc.	2,751	1.20	RFQ	Datasheet	Tape & Reel (TR)	SM	Active	LAN	10µH	-	1:1	Surface Mount	0.299 L x 0.197 W (7.60mm x 5.00mm)	0.209 (5.30mm)
ALANS100X1-2F30ET LAN SGL 100B XFMR&SRDCMC 12PIN Abracon LLC	3,393	1.26	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
TC10000 TRANSFORMER LAN 10GB PHY Pulse Electronics Network	2,715	1.04	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PulseChip™	Active	LAN 10G Base-T	120µH	-	1:1	Surface Mount	0.185 L x 0.134 W (4.70mm x 3.40mm)	0.120 (3.04mm)

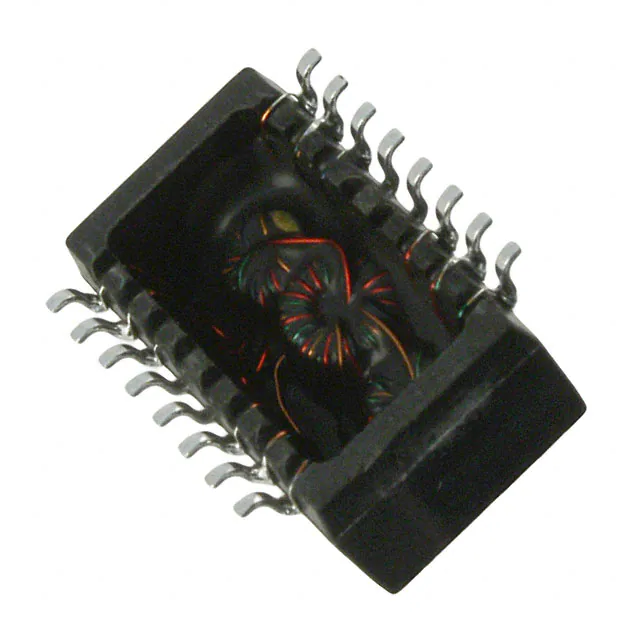

S553-5999-86-F MODULE XFRMR LAN 10B-T SMD Bel Fuse Inc.	3,393	1.09	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10 Base-T	110µH	-	1CT:2CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.285 W (12.70mm x 7.24mm)	0.225 (5.72mm)
ALANS100X1-2F30DT LAN SGL 100B XFMR&SRDCMC 12PIN Abracon LLC	2,821	1.17	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
ALANS100X1-2F02DT LAN SGL 100B XFMR&CMC 16PIN Abracon LLC	3,927	1.17	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
