Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
78613/1MC-R PULSE XFMR 1CT:1 2MH Murata Power Solutions Inc.	3,389	1.24	RFQ	Datasheet	Tape & Reel (TR)	786	Not For New Designs	General Purpose	2mH	20VµS	1CT:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78613/2JC-R PULSE XFMR 1CT:1 490UH Murata Power Solutions Inc.	3,809	1.24	RFQ	Datasheet	Tape & Reel (TR)	786J	Active	General Purpose	490µH	10VµS	1CT:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78613/2MC-R PULSE XFMR 1CT:1 500UH Murata Power Solutions Inc.	2,876	1.24	RFQ	Datasheet	Tape & Reel (TR)	786	Not For New Designs	General Purpose	500µH	10VµS	1CT:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78613/3JC-R PULSE XFMR 1CT:1 190UH Murata Power Solutions Inc.	2,955	1.24	RFQ	Datasheet	Tape & Reel (TR)	786J	Active	General Purpose	190µH	6VµS	1CT:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78613/3MC-R PULSE XFMR 1CT:1 200UH Murata Power Solutions Inc.	2,146	1.24	RFQ	Datasheet	Tape & Reel (TR)	786	Not For New Designs	General Purpose	200µH	6VµS	1CT:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78613/4JC-R PULSE XFMR 1CT:1 50UH Murata Power Solutions Inc.	3,866	1.24	RFQ	Datasheet	Tape & Reel (TR)	786J	Active	General Purpose	50µH	4VµS	1CT:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78613/4MC-R PULSE XFMR 1CT:1 67UH Murata Power Solutions Inc.	2,893	1.24	RFQ	Datasheet	Tape & Reel (TR)	786	Not For New Designs	General Purpose	67µH	4VµS	1CT:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78613/8JC-R PULSE XFMR 1CT:1 980UH Murata Power Solutions Inc.	2,864	1.24	RFQ	Datasheet	Tape & Reel (TR)	786J	Active	General Purpose	980µH	15VµS	1CT:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78613/8MC-R PULSE XFMR 1CT:1 1MH Murata Power Solutions Inc.	3,643	1.24	RFQ	Datasheet	Tape & Reel (TR)	786	Not For New Designs	General Purpose	1mH	15VµS	1CT:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78613/9MC-R PULSE XFMR 1CT:1 10MH Murata Power Solutions Inc.	3,622	1.24	RFQ	Datasheet	Tape & Reel (TR)	786	Not For New Designs	General Purpose	10mH	56VµS	1CT:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78615/16JC-R PULSE XFMR 1CT:1CT 3.7MH Murata Power Solutions Inc.	3,181	1.24	RFQ	Datasheet	Tape & Reel (TR)	786J	Active	General Purpose	3.7mH	28VµS	1CT:1CT	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78604/16MC PULSE XFMR 2:1 4MH Murata Power Solutions Inc.	3,039	1.50	RFQ	Datasheet	Tube	786	Not For New Designs	General Purpose	4mH	28VµS	2:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78604/1C PULSE XFMR 2:1 2MH Murata Power Solutions Inc.	3,654	1.50	RFQ	Datasheet	Tube	786	Active	General Purpose	2mH	20VµS	2:1	Through Hole	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78604/1MC PULSE XFMR 2:1 2MH Murata Power Solutions Inc.	3,151	1.50	RFQ	Datasheet	Tube	786	Not For New Designs	General Purpose	2mH	20VµS	2:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78604/2MC PULSE XFMR 2:1 500UH Murata Power Solutions Inc.	2,793	1.50	RFQ	Datasheet	Tube	786	Not For New Designs	General Purpose	500µH	10VµS	2:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78604/3MC PULSE XFMR 2:1 200UH Murata Power Solutions Inc.	2,513	1.50	RFQ	Datasheet	Tube	786	Not For New Designs	General Purpose	200µH	6VµS	2:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
PA1370NL PULSE XFMR 20.4UH Pulse Electronics Power	2,186	2.05	RFQ	Datasheet	Tray	-	Active	-	20.4µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA2466NLT PULSE XFMR 37UH Pulse Electronics Power	3,392	2.05	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	37µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
TS8121AM HF MDL 10/100 SINGLE PORT POE+ 30W Pulse Electronics Network	2,403	2.06	RFQ		Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)

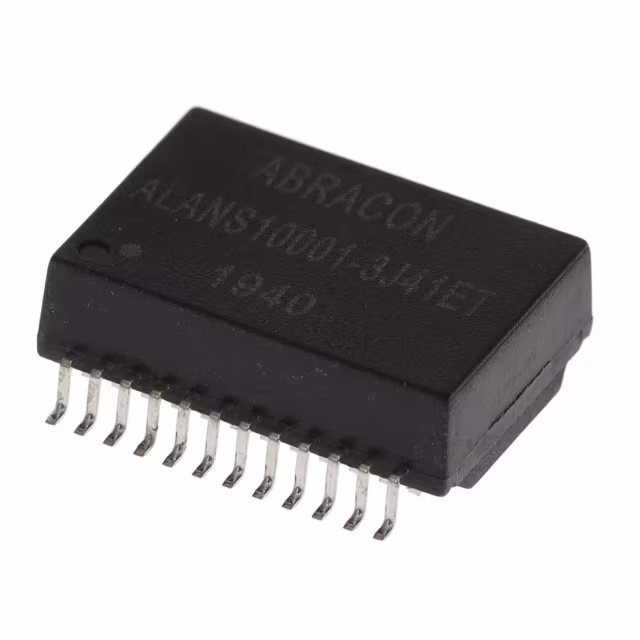

ALANS10001-3J41ET LAN SGL 1000B XFMR&CMC&AUTO 24PI Abracon LLC	3,836	2.17	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	-	0.254 (6.45mm)
