Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
PM2185.038NLT XFMR GATE-DR 3CT:8CT SM NPB Pulse Electronics Power	3,398	0.00	RFQ	Datasheet	Tape & Reel (TR)	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	538µH	27VµS	3CT:8CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)
PM2185.043NLT XFMR GATE-DR 4CT:3CT SM NPB Pulse Electronics Power	3,509	0.00	RFQ	Datasheet	Tape & Reel (TR)	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	538µH	24VµS	4CT:3CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)
PM2185.035NLT XFMR GATE-DR 3CT:5CT SM NPB Pulse Electronics Power	3,352	0.00	RFQ	Datasheet	Tape & Reel (TR)	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	680µH	27VµS	3CT:5CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)
PM2185.021NLT XFMR GATE-DR 2CT:1CT SM NPB Pulse Electronics Power	2,230	0.00	RFQ	Datasheet	Tape & Reel (TR)	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	538µH	24VµS	2CT:1CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)
PM2185.083NLT XFMR GATE-DR 8CT:3CT SM NPB Pulse Electronics Power	3,094	0.00	RFQ	Datasheet	Tape & Reel (TR)	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	538µH	24VµS	8CT:3CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)
PA2004NLT PULSE XFMR 1:1:1 437UH Pulse Electronics Power	2,782	1.39	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	437µH	20VµS	1:1:1	Surface Mount	0.340 L x 0.265 W (8.64mm x 6.73mm)	0.140 (3.56mm)
PH9085.089NLT XFMR GATE-DR 8CT:9CT SM NPB Pulse Electronics Power	2,626	1.39	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
TLA-3T106LF TRANSFORMR LAN 1:1TR 130UH 16SOP TDK Corporation	2,784	1.44	RFQ	Datasheet	Tray	TLA	Active	LAN	130µH	-	1:1	Surface Mount	0.457 L x 0.268 W (11.60mm x 6.80mm)	0.232 (5.90mm)
POE030-PD13050S POE TRANSFORMER, 30W, EPD13,70UH Bourns Inc.	2,041	1.47	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
POE070-PD13050S POE TRANSFORMER, 70W, EPD13,100U Bourns Inc.	3,856	1.47	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
POE025-PD13120S POE TRANSFORMER, 25W, EPD13,80UH Bourns Inc.	3,155	1.47	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
S553-5999-52-F PULSE XFMR 2CT:1CT TX/1CT:1CT RX Bel Fuse Inc.	2,207	1.47	RFQ	Datasheet	Bulk	-	Active	LAN 10G Base-T	28µH, 110µH	-	2CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.285 W (12.70mm x 7.24mm)	0.225 (5.72mm)
G1PM109RN LF MDL 1G DIP SINGLE PORT N/A Pulse Electronics Network	3,572	1.49	RFQ		Tube	-	Active	-	-	-	-	-	-	-

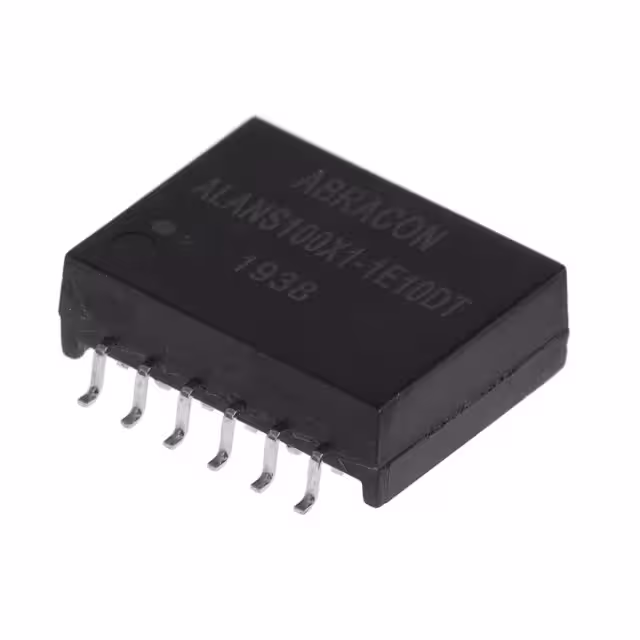

ALANS100X1-1E10DT LAN SGL 100B XFMR&CMC 12PIN Abracon LLC	3,237	1.58	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.197 (5.00mm)
ALANS100X1-1E30DT LAN SGL 100B XFMR&SRDCMC 12PIN Abracon LLC	3,468	1.58	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.197 (5.00mm)
ALANS100X1-1E00DT LAN SGL 100B XFMR&CMC 12PIN Abracon LLC	3,629	1.58	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.197 (5.00mm)
ALANS100X1-1E02DT LAN SGL 100B XFMR&CMC 12PIN Abracon LLC	3,743	1.58	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.197 (5.00mm)
78615/16C TRANSFORMER 1CT:1CT 4MH 28VUS Murata Power Solutions Inc.	3,826	1.50	RFQ	Datasheet	Tube	786	Active	General Purpose	4mH	28VµS	1CT:1CT	Through Hole	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78602/16C TRANSFORMER 2:1 5000UH 28VUS Murata Power Solutions Inc.	3,903	1.50	RFQ	Datasheet	Bulk	786	Active	General Purpose	4mH	28VµS	1:1:1	Through Hole	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78601/16MC PULSE XFMR 1:1 4MH Murata Power Solutions Inc.	2,036	1.50	RFQ	Datasheet	Tube	786	Not For New Designs	General Purpose	4mH	28VµS	1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
