Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
PM2180.021NLT XFMR GATE-DR 2CT:1CT SM NPB Pulse Electronics Power	3,095	0.00	RFQ	Datasheet	Tape & Reel (TR)	PM2180.XXXNL	Active	Isolation and Data Interface (Encapsulated)	1.16mH	23.6VµS	2CT:1CT	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
ALANS100X1-2F82DT LAN SGL 100B XFMR&CMC&AUTO 12PIN Abracon LLC	2,655	1.40	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
ALANS100X1-2F82ET LAN SGL 100B XFMR&CMC&AUTO 12PIN Abracon LLC	3,990	1.42	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
ALANS100X1-1E82ET LAN SGL 100B XFMR&CMC&AUTO 12PIN Abracon LLC	3,984	1.44	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.197 (5.00mm)
PM2180.034NL XFMR GATE-DR 3CT:4CT SM NPB Pulse Electronics Power	3,949	1.39	RFQ	Datasheet	Tray	*	Active	Isolation and Data Interface (Encapsulated)	1.02mH	22VµS	3:4CT	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
PM2180.083NL XFMR GATE-DR 8CT:3CT SM NPB Pulse Electronics Power	3,796	1.39	RFQ	Datasheet	Tray	*	Active	Isolation and Data Interface (Encapsulated)	1.16mH	23.6VµS	8:3CT	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
PM2180.021NL XFMR GATE-DR 2CT:1CT SM NPB Pulse Electronics Power	3,130	1.39	RFQ	Datasheet	Tray	*	Active	Isolation and Data Interface (Encapsulated)	1.16mH	23.6VµS	2:1CT	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
PM2180.011NL XFMR GATE-DR 1CT:1CT SM NPB Pulse Electronics Power	2,264	1.39	RFQ	Datasheet	Tray	*	Active	Isolation and Data Interface (Encapsulated)	1.02mH	22VµS	1:1CT	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
PM2180.038NL XFMR GATE-DR 3CT:8CT SM NPB Pulse Electronics Power	3,931	1.39	RFQ	Datasheet	Tray	*	Active	Isolation and Data Interface (Encapsulated)	1.02mH	22VµS	3:8CT	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
PM2180.012NL XFMR GATE-DR 1CT:2CT SM NPB Pulse Electronics Power	2,863	1.39	RFQ	Datasheet	Tray	*	Active	Isolation and Data Interface (Encapsulated)	1.02mH	22VµS	1:2CT	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
PM2180.043NL XFMR GATE-DR 4CT:3CT SM NPB Pulse Electronics Power	2,520	1.39	RFQ	Datasheet	Tray	*	Active	Isolation and Data Interface (Encapsulated)	1.16mH	23.6VµS	4:3CT	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
PM2180.035NL XFMR GATE-DR 3CT:5CT SM NPB Pulse Electronics Power	2,012	1.39	RFQ	Datasheet	Tray	*	Active	Isolation and Data Interface (Encapsulated)	1.02mH	22VµS	3:5CT	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
PM2180.089NL XFMR GATE-DR 8CT:9CT SM NPB Pulse Electronics Power	2,498	1.39	RFQ	Datasheet	Tray	*	Active	Isolation and Data Interface (Encapsulated)	1.16mH	23.6VµS	8:9CT	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
PH9384.011NL XFMR GATE-DR 1CT:1T SMT NPB Pulse Electronics Power	2,456	0.00	RFQ	Datasheet	Tube	-	Active	-	-	-	-	Surface Mount	-	0.299 (7.60mm)
PH9384.021NL XFMR GATE-DR 2CT:1CT SM NPB Pulse Electronics Power	2,783	0.00	RFQ	Datasheet	Tube	-	Active	-	-	-	-	Surface Mount	-	0.299 (7.60mm)
PH9384.034NL XFMR GATE-DR 3CT:4CT SM NPB Pulse Electronics Power	2,550	0.00	RFQ	Datasheet	Tube	-	Active	-	-	-	-	Surface Mount	-	0.299 (7.60mm)
PH9384.083NL XFMR GATE-DR 8CT:3CT SM NPB Pulse Electronics Power	2,402	0.00	RFQ	Datasheet	Tube	-	Active	-	-	-	-	Surface Mount	-	0.299 (7.60mm)
PH9384.089NL XFMR GATE-DR 8CT:9CT SM NPB Pulse Electronics Power	2,357	0.00	RFQ	Datasheet	Tube	-	Active	-	-	-	-	Surface Mount	-	0.299 (7.60mm)

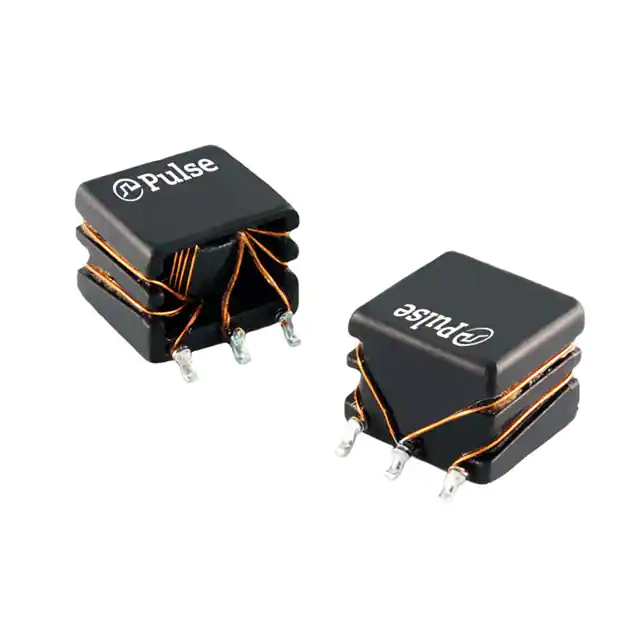

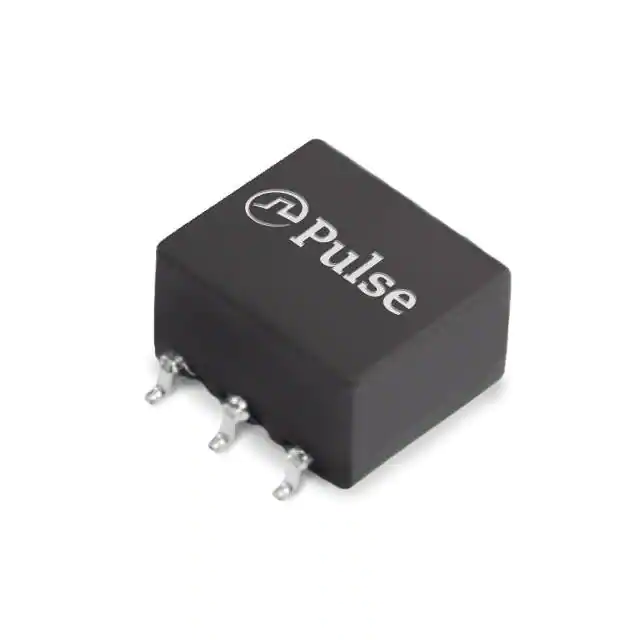

PM2185.012NLT XFMR GATE-DR 1CT:2CT SM NPB Pulse Electronics Power	2,580	0.00	RFQ	Datasheet	Tape & Reel (TR)	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	538µH	24VµS	1CT:2CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)
PM2185.089NLT XFMR GATE-DR 8CT:9CT SM NPB Pulse Electronics Power	3,827	0.00	RFQ	Datasheet	Tape & Reel (TR)	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	538µH	24VµS	8CT:9CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)
