Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
78615/2MC PULSE XFMR 1CT:1CT 500UH Murata Power Solutions Inc.	2,710	1.50	RFQ	Datasheet	Tube	786	Not For New Designs	General Purpose	500µH	10VµS	1CT:1CT	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78615/3MC PULSE XFMR 1CT:1CT 200UH Murata Power Solutions Inc.	2,354	1.50	RFQ	Datasheet	Tube	786	Not For New Designs	General Purpose	200µH	6VµS	1CT:1CT	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78615/4JC PULSE XFMR 1CT:1CT 65UH Murata Power Solutions Inc.	3,640	1.50	RFQ	Datasheet	Tube	786J	Active	General Purpose	65µH	4VµS	1CT:1CT	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78615/4MC PULSE XFMR 1CT:1CT 67UH Murata Power Solutions Inc.	3,138	1.50	RFQ	Datasheet	Tube	786	Not For New Designs	General Purpose	67µH	4VµS	1CT:1CT	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78615/9MC PULSE XFMR 1CT:1CT 10MH Murata Power Solutions Inc.	2,769	1.50	RFQ	Datasheet	Tube	786	Not For New Designs	General Purpose	10mH	56VµS	1CT:1CT	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
20PT1024RX LF MDL LAN 10/100BT DIP Pulse Electronics Network	2,430	1.54	RFQ		Tube	-	Active	-	-	-	-	-	-	-

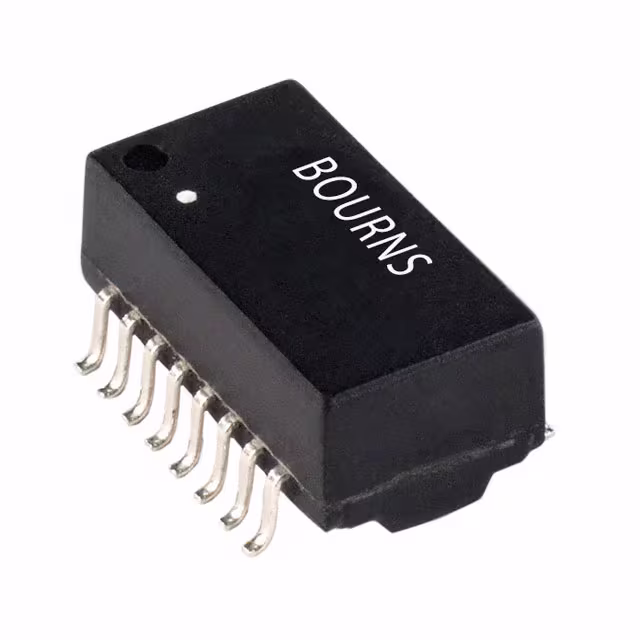

SM75056PEL PULSE XFMR 1:1 TX 1:1 RX 1.2MH Bourns Inc.	3,842	1.55	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	1.2mH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
APT-106 LAN XFRMR 10/100 1PORT EXT-TEMP Abracon LLC	3,922	1.66	RFQ	Datasheet	Tube	*	Active	-	-	-	-	-	-	-
APT-106-T LAN XFRMR 10/100 1PORT EXT-TEMP Abracon LLC	2,085	1.66	RFQ	Datasheet	Tape & Reel (TR)	*	Active	-	-	-	-	-	-	-
PM2185.011NL XFMR GATE DRIVE SIDE CAR NPB Pulse Electronics Power	2,659	1.58	RFQ	Datasheet	Tray	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	538µH	24VµS	1:1CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)
PM2185.012NL XFMR GATE DRIVE SIDE CAR NPB Pulse Electronics Power	3,038	1.58	RFQ	Datasheet	Tray	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	538µH	24VµS	1:2CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)

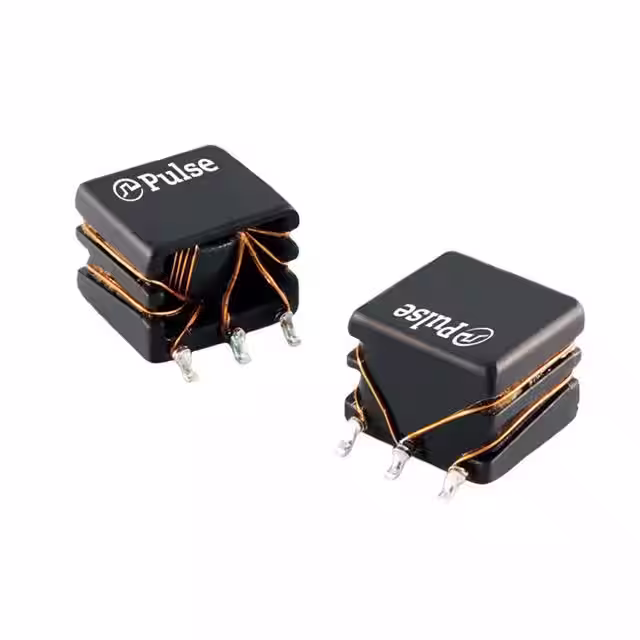

PM2185.021NL XFMR GATE DRIVE SIDE CAR NPB Pulse Electronics Power	3,215	1.58	RFQ	Datasheet	Tray	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	538µH	24VµS	2:1CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)
PM2185.043NL XFMR GATE DRIVE SIDE CAR NPB Pulse Electronics Power	2,958	1.58	RFQ	Datasheet	Tray	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	538µH	24VµS	4:3CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)
PM2185.083NL XFMR GATE DRIVE SIDE CAR NPB Pulse Electronics Power	3,148	1.58	RFQ	Datasheet	Tray	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	538µH	24VµS	8:3CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)
PM2185.034NL XFMR GATE DRIVE SIDE CAR NPB Pulse Electronics Power	2,867	1.58	RFQ	Datasheet	Tray	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	680µH	27VµS	3:4CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)
PM2185.038NL XFMR GATE DRIVE SIDE CAR NPB Pulse Electronics Power	2,889	1.58	RFQ	Datasheet	Tray	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	538µH	27VµS	3:8CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)
PM2185.035NL XFMR GATE DRIVE SIDE CAR NPB Pulse Electronics Power	3,843	1.58	RFQ	Datasheet	Tray	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	680µH	27VµS	3:5CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)
PM2185.089NL XFMR GATE DRIVE SIDE CAR NPB Pulse Electronics Power	2,549	1.58	RFQ	Datasheet	Tray	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	538µH	24VµS	8:9CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)
POE025-PD13050S POE TRANSFORMER, 25W, EPD13,65UH Bourns Inc.	3,214	1.58	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
POE025-FD20050S POE TRANSFORMER, 25W, EFD20,70UH Bourns Inc.	2,424	1.58	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
