Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
ALAN-2201-T PULSE XFMR 1CT:1CT 350UH Abracon LLC	2,756	1.94	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.234 (5.95mm)
23Z81SMNL PULSE XFMR 1:1:1 85UH Pulse Electronics Network	3,024	0.00	RFQ	Datasheet	Tube	-	Obsolete	-	85µH	2.5VµS	1:1:1	Surface Mount	0.450 L x 0.265 W (11.43mm x 6.73mm)	0.215 (5.46mm)
POE060-FD20120S POE TRANSFORMER, 60W, EFD20,100U Bourns Inc.	2,851	1.87	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
POE012-EP13033S POE TRANSFORMER, 12W, EP13, 133U Bourns Inc.	3,185	1.87	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
BX4512LNLT XFMR G.FAST 1:1 212MHZ 10UH Pulse Electronics Network	3,372	1.88	RFQ		Tape & Reel (TR)	-	Last Time Buy	-	-	-	-	-	-	-
PA3948.001NL PULSE XFMR 32UH 40UH Pulse Electronics Power	3,306	1.88	RFQ	Datasheet	Tray	-	Active	-	32µH, 40µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA3948.002NL PULSE XFMR 32UH 40UH Pulse Electronics Power	2,412	1.88	RFQ	Datasheet	Tray	-	Active	-	32µH, 40µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA3948.003NL PULSE XFMR 32UH 40UH Pulse Electronics Power	2,141	1.88	RFQ	Datasheet	Tray	-	Active	-	32µH, 40µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA3948.004NL PULSE XFMR 32UH 40UH Pulse Electronics Power	3,471	1.88	RFQ	Datasheet	Tray	-	Active	-	32µH, 40µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA3948.005NL PULSE XFMR 32UH 40UH Pulse Electronics Power	2,933	1.88	RFQ	Datasheet	Tray	-	Active	-	32µH, 40µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA3948.006NL PULSE XFMR 32UH 40UH Pulse Electronics Power	2,252	1.88	RFQ	Datasheet	Tray	-	Active	-	32µH, 40µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
MGPWT-00407-P EP13 XFRMR SMD JL 10 PIN TE Connectivity AMP Connectors	2,458	1.88	RFQ		Tape & Reel (TR)	*	Active	-	-	-	-	-	-	-

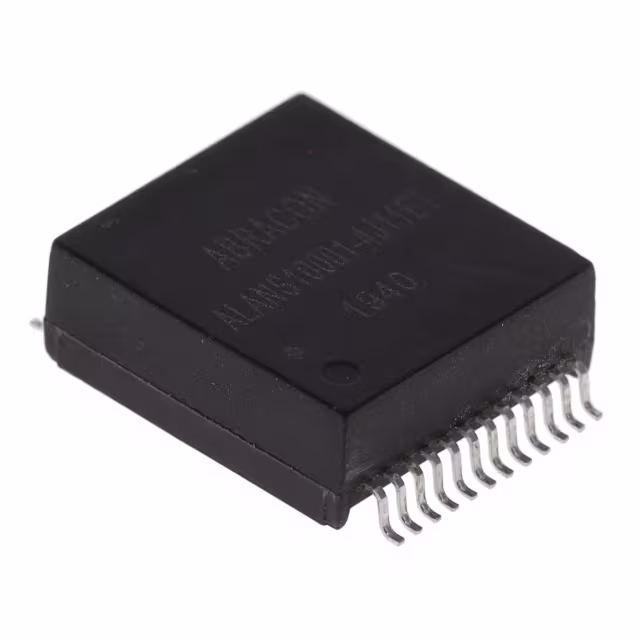

ALANS10001-4J11ET LAN SGL 1000B XFMR&CMC 24PIN Abracon LLC	3,537	2.02	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	-	0.225 (5.72mm)
BX4512LNL XFMR G.FAST 1:1 212MHZ 10UH Pulse Electronics Network	2,311	1.93	RFQ		Tray	-	Last Time Buy	-	-	-	-	-	-	-
ALANS10001-4J61ET LAN SGL 1000B XFMR&CMC 24PIN Abracon LLC	2,941	2.05	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	-	0.225 (5.72mm)

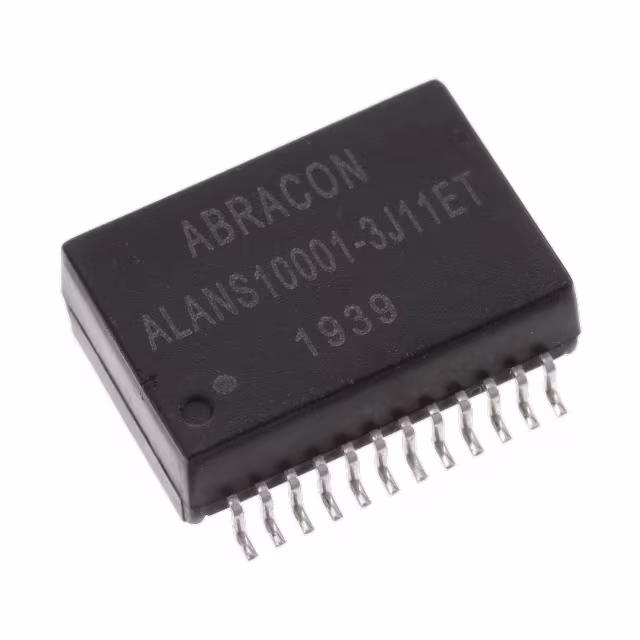

ALANS10001-3J11ET LAN SGL 1000B XFMR&CMC 24PIN Abracon LLC	3,776	2.08	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	-	0.254 (6.45mm)
ALANS10001-4J41ET LAN SGL 1000B XFMR&CMC&AUTO 24PI Abracon LLC	2,053	2.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	-	0.225 (5.72mm)
PA1576NL PULSE XFMR 230.4UH Pulse Electronics Power	2,941	2.00	RFQ	Datasheet	Tray	-	Active	-	230.4µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA1370NLT XFRMR 3.3V 10W 20.4UH POE EP10 Pulse Electronics Power	2,543	2.01	RFQ	Datasheet	Tape & Reel (TR)	EP10	Active	Isolation and Data Interface (Encapsulated)	20.4µH	-	1:0.444:0.388	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)

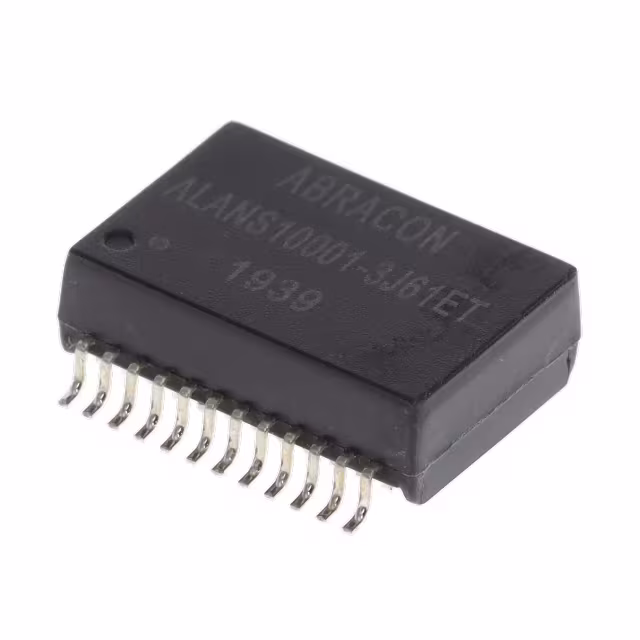

ALANS10001-3J61ET LAN SGL 1000B XFMR&CMC 24PIN Abracon LLC	3,892	2.12	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	-	0.254 (6.45mm)
