Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
HCTSM80803AAL-E1 XFMR 3.3-5V/3.3-15V,350MA PK TR Bourns Inc.	2,450	1.73	RFQ	Datasheet	Tape & Reel (TR)	HCT	Active	Isolation and Data Interface (Encapsulated)	250µH	11.0VµS	8:3	Surface Mount	0.484 L x 0.425 W (12.30mm x 10.80mm)	0.256 (6.50mm)
HCTSM80305BAL-E1 XFMR 3.3-5V/3.3-15V,350MA PK TR Bourns Inc.	3,208	3.13	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HCT	Active	Isolation and Data Interface (Encapsulated)	300µH	11.0VµS	3:5	Surface Mount	0.484 L x 0.425 W (12.30mm x 10.80mm)	0.256 (6.50mm)
HCTSM80201AAL-E1 XFMR 3.3-5V/3.3-15V,350MA PK TR Bourns Inc.	2,688	1.73	RFQ	Datasheet	Tape & Reel (TR)	HCT	Active	Isolation and Data Interface (Encapsulated)	250µH	11.0VµS	2:1	Surface Mount	0.484 L x 0.425 W (12.30mm x 10.80mm)	0.256 (6.50mm)
PA2006NLT PULSE XFMR 1:1 864UH Pulse Electronics Power	3,818	1.73	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	864µH	26VµS	1:1	Surface Mount	0.340 L x 0.460 W (8.64mm x 11.68mm)	0.160 (4.06mm)
NS0015 LF MDL SMD 10/100 SINGLE PORT N/A Pulse Electronics Network	3,025	1.73	RFQ		Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.500 L x 0.276 W (12.70mm x 7.00mm)	0.079 (2.00mm)
G1PM109RNS2 LF MDL 1G DIP SINGLE PORT N/A Pulse Electronics Network	3,671	1.74	RFQ		Tube	-	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	0.616 L x 0.433 W (15.65mm x 11.00mm)	0.441 (11.20mm)
TLA-6T120LF XFRMR FOR LOGIC 80220 CS 16SOP TDK Corporation	3,279	1.75	RFQ	Datasheet	Tray	TLA	Active	LAN	350µH	-	2CT:1CT, 1CT:1CT	Surface Mount	0.457 L x 0.268 W (11.60mm x 6.80mm)	0.232 (5.90mm)
MGBBT-00258-P CEP7 SMD 8PIN 1SEC,ROHS MGBBT-00 TE Connectivity AMP Connectors	3,383	1.75	RFQ		Tape & Reel (TR)	*	Active	-	-	-	-	-	-	-
PH9572.211ANLT GDT, FUNCTIONAL, EP7, SMT Pulse Electronics Power	3,076	2.30	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Gate Drive	4mH	84.7VµS	2:1:1	Surface Mount	0.402 L x 0.295 W (10.20mm x 7.50mm)	0.433 (11.00mm)
PA4065NLT PULSE XFMR 100.5UH Pulse Electronics Power	3,232	1.78	RFQ	Datasheet	Tape & Reel (TR)	EP13	Active	-	100.5µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
B2032NL XFRMR FOR ADI ADSL CHIPSET SMD Pulse Electronics Network	2,931	1.78	RFQ	Datasheet	Tray	-	Last Time Buy	ADSL	5mH	-	1:1	Surface Mount	0.530 L x 0.516 W (13.46mm x 13.11mm)	0.485 (12.32mm)
B2032NLT XFRMR FOR ADI ADSL CHIPSET SMD Pulse Electronics Network	2,959	1.78	RFQ	Datasheet	Tape & Reel (TR)	-	Last Time Buy	ADSL	5mH	-	1:1	Surface Mount	0.530 L x 0.516 W (13.46mm x 13.11mm)	0.485 (12.32mm)

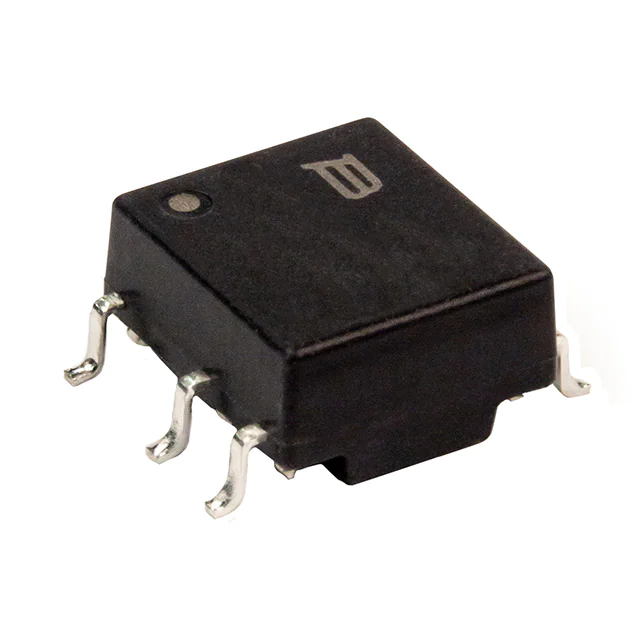

SM91508AL-E XFRMR PULSE 1:1 300UH SMD Bourns Inc.	2,004	1.78	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, SM	Active	-	300µH	-	1:1	Surface Mount	0.330 L x 0.303 W (8.38mm x 7.69mm)	0.167 (4.25mm)
S558-5500-67 TRANSFORMER PULSE Bel Fuse Inc.	3,140	1.79	RFQ	Datasheet	Tape & Reel (TR)	-	Last Time Buy	LAN 10/100 Base-T	120µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	-	0.270 (6.86mm)
BX4285LNLT XFMR VDSL EP6.5 1.4CS:1CS 430UH Pulse Electronics Network	3,691	1.80	RFQ		Tape & Reel (TR)	-	Last Time Buy	VDSL	16mH	-	1.4:1	Surface Mount	0.315 L x 0.315 W (8.00mm x 8.00mm)	0.388 (9.86mm)
PA1825NLT PULSE XFMR 24.5UH Pulse Electronics Power	3,034	1.80	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	24.5µH	-	-	Surface Mount	0.421 L x 0.525 W (10.70mm x 13.34mm)	0.365 (9.27mm)
VP6014 HF MDL 1G 1 PORT POE 60W Pulse Electronics Network	2,096	1.80	RFQ		Tape & Reel (TR)	-	Active	LAN 10 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)
PA4065NL PULSE XFMR 100.5UH Pulse Electronics Power	3,380	1.81	RFQ	Datasheet	Tray	EP13	Active	-	100.5µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
NS0013 LF MDL SMD 10/100 SINGLE PORT N/A Pulse Electronics Network	2,612	1.82	RFQ		Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.500 L x 0.276 W (12.70mm x 7.00mm)	0.079 (2.00mm)
BX4504NLT XFMR G.FAST 1.25CT:1CT 106MHZ Pulse Electronics Network	2,918	1.84	RFQ		Tape & Reel (TR)	-	Active	-	60µH	-	1.25:1	Surface Mount	0.266 L x 0.230 W (6.76mm x 5.84mm)	0.135 (3.43mm)
