Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

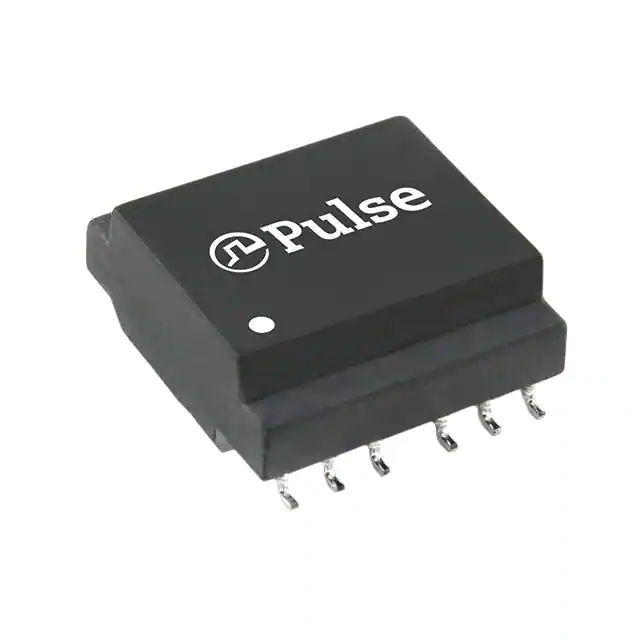

HX1224CNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	2,551	7.74	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.537 L x 0.570 W (13.64mm x 14.48mm)	0.245 (6.22mm)

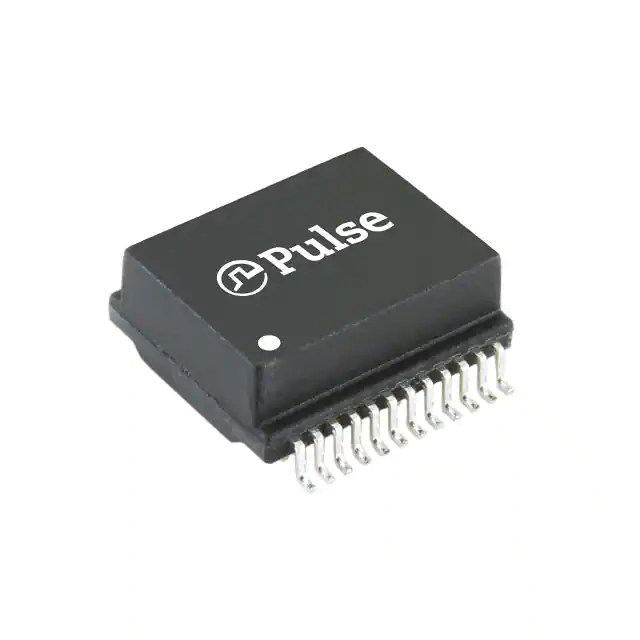

HD8008NL MOD,SIN,HDBT,1:1, SMD, NPB Pulse Electronics Network	3,337	7.92	RFQ	Datasheet	Tube	-	Active	HDBase-T	100µH	-	1CT:1CT	Surface Mount	0.539 L x 0.480 W (13.70mm x 12.20mm)	0.235 (5.97mm)

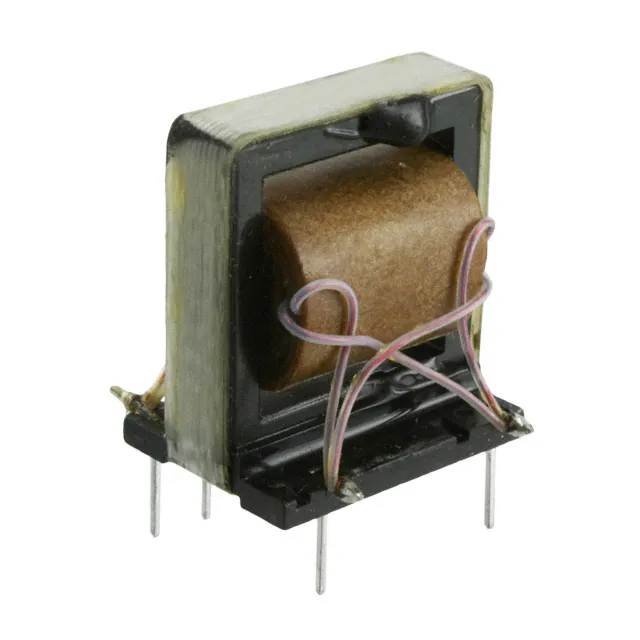

PE-63387NL PULSE XFMR 1:1:1 1.5MH Pulse Electronics Power	3,638	9.72	RFQ	Datasheet	Tray	-	Active	-	1.5mH	320VµS	1:1:1	Through Hole	1.090 L x 0.750 W (27.69mm x 19.05mm)	1.200 (30.48mm)

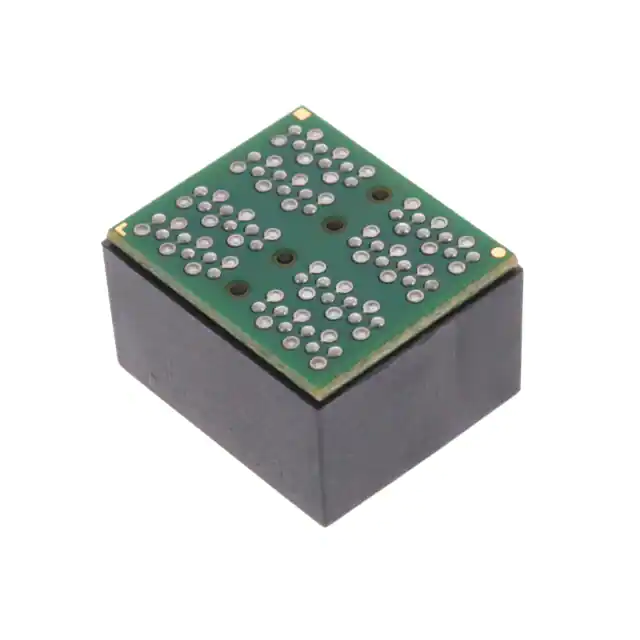

HX5200NL XFRMR MODL 2PORT POE GIGABIT Pulse Electronics Network	3,345	15.99	RFQ	Datasheet	Tray	-	Active	Isolation and Data Interface (Encapsulated)	-	-	-	Surface Mount	0.580 L x 0.680 W (14.73mm x 17.27mm)	0.430 (10.92mm)
SM453229-231N7Y CHIP LAN,10/100/1G XFORMER,POE,4 Bourns Inc.	1,995	0.86	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SM	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	200µH	-	1:1	Surface Mount	-	0.114 (2.90mm)
DA102JC-R DIGITAL AUDIO TX 1:1 3MH DIP Murata Power Solutions Inc.	3,783	2.55	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DA100J	Active	-	3.9mH	20VµS	1:1	Surface Mount	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78601/1C TRANSFORMER 1:1 2000UH 20VUS Murata Power Solutions Inc.	2,537	1.57	RFQ	Datasheet	Bulk	786	Active	General Purpose	2mH	20VµS	1:1	Through Hole	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78601/9C TRANSFORMER 1:1 10000UH 56VUS Murata Power Solutions Inc.	3,768	1.57	RFQ	Datasheet	Bulk	786	Active	General Purpose	10mH	56VµS	1:1	Through Hole	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78601/1JC PULSE XFMR 1:1 2MH Murata Power Solutions Inc.	3,231	1.57	RFQ	Datasheet	Tube	786J	Active	General Purpose	2mH	20VµS	1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
76601/2C XFRMR 1:1 492UH 8.5VUS B Murata Power Solutions Inc.	2,851	2.05	RFQ	Datasheet	Tube	766	Active	General Purpose	492µH	8.5VµS	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.260 (6.60mm)
ALANL100X1-EF62DT 10/100BASE-TX LAN XFMR Abracon LLC	1,950	4.83	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.16mm)

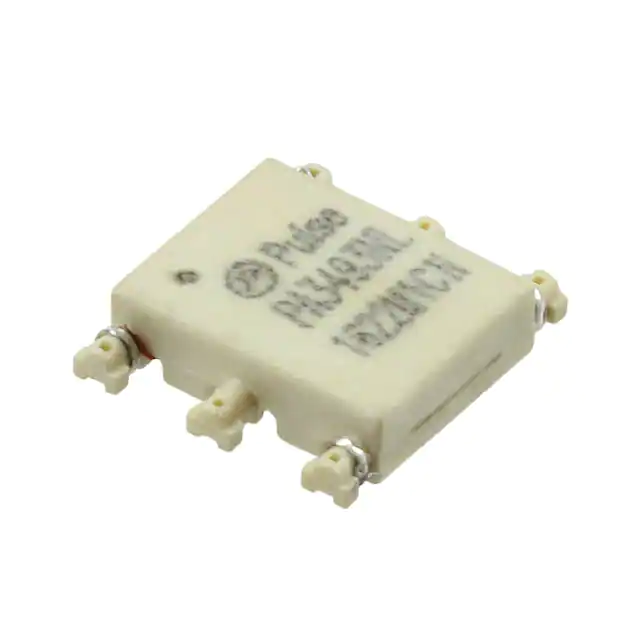

PA3493NL PULSE XFMR 1.25:1 656UH Pulse Electronics Power	1,245	3.01	RFQ	Datasheet	Tube	-	Active	-	656µH	23VµS	1.25:1	Surface Mount	0.430 L x 0.380 W (10.92mm x 9.65mm)	0.105 (2.67mm)
1017C TRANSFORMER PULSE 1:1 .8MH Murata Power Solutions Inc.	2,563	4.88	RFQ	Datasheet	Bulk	1000	Active	-	800µH	130VµS	1:1	Through Hole	0.593 L x 0.593 W (15.06mm x 15.06mm)	0.640 (16.25mm)
1003C TRANSFORMER PULSE 2:1:1 400VUS Murata Power Solutions Inc.	2,259	5.12	RFQ	Datasheet	Tube	1000	Active	-	12mH	400VµS	2:1:1	Through Hole	0.593 L x 0.593 W (15.06mm x 15.06mm)	0.640 (16.25mm)
HM0068ANLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	3,608	8.97	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.347 W (12.70mm x 8.81mm)	0.082 (2.08mm)

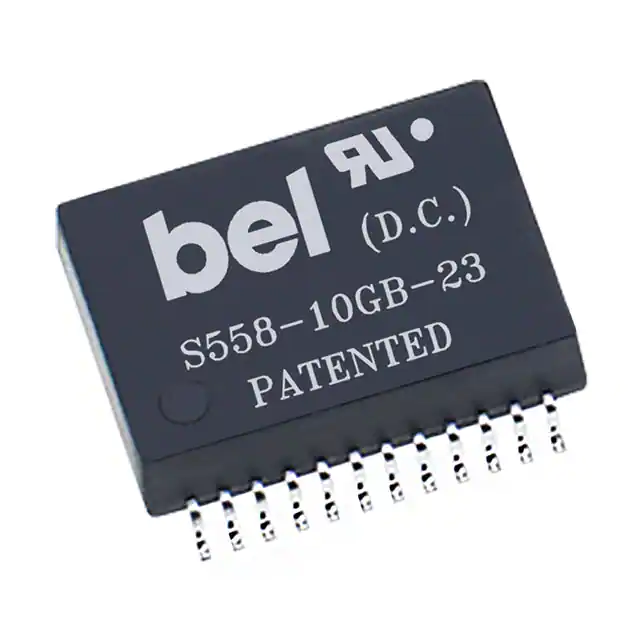

S558-10GB-23 MODULE XFRMR LAN 10G POE SMD Bel Fuse Inc.	578	9.01	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	1CT:1CT	Surface Mount	0.610 L x 0.480 W (15.49mm x 12.19mm)	0.290 (7.37mm)
TX1188NL XFRMR 1CT:2CT/1CT:2CT 1.2/1.2MH Pulse Electronics Network	800	5.52	RFQ	Datasheet	Tube	-	Active	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2CT, 1CT:2CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
7490140123B WE-LAN 10/100 BASE-T SMT TRANSFO Würth Elektronik	300	11.95	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.673 L x 0.581 W (17.10mm x 14.75mm)	0.331 (8.40mm)
2337824-2 DISCRETE ETHERNET MAGNETICS DUAL TE Connectivity AMP Connectors	3,261	10.67	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	Surface Mount	-	-
749050017 TRANSFORMER LAN Würth Elektronik	450	13.13	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN	120µH	-	1:1	Surface Mount	0.550 L x 0.532 W (13.97mm x 13.50mm)	0.260 (6.60mm)
