Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

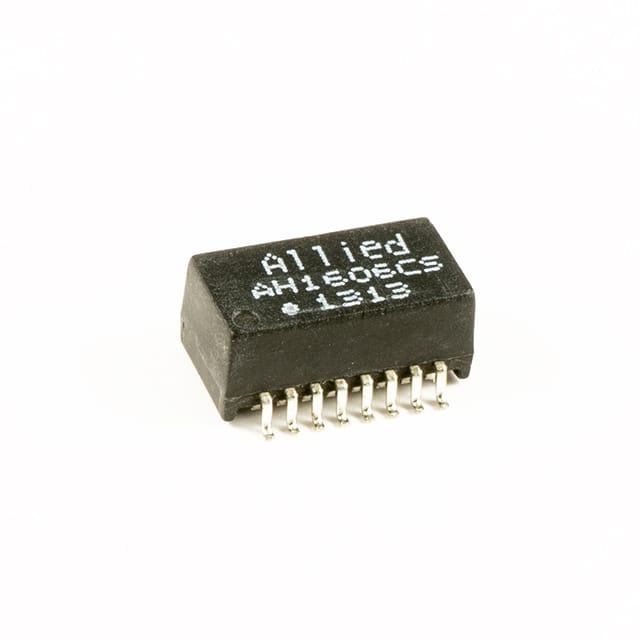

AH1606CS 10/100 BASE T SINGLE PORT LAN FI Allied Components International	2,953	2.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.248 (6.30mm)
HM42-10002LFTR PULSE XFMR 2:1:1 300UH TT Electronics/BI Magnetics	502	3.58	RFQ	Datasheet	Cut Tape (CT)	HM42	Discontinued at Mosen	Gate Drive	300µH	40.4VµS	2:1:1	Surface Mount	0.260 L x 0.319 W (6.60mm x 8.10mm)	0.217 (5.50mm)
HM42-40004LFTR PULSE XFMR 2:1:1 1.2MH TT Electronics/BI Magnetics	3,117	4.89	RFQ	Datasheet	Cut Tape (CT)	HM42	Discontinued at Mosen	Gate Drive	1.2mH	45.4VµS	2:1:1	Surface Mount	0.362 L x 0.346 W (9.20mm x 8.80mm)	0.307 (7.80mm)

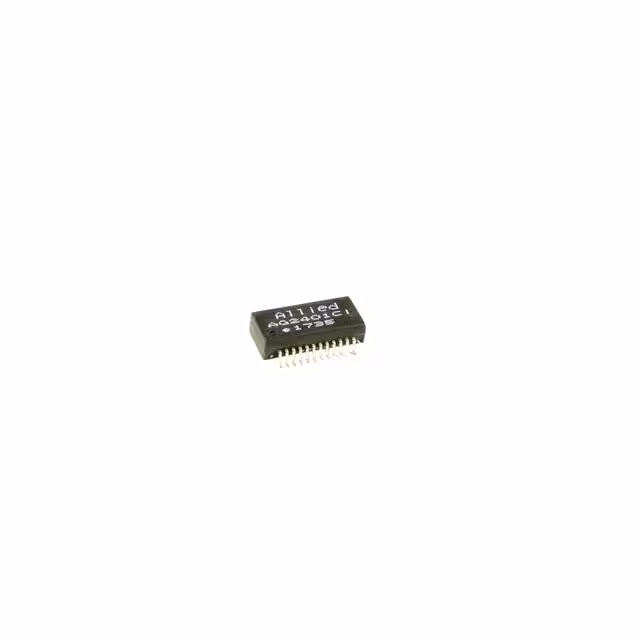

AG2401CI 100/1000Bas T LAN Module Allied Components International	2,769	5.25	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 100/1000 Base-T	350µH	-	1:1CT	Surface Mount	0.594 L x 0.280 W (15.10mm x 7.10mm)	0.157 (4.00mm)

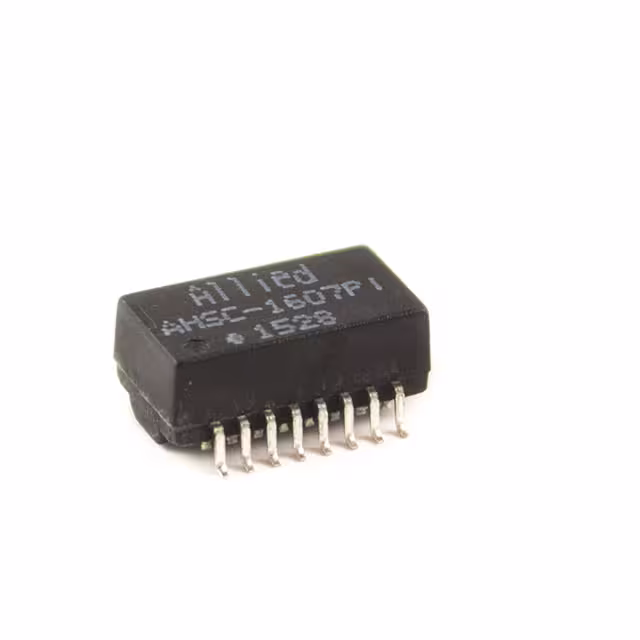

AHSC-1607PI 10/100 Base T PoE LAN Module Allied Components International	3,168	5.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Surface Mount	0.514 L x 0.272 W (13.05mm x 6.90mm)	0.248 (6.30mm)
YLTH24P02-1PT PULSE TRANSFORMER LAN 10G Trigon Components	3,639	0.00	RFQ	Datasheet	Tape & Reel (TR)	YLTH24P0S	Active	LAN 10G Base-T	120µH	-	1CT:1CT	Surface Mount	0.535 L x 0.472 W (13.60mm x 12.00mm)	0.244 (6.20mm)
HX5G2003NL HX5G2003NL Pulse Electronics Network	100	6.18	RFQ		Bulk	*	Active	-	-	-	-	-	-	-

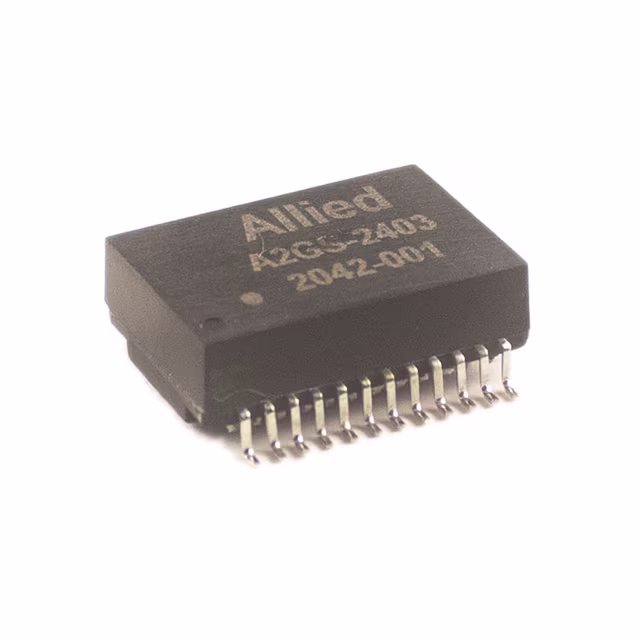

A2GS-2403 2.5G BASE-T Allied Components International	2,987	6.98	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 2.5G Base-T	150µH	-	1CT:1CT	Surface Mount	0.701 L x 0.492 W (17.80mm x 12.50mm)	0.248 (6.30mm)

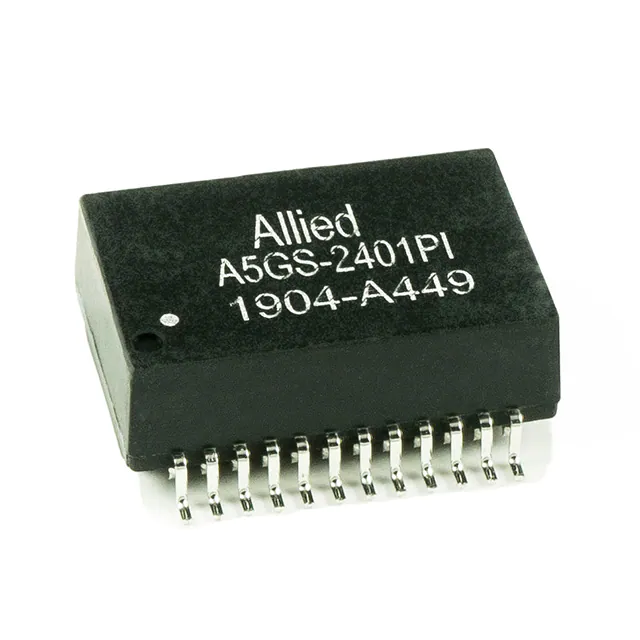

A5GS-2401PI 5G POE+ Allied Components International	2,627	7.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 5G Base-T, Power over Ethernet (PoE)	160µH	-	1CT:1CT	Surface Mount	0.728 L x 0.492 W (18.50mm x 12.50mm)	0.270 (6.85mm)
HM42-30001LFTR PULSE XFMR 1:1:1 980UH TT Electronics/BI Magnetics	163	7.71	RFQ	Datasheet	Cut Tape (CT)	HM42	Discontinued at Mosen	Gate Drive	980µH	30.2VµS	1:1:1	Surface Mount	0.340 L x 0.460 W (8.64mm x 11.68mm)	0.161 (4.10mm)
H1174FNL H1174FNL Pulse Electronics Network	3,016	10.69	RFQ		Bulk	*	Active	-	-	-	-	-	-	-

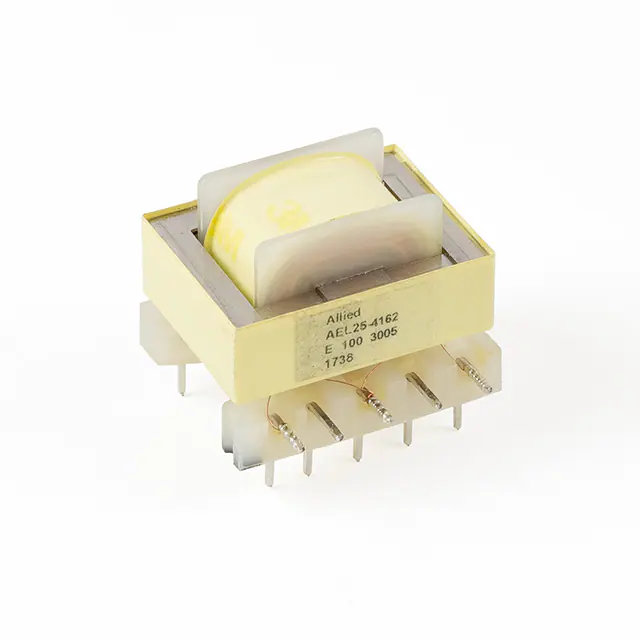

AEL25-4162 2.6H, EL25 TRANSFORMER Allied Components International	2,761	12.85	RFQ	Datasheet	Tray	-	Active	-	1.3H, 1.3H	-	0.457:0.457:1	Through Hole	1.142 L x 1.090 W (29.01mm x 27.69mm)	0.886 (22.50mm)
H5012FNL TELECOM TRANSFORMER 1:1 0.65OHM Pulse Electronics Network	3,583	13.12	RFQ		Bulk	*	Active	-	-	-	-	-	-	-
TL1553-45A TL1553-45A Yageo	2,173	38.37	RFQ		Bulk	*	Active	-	-	-	-	-	-	-
BC3.5LFB1.4 LLC RESONANT 3.5KW HALF-BRIDGE T Premo	2,242	50.00	RFQ	Datasheet	Box	-	Active	-	-	-	-	-	2.402 L x 2.217 W (61.00mm x 56.30mm)	1.378 (35.00mm)

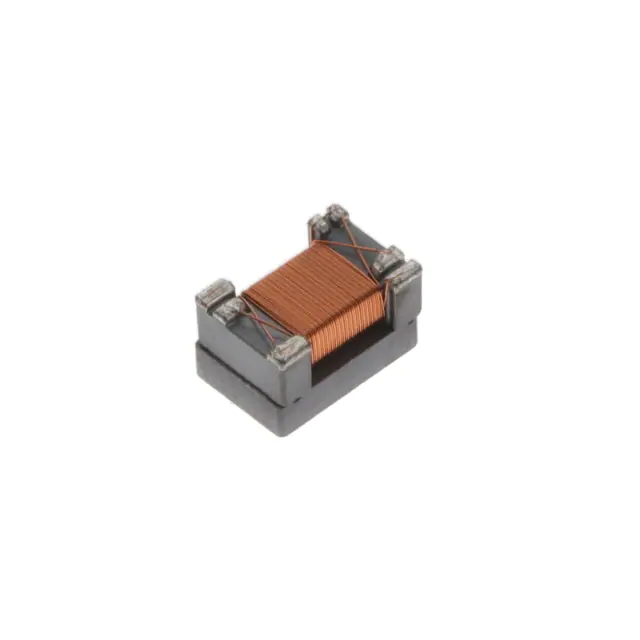

74930000 XFRMR 1:1 350UH SUPER TINY SMD Würth Elektronik	13,634	1.28	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-STST	Active	-	350µH	-	1:1	Surface Mount	0.185 L x 0.127 W (4.70mm x 3.22mm)	0.114 (2.90mm)
DA101MC-R DIGITAL AUDIO TX Murata Power Solutions Inc.	251	1.06	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DA100	Not For New Designs	-	2.06mH	15VµS	1:1	Surface Mount	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
DA101JC-R DIGITAL AUDIO TX Murata Power Solutions Inc.	950	2.55	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DA100J	Active	-	2.06mH	15VµS	1:1	Surface Mount	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
ESMIT-4180/A XFMR MODEM SMD Sumida America Components Inc.	25,572	2.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CBM	Active	Data/Voice Coupling	120µH	-	1:1	Surface Mount	0.205 L x 0.280 W (5.20mm x 7.10mm)	0.138 (3.50mm)
78602/9JC-R PULSE XFMR 1:1:1 10MH Murata Power Solutions Inc.	3,492	2.79	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	786J	Active	General Purpose	10mH	56VµS	1:1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
