Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
78604/3JC XFRMR 2:1 6VUS SMD TOROID Murata Power Solutions Inc.	2,670	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	200µH	6VµS	2:1	Surface Mount	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
PT61017PEL PULSE XFMR 1CT:1CT 350UH Bourns Inc.	3,959	1.81	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
76600/1C PULSE XFMR 1:1 1.92MH Murata Power Solutions Inc.	2,627	3.48	RFQ	Datasheet	Tube	766	Obsolete	General Purpose	1.92mH	17.5VµS	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
ALANS100X1-1E10ET LAN SGL 100B XFMR&CMC 12PIN Abracon LLC	347	2.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.197 (5.00mm)
74930120 WE-STST SMT SUPER TINY SIGNAL TR Würth Elektronik	592	2.16	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-STST	Active	-	110µH	-	1:1	Surface Mount	0.185 L x 0.127 W (4.70mm x 3.22mm)	0.114 (2.90mm)
76601/24HVC PULSE XFMR 1:1 11.7MH Murata Power Solutions Inc.	2,146	3.83	RFQ	Datasheet	Tube	766	Obsolete	General Purpose	11.7mH	50.5VµS	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
PM2180.034NLT XFMR GATE-DR 3CT:4CT SM NPB Pulse Electronics Power	638	2.51	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PM2180.XXXNL	Active	Isolation and Data Interface (Encapsulated)	1.02mH	22VµS	3CT:4CT	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)

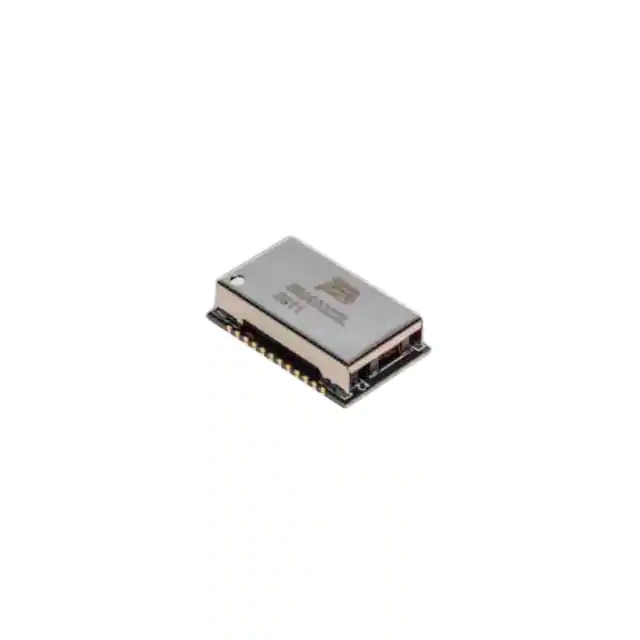

SM42002EL LAN TRANSFORMER Bourns Inc.	145	2.57	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SM	Active	LAN 2.5G Base-T	230µH	-	-	Surface Mount	0.690 L x 0.575 W (17.53mm x 14.60mm)	0.177 (4.50mm)
S558-5999-Z5-F MODULE XFRMR LAN 10/100B-TX SMD Bel Fuse Inc.	755	2.58	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.485 L x 0.285 W (12.32mm x 7.24mm)	0.225 (5.72mm)
PA2002NL PULSE XFMR 1:1:1 1.8MH Pulse Electronics Power	2,418	0.00	RFQ	Datasheet	Tube	-	Active	-	1.8mH	60VµS	1:1:1	Surface Mount	0.355 L x 0.340 W (9.02mm x 8.64mm)	0.300 (7.62mm)
PA2005NL PULSE XFMR 1:1:1 840UH Pulse Electronics Power	2,640	0.00	RFQ	Datasheet	Tube	-	Active	-	840µH	26VµS	1:1:1	Surface Mount	0.340 L x 0.460 W (8.64mm x 11.68mm)	0.160 (4.06mm)
PM2185.034NLT XFMR GATE-DR 3T:4CT SMT NPB Pulse Electronics Power	365	2.67	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	680µH	27VµS	3CT:4CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)
PM2185.011NLT XFMR GATE-DR 1CT:1CT SM NPB Pulse Electronics Power	257	2.67	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PM2185.XXXNL	Active	Isolation and Data Interface (Encapsulated)	538µH	24VµS	1CT:1CT	Surface Mount	0.362 L x 0.323 W (9.20mm x 8.20mm)	0.299 (7.60mm)

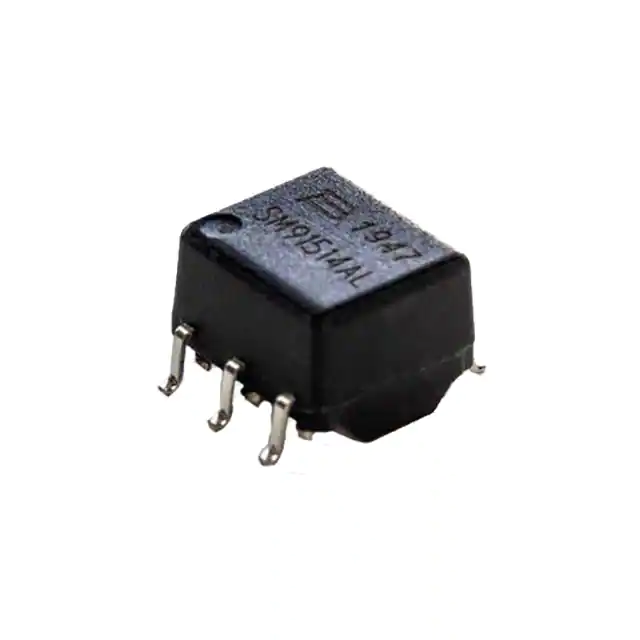

SM91514AL-E BMS TRANSFORMER/CMC,6PIN,SGL,4.3 Bourns Inc.	700	2.73	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200	Active	-	300µH	-	1:1	Surface Mount	0.300 L x 0.265 W (7.62mm x 6.73mm)	0.225 (5.72mm)

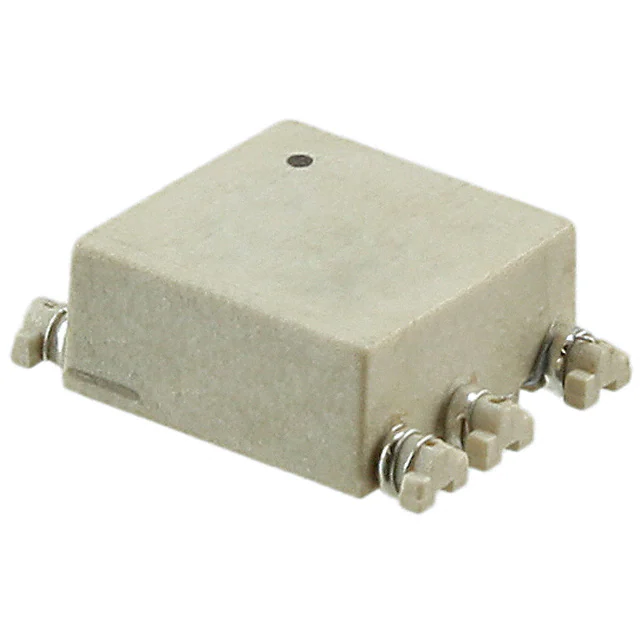

PA2005NLT PULSE XFMR 1:1:1 840UH Pulse Electronics Power	263	2.74	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	840µH	26VµS	1:1:1	Surface Mount	0.340 L x 0.460 W (8.64mm x 11.68mm)	0.160 (4.06mm)
78604/9MC-R PULSE XFMR 2:1 10MH Murata Power Solutions Inc.	504	1.16	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	786	Not For New Designs	General Purpose	10mH	56VµS	2:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78601/2JC-R PULSE XFMR 1:1 350UH Murata Power Solutions Inc.	345	2.79	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	786J	Active	General Purpose	350µH	10VµS	1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78604/4MC-R PULSE XFMR 2:1 67UH Murata Power Solutions Inc.	349	1.16	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	786	Not For New Designs	General Purpose	67µH	4VµS	2:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78601/4MC-R PULSE XFMR 1:1 67UH Murata Power Solutions Inc.	245	1.16	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	786	Not For New Designs	General Purpose	67µH	4VµS	1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78602/2MC-R PULSE XFMR 1:1:1 500UH Murata Power Solutions Inc.	3,051	1.16	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	786	Not For New Designs	General Purpose	500µH	10VµS	1:1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
