Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
78602/16JC PULSE XFMR 1:1:1 3.35MH Murata Power Solutions Inc.	3,549	1.57	RFQ	Datasheet	Tube	786J	Active	General Purpose	3.35mH	28VµS	1:1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78604/2C PULSE XFMR 2:1 500UH Murata Power Solutions Inc.	2,949	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	500µH	10VµS	2:1	Through Hole	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78602/3C PULSE XFMR 1:1:1 200UH Murata Power Solutions Inc.	2,919	1.57	RFQ	Datasheet	Tube	786	Active	General Purpose	200µH	6VµS	1:1:1	Through Hole	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
0553-0013-BC-F MODULE XFRMR LAN T1/E1 PCB Bel Fuse Inc.	2,094	3.05	RFQ	Datasheet	Tube	-	Active	T1/E1 (Single)	1.2mH	-	1CT:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
PA0173NL PULSE XFMR 1:1:1 980UH Pulse Electronics Power	504	2.97	RFQ	Datasheet	Tube	-	Active	-	980µH	17.2VµS	1:1:1	Surface Mount	0.340 L x 0.460 W (8.64mm x 11.68mm)	0.160 (4.06mm)
IT242 XFRMR PULSE 1:1:1 DL 2.5MH .1A Schaffner EMC Inc.	2,073	7.12	RFQ	Datasheet	Tray	IT	Active	Data/Voice Coupling	2.5mH	-	1:1:1	Through Hole	0.693 L x 0.657 W (17.60mm x 16.70mm)	0.445 (11.30mm)
MGDT100100LF PLANAR GATE-DRIVE XFMR, 1 : 1 : Vishay Dale	2,807	12.44	RFQ	Datasheet	Tray	-	Active	Gate Drive	240µH	-	1:1:1	Through Hole	0.810 L x 0.725 W (20.57mm x 18.42mm)	0.450 (11.43mm)
IT213 XFRMR PULSE 1:1:1 DL 6.5MH .25A Schaffner EMC Inc.	138	16.62	RFQ	Datasheet	Tray	IT	Active	Data/Voice Coupling	6.5mH	-	1:1:1	Through Hole	0.748 Dia (19.00mm)	0.787 (20.00mm)
IT312 XFRMR PULSE 1:1:1 DL 21MH .25A Schaffner EMC Inc.	193	18.09	RFQ	Datasheet	Tray	IT	Active	Data/Voice Coupling	21mH	-	1:1:1	Through Hole	1.004 L x 1.004 W (25.50mm x 25.50mm)	0.992 (25.20mm)
78602/3MC-R PULSE XFMR 1:1:1 200UH Murata Power Solutions Inc.	797	1.16	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	786	Not For New Designs	General Purpose	200µH	6VµS	1:1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78604/2JC PULSE XFMR 2:1 500UH Murata Power Solutions Inc.	115	1.57	RFQ	Datasheet	Tube	786J	Active	General Purpose	500µH	10VµS	2:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
PH9384.035NLT XFMR GATE-DR 3CT:5CT SM NPB Pulse Electronics Power	473	2.80	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9384	Active	-	-	-	-	Surface Mount	0.492 L x 0.362 W (12.50mm x 9.20mm)	0.299 (7.60mm)
PH9384.043NLT XFMR GATE-DR 4CT:3CT SM NPB Pulse Electronics Power	469	2.80	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9384	Active	-	-	-	-	Surface Mount	0.492 L x 0.362 W (12.50mm x 9.20mm)	0.299 (7.60mm)
IL-10-0003 IL5 PULSE TRANSFORMER THT 0.25A SCHURTER Inc.	2,796	3.48	RFQ	Datasheet	Bulk	IL	Active	SCR and Triac Trigger (Encapsulated)	1.5mH	200VµS	1:1:1	Through Hole	0.689 L x 0.728 W (17.50mm x 18.50mm)	0.453 (11.50mm)
IL-21-0001 IL1 PULSE TRANSFORMER THT 0.25A SCHURTER Inc.	2,177	4.01	RFQ	Datasheet	Bulk	IL	Active	SCR and Triac Trigger (Encapsulated)	3mH	300VµS	1:1	Through Hole	1.102 L x 0.906 W (28.00mm x 23.00mm)	0.571 (14.50mm)
ITRB-0249-D101 ITRB PULSE TRANSFORMER THT 0.1A SCHURTER Inc.	2,745	4.20	RFQ	Datasheet	Bulk	IT	Active	SCR and Triac Trigger (Encapsulated)	1.4mH	250VµS	2:1	Through Hole	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.512 (13.00mm)
ISRA-0249-D104 ISRA PULSE TRANSFORMER SMD 0.1A SCHURTER Inc.	3,163	4.34	RFQ	Datasheet	Bulk	IS	Active	SCR and Triac Trigger (Encapsulated)	3.5mH	300VµS	1:1	Surface Mount	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.532 (13.50mm)
HM1236NL XFMR CMC MODULE AECQ BATT MNGT Pulse Electronics Network	2,837	5.67	RFQ	Datasheet	Tube	-	Active	-	500µH	-	1:1	Surface Mount	0.340 L x 0.430 W (8.64mm x 10.92mm)	0.160 (4.06mm)
PE-68877NL XFRMR 1CT:1CT/1CT:2CT 1.2/1.2MH Pulse Electronics Network	2,471	9.84	RFQ	Datasheet	Tube	-	Active	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1CT, 1CT:2CT	Surface Mount	0.675 L x 0.456 W (17.15mm x 11.58mm)	0.340 (8.64mm)

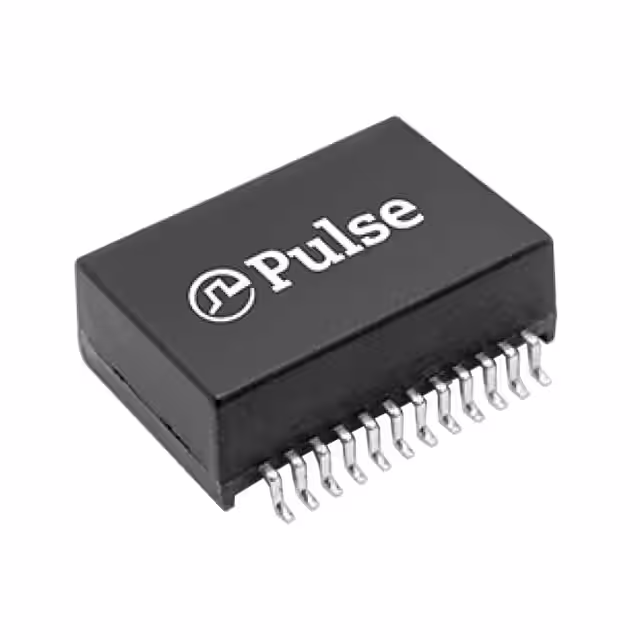

HDX8006NL MDL,SIN, HDBASET, 140W, SMT Pulse Electronics Network	3,629	12.34	RFQ	Datasheet	Tube	-	Active	HDBase-T	120µH	-	1:1	Surface Mount	0.715 L x 0.480 W (18.16mm x 12.20mm)	0.260 (6.60mm)
