Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
PH9384.083NLT XFMR GATE-DR 8CT:3CT SM NPB Pulse Electronics Power	167	2.80	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9384	Active	-	-	-	-	Surface Mount	0.492 L x 0.362 W (12.50mm x 9.20mm)	0.299 (7.60mm)

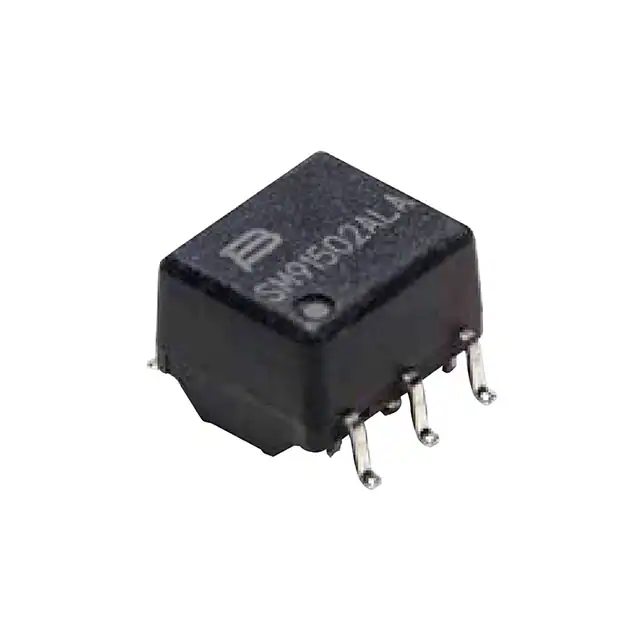

SM91502ALA-E BMS TRANSFORMER/CMC, 6PIN, SGL Bourns Inc.	332	332.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SM	Active	-	150µH	-	1:1	Surface Mount	0.300 L x 0.265 W (7.62mm x 6.73mm)
ALAN-101-T LAN XFRMR 10/100 1PORT EXT-TEMP Abracon LLC	2,640	3.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.450 L x 0.265 W (11.43mm x 6.73mm)	0.217 (5.51mm)
ESMIT-4164 XFMR MODEM SMD Sumida America Components Inc.	123	2.95	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CBM	Active	Data/Voice Coupling	30µH	-	1:1.67	Surface Mount	0.179 L x 0.280 W (4.55mm x 7.10mm)	0.078 (1.98mm)
PA1323NL PULSE XFMR 1:1 600UH Pulse Electronics Power	2,577	0.00	RFQ	Datasheet	Tray	-	Active	-	600µH	21.7VµS	1:1	Surface Mount	0.280 L x 0.375 W (7.11mm x 9.52mm)	0.210 (5.33mm)

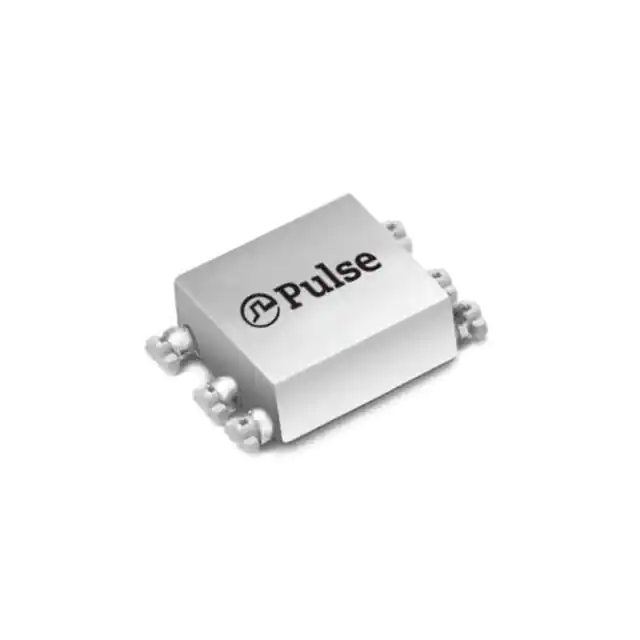

PA3493NLT PULSE XFMR 1.25:1 656UH Pulse Electronics Power	2,308	3.01	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	656µH	23VµS	1.25:1	Surface Mount	0.430 L x 0.380 W (10.92mm x 9.65mm)	0.105 (2.67mm)
PH9085.021NLT IND PWR 3.0X3.0X1.2 1.16MH SMT Pulse Electronics Power	149	2.97	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
HCTSM80403AAL-E1 XFMR 3.3-5V/3.3-15V,350MA PK TR Bourns Inc.	3,747	3.13	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HCT	Active	Isolation and Data Interface (Encapsulated)	250µH	11.0VµS	4:3	Surface Mount	0.484 L x 0.425 W (12.30mm x 10.80mm)	0.256 (6.50mm)

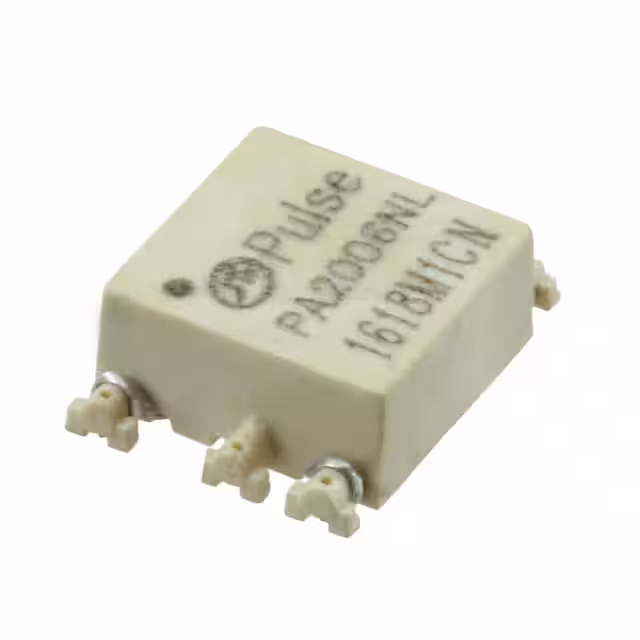

PA2006NL PULSE XFMR 1:1 864UH Pulse Electronics Power	181	0.00	RFQ	Datasheet	Tube	-	Active	-	864µH	26VµS	1:1	Surface Mount	0.340 L x 0.460 W (8.64mm x 11.68mm)	0.160 (4.06mm)

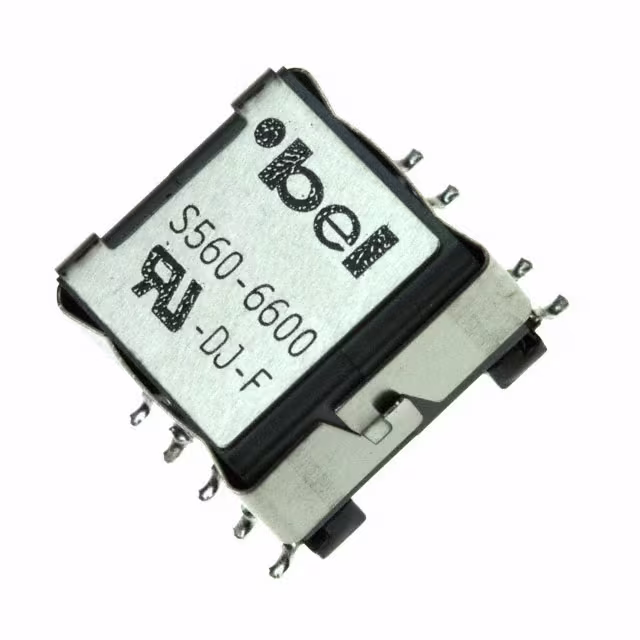

S560-6600-DJ-F MODULE XFRMR LAN SHDSL ISOL SMD Bel Fuse Inc.	3,233	3.77	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	SHDSL	3mH	-	1:5.4	Surface Mount	0.540 L x 0.585 W (13.72mm x 14.86mm)	0.500 (12.70mm)
PH9185.012NLT TRANSFORMER 450UH 1:2 SMD Pulse Electronics Power	5,360	4.55	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9185	Active	-	-	-	-	Surface Mount	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.492 (12.50mm)
H1121NLT XFRMR MAGNT 1PORT 1:1.414 10/100 Pulse Electronics Network	3,556	4.96	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1.414 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)
E2023NLT XFRMR LAN ISOL 10BASET 1:2.5 SMD Pulse Electronics Network	2,529	5.14	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	200µH	-	1CT:2.5CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.495 L x 0.280 W (12.57mm x 7.11mm)	0.210 (5.33mm)
PE-65726NLT TRANSFORMER 2000VRMS 200UH SMD Pulse Electronics Network	3,257	5.30	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	200µH	-	1CT:1CT	Surface Mount	0.500 L x 0.285 W (12.70mm x 7.24mm)	0.210 (5.33mm)
23Z467SM PULSE XFMR 1CT:2CT TX 1CT:1CT RX Pulse Electronics Network	3,511	5.40	RFQ	Datasheet	Tube	-	Active	LAN 10G Base-T	140µH	-	1CT:2CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.450 L x 0.265 W (11.43mm x 6.73mm)	0.215 (5.46mm)
HX1217NLT PULSE XFMR 1:1 TX 1:1 RX 350UH Pulse Electronics Network	2,855	5.59	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)

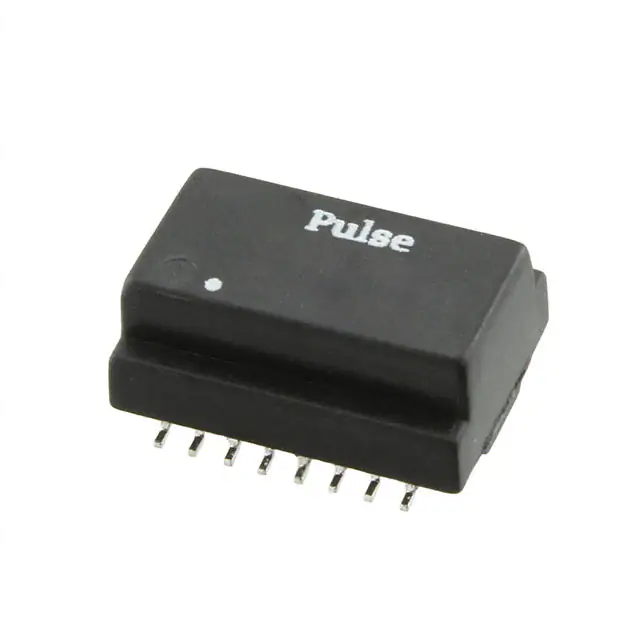

HX1217NL PULSE XFMR 1:1 TX 1:1 RX 350UH Pulse Electronics Network	3,497	5.59	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)

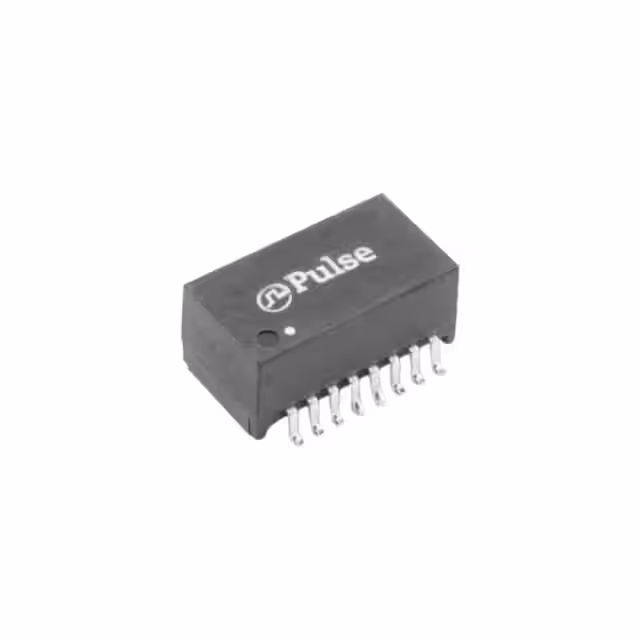

HM1193NL XFMR MDL 100BASE-T SMT AEC-Q200 Pulse Electronics Network	2,945	5.71	RFQ	Datasheet	Tube	-	Active	LAN 100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.235 (5.97mm)

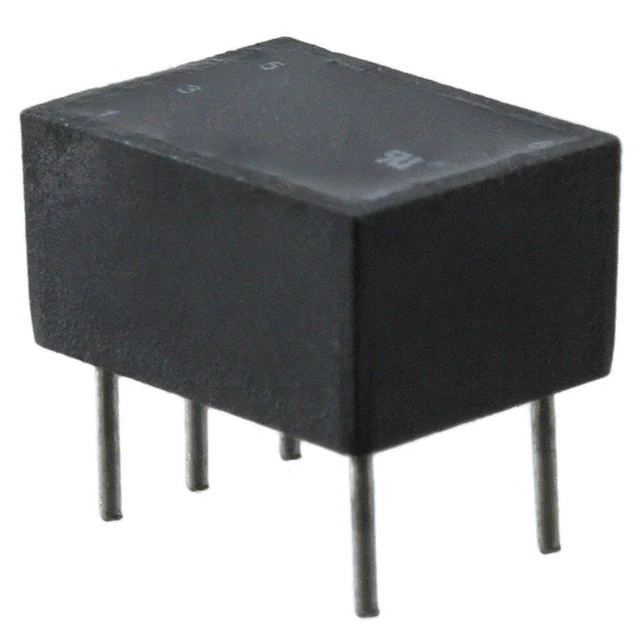

PE-65779NL XFRMR T3/DS3/E3/STS-1 1:4CT T/H Pulse Electronics Network	3,713	5.83	RFQ	Datasheet	Tube	-	Active	T3/E3 (Single)	150µH	-	1:4CT	Through Hole	0.299 L x 0.402 W (7.60mm x 10.20mm)	0.250 (6.35mm)
B82806D0060A033 P300868 EFD20 POE TRANSFORMER EPCOS - TDK Electronics	3,617	6.13	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82806D	Active	-	-	-	-	Surface Mount	0.866 L x 1.181 W (22.00mm x 30.00mm)	-
