Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
MGDT100125LF PLANAR GATE-DRIVE XFMR, 1 : 1.25 Vishay Dale	2,259	12.51	RFQ	Datasheet	Tray	-	Active	Gate Drive	240µH	-	1:1.25:1.25	Through Hole	0.810 L x 0.725 W (20.57mm x 18.42mm)	0.450 (11.43mm)
MGDT100125 PLANAR GATE-DRIVE XFMR, 1 : 1.25 Vishay Dale	2,239	12.51	RFQ	Datasheet	Tray	-	Active	Gate Drive	240µH	-	1:1.25:1.25	Through Hole	0.810 L x 0.725 W (20.57mm x 18.42mm)	0.450 (11.43mm)
TX1193NL MODULE 1CT:2CT 1.2MH SMD Pulse Electronics Network	3,378	16.13	RFQ	Datasheet	Tube	-	Active	T1/E1 (Dual)	1.2mH	-	1CT:2CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.227 (5.76mm)

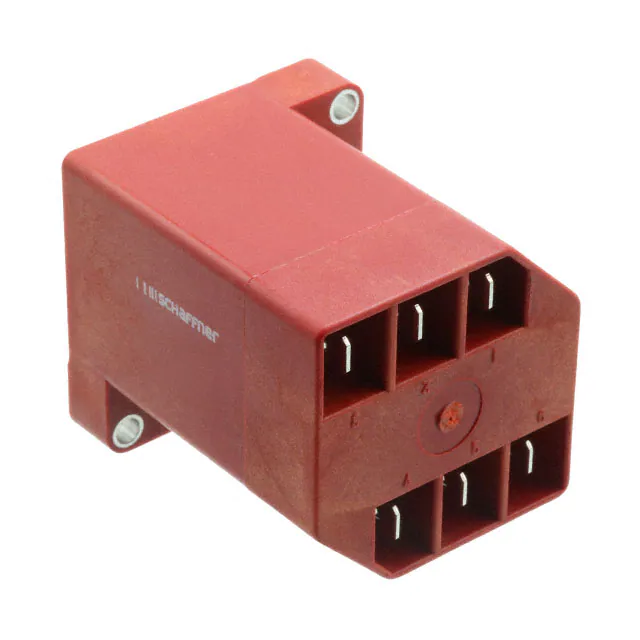

IT364 XFRMR PULSE 1:1 SINGLE 1.5MH 3A Schaffner EMC Inc.	3,056	72.45	RFQ	Datasheet	Tray	IT	Active	Data/Voice Coupling	1.5mH	-	1:1	Through Hole	1.969 L x 1.969 W (50.00mm x 50.00mm)	2.362 (60.00mm)
ALANS100X1-2F00DT LAN SGL 100B XFMR&CMC 16PIN Abracon LLC	700	1.97	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
ALANS100X1-2F10ET LAN SGL 100B XFMR&CMC 16PIN Abracon LLC	3,321	2.12	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
PH9572.122NLT GDT, FUNCTIONAL, EP7, SMT Pulse Electronics Power	877	1.77	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Gate Drive	1mH	42.4VµS	-	Surface Mount	0.402 L x 0.295 W (10.20mm x 7.50mm)	0.433 (11.00mm)

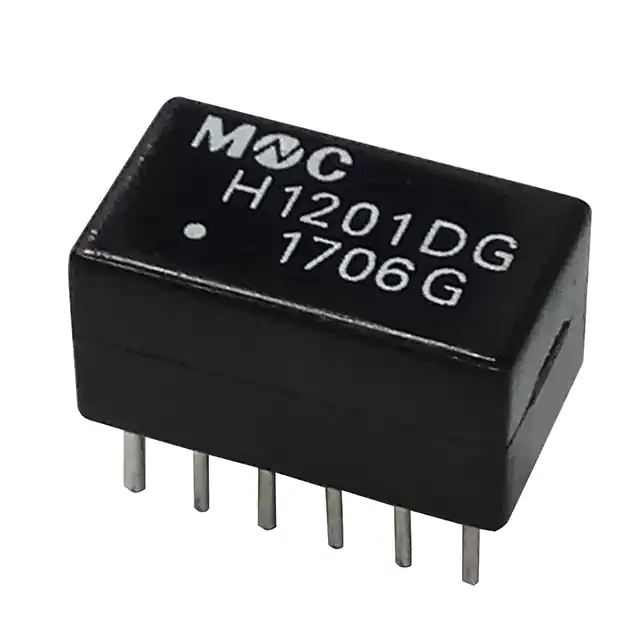

H1201DG SINGLE LAN XFMR 10/100 BASE-T Mentech Technology USA Inc.	2,525	1.46	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Through Hole	0.504 L x 0.295 W (12.80mm x 7.50mm)	0.276 (7.00mm)
PM2180.011NLT XFMR GATE-DR 1CT:1CT SM NPB Pulse Electronics Power	408	2.51	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PM2180.XXXNL	Active	Isolation and Data Interface (Encapsulated)	1.02mH	22VµS	1CT:1CT	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)

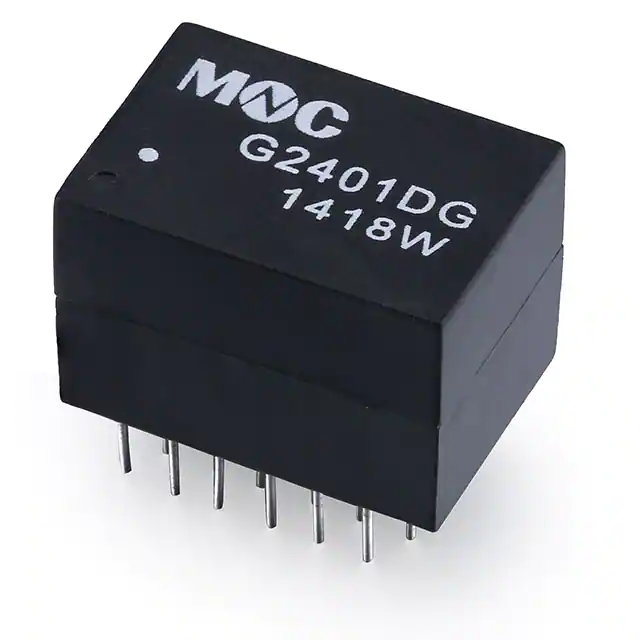

G2401DG SINGLE LAN XFMR 1000 BASE-T Mentech Technology USA Inc.	2,995	2.62	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Through Hole	0.630 L x 0.472 W (16.00mm x 12.00mm)	0.472 (12.00mm)
ITNB-0249-D101 ITNB PULSE TRANSFORMER THT 0.1A SCHURTER Inc.	2,838	3.59	RFQ	Datasheet	Bulk	ITNB	Active	Isolation and Data Interface (Encapsulated)	1.6mH	-	2:1	Through Hole	0.701 L x 0.717 W (17.80mm x 18.20mm)	0.512 (13.00mm)
MTBAUGDT125100 TRANSFORMER, MICRO GATE DRIVE, 1 Vishay Dale	2,559	17.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Gate Drive	330µH	63VµS	1:1:1	Surface Mount	-	0.220 (5.59mm)
HX7137NL MDL SIN 10GD 1:1 SM CMS 18 Pulse Electronics Network	2,690	16.55	RFQ	Datasheet	Tube	HX7137NL	Active	LAN 10 Base-T	120µH	-	1:1	Surface Mount	0.698 L x 0.480 W (17.73mm x 12.19mm)	0.285 (7.24mm)
749600010 WE-LANMX M12, D-CODE, VERTICAL Würth Elektronik	3,283	40.00	RFQ	Datasheet	Tray	WE-LANMX	Active	LAN 10/100 Base-T	350µH	-	-	Through Hole	0.748 Dia (19.00mm)

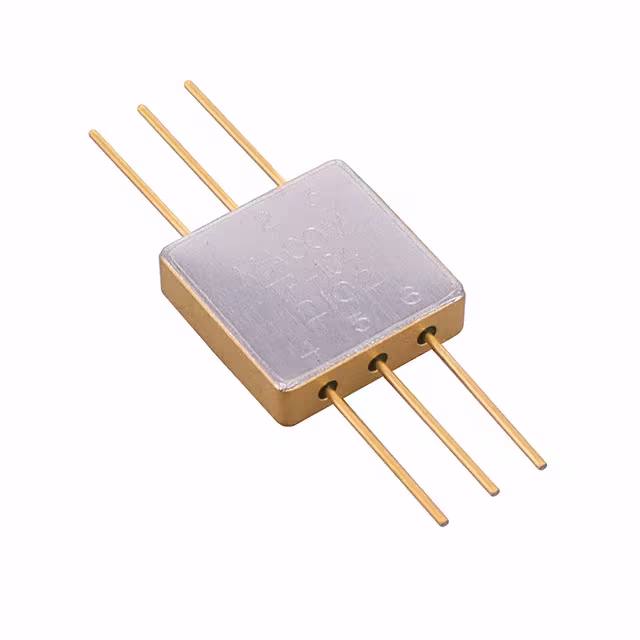

TP-104-PIN TRANSFORMER,WIDE-BAND MACOM Technology Solutions	2,873	159.60	RFQ	Datasheet	Tray	-	Active	-	-	-	-	Surface Mount	0.374 L x 0.374 W (9.50mm x 9.50mm)	0.150 (3.80mm)
TP-102-PIN TRANSFORMER,WIDE-BAND MACOM Technology Solutions	2,276	277.75	RFQ	Datasheet	Tray	-	Active	-	-	-	-	Surface Mount	0.374 L x 0.374 W (9.50mm x 9.50mm)	0.150 (3.80mm)

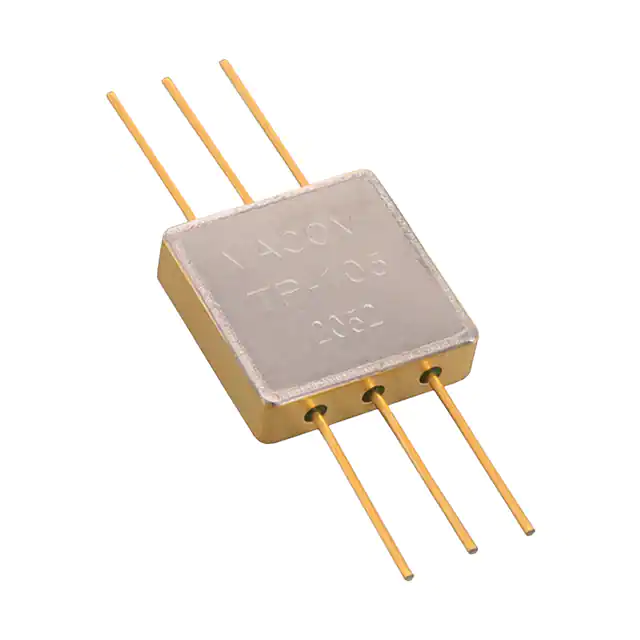

TP-105-PIN TRANSFORMER,WIDE-BAND MACOM Technology Solutions	2,721	278.43	RFQ	Datasheet	Tray	-	Active	-	-	-	-	Surface Mount	0.374 L x 0.374 W (9.50mm x 9.50mm)	0.150 (3.80mm)

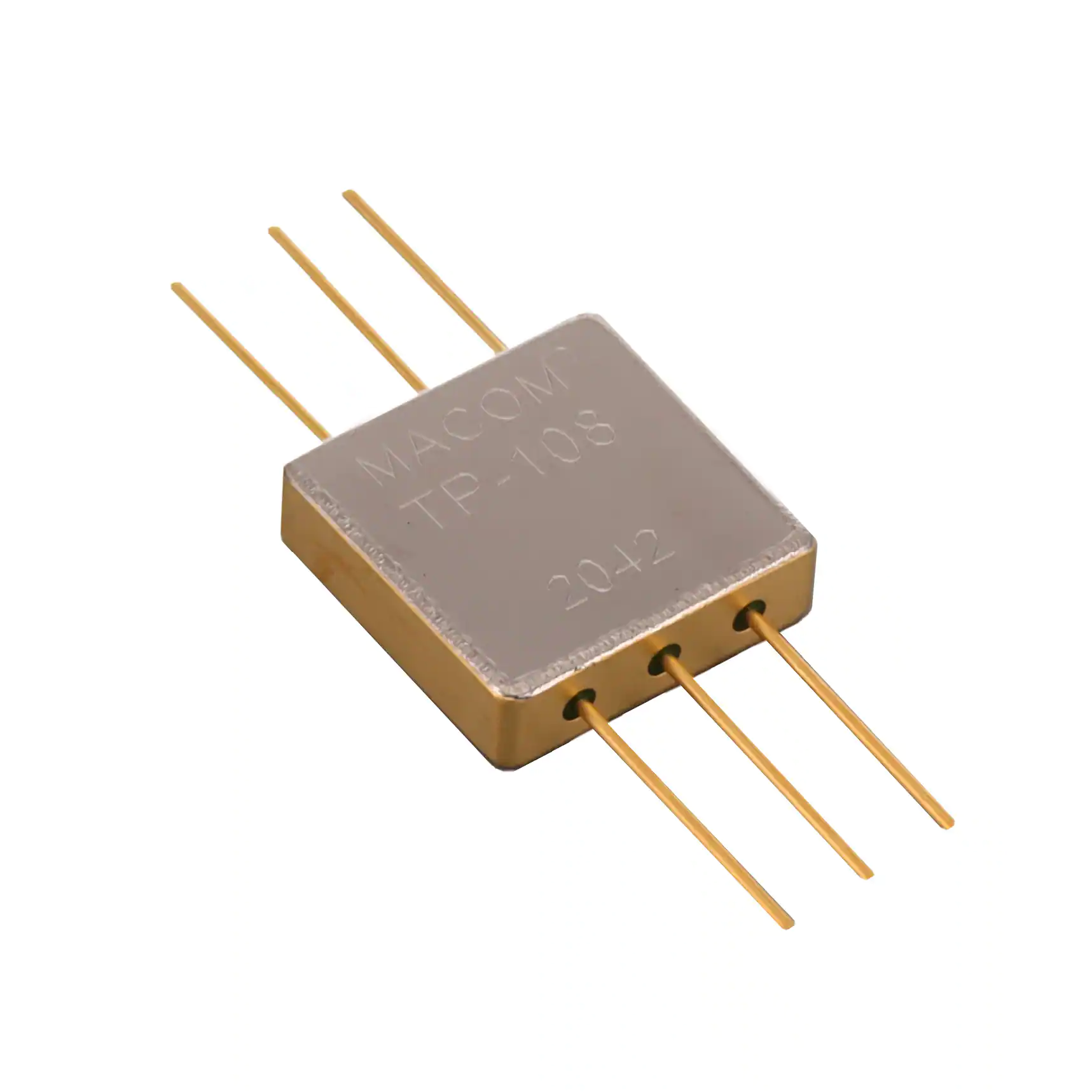

TP-108-PIN TRANSFORMER,WIDE-BAND MACOM Technology Solutions	2,779	423.15	RFQ	Datasheet	Tray	-	Active	-	-	-	-	Surface Mount	0.374 L x 0.374 W (9.50mm x 9.50mm)	0.150 (3.80mm)
SM353230-181N7Y CHIP LAN XFMR,1 /2.5/5G,3.5X3.2X Bourns Inc.	118	0.91	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SM	Active	LAN 1/2.5/5G Base-T	180µH	-	1:1	Surface Mount	0.138 L x 0.126 W (3.50mm x 3.20mm)	0.114 (2.90mm)
78604/4MC PULSE XFMR 2:1 67UH Murata Power Solutions Inc.	100	1.57	RFQ	Datasheet	Tube	786	Not For New Designs	General Purpose	67µH	4VµS	2:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
