Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
S558-5999-U7-F MODULE XFRMR LAN 10/100B-TX SMD Bel Fuse Inc.	20,500	2.58	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.485 L x 0.285 W (12.32mm x 7.24mm)	0.225 (5.72mm)
DA101C DIGITAL AUDIO TX 1:1 1.5MH DIP Murata Power Solutions Inc.	2,542	1.57	RFQ	Datasheet	Box	DA100	Active	-	2.06mH	15VµS	1:1	Through Hole	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
DA102C DIGITAL AUDIO TX 1:1 3MH DIP Murata Power Solutions Inc.	5,721	1.57	RFQ	Datasheet	Box	DA100	Active	-	3.9mH	20VµS	1:1	Through Hole	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78601/9JC PULSE XFMR 1:1 10MH Murata Power Solutions Inc.	11,710	1.57	RFQ	Datasheet	Tube	786J	Active	General Purpose	10mH	56VµS	1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
DA101JC DIGITAL AUDIO TX Murata Power Solutions Inc.	3,338	1.57	RFQ	Datasheet	Tube	DA100J	Active	-	2.06mH	15VµS	1:1	Surface Mount	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
S558-5999-T5-F MODULE XFRMR LAN 10/100B-TX SMD Bel Fuse Inc.	2,235	2.73	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.485 L x 0.285 W (12.32mm x 7.24mm)	0.225 (5.72mm)

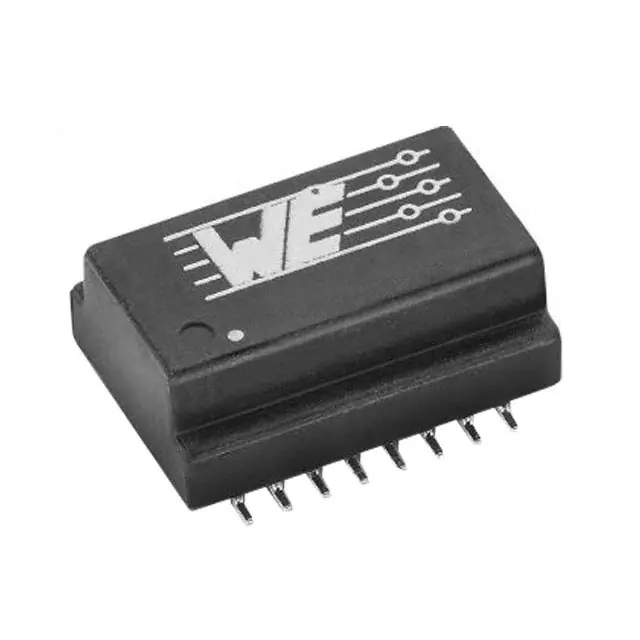

749010012A WE-LAN 10/100 BASE-T SMT TRANSFO Würth Elektronik	3,000	3.92	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T	350µH	-	1:1	-	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.250 (6.35mm)
H1102FNLT PULSE XFMR LAN 350UH SMD Pulse Electronics Network	3,549	5.43	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)
H1112NLT XFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics Network	8,750	5.62	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.202 (5.13mm)
T60403F5046X007 GATE DRIVE TRANSFORMER SMD 1:1:1 VACUUMSCHMELZE	3,040	6.31	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Gate Drive	1.4mH	85VµS	1:1:1	Through Hole	0.791 L x 0.591 W (20.10mm x 15.00mm)	0.413 (10.50mm)
7490100111 TRANSFORMER LAN 10/100 SMD Würth Elektronik	800	5.30	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.510 L x 0.280 W (12.95mm x 7.11mm)	0.210 (5.33mm)
HX0068ANLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	1,732	7.51	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.347 W (12.70mm x 8.81mm)	0.082 (2.08mm)
HX1224CNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	1,414	8.33	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	µCom	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.537 L x 0.570 W (13.64mm x 14.48mm)	0.245 (6.22mm)
HD8008NLT MDL,SIN,10G,P,1:1,SM,TR Pulse Electronics Network	1,201	7.92	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	HDBase-T	100µH	-	1CT:1CT	Surface Mount	0.539 L x 0.480 W (13.70mm x 12.20mm)	0.235 (5.97mm)

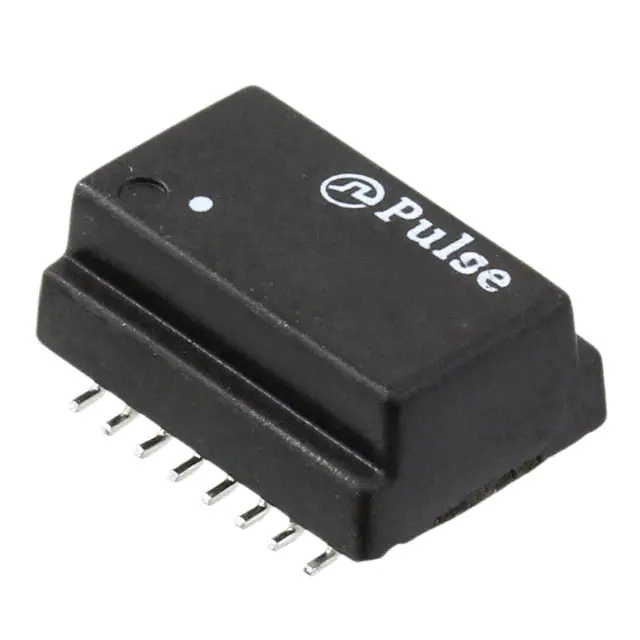

HX1260FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	2,652	5.49	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)

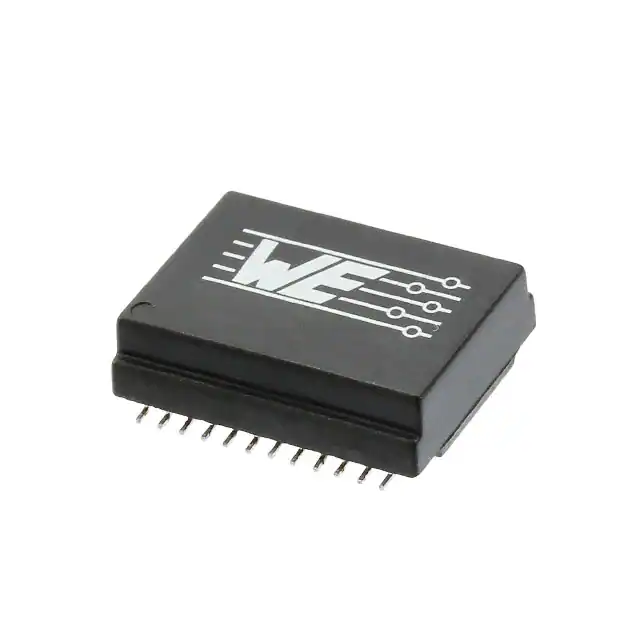

749020011A TRANSFORMER LAN 10/100/1000 SMD Würth Elektronik	7,740	6.92	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.689 L x 0.559 W (17.50mm x 14.20mm)	0.256 (6.50mm)
HX1188FNL MODULE XFRMR SGL ETHR LAN 16SOIC Pulse Electronics Network	9,301	5.78	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.241 (6.12mm)

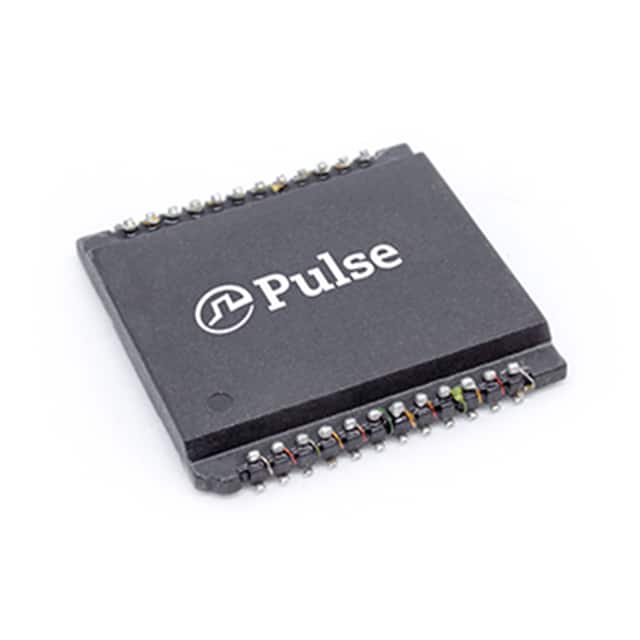

HX5019FNLT PULSE XFMR 1CT:1 TX 1CT:1 RX Pulse Electronics Network	2,800	10.67	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1 Transmitter, 1CT:1 Receiver	Surface Mount	0.780 L x 0.750 W (19.81mm x 19.05mm)	0.100 (2.54mm)

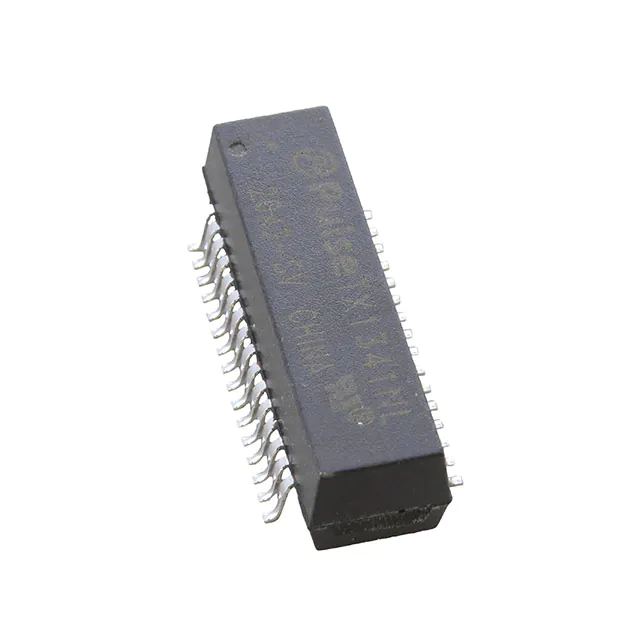

TX1341NLT XFRMR OCTAL 1:2 1.2MH SMD Pulse Electronics Network	3,800	10.64	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	T1/E1 (Octal)	1.2mH	-	1:2	Surface Mount	1.000 L x 0.310 W (25.40mm x 7.87mm)	0.295 (7.49mm)
HX2019FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	1,497	7.51	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)
