Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
HX5007NL MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics Network	3,558	RFQ	Datasheet	Tube	-	Obsolete	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.227 (5.76mm)

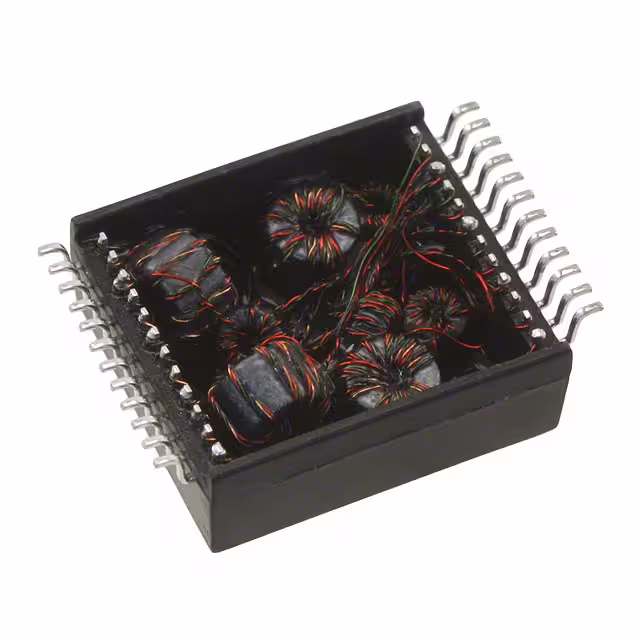

HX5009NL MODULE XFORMR GIGABIT SINGLE LAN Pulse Electronics Network	3,994	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.537 L x 0.600 W (13.64mm x 15.24mm)	0.235 (5.97mm)
TX02-4400JI IC INTERFACE TRANSFORMER 8SMD GW IXYS	3,296	RFQ	Datasheet	Tube	TX02-4400	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	3:1	Surface Mount	0.378 L x 0.250 W (9.78mm x 6.35mm)	0.180 (4.57mm)
TX02-4400PI IC INTERFACE TRANSFORMER 8-DIP IXYS	2,497	RFQ	Datasheet	Tube	TX02-4400	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	3:1	Through Hole	0.378 L x 0.255 W (9.59mm x 6.48mm)	0.180 (4.57mm)

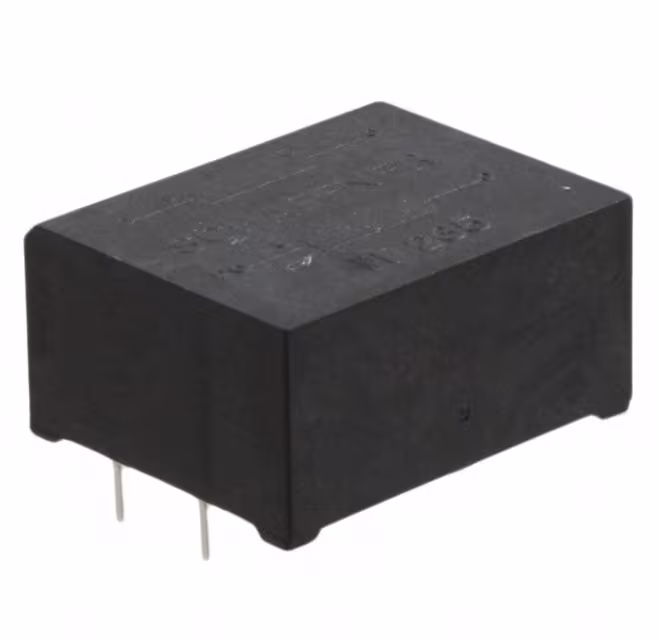

IT235 TRANSFORMER PULSE Schaffner EMC Inc.	2,598	RFQ	Datasheet	Tray	IT	Obsolete	Data/Voice Coupling	3mH	-	1:1	Through Hole	-	-

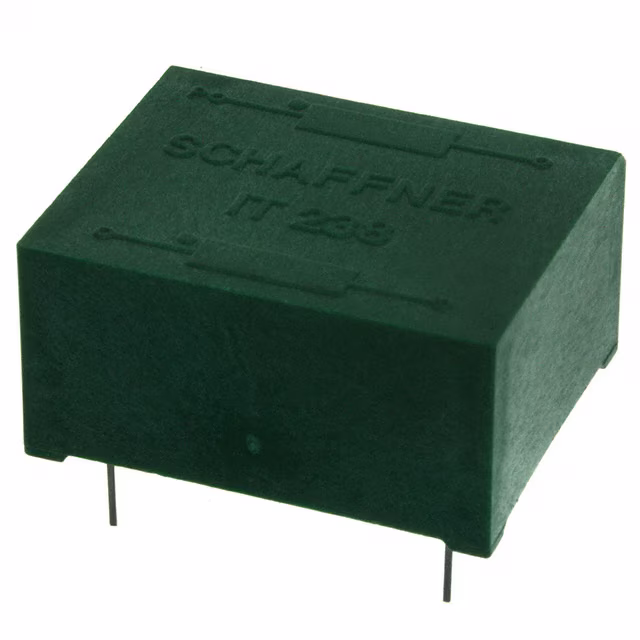

IT238 TRANSFORMER PULSE Schaffner EMC Inc.	3,500	RFQ	Datasheet	Tray	IT	Obsolete	Data/Voice Coupling	3mH	-	1:1	Through Hole	-	-

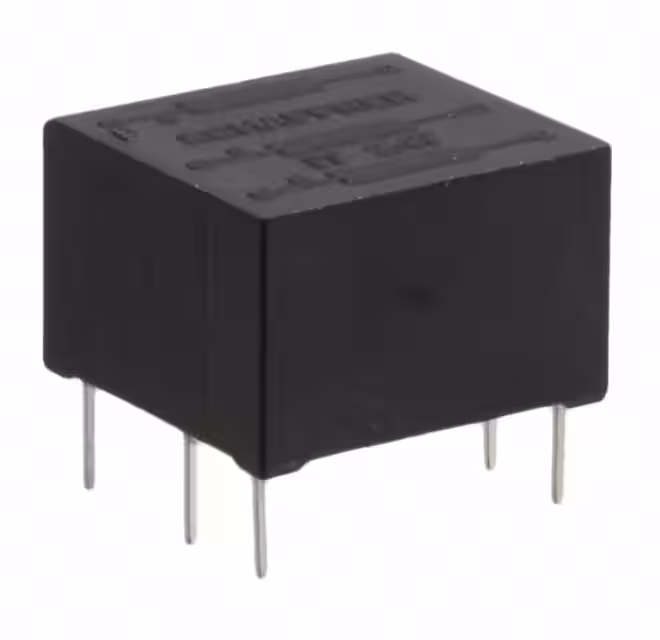

IT247 TRANSFORMER PULSE Schaffner EMC Inc.	3,703	RFQ	Datasheet	Tray	IT	Obsolete	Data/Voice Coupling	7mH	-	2:1:1	Through Hole	-	-
S558-5999-03-F PULSE XFMR 1CT:1CT 420UH 550UH Bel Fuse Inc.	2,016	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN	420µH	-	1CT:1CT	Surface Mount	0.485 L x 0.285 W (12.32mm x 7.24mm)	0.225 (5.72mm)
S558-5999-G9-F MODULE XFRMR LAN 10/100B-TX SMD Bel Fuse Inc.	2,972	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	LAN 10/100 Base-T	350µH	-	1CT:1.414CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.000 L x 0.390 W (25.40mm x 9.91mm)	0.235 (5.97mm)
S553-6500-A8-F MODUL XFRMR LAN T1/E1 OCTAL SURG Bel Fuse Inc.	2,810	RFQ		Tape & Reel (TR)	-	Obsolete	T1/E1 (Octal)	950µH	-	1:2.42 Transmitter, 1:2.42 Receiver	Surface Mount	1.100 L x 0.480 W (27.94mm x 12.19mm)	0.295 (7.49mm)
S553-6500-C4-F MODULE XFRMR LAN T1/E1 OCTAL SMD Bel Fuse Inc.	3,135	RFQ		Tape & Reel (TR)	-	Active	T1/E1 (Octal)	1.5mH	-	1:2 Transmitter, 1:2 Receiver	Surface Mount	1.045 L x 0.300 W (26.54mm x 7.62mm)	0.290 (7.37mm)
S553-6500-D3-F MODULE XFRMR LAN T1/E1 OCTAL SMD Bel Fuse Inc.	3,244	RFQ		Tape & Reel (TR)	-	Obsolete	T1/E1 (Octal)	1mH	-	1:2.4 Transmitter, 1:1 Receiver	Surface Mount	1.045 L x 0.300 W (26.54mm x 7.62mm)	0.290 (7.37mm)
S558-5999-BA-F MODULE XFRMR GIGABIT MINIPCI SMD Bel Fuse Inc.	2,816	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.880 L x 0.540 W (22.35mm x 13.72mm)	0.084 (2.13mm)
S560-6600-N7-F MODULE XFRMR LAN GSHDSL ISOL SMD Bel Fuse Inc.	2,350	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	SHDSL	3mH	-	1:5.4	Surface Mount	0.540 L x 0.585 W (13.72mm x 14.86mm)	0.500 (12.70mm)
MIT4115V XFRMR 600:470 PCB Sumida America Components Inc.	3,300	RFQ		Bulk	MT	Active	-	-	-	-	Through Hole	0.945 L x 0.906 W (24.00mm x 23.00mm)	0.490 (12.45mm)
BX4107NLT TRANSFORMER 1.33:1 Pulse Electronics Network	3,450	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	1.33:1	Surface Mount	0.413 L x 0.276 W (10.50mm x 7.00mm)	0.433 (11.00mm)
PA3123NL XFMR CM-FLYBACK 3.5W REINF Pulse Electronics Power	3,351	RFQ		-	-	Obsolete	-	-	-	-	-	-	-
HX5180NL MODULE TRANSFRMR QUAD LAN 10/100 Pulse Electronics Network	2,405	RFQ		Bag	-	Obsolete	-	-	-	-	-	0.697 L x 0.480 W (17.65mm x 12.20mm)	0.185 (4.70mm)
S553-0013-00-F XFRMR MODULE LAN T1/CEPT DUAL Bel Fuse Inc.	3,972	RFQ		Tape & Reel (TR)	-	Active	LAN	1.2mH	-	1:1.385CT Transmitter, 1:1:1 Receiver	Surface Mount	0.485 L x 0.285 W (12.32mm x 7.24mm)	0.230 (5.84mm)
S553-0013-01-F XFRMR MODULE LAN T1/CEPT DUAL Bel Fuse Inc.	2,645	RFQ		Tape & Reel (TR)	-	Active	LAN	1.2mH	-	1CT:2CT Transmitter, 1:1 Receiver	Surface Mount	0.485 L x 0.285 W (12.32mm x 7.24mm)	0.230 (5.84mm)
