Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
TTC-8146 TRANSF 10/100B-T 1PORT 16-SOIC Tamura	2,510	RFQ	Datasheet	Bulk	-	Obsolete	LAN 10/100 Base-T	-	-	2CT:1CT	Surface Mount	1.000 L x 0.500 W (25.40mm x 12.70mm)	0.254 (6.45mm)
TTC-8149 TRANSF 10/100B-T 4PORT 40-SOIC Tamura	2,563	RFQ	Datasheet	Bulk	-	Obsolete	LAN 10/100 Base-T	-	-	1CT:1CT	Surface Mount	1.102 L x 0.480 W (28.00mm x 12.20mm)	0.246 (6.25mm)
TTC-8154 TRANSF 10BASE-T 1PORT 16-SOIC Tamura	3,286	RFQ	Datasheet	Bulk	-	Obsolete	LAN 10 Base-T	-	-	1CT:1CT	Surface Mount	0.457 L x 0.272 W (11.60mm x 6.91mm)	0.230 (5.85mm)
TLA-3M601-RS INTEGRATED FILTER MODULE 10-SIP TDK Corporation	2,740	RFQ	Datasheet	-	TLA	Obsolete	LAN	-	-	-	Through Hole	1.102 L x 0.236 W (28.00mm x 6.00mm)	0.429 (10.90mm)
TLA-3M103LF INTEGRATED FILTER MODULE 16-SOP TDK Corporation	3,840	RFQ	Datasheet	Tray	TLA	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	1.012 L x 0.374 W (25.70mm x 9.50mm)	0.234 (5.95mm)
TLA-3T112LF XFRMR FOR CS8900A CHIP SET 16SOP TDK Corporation	2,983	RFQ	Datasheet	Tray	TLA	Obsolete	LAN	130µH	-	1CT:1CT, 1CT:2.5CT	Surface Mount	0.457 L x 0.268 W (11.60mm x 6.80mm)	0.232 (5.90mm)
TLA-3T109LF XFRMR FOR LOGIC 80C24 CS 16SOP TDK Corporation	3,394	RFQ	Datasheet	Tray	TLA	Obsolete	LAN	130µH	-	2CT:1CT, 1CT:1CT	Surface Mount	0.457 L x 0.268 W (11.60mm x 6.80mm)	0.232 (5.90mm)
TLA-3T110LF XFRMR FOR LXT901A CHIP SET 16SOP TDK Corporation	2,019	RFQ	Datasheet	Tray	TLA	Obsolete	LAN	130µH	-	1CT:1CT, 1CT:1.41CT	Surface Mount	0.457 L x 0.268 W (11.60mm x 6.80mm)	0.232 (5.90mm)
TLA-6T119LF XFRMR FOR QS6611 CHIP SET 16SOP TDK Corporation	3,915	RFQ	Datasheet	Tray	TLA	Obsolete	LAN	350µH	-	1.41CT:1CT, 1CT:1CT	Surface Mount	0.457 L x 0.268 W (11.60mm x 6.80mm)	0.232 (5.90mm)
TLA-6T103LF XFRMR FOR QS6611 CHIP SET 16SOP TDK Corporation	3,516	RFQ	Datasheet	Tape & Reel (TR)	TLA	Obsolete	LAN	350µH	-	1CT:1CT	Surface Mount	1.012 L x 0.366 W (25.70mm x 9.30mm)	0.234 (5.95mm)
S558-5999B47 10/100 BASE-T LAN MAG QUAD TRANS Bel Fuse Inc.	3,837	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	LAN 10/100 Base-T	-	-	1CT:1CT Transmitter, 1:1 Receiver	Surface Mount	1.100 L x 0.476 W (27.94mm x 12.09mm)	0.236 (5.99mm)

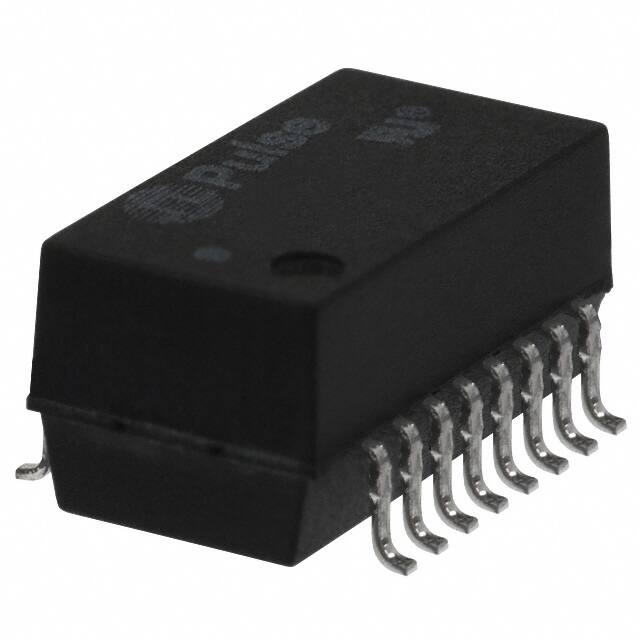

T1190 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	2,635	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1CT, 1CT:1.36CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
PE-68678 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	3,663	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1CT, 1CT:2CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
PE-65870 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	2,411	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Dual)	1.2mH	-	1CT:1.15CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
T1137 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	3,068	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2.42CT, 1CT:2.42CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
T1144 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	2,104	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Dual)	1mH, 1mH	-	1CT:1CT, 1CT:2.4CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)

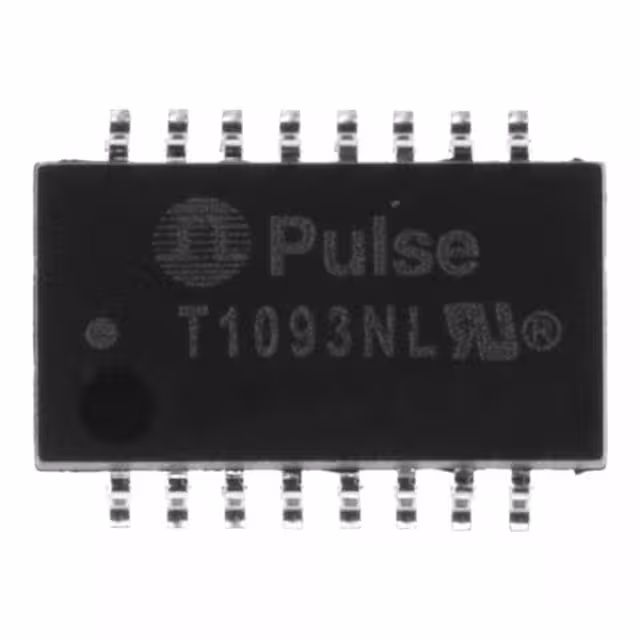

T1093 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	3,316	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1.15CT, 1CT:1.15CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)

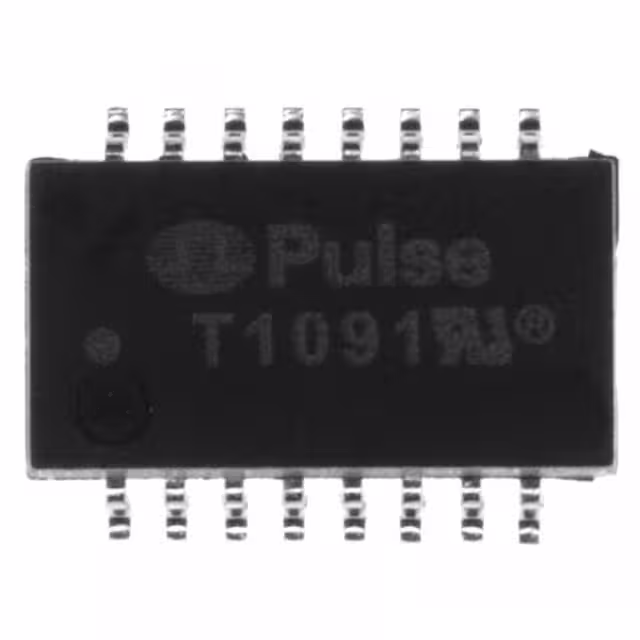

T1091 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	2,268	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Dual)	1.2mH	-	1CT:2CT, 1:1.36CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
T1090 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	3,391	RFQ	Datasheet	Bulk	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2CT, 1CT:2CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
TX1287 TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	2,154	RFQ	Datasheet	Bulk	-	Active	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2.42CT, 1CT:2.42CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
