Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
PE-65967 TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics Network	2,596	RFQ	Datasheet	Bulk	-	Obsolete	T3/E3 (Single)	40µH	-	1:1	Surface Mount	0.300 L x 0.275 W (7.62mm x 7.00mm)	0.245 (6.23mm)
PE-65968 TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics Network	2,517	RFQ	Datasheet	Bulk	-	Obsolete	T3/E3 (Single)	19µH	-	1:2CT	Surface Mount	0.300 L x 0.275 W (7.62mm x 7.00mm)	0.245 (6.23mm)
T3001 TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics Network	2,799	RFQ	Datasheet	Bulk	-	Obsolete	T3/E3 (Single)	100µH	-	1:1	Surface Mount	0.300 L x 0.275 W (7.62mm x 7.00mm)	0.250 (6.35mm)
T3002 TRANSFORMER TELECOM SINGLE T3/E3 Pulse Electronics Network	2,442	RFQ	Datasheet	Bulk	-	Obsolete	T3/E3 (Single)	40µH	-	1:2CT	Surface Mount	0.300 L x 0.275 W (7.62mm x 7.00mm)	0.250 (6.35mm)
H5004 MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics Network	3,812	RFQ	Datasheet	Tray	-	Obsolete	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.235 (5.97mm)
H5007 MODULE SINGLE GIGABIT LAN 24SOIC Pulse Electronics Network	3,736	RFQ	Datasheet	Tube	-	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.227 (5.76mm)
HX5020 MODULE DL GIGABIT ETHER LAN 48P Pulse Electronics Network	3,244	RFQ	Datasheet	Bulk	-	Obsolete	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	1.100 L x 0.297 W (27.94mm x 7.54mm)	0.341 (8.66mm)
H0009 MODULE PC CARD SNGL LAN 16PCMCIA Pulse Electronics Network	3,013	RFQ	Datasheet	Tube	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.560 L x 0.560 W (14.22mm x 14.22mm)	0.082 (2.08mm)

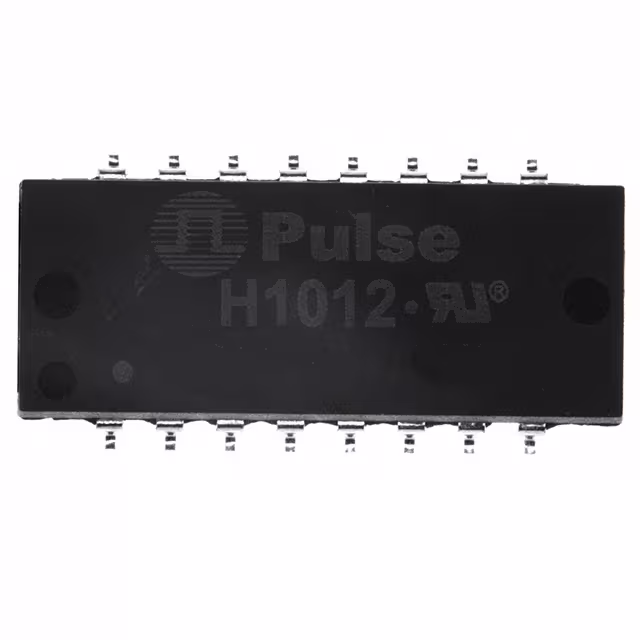

H1012 MODULE TRANSFMR SNGL LAN 16P SMD Pulse Electronics Network	3,331	RFQ	Datasheet	Bulk	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	1.000 L x 0.390 W (25.40mm x 9.91mm)	0.245 (6.22mm)
H1102 MODULE XFRMR SGL ETHR LAN 16SOIC Pulse Electronics Network	3,617	RFQ	Datasheet	Bulk	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)
H1112 MODULE TRANSFMR SNGL LAN 12P SMD Pulse Electronics Network	2,090	RFQ	Datasheet	Bulk	-	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.202 (5.13mm)
HX1188 MODULE XFRMR SGL ETHR LAN 16SOIC Pulse Electronics Network	3,599	RFQ	Datasheet	Bulk	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)
H1036L MODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics Network	3,725	RFQ	Datasheet	Tray	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)
H1053 MODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics Network	3,830	RFQ	Datasheet	Bulk	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	1.125 L x 0.480 W (28.58mm x 12.19mm)	0.230 (5.84mm)
H1060 MODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics Network	3,976	RFQ	Datasheet	Bulk	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	1.125 L x 0.480 W (28.58mm x 12.19mm)	0.230 (5.84mm)
H1062 MODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics Network	2,389	RFQ	Datasheet	Tray	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	1.125 L x 0.480 W (28.58mm x 12.19mm)	0.230 (5.84mm)
H1164 MODULE XFRMR ETHERNET LAN 40SOIC Pulse Electronics Network	2,016	RFQ	Datasheet	Tray	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	1.125 L x 0.480 W (28.58mm x 12.19mm)	0.230 (5.84mm)
HX1234 MODULE XFRMR ETHERNET LAN 40SOIC Pulse Electronics Network	2,913	RFQ	Datasheet	Bulk	-	Active	LAN	-	-	1CT:1CT	Surface Mount	1.125 L x 0.480 W (28.58mm x 12.19mm)	0.290 (7.36mm)

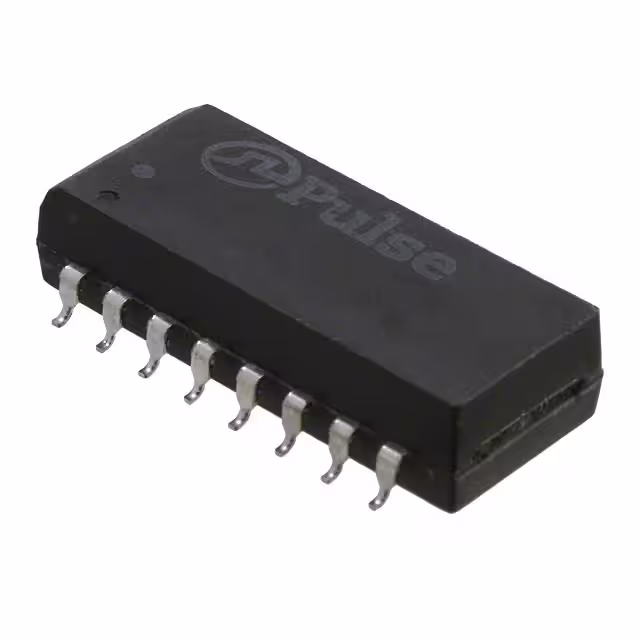

PE-68026 MODULE FILTER SNGL LAN 16PIN SMD Pulse Electronics Network	2,517	RFQ		Tube	-	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.920 L x 0.385 W (23.37mm x 9.78mm)	0.230 (5.84mm)
FL1012 MODULE FILTER SNGL LAN 16PIN TH Pulse Electronics Network	3,846	RFQ	Datasheet	Bulk	-	Obsolete	-	-	-	1CT:1CT	Through Hole	0.995 L x 0.395 W (25.28mmx 10.03mm)	0.338 (8.59mm)
