Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
H0019NL MODULE PC CARD SNGL LAN 16PCMCIA Pulse Electronics Network	3,910	RFQ	Datasheet	Tube	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.078 (1.98mm)
H0022NL MODULE PC CARD SNGL LAN 12PCMCIA Pulse Electronics Network	3,853	RFQ	Datasheet	Tube	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.465 L x 0.340 W (11.81mm x 8.63mm)	0.085 (2.16mm)

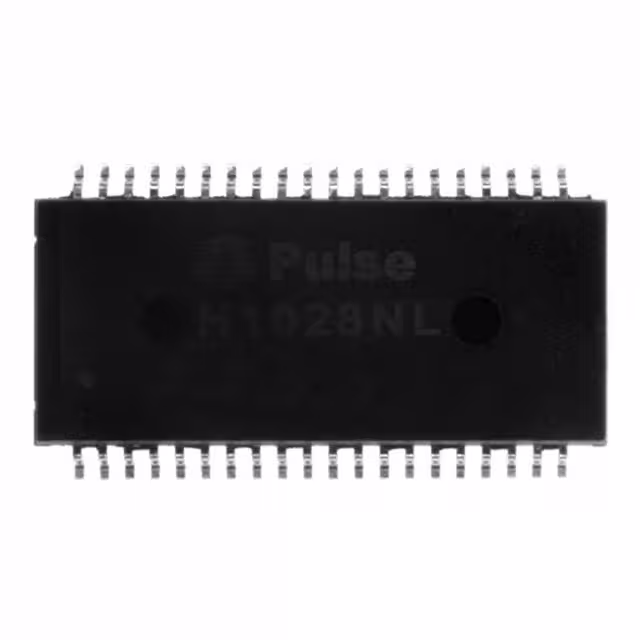

H1028NL MODULE XFRMR DL ETHER LAN 40SOIC Pulse Electronics Network	3,531	RFQ	Datasheet	Tube	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)
H1060NL MODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics Network	2,099	RFQ	Datasheet	Bulk	-	Active	LAN	-	-	1CT:1CT	Surface Mount	1.125 L x 0.480 W (28.58mm x 12.19mm)	0.230 (5.84mm)
H1174NL MODULE XFRMR DUAL ETHER LAN 24P Pulse Electronics Network	205	RFQ	Datasheet	Tube	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.512 L x 0.500 W (13.08mm x 12.70mm)	0.155 (3.93mm)
H2005ANL MODULE XFRMR VOIP DL LAN 24-SOIC Pulse Electronics Network	3,902	RFQ	Datasheet	Tube	-	Active	LAN	-	-	1CT:1CT	Surface Mount	0.510 L x 0.600 W (12.95mm x 15.24mm)	0.290 (7.36mm)
H2008NL MODULE XFRMR VOIP DL LAN 24-SOIC Pulse Electronics Network	3,213	RFQ	Datasheet	Tube	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.537 L x 0.470 W (13.64mm x 11.94mm)	0.254 (6.45mm)
H5012NL MODULE DL GIGABIT ETHER LAN 48P Pulse Electronics Network	2,361	RFQ	Datasheet	Bulk	-	Active	LAN 1000 Base-T	-	-	1CT:1CT	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.295 (7.49mm)
H1036LNL MODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics Network	2,162	RFQ		Tube	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)
H1053NL MODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics Network	3,730	RFQ		Tube	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	1.125 L x 0.480 W (28.58mm x 12.19mm)	0.230 (5.84mm)
PA1672NL PULSE XFMR 1:4 7.75UH Pulse Electronics Power	2,164	RFQ	Datasheet	-	-	Obsolete	-	7.75µH	-	1:4	Surface Mount	0.930 L x 0.860 W (23.62mm x 21.84mm)	0.450 (11.43mm)

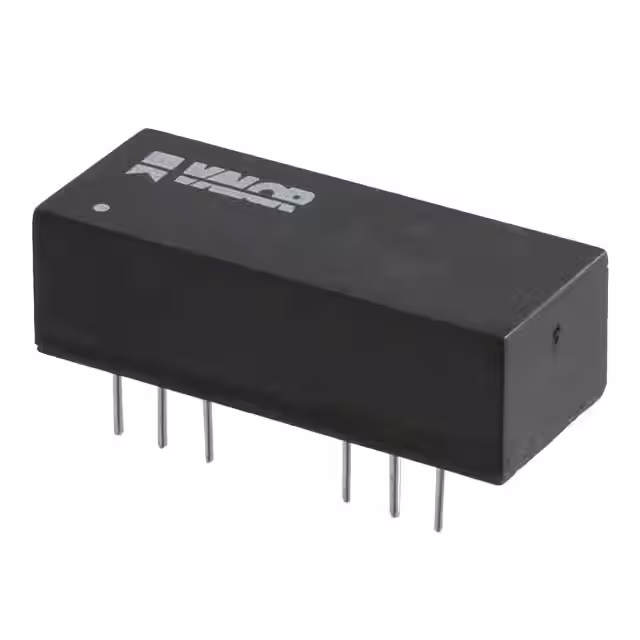

FL1012NL MODULE FILTER SNGL LAN 16PIN TH Pulse Electronics Network	3,631	RFQ	Datasheet	Tube	-	Obsolete	LAN	-	-	1CT:1CT	Through Hole	0.995 L x 0.395 W (25.28mmx 10.03mm)	0.338 (8.59mm)
PE-68017SNL MODULE FILTER SNGL LAN 10-SIL Pulse Electronics Network	3,662	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Through Hole	1.000 L x 0.210 W (25.40mm x 5.33mm)	0.450 (11.43mm)

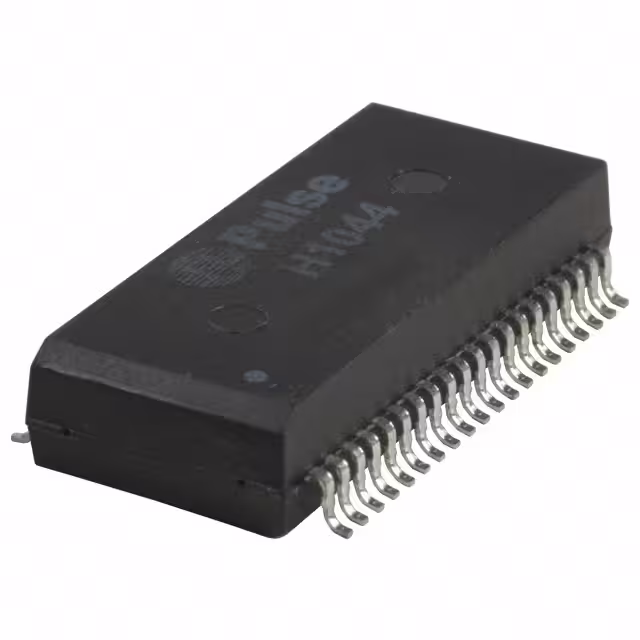

H1044NL MODULE XFRMR QUAD ETHR LAN40SOIC Pulse Electronics Network	3,418	RFQ		Tube	-	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	1.125 L x 0.480 W (28.58mm x 12.19mm)	0.230 (5.84mm)
H1140NL MODULE XFRMR ETHERNET LAN 40SOIC Pulse Electronics Network	2,102	RFQ	Datasheet	Tube	-	Obsolete	-	-	-	1CT:1CT	Surface Mount	1.125 L x 0.480 W (28.58mm x 12.19mm)	0.290 (7.36mm)
PE-65870NL TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	2,259	RFQ	Datasheet	Tube	-	Active	T1/E1 (Dual)	1.2mH	-	1CT:1.15CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
PE-68062LNL MODULE XFRMR/CHOKE QUAD 40-SOIC Pulse Electronics Network	2,986	RFQ	Datasheet	Tube	-	Obsolete	-	-	-	1CT:1.41CT	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)
T1091NL TRANSFORMER TELECOM DUAL T1/E2 Pulse Electronics Network	2,154	RFQ	Datasheet	Tube	-	Active	T1/E1 (Dual)	1.2mH	-	1CT:2CT, 1:1.36CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
T1190NL TRANSFORMER TELECOM DUAL T1/E2 Pulse Electronics Network	3,812	RFQ	Datasheet	Tube	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1CT, 1CT:1.36CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
PA1439NL TRANSFORMER SMT 51:1 Pulse Electronics Power	2,599	RFQ		-	-	Obsolete	-	-	-	-	-	-	-
