Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

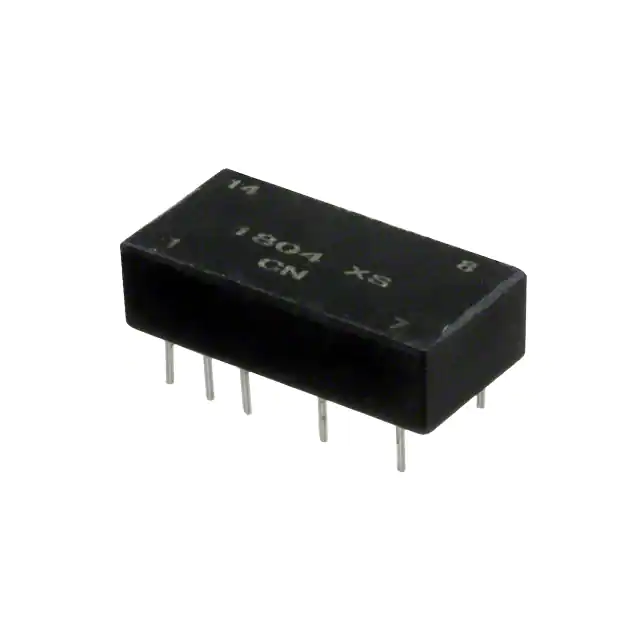

PE-64952NL XFRMR 1:2CT/1:1.36 1.2/1.2MH T/H Pulse Electronics Network	3,041	RFQ	Datasheet	Tube	-	Active	T1/E1 (Dual)	1.2mH, 1.2mH	-	1:2CT, 1:1.36	Through Hole	0.800 L x 0.386 W (20.32mm x 9.80mm)	0.250 (6.35mm)
T5011NL MODULE ISDN-S 1CT:1CT 30MH T/H Pulse Electronics Network	2,852	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	30mH	-	1CT:1CT	Through Hole	1.145 L x 0.418 W (29.08mm x 10.62mm)	0.590 (14.99mm)
PE-64954NL XFRMR 1CT:2CT/1:1 1.2/1.2MH T/H Pulse Electronics Network	3,137	RFQ		Tube	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2CT, 1:1	Through Hole	0.800 L x 0.386 W (20.32mm x 9.80mm)	0.250 (6.35mm)
PE-65565NL XFRMR 1:1.15CT/1:2CT 1.5/1.2MH Pulse Electronics Network	3,129	RFQ	Datasheet	Tube	-	Active	T1/E1 (Dual)	1.2mH, 1.5mH	-	1:1.15CT, 1:2CT	Through Hole	0.800 L x 0.386 W (20.32mm x 9.80mm)	0.290 (7.37mm)
PE-64957NL XFRMR 1CT:1.31/2.62:1 1.2/1.2MH Pulse Electronics Network	2,236	RFQ		Tube	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1.31, 2.62:1	Through Hole	0.800 L x 0.386 W (20.32mm x 9.80mm)	0.250 (6.35mm)
PE-65568NL XFRMR 1:1/1.26 / 1:2CT 1.5/1.2MH Pulse Electronics Network	3,792	RFQ		Tube	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.5mH	-	1:1/1.26, 1:2CT	Through Hole	0.800 L x 0.386 W (20.32mm x 9.80mm)	0.290 (7.37mm)
PE-65566NL XFRMR 1:1/1.26 / 1:2CT 1.5/1.2MH Pulse Electronics Network	2,252	RFQ		Tube	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.5mH	-	1:1/1.26, 1:2CT	Through Hole	0.800 L x 0.386 W (20.32mm x 9.80mm)	0.290 (7.37mm)
PE-65774NL XFRMR 1CT:2CT/1:1.36CT 1.2/1.2MH Pulse Electronics Network	3,886	RFQ	Datasheet	Tube	-	Obsolete	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2CT, 1:1.36CT	Through Hole	0.800 L x 0.386 W (20.32mm x 9.80mm)	0.290 (7.37mm)
PE-64956NL XFRMR 1:1CT/2:1 0.8/0.8MH T/H Pulse Electronics Network	2,672	RFQ		Tube	-	Obsolete	T1/E1 (Dual)	800µH, 800µH	-	1:1CT, 2:1	Through Hole	0.800 L x 0.386 W (20.32mm x 9.80mm)	0.250 (6.35mm)
PE-65498NL XFRMR ISDN S-INTERFACE 1:2.5 T/H Pulse Electronics Network	3,703	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	22mH	-	1:2.5	Through Hole	0.920 L x 0.560 W (23.37mm x 14.22mm)	0.402 (10.20mm)
PE-65495NL XFRMR ISDN S-INTERFACE 1:2 T/H Pulse Electronics Network	2,498	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	22mH	-	1:2	Through Hole	0.920 L x 0.560 W (23.37mm x 14.22mm)	0.402 (10.20mm)
PE-65493NL XFRMR ISDN S-INTERFACE 1:1 T/H Pulse Electronics Network	3,379	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	22mH	-	1:1	Through Hole	0.920 L x 0.560 W (23.37mm x 14.22mm)	0.402 (10.20mm)
PE-64950NL XFRMR 1CT:1CT/1CT:3CT:1 T/H Pulse Electronics Network	3,404	RFQ		Tube	-	Obsolete	T1/E1 (Dual)	1.2mH, 600µH	-	1CT:1CT, 1CT:3CT:1	Through Hole	1.000 L x 0.386 W (25.40mm x 9.80mm)	0.290 (7.37mm)
PE-65492NL XFRMR ISDN S-INTERFACE 1:1 T/H Pulse Electronics Network	2,884	RFQ	Datasheet	Tube	-	Obsolete	Isolation and Data Interface (Encapsulated)	22mH	-	1:1	Through Hole	0.920 L x 0.560 W (23.37mm x 14.22mm)	0.402 (10.20mm)
PE-65499NL XFRMR ISDN S-INTERFACE 1:2 T/H Pulse Electronics Network	2,205	RFQ	Datasheet	Tube	-	Obsolete	Isolation and Data Interface (Encapsulated)	22mH	-	1:2	Through Hole	0.920 L x 0.560 W (23.37mm x 14.22mm)	0.402 (10.20mm)
PE-65833NL XFRMR 1CT:2CT 1.20MH T/H Pulse Electronics Network	2,373	RFQ	Datasheet	Tube	-	Active	T1/E1 (Single)	1.2mH	-	1CT:2CT	Through Hole	0.560 L x 0.560 W (14.22mm x 14.22mm)	0.402 (10.20mm)
PE-65837NL XFRMR 1:1.08/1.36 1.50MH T/H Pulse Electronics Network	3,251	RFQ	Datasheet	Tube	-	Obsolete	T1/E1 (Single)	1.5mH	-	1:1.08/1.36	Through Hole	0.560 L x 0.560 W (14.22mm x 14.22mm)	0.402 (10.20mm)
PE-65830NL XFRMR 1.27CS:1 0.8MH T/H Pulse Electronics Network	3,138	RFQ	Datasheet	Tube	-	Obsolete	T1/E1 (Single)	800µH	-	1.27CS:1	Through Hole	0.560 L x 0.560 W (14.22mm x 14.22mm)	0.402 (10.20mm)
PE-68998NL XFRMR ISDN S-INTERFACE 1CS:2.5 Pulse Electronics Network	3,935	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	22mH	-	1CS:2.5CS	Through Hole	0.750 L x 0.750 W (19.05mm x 19.05mm)	0.500 (12.70mm)

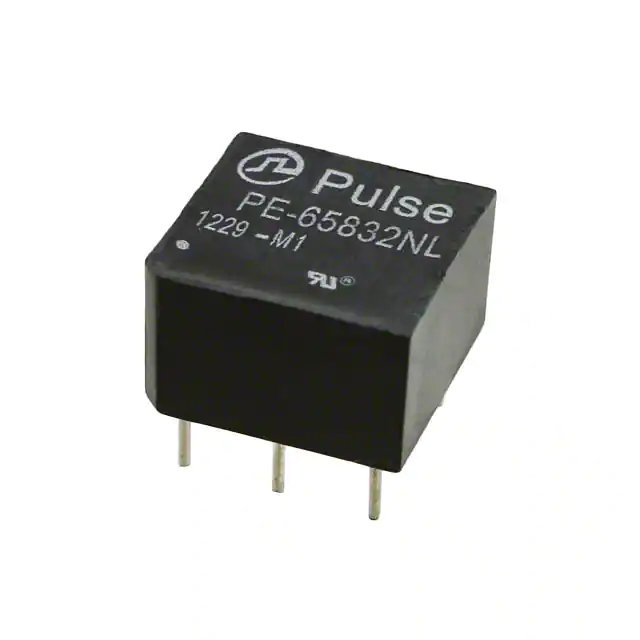

PE-65832NL XFRMR 1:1.36CT 1.20MH T/H Pulse Electronics Network	2,262	RFQ	Datasheet	Tube	-	Active	T1/E1 (Single)	1.2mH	-	1:1.36CT	Through Hole	0.560 L x 0.560 W (14.22mm x 14.22mm)	0.402 (10.20mm)
