Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

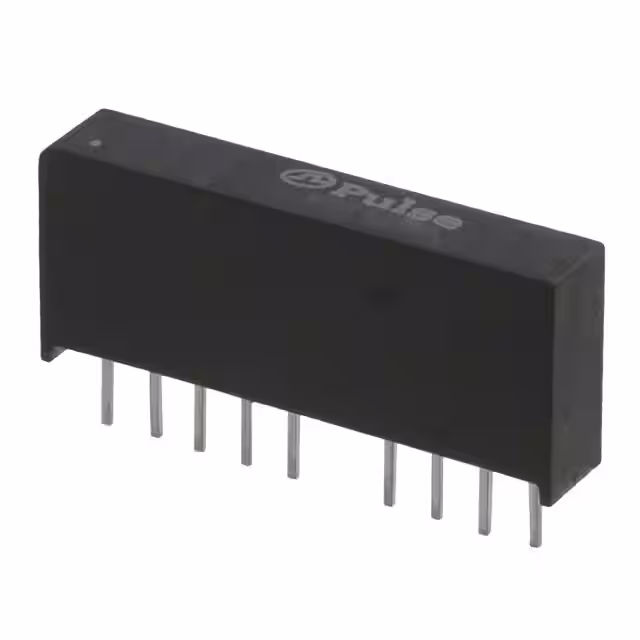

PE-68017S MODULE FILTER SNGL LAN 10-SIL Pulse Electronics Network	3,680	RFQ	Datasheet	-	-	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Through Hole	1.000 L x 0.210 W (25.40mm x 5.33mm)	0.450 (11.43mm)

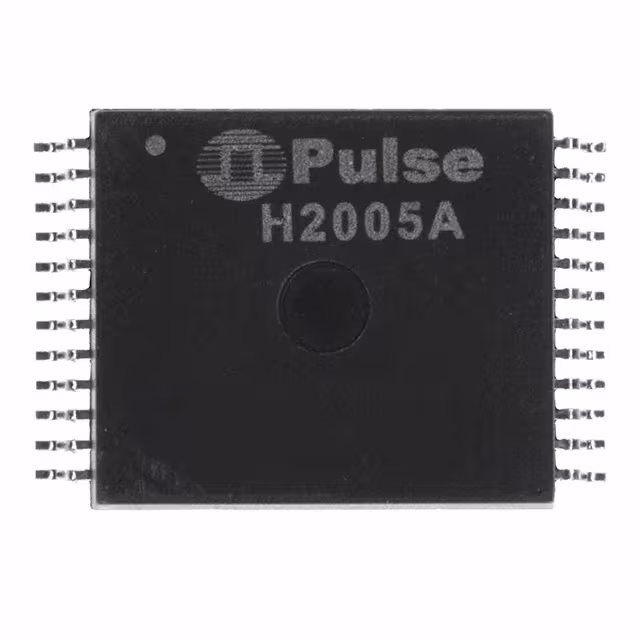

H2005A MODULE XFRMR VOIP DL LAN 24-SOIC Pulse Electronics Network	2,861	RFQ	Datasheet	Bulk	-	Obsolete	LAN	-	-	1CT:1CT	Surface Mount	0.510 L x 0.600 W (12.95mm x 15.24mm)	0.290 (7.36mm)
PE-65728 TRANSFMR AUI ETHERNET LAN 16SOIC Pulse Electronics Network	3,264	RFQ	Datasheet	Bulk	-	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1:1:1	Surface Mount	0.500 L x 0.285 W (12.70mm x 7.24mm)	0.210 (5.33mm)
E2009 MODULE INTERFACE SNGL LAN 10BT Pulse Electronics Network	3,739	RFQ	Datasheet	-	-	Obsolete	Isolation and Data Interface (Encapsulated)	-	-	1:1.414	Surface Mount	1.000 L x 0.385 W (25.40mm x 9.78mm)	0.230 (5.84mm)
H1071 MODULE TRANSFRMR QUAD LAN 10/100 Pulse Electronics Network	2,901	RFQ	Datasheet	Bulk	-	Obsolete	LAN	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	1.125 L x 0.480 W (28.58mm x 12.19mm)	0.230 (5.84mm)
H1092 MODULE TRANSFRMR QUAD LAN 10/100 Pulse Electronics Network	3,288	RFQ	Datasheet	Bulk	-	Obsolete	LAN	-	-	2CT:1CT	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)
H1093 MODULE TRANSFRMR SNGL LAN 10/100 Pulse Electronics Network	3,738	RFQ	Datasheet	Bulk	-	Obsolete	LAN	-	-	1CT:2CT	Surface Mount	1.000 L x 0.395 W (25.40mm x 10.03mm)	0.230 (5.84mm)
H2006A MODULE MAGNETICS POE DUAL VOIP Pulse Electronics Network	2,825	RFQ	Datasheet	Bulk	-	Active	-	-	-	1:1	Surface Mount	0.537 L x 0.470 W (13.64mm x 11.94mm)	0.254 (6.45mm)
HX1236 MODULE TRANSFRMR QUAD LAN 10/100 Pulse Electronics Network	2,910	RFQ	Datasheet	Bulk	-	Active	LAN	-	-	1:1	Surface Mount	1.125 L x 0.480 W (28.58mm x 12.19mm)	0.290 (7.36mm)
PE-68049 MODULE TRANSFORMER QUAD 10BT SMD Pulse Electronics Network	2,075	RFQ	Datasheet	Bulk	-	Active	-	-	-	-	-	-	-
ST6118T MODULE TRANSFRMR SNGL 10/100B-TX Pulse Electronics Network	3,646	RFQ	Datasheet	-	-	Obsolete	-	-	-	1CT:1CT	Surface Mount	0.988 L x 0.505 W (25.10mm x 12.83mm)	0.242 (6.15mm)
ST6122T MODULE TRANSFRMR SNGL 10/100B-TX Pulse Electronics Network	2,006	RFQ	Datasheet	-	-	Obsolete	-	-	-	1CT:1CT	Surface Mount	0.988 L x 0.505 W (25.10mm x 12.83mm)	0.242 (6.15mm)
ST6129T MODULE TRANSFRMR SNGL 10/100B-TX Pulse Electronics Network	3,090	RFQ	Datasheet	-	-	Obsolete	-	-	-	2CT:1CT	Surface Mount	0.988 L x 0.505 W (25.10mm x 12.83mm)	0.242 (6.15mm)
ST7010T MODULE TRANSFMR CMC ETHERNT 10BT Pulse Electronics Network	3,432	RFQ	Datasheet	-	-	Obsolete	-	-	-	-	-	0.447 L x 0.360 W (11.36mm x 9.15mm)	0.233 (5.91mm)
TLA-6T207C XFRMR LAN 1CT:1CT 350UH 14SMD TDK Corporation	3,892	RFQ	Datasheet	Tray	TLA	Obsolete	LAN	350µH	-	1CT:1CT	Surface Mount	0.465 L x 0.520 W (11.80mm x 13.20mm)	0.087 (2.20mm)
TLA-6T127LF XFRMR LAN 1CT:1CT 350UH 16SOP TDK Corporation	3,163	RFQ	Datasheet	Tray	TLA	Obsolete	LAN	350µH	-	1CT:1CT	Surface Mount	0.457 L x 0.268 W (11.60mm x 6.80mm)	0.232 (5.90mm)
TLA-6T704 JACK PCMOUNT W/XFRMR 1CT:1 350UH TDK Corporation	2,141	RFQ	Datasheet	Tray	TLA	Obsolete	LAN	350µH	-	1CT:1	Surface Mount	0.844 L x 0.630 W (21.45mm x 16.00mm)	0.671 (17.05mm)
H1200NL MODULE TRANSFRMR DUAL LAN 10/100 Pulse Electronics Network	3,212	RFQ	Datasheet	Tray	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)

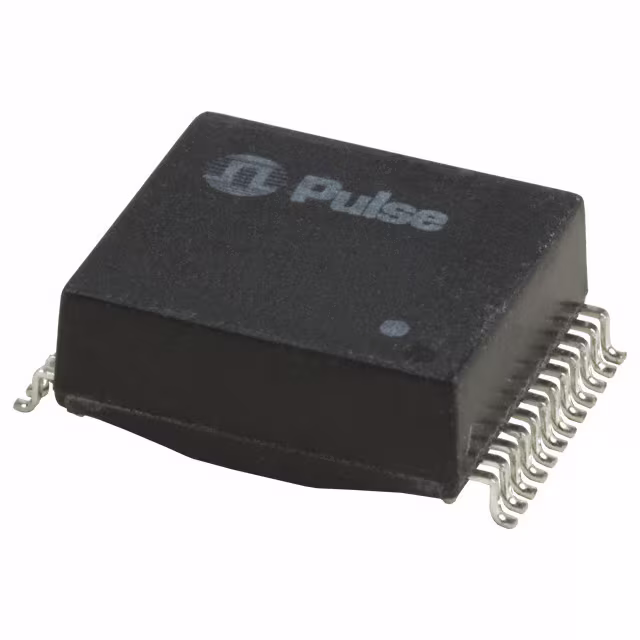

H5009NL MODULE XFORMR GIGABIT SINGLE LAN Pulse Electronics Network	3,641	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.537 L x 0.600 W (13.64mm x 15.24mm)	0.235 (5.97mm)

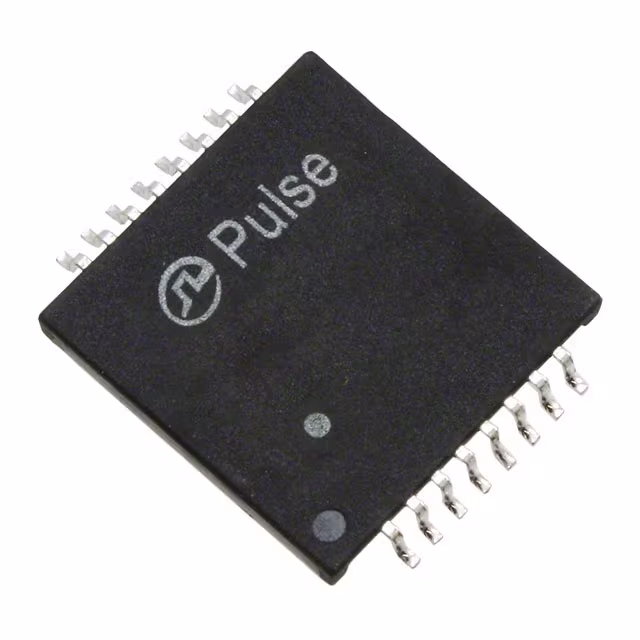

H0009NL MODULE PC CARD SNGL LAN 16PCMCIA Pulse Electronics Network	2,567	RFQ	Datasheet	Tube	-	Active	-	-	-	1CT:1CT	Surface Mount	0.560 L x 0.560 W (14.22mm x 14.22mm)	0.082 (2.08mm)
