Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
PA3371NL PULSE XFMR 31UH Pulse Electronics Power	3,530	2.78	RFQ	Datasheet	Tray	-	Active	-	31µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
AVP6014R MDL 2.5G 1 PORT 4PAIR POE 60W Pulse Electronics Network	3,039	2.82	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
31160R TRANSFORMER 500UH SMD Würth Elektronik	2,605	2.83	RFQ		Bulk	-	Active	-	-	-	-	Surface Mount	0.240 L x 0.345 W (6.10mm x 8.76mm)	0.250 (6.35mm)
PA1528ANL PULSE XFMR 28.9UH Pulse Electronics Power	3,909	2.83	RFQ	Datasheet	Tray	-	Active	-	28.9µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA2437NLT PULSE XFMR 80UH Pulse Electronics Power	3,731	2.83	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	80µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
24SH10410B HF MDL LAN 1GBT POE 60W SMD Pulse Electronics Network	2,926	2.83	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
GS6014RM LF MDL 1G DUAL PORT 4PAIR POE 60W Pulse Electronics Network	3,437	2.83	RFQ		Tape & Reel (TR)	-	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.283 (7.20mm)
S558-5999-AR-F XFRMR MOD LAN GIGABIT EXTEMP 24P Bel Fuse Inc.	2,406	2.83	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.230 (5.84mm)
PA2398NLT PULSE XFMR 100UH Pulse Electronics Power	3,721	2.85	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	100µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
G2PM109RNS2 LF MDL 1G DIP DUAL PORT POE+ 30W Pulse Electronics Network	3,386	2.87	RFQ		Tube	-	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	1.106 L x 0.437 W (28.10mm x 11.10mm)	0.433 (11.00mm)
GS5014R LF MDL 1G DUAL PORT POE+ 30W Pulse Electronics Network	3,765	2.87	RFQ		Tape & Reel (TR)	-	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.283 (7.20mm)
E2458NLT XFRMR ISOL 10BASE-T 1:1.41 SMD Pulse Electronics Network	2,669	2.87	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Isolation and Data Interface (Encapsulated)	160µH, 160µH	-	1CT:1.41CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.241 (6.12mm)
ALANS100X1-2F00JT LAN SGL 100B XFMR&CMC 16PIN Abracon LLC	2,051	3.03	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
ALANS100X1-2F02JT LAN SGL 100B XFMR&CMC 16PIN Abracon LLC	2,246	3.03	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
ALANS100X1-2F10JT LAN SGL 100B XFMR&CMC 16PIN Abracon LLC	3,077	3.03	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
ALANS100X1-2F30JT LAN SGL 100B XFMR&SRDCMC 12PIN Abracon LLC	2,648	3.03	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
ALANS100X1-2F82JT LAN SGL 100B XFMR&CMC&AUTO 12PIN Abracon LLC	2,010	3.03	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)

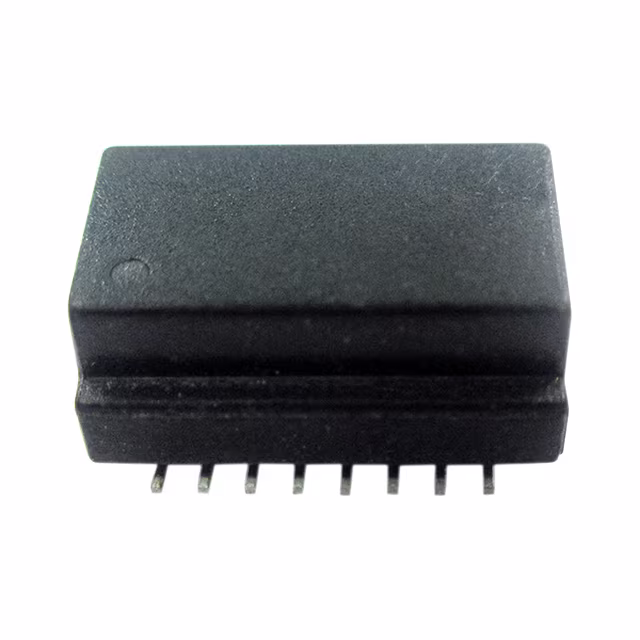

ALAN-102 PULSE XFMR 1CT:1CT 350UH Abracon LLC	2,105	3.04	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.234 (5.95mm)
HX1341NLT MDL SIN 100D 1:1 SMT TR Pulse Electronics Network	2,495	2.90	RFQ		Tape & Reel (TR)	-	Active	LAN 1000 Base-T	350µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
BX6153NLT TRANSFORMER 7UH 1:1 4KV SMT Pulse Electronics Network	2,162	2.91	RFQ	Datasheet	Tape & Reel (TR)	BX615xNL	Active	-	7µH	-	1:1	Surface Mount	0.445 L x 0.406 W (11.30mm x 10.30mm)	0.300 (7.62mm)
