Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
ALANS100X1-2F02KT LAN SGL 100B XFMR&CMC 16PIN Abracon LLC	2,580	3.22	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
ALANS100X1-2F10KT LAN SGL 100B XFMR&CMC 16PIN Abracon LLC	2,021	3.22	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
ALANS100X1-2F30KT LAN SGL 100B XFMR&SRDCMC 12PIN Abracon LLC	2,365	3.22	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
ALAN-409-T PULSE XFMR 1CT:1CT 350UH Abracon LLC	3,764	3.22	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	1.085 L x 0.525 W (27.55mm x 13.34mm)	0.304 (7.73mm)
PE-64937NL XFRMR T1/CEPT/ISDN-PRI 1:1.36 Pulse Electronics Network	3,723	3.06	RFQ	Datasheet	Tube	-	Active	T1/E1 (Single)	1.2mH	-	1:1.36	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
PE-64943NL XFRMR T1/CEPT/ISDN-PRI 1CT:2CT Pulse Electronics Network	3,325	3.06	RFQ		Tube	-	Active	T1/E1 (Single)	1.2mH	-	1CT:2CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
PA0769NL PULSE XFMR 89.2UH Pulse Electronics Power	3,455	3.07	RFQ	Datasheet	Tube	-	Active	-	89.2µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA2291NL PULSE XFMR 57.6UH Pulse Electronics Power	3,299	3.07	RFQ	Datasheet	Tray	-	Active	-	57.6µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
VP9014RM HF MDL 1G 1 PORT POE 90W Pulse Electronics Network	2,129	3.07	RFQ		Tape & Reel (TR)	-	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)
BX6158NLT TRANSFORMER 20UH 1:1:1 3KV SMT Pulse Electronics Network	2,747	3.08	RFQ	Datasheet	Tape & Reel (TR)	BX615xNL	Active	-	20µH	-	1:1:1	Surface Mount	0.445 L x 0.411 W (11.31mm x 10.43mm)	0.287 (7.30mm)
GS5014 LF MDL 1G DUAL PORT POE+ 30W Pulse Electronics Network	3,352	3.09	RFQ		Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.283 (7.20mm)

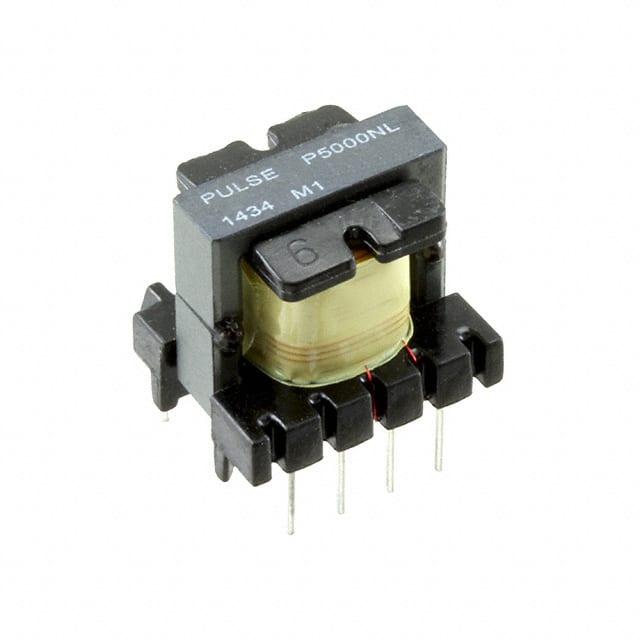

P5000NL PULSE XFMR 1:0.07:0.07 Pulse Electronics Power	2,516	0.00	RFQ	Datasheet	Tray	-	Active	-	-	-	1:0.07:0.07	Through Hole	0.717 L x 0.630 W (18.20mm x 16.00mm)	0.697 (17.70mm)
PA2291NLT PULSE XFMR 57.6UH Pulse Electronics Power	2,524	3.12	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	57.6µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA2431NL PULSE XFMR 429.3UH Pulse Electronics Power	3,073	3.12	RFQ	Datasheet	Tray	-	Active	-	429.3µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
HMU1228NL MDL,SIN,100D,1:1,SM,TU Pulse Electronics Network	3,792	3.12	RFQ	Datasheet	Tube	*	Active	-	-	-	-	-	-	-
QVP2014S MDL 5G SINGLE PORT N/A Pulse Electronics Network	3,741	3.12	RFQ		Tape & Reel (TR)	-	Active	LAN 2.5/5G Base-T	180µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)
ALAN-1002-T PULSE XFMR 1CT:1 350UH Abracon LLC	3,328	3.30	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1	Surface Mount	0.689 L x 0.559 W (17.50mm x 14.20mm)	0.219 (5.55mm)
PA1477NL PULSE XFMR 38.3UH Pulse Electronics Power	3,416	3.13	RFQ	Datasheet	Tray	-	Active	-	38.3µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
HM2113ZNL XFMR CMC SGL 150UH 1CT:1CT 4.3KV Pulse Electronics Network	3,098	3.14	RFQ		Tube	-	Active	-	150µH, 450µH	-	1:1	Surface Mount	0.354 L x 0.478 W (9.00mm x 12.15mm)	0.136 (3.45mm)

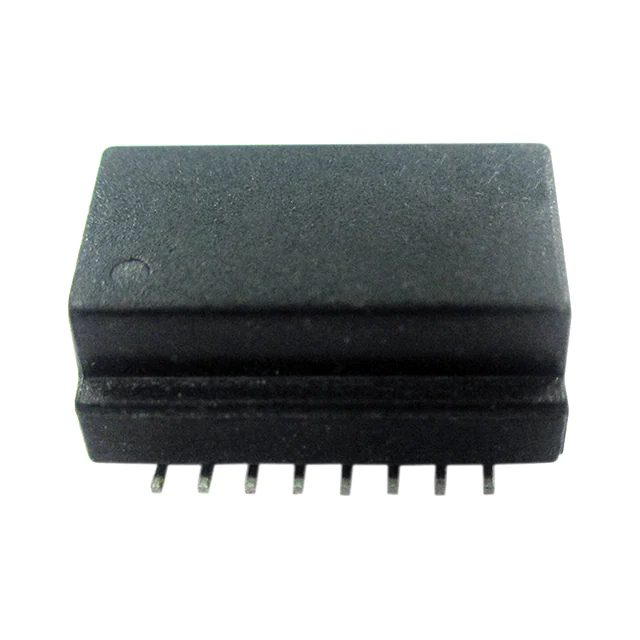

ALAN-505 PULSE XFMR 1CT:1CT 350UH Abracon LLC	3,241	3.31	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.234 (5.95mm)
