Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
PA3642NLT PULSE XFMR 37.9UH Pulse Electronics Power	3,305	2.59	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	37.9µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA2437NL PULSE XFMR 80UH Pulse Electronics Power	2,381	2.60	RFQ	Datasheet	Tray	-	Active	-	80µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
S558-5500-76 TRANSFORMER PULSE Bel Fuse Inc.	3,990	2.60	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 1000 Base-T	120µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.19mm)	0.225 (5.71mm)
SPOE3-0512 POE POWER OVER ETHERNET EP7 CORE Signal Transformer	2,809	2.62	RFQ	Datasheet	Tape & Reel (TR)	SPoE	Active	Power over Ethernet (PoE)	-	-	-	Surface Mount	-	-
SPOE3-3312 POE POWER OVER ETHERNET EP7 CORE Signal Transformer	2,075	2.62	RFQ	Datasheet	Tape & Reel (TR)	SPoE	Active	Power over Ethernet (PoE)	310µH	-	-	Surface Mount	-	-
C2268NL XFMR FC DUAL 1:1 7.5UH OH Pulse Electronics Network	3,949	2.65	RFQ		Tray	-	Active	-	7.5µH	-	1:1	Surface Mount	0.500 L x 0.275 W (12.70mm x 6.99mm)	0.200 (5.08mm)
C2268NLT PULSE XFMR 1:1 7.5UH Pulse Electronics Network	3,518	2.65	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	7.5µH	-	1:1	Surface Mount	0.500 L x 0.275 W (12.70mm x 6.99mm)	0.200 (5.08mm)
MGBBT-00283-P XFMR RM5 TH, ROHS C3085T TE Connectivity AMP Connectors	3,743	2.68	RFQ		Bulk	*	Active	-	-	-	-	-	-	-
PA1218NLT PULSE XFMR 480UH Pulse Electronics Power	2,163	2.68	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	480µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
ALAN-2202-T PULSE XFMR 1CT:1CT 350UH Abracon LLC	3,587	2.84	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.234 (5.95mm)

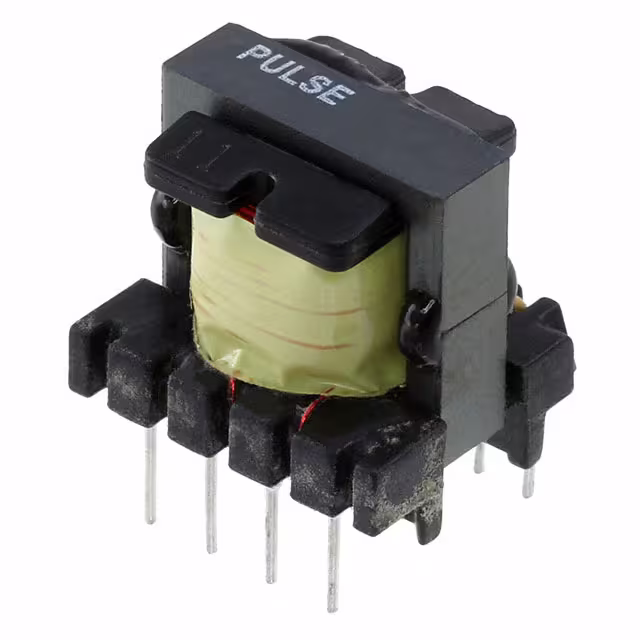

P5008NL PULSE XFMR 1:0.07:0.07 Pulse Electronics Power	2,422	0.00	RFQ	Datasheet	Tray	-	Active	-	-	-	1:0.07:0.07	Through Hole	0.717 L x 0.630 W (18.20mm x 16.00mm)	0.697 (17.70mm)
VP6014RM HF MDL 1G 1 PORT POE 60W Pulse Electronics Network	3,444	2.71	RFQ		Tape & Reel (TR)	-	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)
PA2367NL PULSE XFMR 85UH Pulse Electronics Power	2,458	2.71	RFQ	Datasheet	Tray	-	Active	-	85µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
BX1196LNL XFMR SHDSL ANNEX B 4.5:1 3MH Pulse Electronics Network	3,959	2.72	RFQ		Tray	-	Last Time Buy	-	3mH	-	4.5:1	Surface Mount	-	0.492 (12.50mm)
PA2086NL PULSE XFMR 164UH Pulse Electronics Power	2,419	2.75	RFQ	Datasheet	Tray	-	Active	-	164µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
VP6014M HF MDL 1G 1 PORT POE 60W Pulse Electronics Network	2,219	2.75	RFQ		Tape & Reel (TR)	-	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)

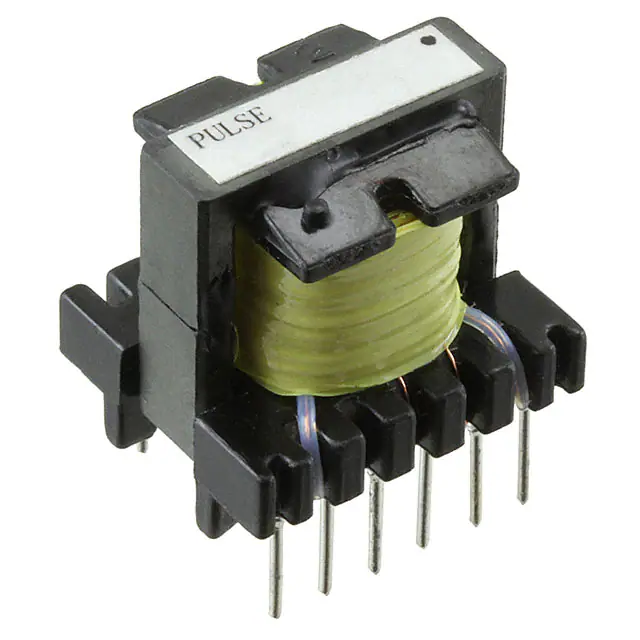

PA2517NL PULSE XFMR 1.2MH Pulse Electronics Power	3,839	0.00	RFQ	Datasheet	Tray	-	Active	-	1.2mH	-	-	Through Hole	0.717 L x 0.630 W (18.20mm x 16.00mm)	0.709 (18.00mm)
C2267NL XFMR FC DUAL 1:1 15UH OH S Pulse Electronics Network	2,536	2.76	RFQ		Tray	-	Active	-	15µH	-	1:1	Surface Mount	0.495 L x 0.280 W (12.57mm x 7.11mm)	0.200 (5.08mm)
C2267NLT XFMR FC DUAL 1:1 15UH OH S Pulse Electronics Network	3,162	2.76	RFQ		Tape & Reel (TR)	-	Active	-	15µH	-	1:1	Surface Mount	0.495 L x 0.280 W (12.57mm x 7.11mm)	0.200 (5.08mm)
H2260NLT XFRMR MODUL 1PORT POE 1:1 10/100 Pulse Electronics Network	2,203	2.77	RFQ	Datasheet	Tape & Reel (TR)	Star Magnetics™	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.240 (6.10mm)
