Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
ALANL100X1-DE62ET 10/100BASE-TX LAN XFMR Abracon LLC	3,038	2.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
BX1196LNLT IC CHIP Pulse Electronics Network	2,164	2.38	RFQ		Bulk	-	Last Time Buy	-	-	-	-	-	-	-
BX1199LNL XFMR SGL SHDSL EPX9 4.5:1 3MH Pulse Electronics Network	3,706	2.38	RFQ		Tray	-	Last Time Buy	-	-	-	-	-	-	-
BX1197LNL XFMR SGL SHDSL EPX9 4.5CS:1 3MH Pulse Electronics Network	2,040	2.38	RFQ		Tray	-	Last Time Buy	-	-	-	-	-	-	-
ALAN-102-T PULSE XFMR 1CT:1CT 350UH Abracon LLC	3,082	2.51	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.234 (5.95mm)
ALAN-508-T PULSE XFMR 1CT:1CT 350UH Abracon LLC	3,289	2.51	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.234 (5.95mm)
POE028-FD20050S POE TRANSFORMER, 28W, EFD20,75UH Bourns Inc.	3,198	2.39	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-

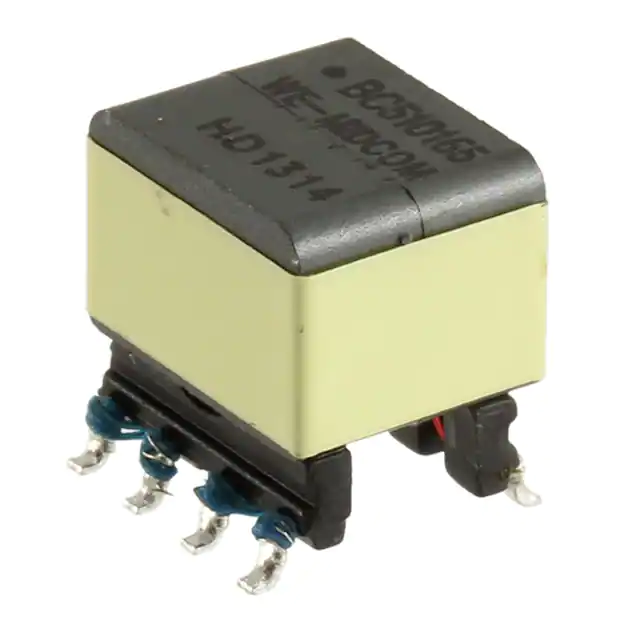

750510165 XFRM VX180-IFE6 POTS DAUGHTERBRD Würth Elektronik	2,124	2.13	RFQ	Datasheet	Tape & Reel (TR)	MID-DSLIKN	Active	VDSL	1.2mH	-	3:1	Surface Mount	0.385 L x 0.360 W (9.78mm x 9.14mm)	0.415 (10.54mm)
PA2363NLT PULSE XFMR 5:1 25.2UH Pulse Electronics Power	3,025	2.39	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	25.2µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
G2PM109N1 LF MDL 1G DIP DUAL PORT POE+ 30W Pulse Electronics Network	2,755	2.39	RFQ		Tube	-	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	1.106 L x 0.433 W (28.10mm x 11.00mm)	0.433 (11.00mm)
SPOE7-3312 POE PWR OVER ETHERNET EP10 CORE Signal Transformer	2,697	2.40	RFQ	Datasheet	Tape & Reel (TR)	SPoE	Active	Power over Ethernet (PoE)	-	-	-	Surface Mount	-	-
PA2221NLT PULSE XFMR 152UH Pulse Electronics Power	3,223	2.41	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	152µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
G2PM109RN LF MDL 1G DIP DUAL PORT N/A Pulse Electronics Network	2,021	2.42	RFQ		Tube	-	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	1.106 L x 0.437 W (28.10mm x 11.10mm)	0.433 (11.00mm)
BMU6201NLT TRANSFORMER 5UH 1:1:1 500V SMT Pulse Electronics Network	2,437	2.42	RFQ	Datasheet	Tape & Reel (TR)	BMU6201NL	Active	-	5µH	-	1:1:1	Surface Mount	0.295 L x 0.198 W (7.49mm x 5.03mm)	0.155 (3.94mm)
BX4381NLT XFMR G.FAST TOR 1.5C:1C 2~212MHZ Pulse Electronics Network	2,123	2.42	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
S558-5999-U5-F XFRMR MODULE LAN 10/100BT 16P SM Bel Fuse Inc.	3,303	2.42	RFQ		Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.000 L x 0.390 W (25.40mm x 9.91mm)	0.235 (5.97mm)
PA1260NL PULSE XFMR 77.4UH Pulse Electronics Power	2,145	2.42	RFQ	Datasheet	Tray	-	Active	-	77.4µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA1269NL PULSE XFMR 77.4UH Pulse Electronics Power	2,818	2.42	RFQ	Datasheet	Tray	-	Active	-	77.4µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA1279NL PULSE XFMR 310UH Pulse Electronics Power	3,656	2.42	RFQ	Datasheet	Tray	-	Active	-	310µH	-	-	Surface Mount	0.421 L x 0.525 W (10.70mm x 13.34mm)	0.365 (9.27mm)
PA1367NL PULSE XFMR 66.1UH Pulse Electronics Power	3,826	2.42	RFQ	Datasheet	Tray	-	Active	-	66.1µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
