Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
PA1279NLT XFRMR 3.3V 3W 310UH POE EP7 SMD Pulse Electronics Power	3,524	2.21	RFQ	Datasheet	Tape & Reel (TR)	EP7	Active	Isolation and Data Interface (Encapsulated)	310µH	-	1:0.182:0.682	Surface Mount	0.420 L x 0.525 W (10.67mm x 13.34mm)	0.365 (9.27mm)
PA1721NL PULSE XFMR 185UH Pulse Electronics Power	3,937	2.22	RFQ	Datasheet	Tray	-	Active	-	185µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)

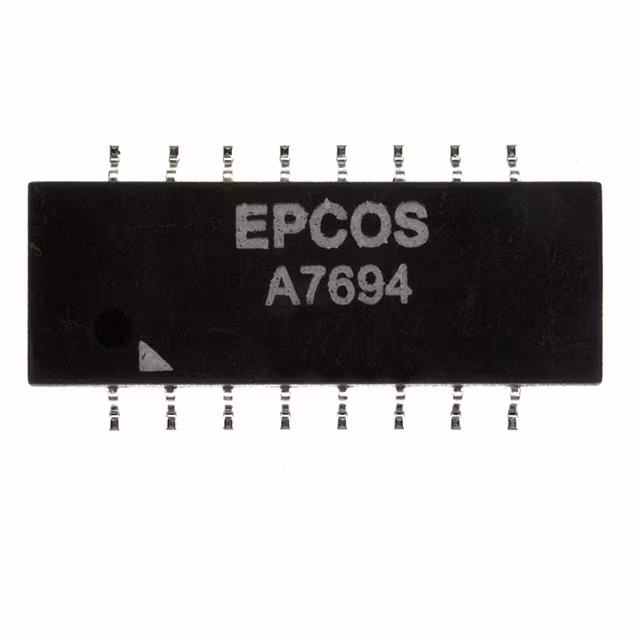

B78476A7694A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	3,115	2.24	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	1.000 L x 0.516 W (25.40mm x 13.10mm)	0.250 (6.35mm)
MGBBT-00259-P XFRMR BABT EP13 SMD GW TE Connectivity AMP Connectors	3,761	2.25	RFQ		Bulk	*	Active	-	-	-	-	-	-	-
LG2P109RN LF MDL 1G DIP DUAL PORT N/A Pulse Electronics Network	3,462	2.25	RFQ		Tube	-	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	1.280 L x 0.335 W (32.50mm x 8.50mm)	0.457 (11.60mm)
ALAN-505-T PULSE XFMR 1CT:1CT 350UH Abracon LLC	2,025	2.37	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.234 (5.95mm)
PA1366NL PULSE XFMR 10UH Pulse Electronics Power	3,740	0.00	RFQ	Datasheet	Tray	-	Active	-	10µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA1267NL PULSE XFMR 155.5UH Pulse Electronics Power	2,625	2.26	RFQ	Datasheet	Tray	-	Active	-	155.5µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA2627NL PULSE XFMR 50.5UH Pulse Electronics Power	3,906	2.26	RFQ	Datasheet	Tray	-	Active	-	50.5µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA2669NLT PULSE XFMR 17.3UH Pulse Electronics Power	3,655	2.26	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	17.3µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA1253NLT XFRMR 1.8V 1A 253UH POE EP10 SMD Pulse Electronics Power	2,556	2.27	RFQ	Datasheet	Tape & Reel (TR)	EP10	Active	Isolation and Data Interface (Encapsulated)	253µH	-	1:0.0625:0.271	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
S558-5500-44 TRANSFORMER PULSE Bel Fuse Inc.	3,815	2.28	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.542 L x 0.480 W (13.77mm x 12.19mm)	0.250 (6.35mm)
PA2328NL PULSE XFMR 100UH Pulse Electronics Power	3,407	2.29	RFQ	Datasheet	Tray	-	Active	-	100µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA2362NL PULSE XFMR 4:1 25.2UH Pulse Electronics Power	3,591	2.29	RFQ	Datasheet	Tray	-	Active	-	25.2µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA3342NLT PULSE XFMR 90UH Pulse Electronics Power	3,733	2.29	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	90µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
LG2P109N LF(2.5MM) MDL 1G DIP DUAL PORT N/A Pulse Electronics Network	3,894	2.29	RFQ		Tube	-	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	1.280 L x 0.335 W (32.50mm x 8.50mm)	0.457 (11.60mm)
TLA-3T101LF TRANSFORMR LAN 1:1TR 100UH 16SOP TDK Corporation	2,270	2.30	RFQ	Datasheet	Tray	TLA	Active	LAN	100µH	-	1:1	Surface Mount	0.457 L x 0.268 W (11.60mm x 6.80mm)	0.232 (5.90mm)

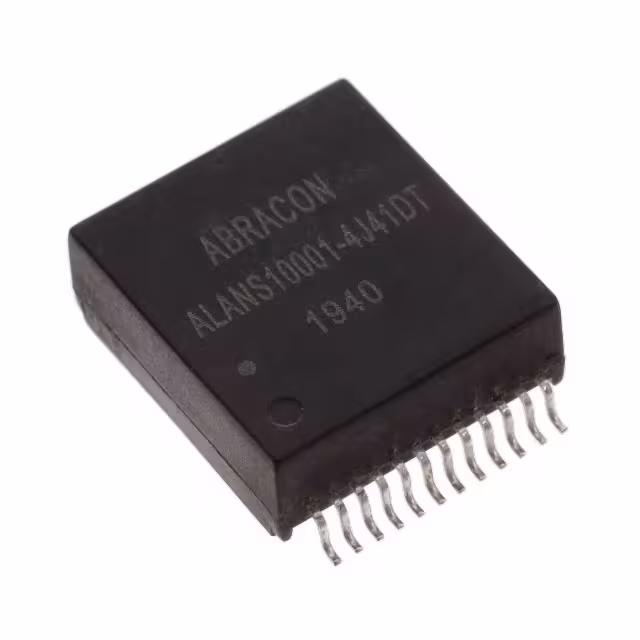

ALANS10001-4J41DT LAN SGL 1000B XFMR&CMC&AUTO 24PI Abracon LLC	3,886	4.35	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	-	0.225 (5.72mm)
ALANS10001-4J61DT LAN SGL 1000B XFMR&CMC 24PIN Abracon LLC	3,667	2.42	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	-	0.225 (5.72mm)
PA2363NL PULSE XFMR 5:1 25.2UH Pulse Electronics Power	3,525	2.31	RFQ	Datasheet	Tray	-	Active	-	25.2µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
