Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
LG2P109N LF MDL 1G DIP DUAL PORT N/A Pulse Electronics Network	2,625	2.32	RFQ		Tube	-	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	1.280 L x 0.335 W (32.50mm x 8.50mm)	0.457 (11.60mm)
ALAN-134-T PULSE XFMR 1CT:1CT 350UH Abracon LLC	2,551	2.45	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.272 W (12.70mm x 6.90mm)	0.213 (5.40mm)
TS21AZ HF SMD 10/100 1 PORT POE Pulse Electronics Network	2,877	2.34	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
750316094 GATE DRIVE TRANSFORMER Würth Elektronik	2,734	2.34	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	1:1	Surface Mount	-	0.212 (5.38mm)
PA2362NLT PULSE XFMR 4:1 25.2UH Pulse Electronics Power	3,040	2.38	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	25.2µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)

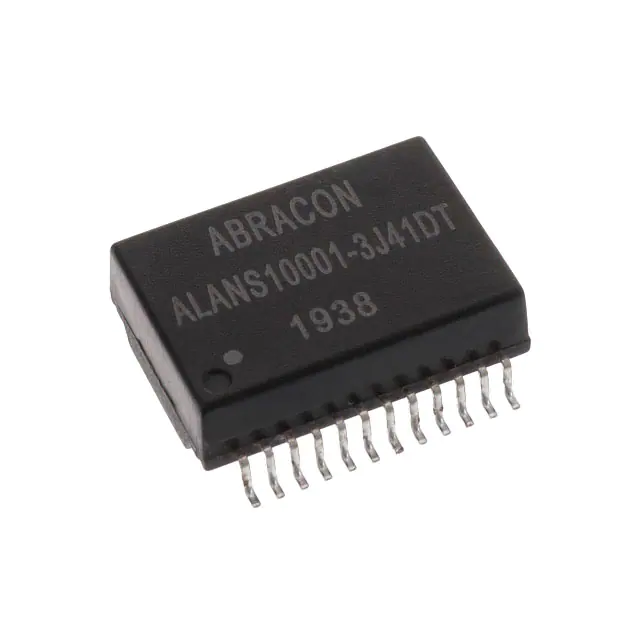

ALANS10001-3J41DT LAN SGL 1000B XFMR&CMC&AUTO 24PI Abracon LLC	2,996	2.50	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	-	0.254 (6.45mm)
ALANS10001-3J61DT LAN SGL 1000B XFMR&CMC 24PIN Abracon LLC	3,863	2.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	-	0.254 (6.45mm)
PA2194NLT PULSE XFMR 617.4UH Pulse Electronics Power	2,323	2.38	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	617.4µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA2204NLT PULSE XFMR 5UH Pulse Electronics Power	2,029	2.38	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	5µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA2271NLT PULSE XFMR 10UH Pulse Electronics Power	3,176	2.38	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	10µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA3171NLT PULSE XFMR 100UH Pulse Electronics Power	3,792	2.38	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	100µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA3519NLT PULSE XFMR 73.5UH Pulse Electronics Power	3,433	2.38	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	73.5µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
BX4550NL XFMR SGL G.FAST TOR 1CT:1CT Pulse Electronics Network	3,789	2.38	RFQ		Tray	-	Active	-	-	-	-	-	-	-
BX4515LNL XFMR G.FAST 1.3:1 212MHZ 10UH Pulse Electronics Network	2,645	2.38	RFQ		Tray	-	Last Time Buy	-	-	-	-	-	-	-
ALANL100X1-EFD2ET 10/100BASE-TX LAN XFMR Abracon LLC	3,856	2.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-EF62ET 10/100BASE-TX LAN XFMR Abracon LLC	3,348	2.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-DE10ET 10/100BASE-TX LAN XFMR Abracon LLC	3,172	2.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-DED2ET 10/100BASE-TX LAN XFMR Abracon LLC	3,814	2.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-DE12ET 10/100BASE-TX LAN XFMR Abracon LLC	3,557	2.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
ALANL100X1-EF12ET 10/100BASE-TX LAN XFMR Abracon LLC	2,342	2.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.15mm)
