Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
ALANS100X1-1E82JT LAN SGL 100B XFMR&CMC&AUTO 12PIN Abracon LLC	2,630	3.13	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.197 (5.00mm)
B78416A2386A003 EP6 SMD TRANSFORMER EPCOS - TDK Electronics	2,294	5.13	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B7416A	Active	-	230µH	-	1:1:9	Surface Mount	0.260 L x 0.260 W (6.60mm x 6.60mm)	0.280 (7.10mm)
B78416A2360A003 EP6 SMD TRANSFORMER EPCOS - TDK Electronics	3,578	5.13	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B7416A	Active	-	3mH	-	1:1:8.42	Surface Mount	0.260 L x 0.260 W (6.60mm x 6.60mm)	0.280 (7.10mm)

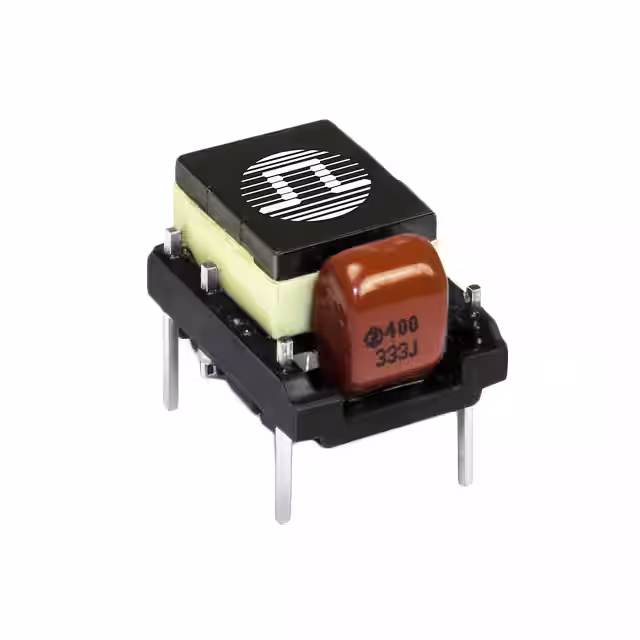

B8891NL PULSE XFMR XDSL 600 OHM NPB Pulse Electronics Network	2,845	2.98	RFQ	Datasheet	Tray	SmartER Splitter™	Active	ADSL, VDSL	-	-	-	Through Hole	0.701 L x 0.492 W (17.80mm x 12.50mm)	0.512 (13.00mm)
GS6014 LF MDL 1G 2 PORT 4PAIR POE 60W Pulse Electronics Network	3,008	2.99	RFQ		Tape & Reel (TR)	-	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.283 (7.20mm)
HX1341NL MDL SIN 100D 1:1 SMT TU Pulse Electronics Network	2,305	2.99	RFQ		Tube	-	Active	LAN 1000 Base-T	350µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)

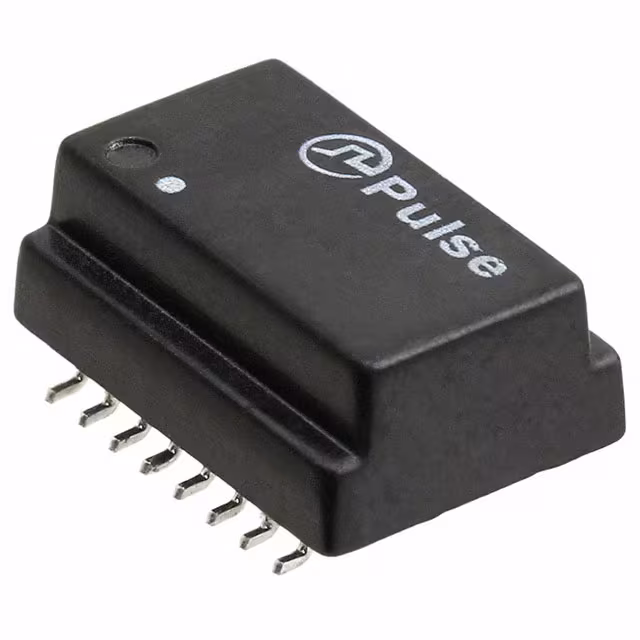

H1100FNL PULSE XFMR 2CT:1CT TX 1CT:1CT RX Pulse Electronics Network	2,502	2.99	RFQ	Datasheet	Tube	-	Active	LAN 10G Base-T	350µH	-	2CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)
H1100FNLT MDL SIN 100D 2:1 SMT TU Pulse Electronics Network	3,594	2.99	RFQ		Tape & Reel (TR)	-	Active	LAN 10G Base-T	350µH	-	2:1 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)

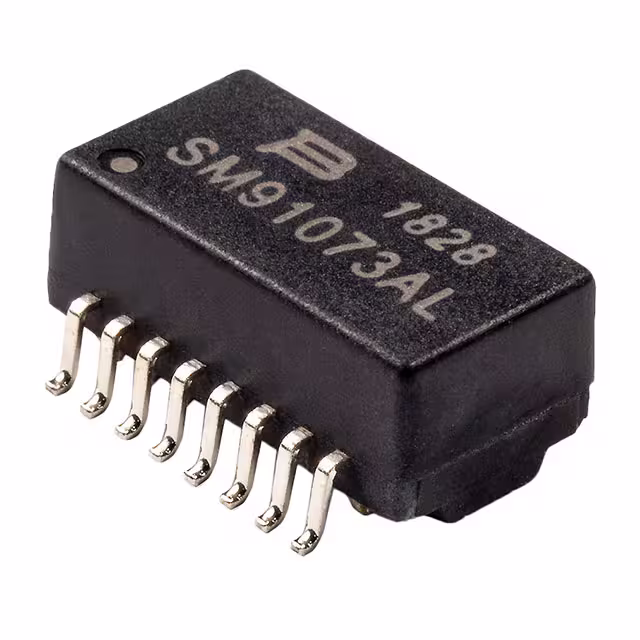

SM91073AL-E XFRMR PULSE 10 BASE-T Bourns Inc.	2,466	3.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	-	-	-
24SH10410 HF MDL LAN 1GBT POE+ 30W SMD Pulse Electronics Network	3,548	3.00	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
LG2P109NAM LF MDL 1G DIP DUAL PORT N/A Pulse Electronics Network	2,341	3.00	RFQ		Tube	-	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	1.280 L x 0.335 W (32.50mm x 8.50mm)	0.457 (11.60mm)
AVP9014RM MDL 2.5G 1 PORT 4PAIR POE 90W Pulse Electronics Network	3,062	3.01	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
PE-65363NL XFRMR T1/CEPT/ISDN-PRI 1:4CT T/H Pulse Electronics Network	2,287	3.02	RFQ	Datasheet	Tube	-	Active	T1/E1 (Single)	500µH	-	1:4CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
PA0264NL PULSE XFMR 1:1:1 1.14MH Pulse Electronics Power	1,515	0.00	RFQ	Datasheet	Tube	-	Active	-	1.14mH	17.2VµS	1:1:1	Surface Mount	0.340 L x 0.265 W (8.64mm x 6.73mm)	0.140 (3.56mm)
HX2260NL XFRMR MODUL 1PORT POE 1:1 10/100 Pulse Electronics Network	2,248	3.03	RFQ	Datasheet	Tube	Star Magnetics™	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)
AVP6014S MDL 2.5G 1 PORT 4PAIR POE 60W Pulse Electronics Network	2,379	3.04	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-

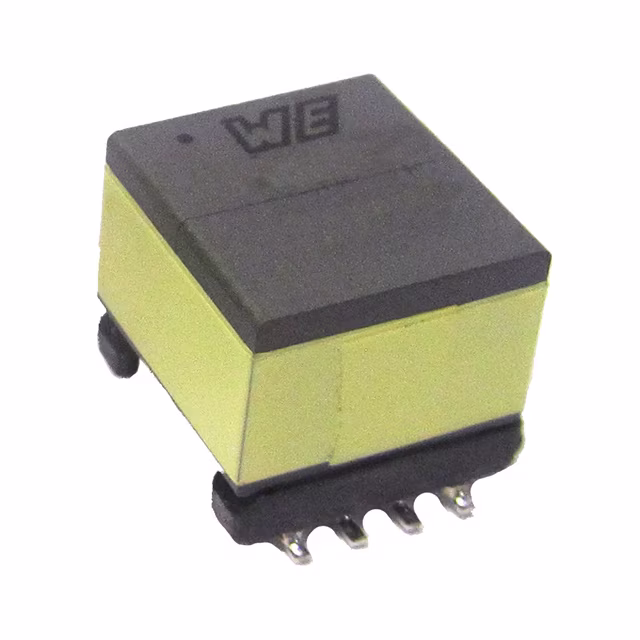

750510705 DIGITAL TRANSFORMER Würth Elektronik	3,150	2.76	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	500µH	-	1:1	Surface Mount	-	0.520 (13.20mm)
HMU1228NLT XFMR SGL 150UH 1CT:1CT 4.3KVDC Pulse Electronics Network	2,616	3.05	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	Surface Mount	-	-
PT61021EL INDUCTOR RADIAL Bourns Inc.	3,628	2.91	RFQ	Datasheet	Bulk	-	Active	-	-	-	-	-	0.550 L x 0.480 W (13.96mm x 12.20mm)	0.246 (6.25mm)
ALANS100X1-2F00KT LAN SGL 100B XFMR&CMC 16PIN Abracon LLC	2,293	3.22	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
