Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
SLQG1553-5 TRANSFORMER DUAL STACKED M PBC iNRCORE, LLC	3,435	58.30	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.284 (7.21mm)
SLQF1553-3 TRANSFORMER DUAL STACKED M PBC iNRCORE, LLC	2,727	58.44	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.280 (7.11mm)
SLQG1553-3 TRANSFORMER DUAL STACKED M PBC iNRCORE, LLC	3,331	58.44	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.284 (7.21mm)
FPQT1553-6 TRANSFORMER PBC iNRCORE, LLC	2,472	60.16	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.254 (6.45mm)
QT1553-5 TRANSFORMER PBC iNRCORE, LLC	2,366	61.79	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
C1553-45 TRANSFORMER MODULE INTERFACE iNRCORE, LLC	2,417	63.22	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
FPQ1553-45 TRANSFORMER PBC iNRCORE, LLC	2,985	65.87	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.254 (6.45mm)

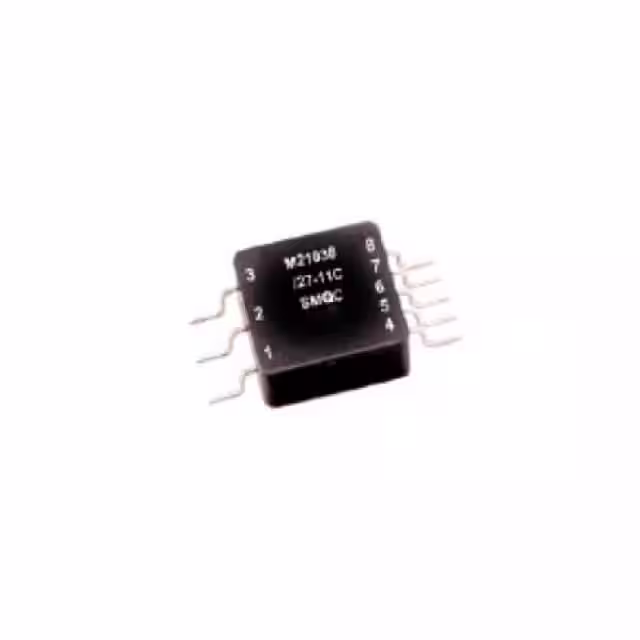

SMQT1553-7 TRANSFORMER PULSE DUAL RATIO iNRCORE, LLC	3,675	66.95	RFQ	Datasheet	Bulk	-	Active	Interface, MIL-STD-1553	-	-	1.4CT:1CT, 2CT:1CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
FPQ1553-10 TRANSFORMER PBC iNRCORE, LLC	3,421	69.70	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.254 (6.45mm)
FPQ1553-6 TRANSFORMER PBC iNRCORE, LLC	2,081	69.99	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.254 (6.45mm)
FPQ1553-7 TRANSFORMER PBC iNRCORE, LLC	2,142	69.99	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1.4CT:1CT, 2CT:1CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.254 (6.45mm)
SMQT1553-8 TRANSFORMER PBC iNRCORE, LLC	2,464	70.56	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
STQN1553-2 TRANSFORMER DUAL STACKED PBC iNRCORE, LLC	3,897	71.27	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1.4CT:1CT, 2CT:1CT	Through Hole	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.340 (8.64mm)
STQN1553-5 TRANSFORMER PBC iNRCORE, LLC	2,094	71.53	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Through Hole	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.340 (8.64mm)
STQN1553-1 TRANSFORMER DUAL STACKED PBC iNRCORE, LLC	2,776	71.57	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Through Hole	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.340 (8.64mm)
FPQ1553-8 TRANSFORMER PBC iNRCORE, LLC	3,601	72.27	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.254 (6.45mm)
STQN1553-45 TRANSFORMER DUAL STACKED 0 PBC iNRCORE, LLC	3,675	72.30	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Through Hole	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.340 (8.64mm)
STQC1553-2 TRANSFORMER PBC iNRCORE, LLC	3,573	72.35	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1.4CT:1CT, 2CT:1CT	Through Hole	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.340 (8.64mm)
STQC1553-5 TRANSFORMER DUAL STACKED PBC iNRCORE, LLC	2,838	72.62	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Through Hole	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.340 (8.64mm)
STQC1553-1 TRANSFORMER DUAL STACKED PBC iNRCORE, LLC	3,471	72.66	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Through Hole	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.340 (8.64mm)
