Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
TL1553-5 TRANSFORMER MIL PBC iNRCORE, LLC	2,133	48.04	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Through Hole	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.155 (3.94mm)
TL1553-3 TRANSFORMER MIL PBC iNRCORE, LLC	2,444	48.36	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Through Hole	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.155 (3.94mm)
GLN1553-1 TRANSFORMER PBC iNRCORE, LLC	3,821	48.48	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.159 (4.04mm)
FPQC1553-7 TRANSFORMER PBC iNRCORE, LLC	3,774	48.64	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1.4CT:1CT, 2CT:1CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.254 (6.45mm)
FLN1553-5 TRANSFORMER PBC iNRCORE, LLC	3,406	48.67	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.159 (4.04mm)
GLN1553-5 TRANSFORMER PBC iNRCORE, LLC	3,708	48.67	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.159 (4.04mm)
FLN1553-3 TRANSFORMER PBC iNRCORE, LLC	2,321	48.93	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.159 (4.04mm)
GLN1553-3 TRANSFORMER PBC iNRCORE, LLC	2,483	48.93	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.159 (4.04mm)

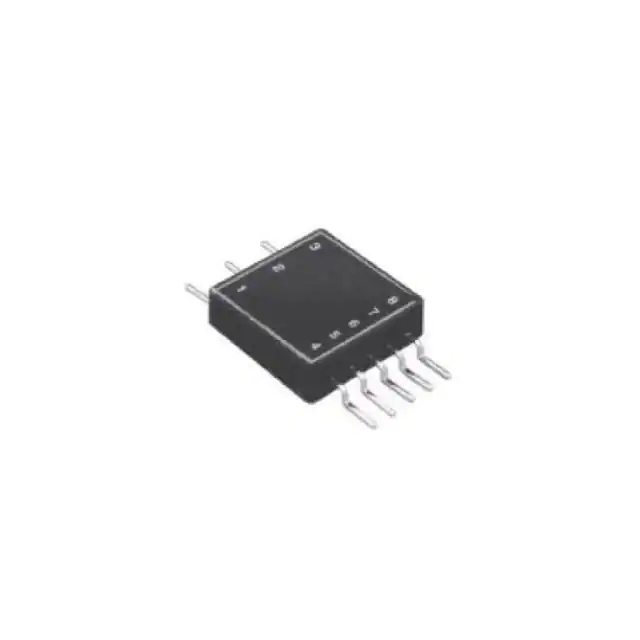

GL1553-45 TRANSFORMER MIL PBC iNRCORE, LLC	3,451	49.35	RFQ	Datasheet	Bulk	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.159 (4.04mm)
FL1553-45 TRANSFORMER MIL PBC iNRCORE, LLC	3,805	49.37	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.159 (4.04mm)
FL1553-1 TRANSFORMER MIL PBC iNRCORE, LLC	2,674	49.57	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.159 (4.04mm)
GL1553-1 TRANSFORMER MIL PBC iNRCORE, LLC	3,954	49.68	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.159 (4.04mm)
PM-DB2762 ISOLATION TRANSFORMER SMD Holt Integrated Circuits Inc.	3,750	49.69	RFQ	Datasheet	Tube	-	Active	-	-	-	-	-	0.400 L x 0.400 W (10.16mm x 10.16mm)	0.320 (8.13mm)
GL1553-2 TRANSFORMER MIL PBC iNRCORE, LLC	2,886	49.85	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1.4CT:1CT, 2CT:1CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.159 (4.04mm)
FL1553-2 TRANSFORMER MIL PBC iNRCORE, LLC	3,182	49.97	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1.4CT:1CT, 2CT:1CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.159 (4.04mm)
Q1553-85 TRANSFORMER PBC iNRCORE, LLC	3,250	50.11	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
SMQ1553-10 TRANSFORMER PBC iNRCORE, LLC	2,703	50.68	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
Q1553-84 TRANSFORMER PBC iNRCORE, LLC	3,765	51.02	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
Q1553-81 TRANSFORMER PBC iNRCORE, LLC	2,717	51.50	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
Q1553-82 TRANSFORMER PBC iNRCORE, LLC	2,288	51.50	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1.4CT:1CT, 2CT:1CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
