Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
Q1553-3 TRANSFORMER PBC iNRCORE, LLC	2,232	38.36	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
SMQ1553-70 TRANSFORMER 1553-70 PBC iNRCORE, LLC	2,310	38.87	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:3CT, 1CT:2.15CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.254 (6.45mm)
T-330SCTNL XMFR DUAL 330MB Z:150 CT M RPB iNRCORE, LLC	2,855	38.90	RFQ	Datasheet	Tube	-	Active	-	26µH	-	1CT:1CT	Surface Mount	0.500 L x 0.290 W (12.70mm x 7.37mm)	0.185 (4.70mm)
SMQC1553-8 TRANSFORMER PBC iNRCORE, LLC	3,343	39.08	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
SMQC1553-7 TRANSFORMER PULSE DUAL RATIO iNRCORE, LLC	2,152	39.09	RFQ	Datasheet	Bulk	-	Active	Interface, MIL-STD-1553	-	-	1.4CT:1CT, 2CT:1CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
TQ1553-45 TRANSFORMER PBC iNRCORE, LLC	2,732	39.39	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
TLN1553-1 TRANSFORMER PBC iNRCORE, LLC	3,204	39.49	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Through Hole	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.155 (3.94mm)
QC1553-81 TRANSFORMER PBC iNRCORE, LLC	3,824	40.16	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
QC1553-82 TRANSFORMER PBC iNRCORE, LLC	3,508	40.16	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1.4CT:1CT, 2CT:1CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
QC1553-83 TRANSFORMER PBC iNRCORE, LLC	2,066	40.16	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
QC1553-84 TRANSFORMER PBC iNRCORE, LLC	3,807	40.16	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
FPQC1553-45 TRANSFORMER PBC iNRCORE, LLC	2,837	40.35	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.254 (6.45mm)

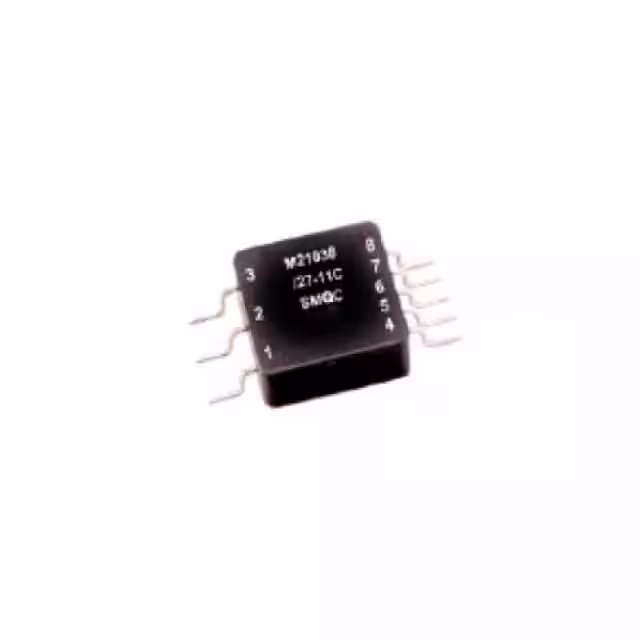

SMQC1553-10 TRANSFORMER PULSE DUAL RATIO iNRCORE, LLC	2,762	40.82	RFQ	Datasheet	Bulk	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
FPQC1553-10 TRANSFORMER PBC iNRCORE, LLC	3,300	41.59	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.254 (6.45mm)
FPQC1553-6 TRANSFORMER PBC iNRCORE, LLC	2,216	41.89	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.254 (6.45mm)
TLC1553-45 TRANSFORMER PBC iNRCORE, LLC	3,177	42.41	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Through Hole	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.155 (3.94mm)
TLC1553-1 TRANSFORMER PBC iNRCORE, LLC	3,240	42.57	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Through Hole	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.155 (3.94mm)
TLC1553-3 TRANSFORMER PBC iNRCORE, LLC	2,669	44.61	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Through Hole	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.155 (3.94mm)
FPQC1553-8 TRANSFORMER PBC iNRCORE, LLC	3,626	44.94	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.254 (6.45mm)
FLC1553-45 TRANSFORMER PBC iNRCORE, LLC	2,122	45.53	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.159 (4.04mm)
