Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
10GB-6014 LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	2,371	25.24	RFQ	Datasheet	Tube	-	Active	LAN 10G Base-T	-	-	-	Surface Mount	0.605 L x 0.547 W (15.37mm x 13.89mm)	0.255 (6.48mm)
10GB-6010 LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	3,313	25.24	RFQ	Datasheet	Tube	-	Active	LAN 10G Base-T	-	-	-	Surface Mount	0.605 L x 0.547 W (15.37mm x 13.89mm)	0.255 (6.48mm)
SMG1553-61 TRANSFORMER 1553 SINGLE PBC iNRCORE, LLC	3,455	25.81	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1.66CT:1CT	Surface Mount	0.400 L x 0.400 W (10.16mm x 10.16mm)	0.185 (4.70mm)
SMG1553-62 TRANSFORMER 1553 SINGLE PBC iNRCORE, LLC	3,334	25.88	RFQ		Tube	-	Active	MIL-STD-1553	-	-	-	Surface Mount	0.400 L x 0.400 W (10.16mm x 10.16mm)	0.185 (4.70mm)
SMG1553-63 TRANSFORMER 1553 SINGLE PBC iNRCORE, LLC	2,307	25.88	RFQ		Tube	-	Active	MIL-STD-1553	-	-	-	Surface Mount	0.400 L x 0.400 W (10.16mm x 10.16mm)	0.185 (4.70mm)
X-1644FT MDL SIN 100D 1:1 SMT OH T& PBC iNRCORE, LLC	3,530	25.99	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	-	-	1:1	Surface Mount	0.600 L x 0.600 W (15.24mm x 15.24mm)	0.310 (7.87mm)
SMG1553-66 TRANSFORMER 1553 SINGLE PBC iNRCORE, LLC	2,731	26.00	RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:1.79CT	Surface Mount	0.400 L x 0.400 W (10.16mm x 10.16mm)	0.185 (4.70mm)
10GB-6013NL LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	3,065	26.00	RFQ	Datasheet	Tube	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.725 L x 0.480 W (18.42mm x 12.19mm)	0.265 (6.73mm)
10GB-6012NL LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	3,133	26.00	RFQ	Datasheet	Tube	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.725 L x 0.511 W (18.42mm x 12.98mm)	0.410 (10.41mm)
100B-1011F XFMR CHOKE QUAD 100BT SMT PBC iNRCORE, LLC	2,470	26.06	RFQ		Bulk	-	Active	LAN 10/100 Base-T	-	-	1:1	Surface Mount	-	-
T-1485SCTNLT XMFR 04F09855 DUAL 1.458 G RPB iNRCORE, LLC	2,951	26.16	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	3.75µH	-	1CT:1CT	Surface Mount	0.500 L x 0.290 W (12.70mm x 7.37mm)	0.185 (4.70mm)
10GB-6012 LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	3,342	26.23	RFQ	Datasheet	Tube	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.725 L x 0.511 W (18.42mm x 12.98mm)	0.410 (10.41mm)

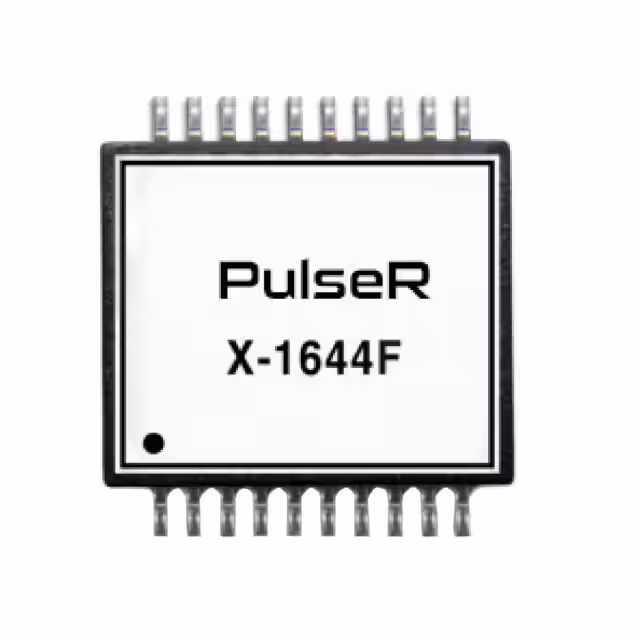

X-1644FNLT XFRM MODULE 10/100B -TX iNRCORE, LLC	3,861	26.51	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.600 L x 0.500 W (15.24mm x 12.70mm)	0.310 (7.87mm)
X-1644NLT MDL SIN 100D 1:1 SMT OH T& NPB iNRCORE, LLC	3,275	26.51	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	-	-	1:1	Surface Mount	0.600 L x 0.600 W (15.24mm x 15.24mm)	0.310 (7.87mm)
X-1644T MDL SIN 100D 1:1 SMT OH T& PBC iNRCORE, LLC	2,796	26.51	RFQ	Datasheet	Tape & Reel (TR)	*	Active	-	-	-	-	-	-	-
1000B-5020XNL MDL DUAL 1GD 1:1 SM TR NPB iNRCORE, LLC	2,152	26.62	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	-	-	1CT:1CT	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.285 (7.24mm)
1000B-5020FXNL MDL DUAL 1GD 1:1 SM TU NPB iNRCORE, LLC	2,375	27.49	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	-	-	-	Surface Mount	1.095 L x 0.605 W (27.81mm x 15.37mm)	0.295 (7.49mm)
10GB-6013 LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	3,416	29.55	RFQ	Datasheet	Tube	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.725 L x 0.480 W (18.42mm x 12.19mm)	0.265 (6.73mm)
10GB-6011NL LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	3,958	29.80	RFQ	Datasheet	Tube	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.725 L x 0.480 W (18.42mm x 12.19mm)	0.265 (6.73mm)
10GB-6011 LAN MODULE XFRMR 10GBASE-T SMD iNRCORE, LLC	3,541	30.07	RFQ	Datasheet	Tube	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	-	Surface Mount	0.725 L x 0.480 W (18.42mm x 12.19mm)	0.265 (6.73mm)
