Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
SFQ1553-1 TRANSFORMER DUAL STACKED PBC iNRCORE, LLC	3,932	78.81	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.344 (8.74mm)
SFQ1553-45 TRANSFORMER DUAL STACKED PBC iNRCORE, LLC	3,453	79.34	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.344 (8.74mm)
SFQC1553-3 TRANSFORMER DUAL STACKED PBC iNRCORE, LLC	3,471	79.34	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.344 (8.74mm)
DTLC1553-1 TRANSFORMER PBC iNRCORE, LLC	2,995	79.58	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Through Hole	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.155 (3.94mm)
DFLC1553-1 TRANSFORMER MODULE INTERFACE iNRCORE, LLC	2,560	79.71	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Surface Mount	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.159 (4.04mm)
DGLC1553-1 TRANSFORMER MODULE INTERFACE iNRCORE, LLC	3,815	79.71	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Surface Mount	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.159 (4.04mm)
SFQ1553-3 TRANSFORMER DUAL STACKED PBC iNRCORE, LLC	3,396	79.89	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1.25CT:1CT, 1.66CT:1CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.344 (8.74mm)
DFLC1553-45 TRANSFORMER MODULE INTERFACE iNRCORE, LLC	3,537	80.40	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Surface Mount	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.159 (4.04mm)
DGLC1553-45 TRANSFORMER MODULE INTERFACE iNRCORE, LLC	3,494	80.40	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Surface Mount	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.159 (4.04mm)
DTLN1553-1 TRANSFORMER PBC iNRCORE, LLC	2,861	80.59	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Through Hole	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.155 (3.94mm)
DFLN1553-1 TRANSFORMER MODULE INTERFACE iNRCORE, LLC	3,822	80.61	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Surface Mount	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.159 (4.04mm)
DGLN1553-1 TRANSFORMER MODULE INTERFACE iNRCORE, LLC	2,527	80.61	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Surface Mount	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.159 (4.04mm)
DFLC1553-5 TRANSFORMER MODULE INTERFACE iNRCORE, LLC	3,168	81.12	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Surface Mount	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.159 (4.04mm)
DGLC1553-5 TRANSFORMER MODULE INTERFACE iNRCORE, LLC	2,259	81.12	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Surface Mount	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.159 (4.04mm)
DGLN1553-45 TRANSFORMER MODULE INTERFACE iNRCORE, LLC	3,792	81.12	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Surface Mount	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.159 (4.04mm)
DTLC1553-5 TRANSFORMER PBC iNRCORE, LLC	2,184	81.12	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Through Hole	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.155 (3.94mm)

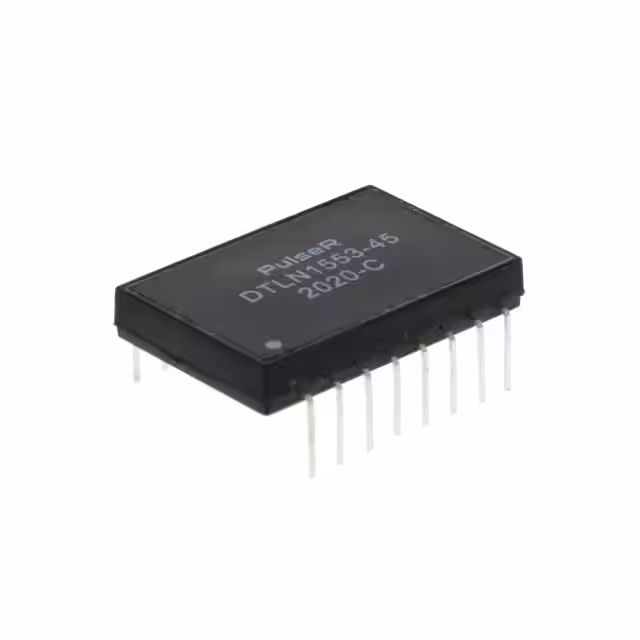

DTLN1553-45 TRANSFORMER PBC iNRCORE, LLC	3,545	81.22	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Through Hole	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.155 (3.94mm)
DFLN1553-45 TRANSFORMER MODULE INTERFACE iNRCORE, LLC	3,170	81.28	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Surface Mount	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.159 (4.04mm)
SGQN1553-2 TRANSFORMER DUAL STACKED PBC iNRCORE, LLC	3,216	81.73	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1.4CT:1CT, 2CT:1CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.344 (8.74mm)
SGQN1553-5 TRANSFORMER DUAL STACKED PBC iNRCORE, LLC	2,570	81.73	RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.344 (8.74mm)
