Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
241-6-20 PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	2,177	18.65	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	20V	1.5A	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.60mm L x 44.30mm W	49.80mm	2500Vrms
TCT50-09E07AB PWR XFMR LAMINATED 50VA CHAS MT Triad Magnetics	3,564	18.87	RFQ	Datasheet	Box	Class 2, TCT	Active	Laminated Core	208V, 240V	24V	2.08A	Single, Multiple Taps	Single	No	50VA	Chassis Mount	Solder, Quick Connect	92.46mm L x 56.67mm W	57.40mm	1500Vrms
167L50 PWR XFMR LAMINATED 100VA CHAS MT Hammond Manufacturing	2,726	58.83	RFQ	Datasheet	Bulk	167	Active	Laminated Core	115V	50V	2A	Single	Single	Yes	100VA	Chassis Mount	Wire Leads	63.50mm L x 82.55mm W	77.72mm	2000Vrms
166V5 PWR XFMR LAMINATED 100VA CHAS MT Hammond Manufacturing	2,103	59.31	RFQ	Datasheet	Bulk	166	Active	Laminated Core	115V	5V	20A	Single	Single	Yes	100VA	Chassis Mount	Wire Leads	114.30mm L x 63.50mm W	76.20mm	2000Vrms
166L50 PWR XFMR LAMINATED 100VA CHAS MT Hammond Manufacturing	2,350	59.31	RFQ	Datasheet	Bulk	166	Active	Laminated Core	115V	50V	2A	Single	Single	Yes	100VA	Chassis Mount	Wire Leads	114.30mm L x 63.50mm W	76.20mm	2000Vrms
166R12 PWR XFMR LAMINATED 100.8VA CHAS Hammond Manufacturing	2,044	59.31	RFQ	Datasheet	Bulk	166	Active	Laminated Core	115V	12.6V	8A	Single	Single	Yes	100.8VA	Chassis Mount	Wire Leads	114.30mm L x 63.50mm W	76.20mm	2000Vrms
166S10 PWR XFMR LAMINATED 100VA CHAS MT Hammond Manufacturing	2,042	59.31	RFQ	Datasheet	Bulk	166	Active	Laminated Core	115V	10V	10A	Single	Single	Yes	100VA	Chassis Mount	Wire Leads	114.30mm L x 63.50mm W	76.20mm	2000Vrms
165X5 PWR XFMR LAMINATED 150VA CHAS MT Hammond Manufacturing	3,338	76.58	RFQ	Datasheet	Bulk	165	Active	Laminated Core	115V	5V	30A	Single	Single	Yes	150VA	Chassis Mount	Wire Leads	95.25mm L x 82.55mm W	79.50mm	2000Vrms
167P36 PWR XFMR LAMINATED 180VA CHAS MT Hammond Manufacturing	2,276	77.19	RFQ	Datasheet	Bulk	167	Active	Laminated Core	115V	36V	5A	Single	Single	Yes	180VA	Chassis Mount	Wire Leads	79.50mm L x 95.25mm W	96.77mm	2000Vrms
165S18 PWR XFMR LAMINATED 180VA CHAS MT Hammond Manufacturing	3,641	78.02	RFQ	Datasheet	Bulk	165	Active	Laminated Core	115V	18V	10A	Single	Single	Yes	180VA	Chassis Mount	Wire Leads	95.25mm L x 88.90mm W	79.50mm	2000Vrms
165V7 PWR XFMR LAMINATED 157VA CHAS MT Hammond Manufacturing	2,191	78.07	RFQ	Datasheet	Bulk	165	Active	Laminated Core	115V	7.5V	21A	Single	Single	Yes	157VA	Chassis Mount	Wire Leads	295.25mm L x 82.55mm W	79.50mm	2000Vrms
270CX PWR XFMR LAMINATED 59VA CHAS MT Hammond Manufacturing	2,078	81.48	RFQ	Datasheet	Bulk	270	Active	Laminated Core	115V	550V, 6.3V, 6.3V	75mA, 2.5A, 600mA	Single	Triple	Yes	59VA	Chassis Mount	Wire Leads	63.50mm L x 69.85mm W	77.72mm	2000Vrms
DST-7-48 PWR XFMR LAMINATED 36VA TH Signal Transformer	2,325	18.69	RFQ	Datasheet	Bulk	DST	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 1.5A, Series 750mA	Dual	Dual	No	36VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	40.40mm	2500Vrms

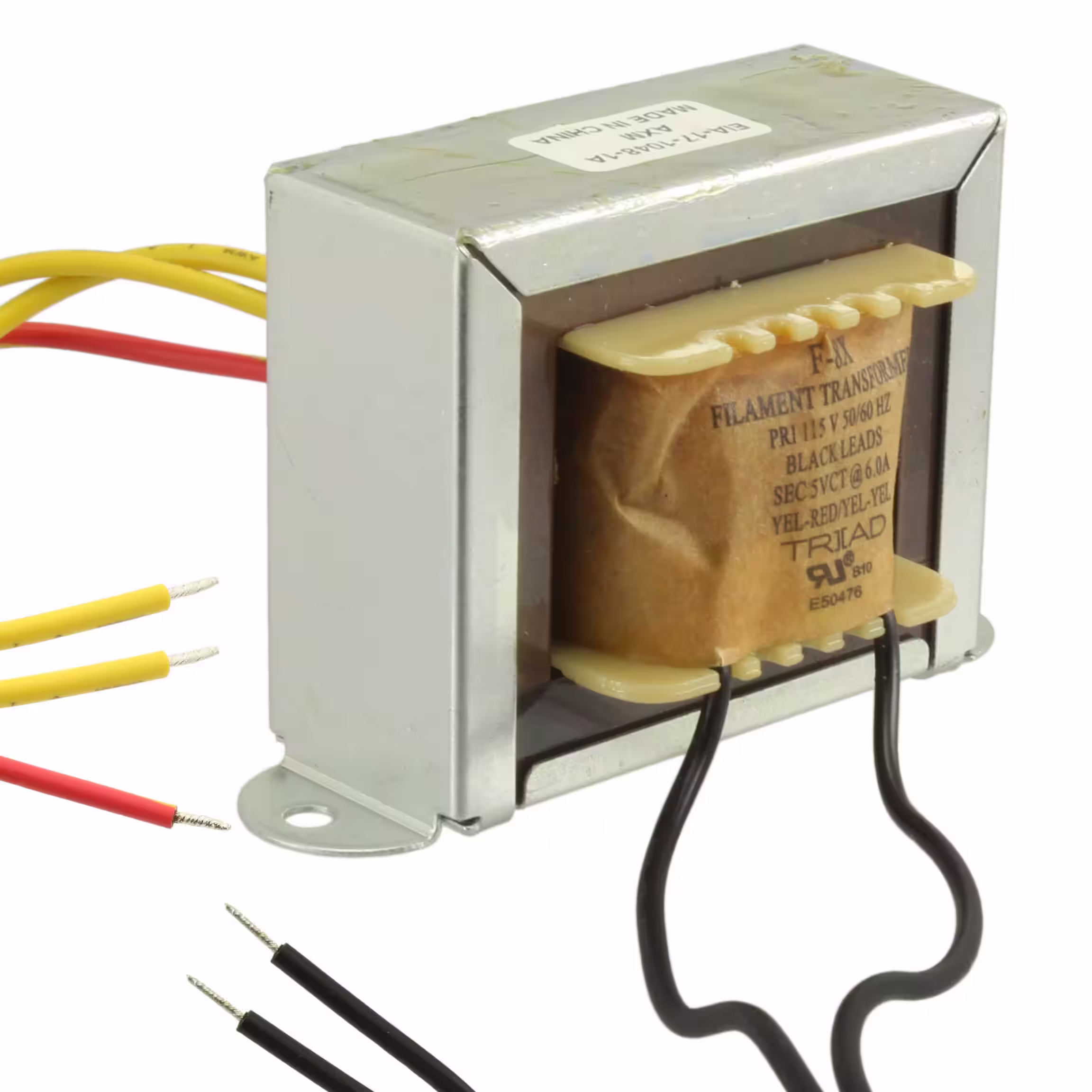

F-8X PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	3,886	19.06	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	5V	6A	Single	Single	Yes	30VA	Chassis Mount	Wire Leads	95.25mm L x 53.97mm W	57.94mm	1500Vrms

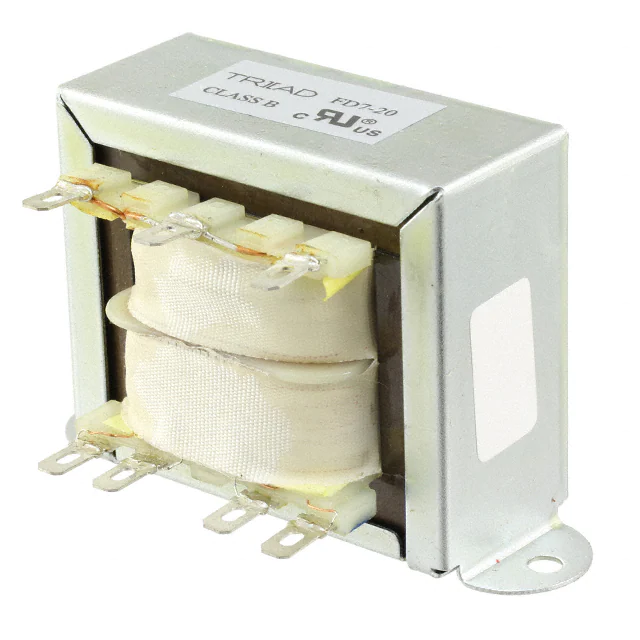

FD7-20 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	2,327	19.08	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	20V	2.8A	Dual	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC

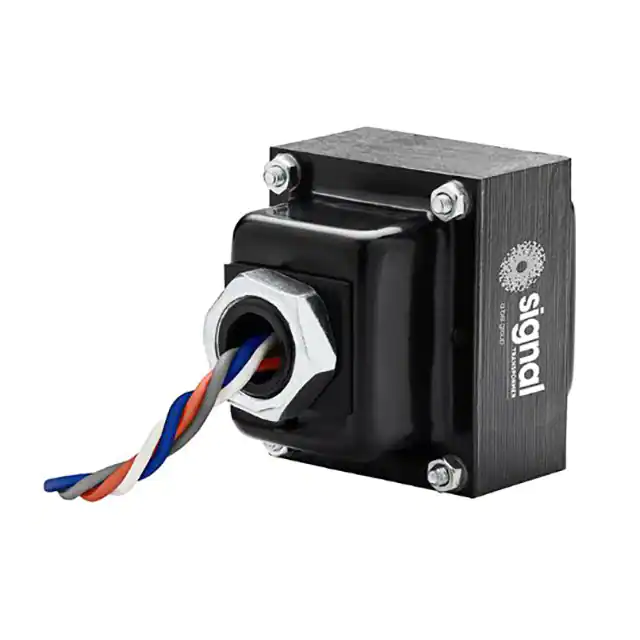

LT277-50-12 TRANSF LED LIGHTING 277V TO 12V Signal Transformer	2,540	19.25	RFQ	Datasheet	Box	LT	Active	Laminated Core	277V	12V	-	Single	Single	No	50VA	Chassis Mount	Wire Leads	78.7mm L x 66mm W	55.30mm	-
ST-7-24 PWR XFMR LAMINATED 36VA TH Signal Transformer	2,070	19.82	RFQ	Datasheet	Box	ST	Active	Laminated Core	115V	Parallel 12V, Series 24V	Parallel 3A, Series 1.5A	Single	Dual	No	36VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	40.40mm	2500Vrms
LP-10-2400 PWR XFMR SEMI-TORO 24VA TH Signal Transformer	3,439	19.92	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 5V, Series 10V	Parallel 4.8A, Series 2.4A	Dual	Dual	No	24VA	Through Hole	PC Pin	72.90mm L x 57.20mm W	31.80mm	1500Vrms

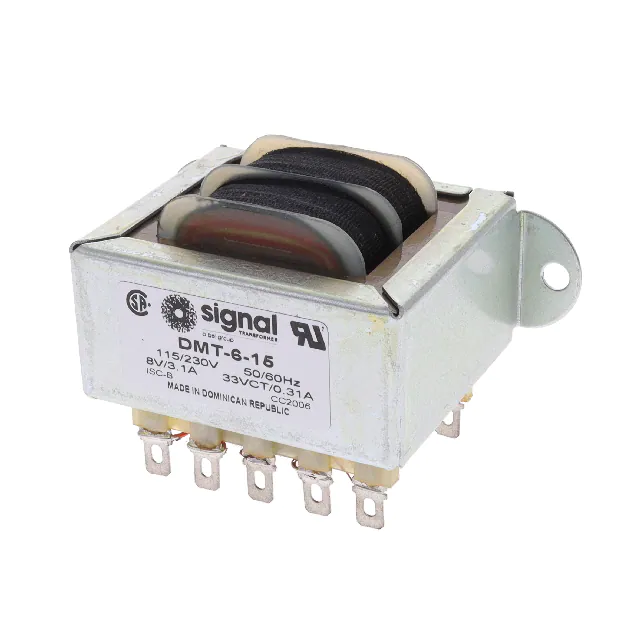

DMT-6-15 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	2,476	19.96	RFQ	Datasheet	Bulk	DMT	Active	Laminated Core	115V, 230V	5V, 15V	1.75A, 175mA	Dual	Dual	Yes	6VA	Chassis Mount	Solder, Quick Connect	82.60mm L x 44.30mm W	49.80mm	2500Vrms
A41-25-16 PWR XFMR LAMINATED 25VA CHAS MT Signal Transformer	2,406	19.99	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 3.2A, Series 1.6A	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 54.40mm W	58.70mm	4000Vrms
