Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
160H34 PWR XFMR LAMINATED 24VA TH Hammond Manufacturing	2,785	25.65	RFQ	Datasheet	Bulk	160	Active	Laminated Core	115V, 230V	Parallel 17V, Series 34V	Parallel 1.4A, Series 700mA	Dual	Single, Multiple Taps	No	24VA	Through Hole	PC Pin	41.40mm L x 57.15mm W	35.05mm	2000Vrms
160H56 PWR XFMR LAMINATED 24VA TH Hammond Manufacturing	3,536	25.65	RFQ	Datasheet	Bulk	160	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 840mA, Series 420mA	Dual	Single, Multiple Taps	No	24VA	Through Hole	PC Pin	41.40mm L x 57.15mm W	35.05mm	2000Vrms

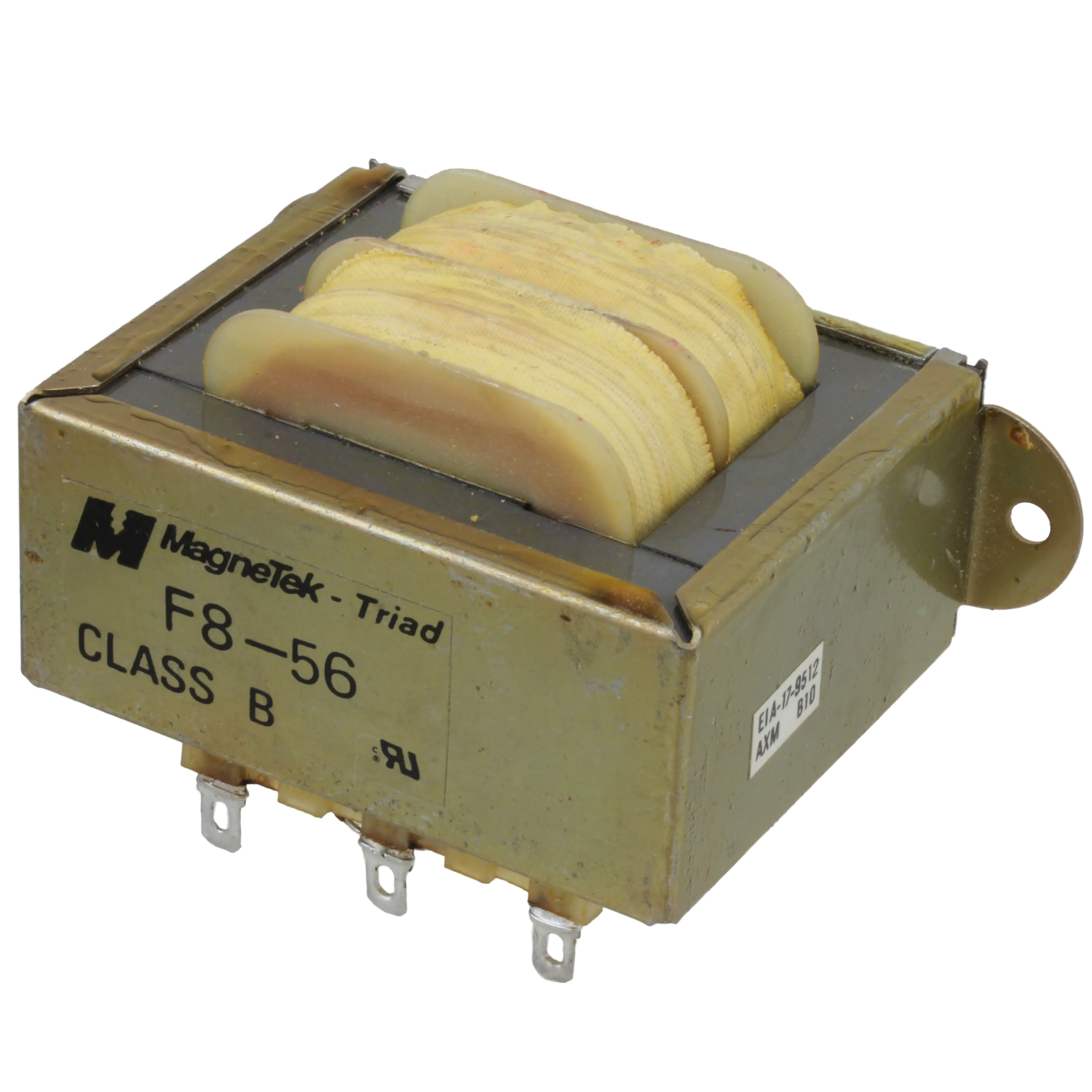

F8-56 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	2,709	26.32	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	56V	1.8A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC

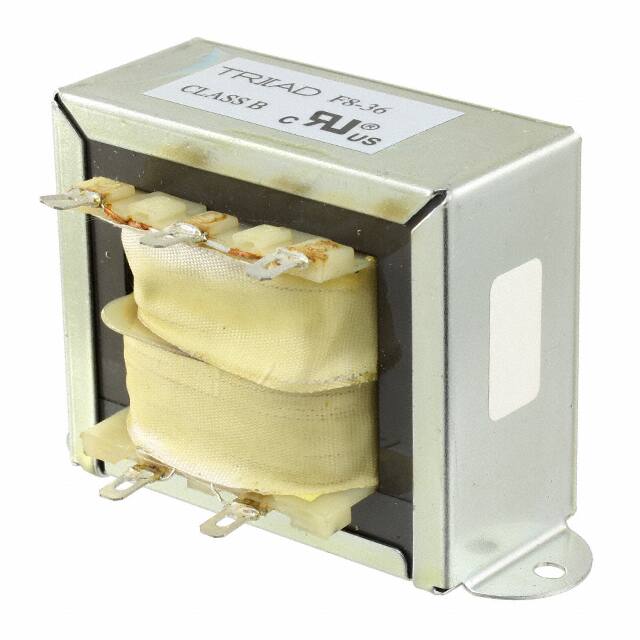

F8-36 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	2,975	26.32	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	36V	2.8A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC
VPS230-350 PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	3,844	26.54	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 700mA, Series 350mA	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
VPS16-5000 PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	3,236	26.54	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 10A, Series 5A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
VPS12-6300 PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	3,511	26.28	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 12.6A, Series 6.3A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
VPS28-2800 PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	3,643	26.54	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 5.6A, Series 2.8A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
62050 PWR XFMR TORO 15VA CHAS MT Talema Group LLC	3,703	26.87	RFQ	Datasheet	Tray	Standard Mini	Active	Toroidal	115V, 230V	Parallel 7V, Series 14V	Parallel 2.142A, Series 1.071A	Dual	Dual	No	15VA	Chassis Mount	Wire Leads	-	24.00mm	4000Vrms
166F44 PWR XFMR LAMINATED 11VA CHAS MT Hammond Manufacturing	2,856	27.16	RFQ	Datasheet	Bulk	166	Active	Laminated Core	115V	44V	250mA	Single	Single	Yes	11VA	Chassis Mount	Wire Leads	71.37mm L x 41.40mm W	42.93mm	2000Vrms
185D20 PWR XFMR LAMINATED 43VA CHAS MT Hammond Manufacturing	3,326	27.56	RFQ	Datasheet	Bulk	185	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 4.4A, Series 2.2A	Dual	Dual	No	43VA	Chassis Mount	Solder, Quick Connect	79.25mm L x 56.39mm W	68.07mm	4000Vrms
166E25 XFRMR LAMINATED 3.75VA CHAS MNT Hammond Manufacturing	3,393	27.80	RFQ	Datasheet	Bulk	166	Active	Laminated Core	115V	25V	150mA	Single	Single	Yes	3.75VA	Chassis Mount	Wire Leads	60.45mm L x 35.05mm W	35.05mm	2000Vrms

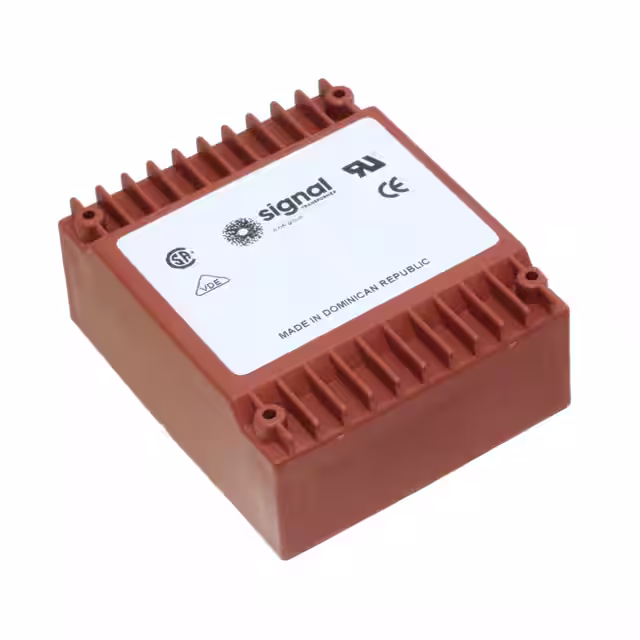

IF-18-230 PWR XFMR SEMI-TORO 18VA TH Signal Transformer	3,455	27.92	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 160mA, Series 80mA	Dual	Dual	No	18VA	Through Hole	PC Pin	67.60mm L x 57.00mm W	27.60mm	4000Vrms
166A24 PWR XFMR LAMINATED 0.63VA CHAS Hammond Manufacturing	2,021	28.42	RFQ	Datasheet	Bulk	166	Active	Laminated Core	115V	Parallel 12.6V, Series 25.2V	Parallel 50mA, Series 25mA	Single	Single	Yes	0.63VA	Chassis Mount	Wire Leads	52.32mm L x 31.75mm W	30.26mm	2000Vrms

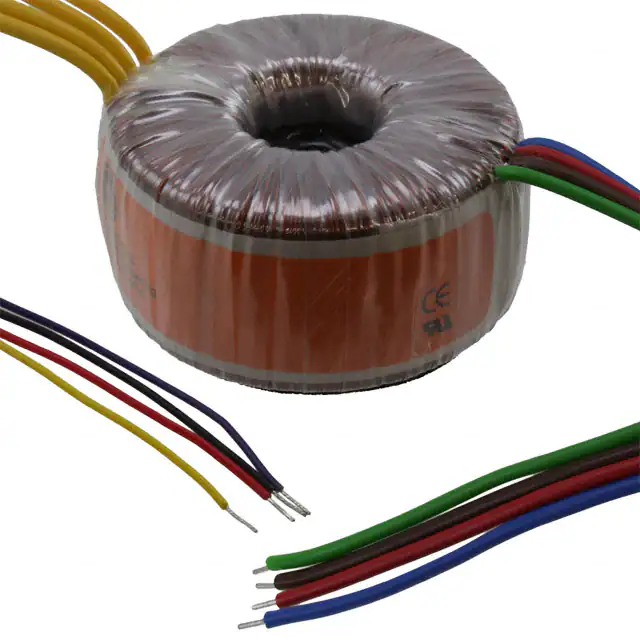

62063 PWR XFMR TORO 25VA CHAS MT Talema Group LLC	3,001	28.48	RFQ	Datasheet	Tray	Standard Mini	Active	Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 1.664A, Series 832mA	Dual	Dual	No	25VA	Chassis Mount	Wire Leads	-	34.50mm	4000Vrms
62064 PWR XFMR TORO 25VA CHAS MT Talema Group LLC	2,072	28.60	RFQ	Datasheet	Tray	Standard Mini	Active	Toroidal	115V, 230V	Parallel 18V, Series 36V	Parallel 1.388A, Series 694mA	Dual	Dual	No	25VA	Chassis Mount	Wire Leads	-	34.50mm	4000Vrms
241-8-36 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	2,036	28.72	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	36V	2.8A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms
241-8-120 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	2,567	28.72	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	120V	850mA	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms
241-8-10 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,584	28.72	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	10V	10A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms
241-8-48 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,344	28.72	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	48V	2A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms
