Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

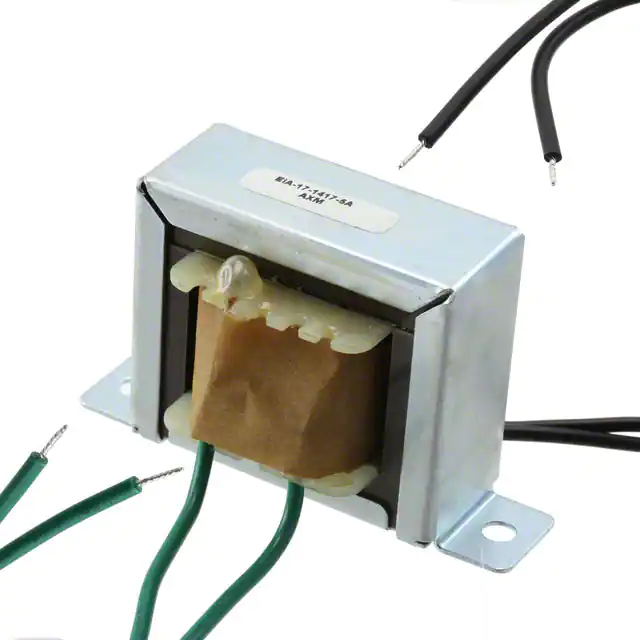

F-114X PWR XFMR LAMINATED 8.4VA CHAS MT Triad Magnetics	2,944	13.00	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	12V	700mA	Single	Single	No	8.4VA	Chassis Mount	Wire Leads	71.42mm L x 41.28mm W	41.28mm	1500Vrms
162D28 PWR XFMR LAMINATED 1.1VA TH Hammond Manufacturing	3,519	13.29	RFQ	Datasheet	Bulk	162	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 80mA, Series 40mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	33.32mm	2500Vrms
FP20-300 PWR XFMR LAMINATED 6VA TH Triad Magnetics	113	13.42	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 600mA, Series 300mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms
241-4-20 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	2,012	13.33	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	20V	300mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms
183E28 XFRMR LAMINATED 2.5VA THRU HOLE Hammond Manufacturing	3,987	13.44	RFQ	Datasheet	Bulk	183	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 180mA, Series 90mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	41.28mm L x 36.50mm W	28.58mm	4000Vrms
DPC-24-180 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	3,919	13.69	RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 360mA, Series 180mA	Dual	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms

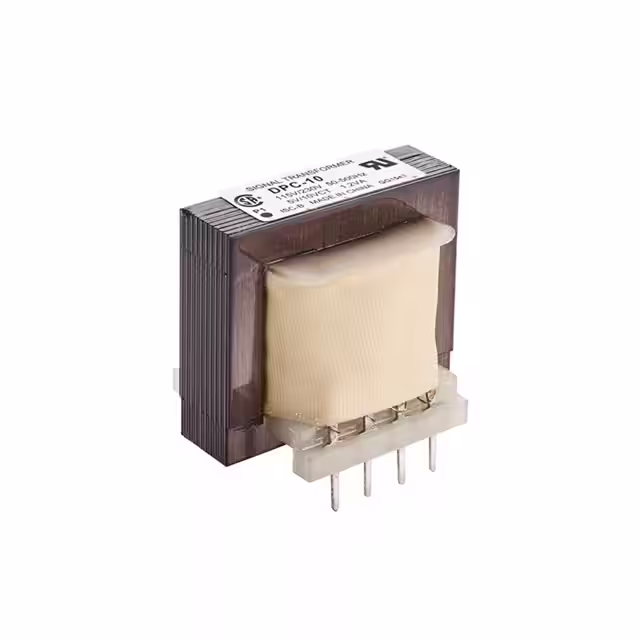

DPC-56-80 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	3,070	13.69	RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 160mA, Series 80mA	Dual	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms
DP-241-4-10 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,873	13.88	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V, 230V	10V	600mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms

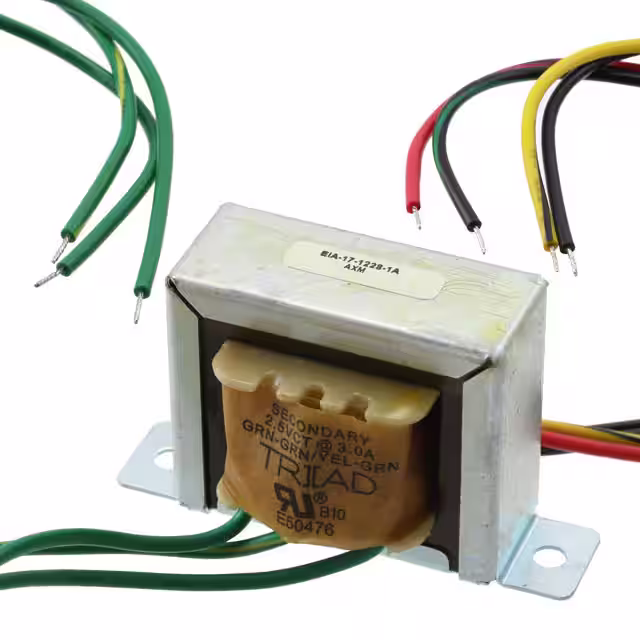

F-301X PWR XFMR LAMINATED 7.5VA CHAS MT Triad Magnetics	2,185	14.18	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	2.5V	3A	Dual	Single	Yes	7.5VA	Chassis Mount	Wire Leads	71.45mm L x 41.28mm W	41.28mm	1500Vrms
183F16 PWR XFMR LAMINATED 5VA TH Hammond Manufacturing	3,222	14.15	RFQ	Datasheet	Bulk	183	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 620mA, Series 310mA	Dual	Dual	No	5VA	Through Hole	PC Pin	41.28mm L x 36.50mm W	34.93mm	4000Vrms
PC-16-640 PWR XFMR LAMINATED 10VA TH Signal Transformer	3,784	14.40	RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 1.28A, Series 640mA	Single	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms
PC-28-360 PWR XFMR LAMINATED 10VA TH Signal Transformer	3,224	14.67	RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 720mA, Series 360mA	Single	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms
F24-800-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,180	15.00	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 12V, Series 24V	Parallel 1.6A, Series 800mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
160F34 PWR XFMR LAMINATED 4.4VA TH Hammond Manufacturing	2,780	14.95	RFQ	Datasheet	Bulk	160	Active	Laminated Core	115V, 230V	Parallel 17V, Series 34V	Parallel 250mA, Series 125mA	Dual	Single, Multiple Taps	No	4.4VA	Through Hole	PC Pin	42.93mm L x 31.75mm W	36.83mm	2000Vrms
164G56 PWR XFMR LAMINATED 12VA TH Hammond Manufacturing	3,556	15.82	RFQ	Datasheet	Bulk	164	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 440mA, Series 220mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	38.10mm	2500Vrms
164G28 PWR XFMR LAMINATED 12VA TH Hammond Manufacturing	3,416	15.82	RFQ	Datasheet	Bulk	164	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 840mA, Series 420mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	38.10mm	2500Vrms
164G20 PWR XFMR LAMINATED 12VA TH Hammond Manufacturing	2,109	15.82	RFQ	Datasheet	Bulk	164	Active	Laminated Core	115V	Parallel 10V, Series 20V	Parallel 1.2A, Series 600mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	38.10mm	2500Vrms
183G10 PWR XFMR LAMINATED 10VA TH Hammond Manufacturing	2,086	15.93	RFQ	Datasheet	Bulk	183	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 2A, Series 1A	Dual	Dual	No	10VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	34.93mm	4000Vrms
161G40 PWR XFMR LAMINATED 10VA TH Hammond Manufacturing	3,599	15.98	RFQ	Datasheet	Bulk	161	Active	Laminated Core	115V	Parallel 20V, Series 40V	Parallel 500mA, Series 250mA	Single	Single, Multiple Taps	No	10VA	Through Hole	PC Pin	49.28mm L x 36.58mm W	42.93mm	2000Vrms
LP-40-150 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	2,209	16.06	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 20V, Series 40V	Parallel 300mA, Series 150mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	21.60mm	1500Vrms
