Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint

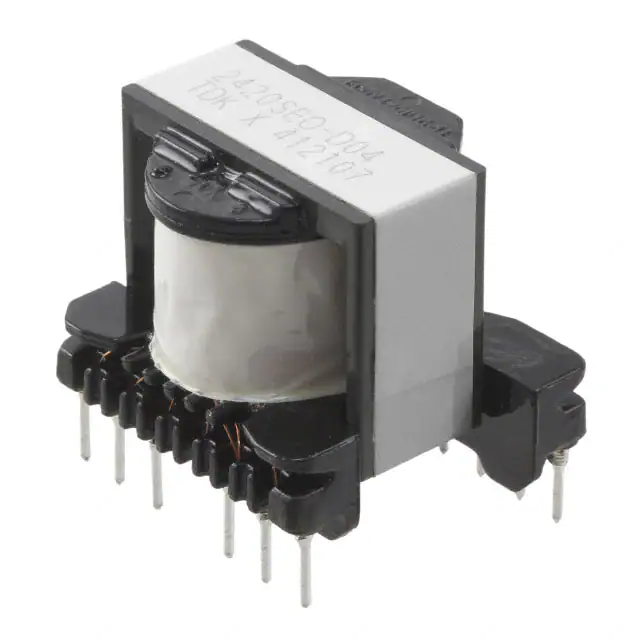

ECO2420SEO-D04V0110 INDUCTOR/XFRMR TDK Corporation	3,180	6.34	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	214 ~ 404V	12V @ 1.25A, 14V @ 250mA	1500Vrms	1.54mH @ 10kHz	-	-30°C ~ 120°C	Through Hole	1.240 L x 0.984 W (31.50mm x 25.00mm)	1.043 (26.50mm)	1.240 L x 0.984 W (31.50mm x 25.00mm)

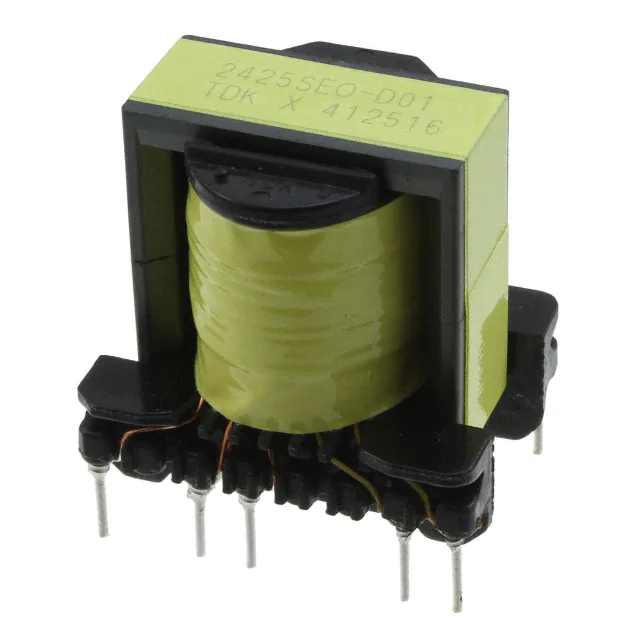

ECO2425SEO-D01V019 INDUCTOR/XFRMR TDK Corporation	3,845	6.34	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	264 ~ 373V	5V @ 140mA, 12.7V @ 1.18A, 20V @ 50mA, 20V @ 70mA	1250Vrms	1.06mH @ 10kHz	100kHz	-30°C ~ 120°C	Through Hole	1.400 L x 0.984 W (35.50mm x 25.00mm)	1.240 (31.50mm)	1.400 L x 0.984 W (35.50mm x 25.00mm)

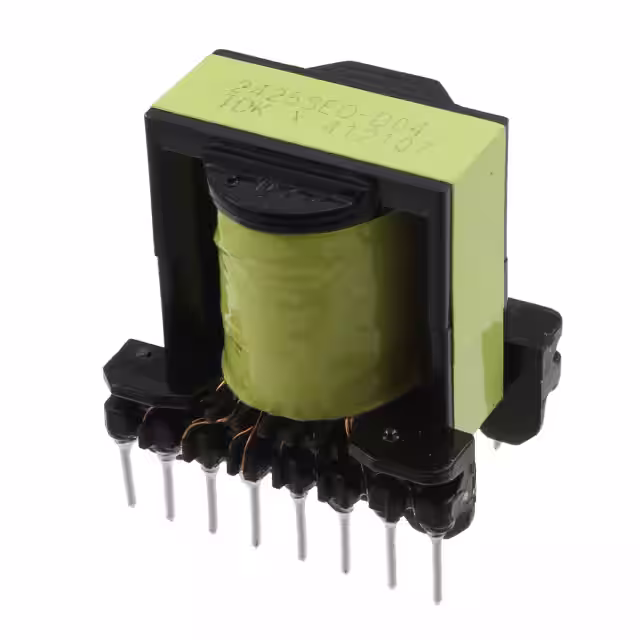

ECO2425SEO-D04V017 INDUCTOR/XFRMR TDK Corporation	3,682	6.34	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	169 ~ 312V	22V @ 1.5A	3000Vrms	428µH @ 10kHz	65kHz	-30°C ~ 120°C	Through Hole	1.240 L x 0.984 W (31.50mm x 25.00mm)	1.240 (31.50mm)	1.240 L x 0.984 W (31.50mm x 25.00mm)

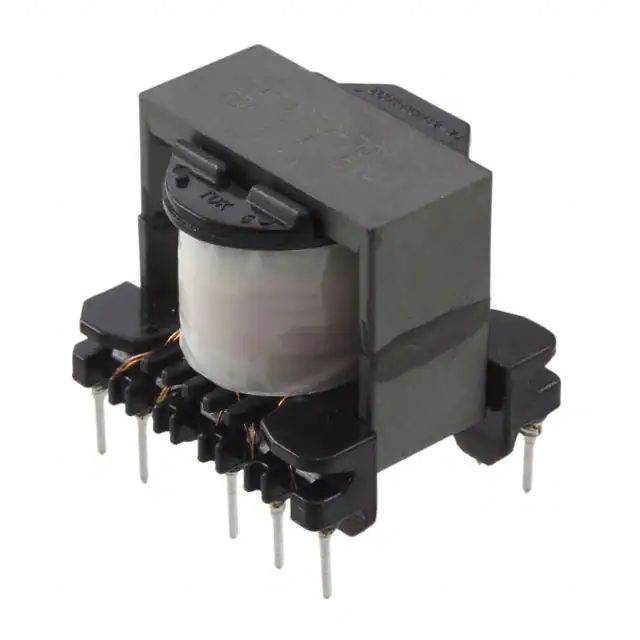

ECO2420SEO-D01V019 INDUCTOR/XFRMR TDK Corporation	2,876	6.34	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	200 ~ 300V	5V @ 200mA, 12V @ 800mA, 17V @ 20mA, 17V @ 170mA	2000Vrms	4.72mH @ 10kHz	-	-30°C ~ 120°C	Through Hole	1.122 L x 0.945 W (28.50mm x 24.00mm)	1.043 (26.50mm)	1.122 L x 0.945 W (28.50mm x 24.00mm)

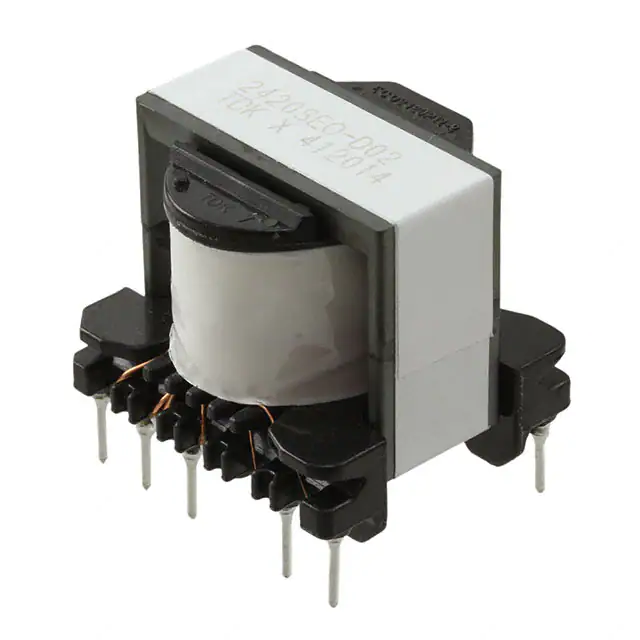

ECO2420SEO-D02V019 INDUCTOR/XFRMR TDK Corporation	3,334	6.34	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	85 ~ 138V	12.3V @ 3.3A	3000Vrms	278µH @ 10kHz	33kHz	-30°C ~ 120°C	Through Hole	1.122 L x 0.945 W (28.50mm x 24.00mm)	1.043 (26.50mm)	1.122 L x 0.945 W (28.50mm x 24.00mm)

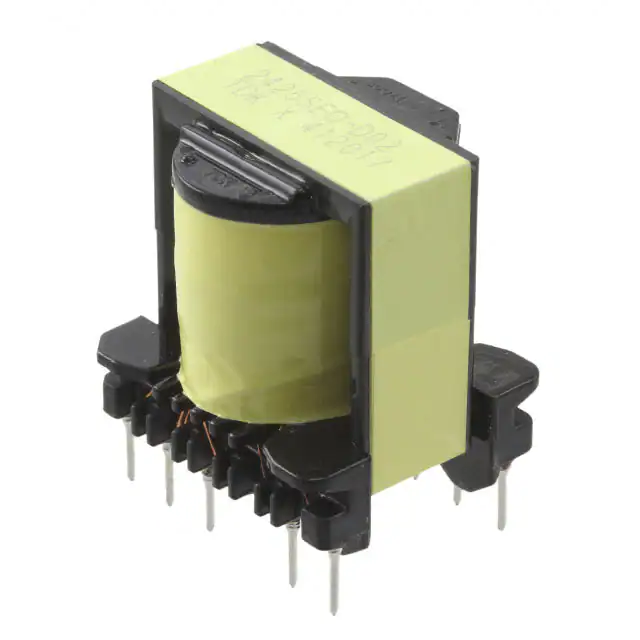

ECO2425SEO-D02V016 INDUCTOR/XFRMR TDK Corporation	2,042	6.34	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	96 ~ 276V	3.3V @ 700mA, 18V @ 500mA, 20V @ 200mA	3000Vrms	700µH @ 10kHz	-	-30°C ~ 120°C	Through Hole	1.122 L x 0.945 W (28.50mm x 24.00mm)	1.240 (31.50mm)	1.122 L x 0.945 W (28.50mm x 24.00mm)

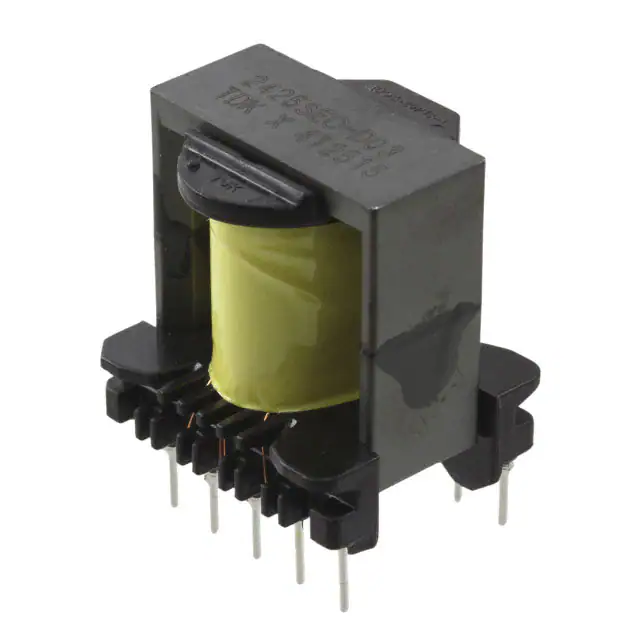

ECO2425SEO-D03V014 INDUCTOR/XFRMR TDK Corporation	2,207	6.34	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	170 ~ 230V	36.5V @ 900mA	1500Vrns	2.8mH @ 10kHz	30kHz	-30°C ~ 120°C	Through Hole	1.122 L x 0.945 W (28.50mm x 24.00mm)	1.240 (31.50mm)	1.122 L x 0.945 W (28.50mm x 24.00mm)

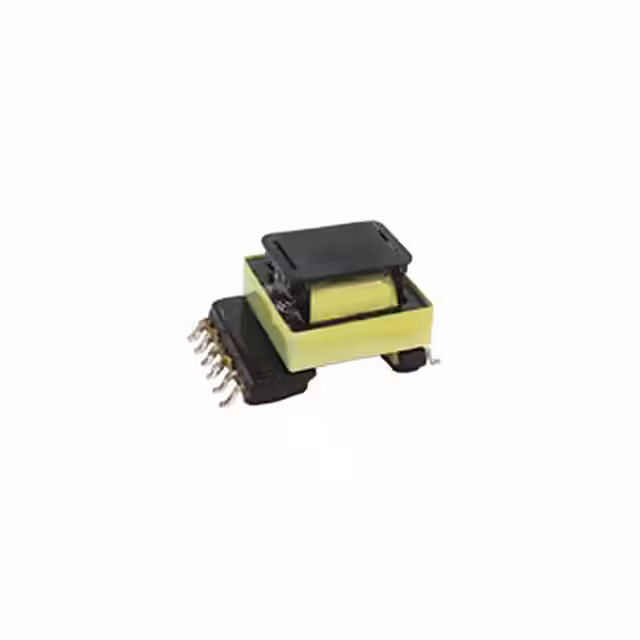

750314851 POWER TRANSFORMER Würth Elektronik	2,911	5.27	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MID-IBTI	Active	For DC/DC Converters	Isolated Buck Converters	-	Texas Instruments	-	-	4000Vrms	68µH @ 10kHz	300kHz	-40°C ~ 125°C	Surface Mount	-	0.543 (13.80mm)	-
POE7W3X5.0-R XFRMF 100UH 7A 0.10A POE/PD Eaton - Electronics Division	3,935	6.91	RFQ	Datasheet	Tape & Reel (TR)	PoE	Active	Configurable (For DC/DC)	Power Over Ethernet (PoE)	-	-	-	-	1500Vrms	100µH @ 100kHz	250kHz	-40°C ~ 85°C	Surface Mount	0.673 L x 0.630 W (17.10mm x 16.00mm)	0.341 (8.65mm)	0.673 L x 0.935 W (17.10mm x 23.74mm)

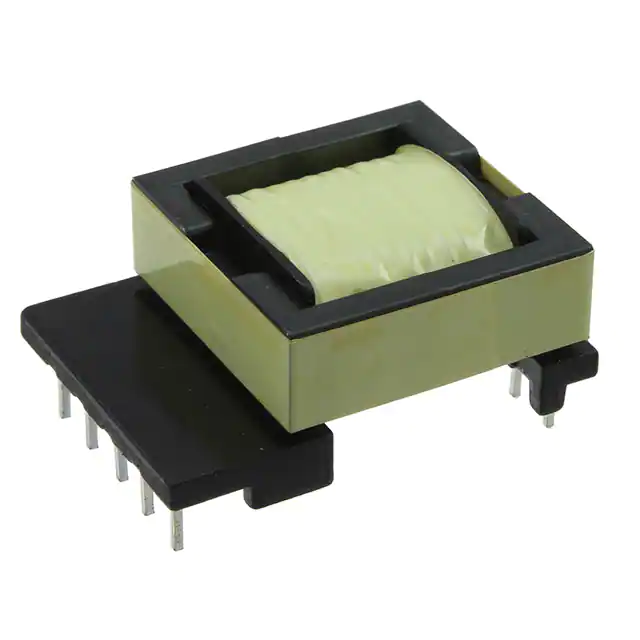

750811612 THT OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	2,940	6.50	RFQ	Datasheet	Tray	MID-OLEFD	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	120 ~ 375V	20V	4500Vrms	800µH @ 10kHz	68 ~ 110kHz	-40°C ~ 125°C	Through Hole	0.846 L x 1.142 W (21.50mm x 29.00mm)	0.477 (12.12mm)	0.846 L x 1.142 W (21.50mm x 29.00mm)
750811613 THT OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	2,894	6.50	RFQ	Datasheet	Tray	MID-OLEFD	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	120 ~ 375V	20V	4500Vrms	800µH @ 10kHz	68 ~ 170kHz	-40°C ~ 125°C	Through Hole	0.846 L x 1.142 W (21.50mm x 29.00mm)	0.477 (12.12mm)	0.846 L x 1.142 W (21.50mm x 29.00mm)
750811614 THT OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	3,649	6.50	RFQ	Datasheet	Tray	MID-OLEFD	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	120 ~ 375V	20V	4500Vrms	800µH @ 10kHz	68 ~ 220kHz	-40°C ~ 125°C	Through Hole	0.846 L x 1.142 W (21.50mm x 29.00mm)	0.477 (12.12mm)	0.846 L x 1.142 W (21.50mm x 29.00mm)

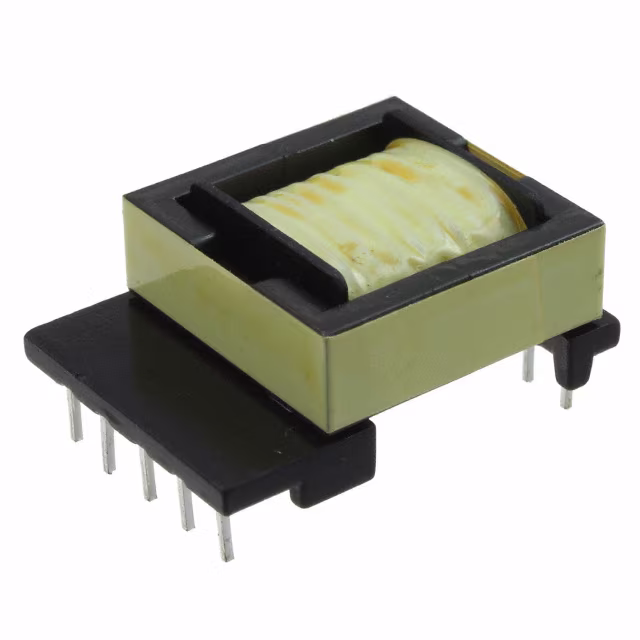

7508112512 THT OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	3,564	6.50	RFQ	Datasheet	Tray	MID-OLEFD	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	120 ~ 375V	20V	4500Vrms	800µH @ 10kHz	68 ~ 170kHz	-40°C ~ 125°C	Through Hole	0.846 L x 1.142 W (21.50mm x 29.00mm)	0.477 (12.12mm)	0.846 L x 1.142 W (21.50mm x 29.00mm)

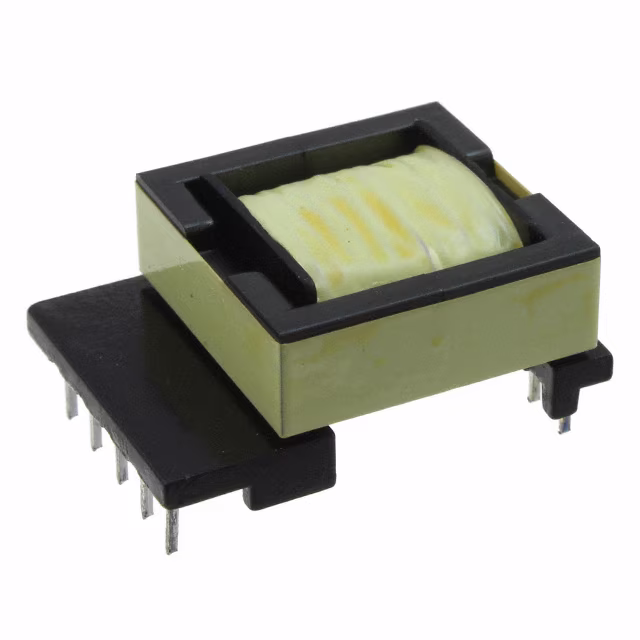

7508112513 THT OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	2,874	6.50	RFQ	Datasheet	Tray	MID-OLEFD	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	120 ~ 375V	20V	4500Vrms	800µH @ 10kHz	68 ~ 180kHz	-40°C ~ 125°C	Surface Mount	0.846 L x 1.142 W (21.50mm x 29.00mm)	0.477 (12.12mm)	0.846 L x 1.142 W (21.50mm x 29.00mm)
7508116313 THT OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	3,678	6.50	RFQ	Datasheet	Tray	MID-OLEFD	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	120 ~ 375V	20V	4500Vrms	800µH @ 10kHz	68 ~ 110kHz	-40°C ~ 125°C	Through Hole	0.846 L x 1.142 W (21.50mm x 29.00mm)	0.477 (12.12mm)	0.846 L x 1.142 W (21.50mm x 29.00mm)
POE7W3X3.3-R XFRMF 100UH 7A 0.10A POE/PD Eaton - Electronics Division	3,767	7.10	RFQ	Datasheet	Tape & Reel (TR)	PoE	Active	Configurable (For DC/DC)	Power Over Ethernet (PoE)	-	-	-	-	1500Vrms	100µH @ 100kHz	250kHz	-40°C ~ 85°C	Surface Mount	0.673 L x 0.630 W (17.10mm x 16.00mm)	0.341 (8.65mm)	0.673 L x 0.935 W (17.10mm x 23.74mm)
750311992 TRANS FLYBACK CY8CLEDAC02 1.2MH Würth Elektronik	3,802	5.26	RFQ	Datasheet	Tray	-	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	CY8CLEDAC02	Cypress Semiconductor Corp	153 ~ 187V	12.2V @ 10mA	1500Vrms	1.2mH @ 65kHz	65kHz	-40°C ~ 125°C	Through Hole	0.665 L x 0.740 W (16.90mm x 18.80mm)	0.529 (13.44mm)	0.665 L x 0.740 W (16.90mm x 18.80mm)

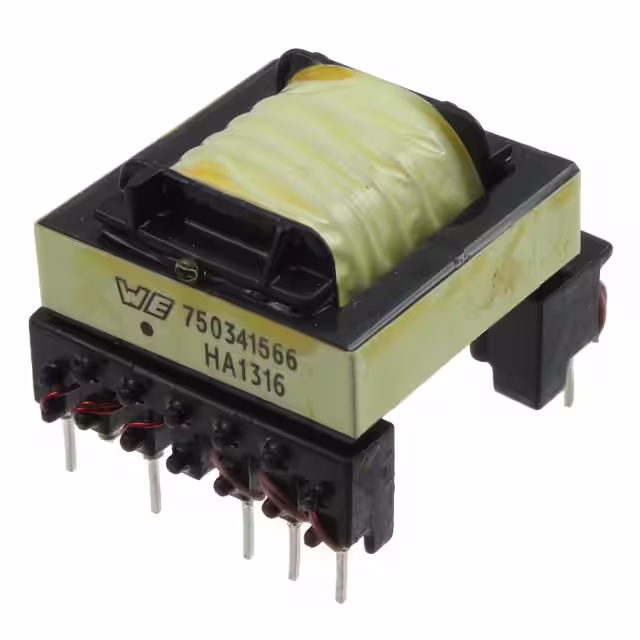

750341566 PWR XFRM FAIRCHILD FAN6755W Würth Elektronik	3,711	5.26	RFQ	Datasheet	Tray	WE-FB, MID-OLON	Active	For AC/DC Converters	Forward, Push-Pull Converters	-	-	45 ~ 600V	-	3750Vrms	970µH @ 10kHz	67kHz	-55°C ~ 125°C	Through Hole	1.065 L x 1.270 W (27.05mm x 32.25mm)	0.871 (22.12mm)	1.065 L x 1.270 W (27.05mm x 32.25mm)
750871530 TRANS FLYBACK NXP UM10377 1.6MH Würth Elektronik	3,145	5.88	RFQ	Datasheet	Tray	WE-UNIT, MID-OLNXP	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	TEA1522	NXP Semiconductors	120 ~ 385V	-	4000Vrms	1.6mH @ 10kHz	100kHz	-40°C ~ 125°C	Through Hole	-	0.635 (16.13mm)	0.800 L x 0.960 W (20.32mm x 24.38mm)

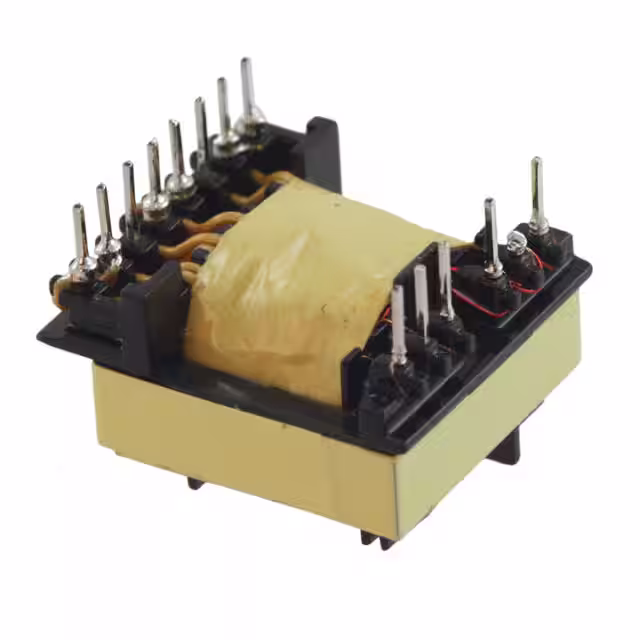

750871630 TRANS FLYBACK NXP STARPLUG 500UH Würth Elektronik	2,595	5.88	RFQ	Datasheet	Tray	WE-UNIT, MID-OLNXP	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	TEA1623PH	NXP Semiconductors	120 ~ 385V	12V @ 30mA	4000Vrms	500µH @ 10kHz	100kHz	-40°C ~ 125°C	Through Hole	0.827 L x 0.984 W (21.00mm x 25.00mm)	0.635 (16.13mm)	0.827 L x 0.984 W (21.00mm x 25.00mm)
