Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint
ECO2017SEO-D02V016 INDUCTOR/XFRMR TDK Corporation	2,734	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	80 ~ 144V	12V @ 620mA	3000Vrms	712µH @ 10kHz	100kHz	-30°C ~ 120°C	Through Hole	0.768 L x 0.886 W (19.50mm x 22.50mm)	0.945 (24.00mm)	0.768 L x 0.886 W (19.50mm x 22.50mm)
ECO2017SEO-D03V014 INDUCTOR/XFRMR TDK Corporation	2,933	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	85 ~ 264V	12V @ 1A	3000Vrms	555µH @ 100kHz	-	-30°C ~ 120°C	Through Hole	0.768 L x 0.886 W (19.50mm x 22.50mm)	0.945 (24.00mm)	0.768 L x 0.886 W (19.50mm x 22.50mm)
ECO2017SEO-D04V015 INDUCTOR/XFRMR TDK Corporation	2,462	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	160 ~ 288V	12V @ 300mA	3000Vrms	3.18mH @ 10kHz	100kHz	-30°C ~ 120°C	Through Hole	0.768 L x 0.886 W (19.50mm x 22.50mm)	0.945 (24.00mm)	0.768 L x 0.886 W (19.50mm x 22.50mm)
ECO2017SEO-D05V016 INDUCTOR/XFRMR TDK Corporation	3,512	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	169 ~ 312V	5V @ 250mA, 15V @ 200mA	3000Vrms	1.8mH @ 10kHz	-	-30°C ~ 120°C	Through Hole	0.768 L x 0.886 W (19.50mm x 22.50mm)	0.945 (24.00mm)	0.768 L x 0.886 W (19.50mm x 22.50mm)

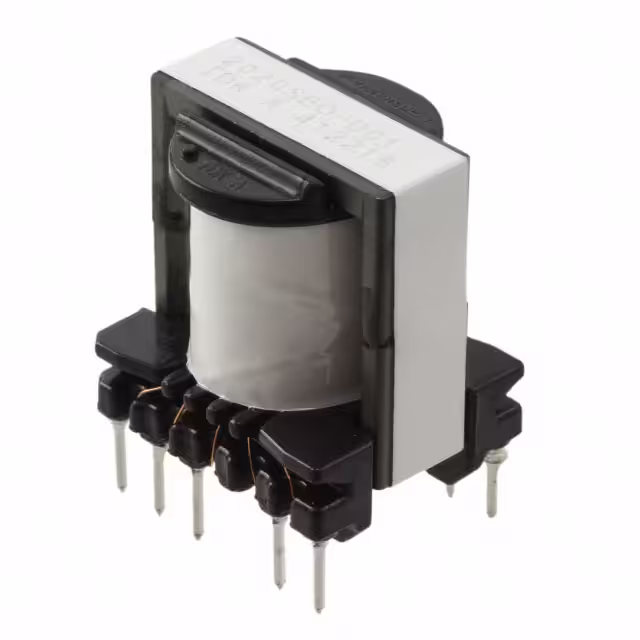

ECO2020SEO-D01V016 INDUCTOR/XFRMR TDK Corporation	2,173	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	70 ~ 265V	12.5V @ 800mA, 15V @ 100mA	3750Vrms	550µH @ 10kHz	50kHz	-30°C ~ 120°C	Through Hole	0.768 L x 0.886 W (19.50mm x 22.50mm)	1.063 (27.00mm)	0.768 L x 0.886 W (19.50mm x 22.50mm)

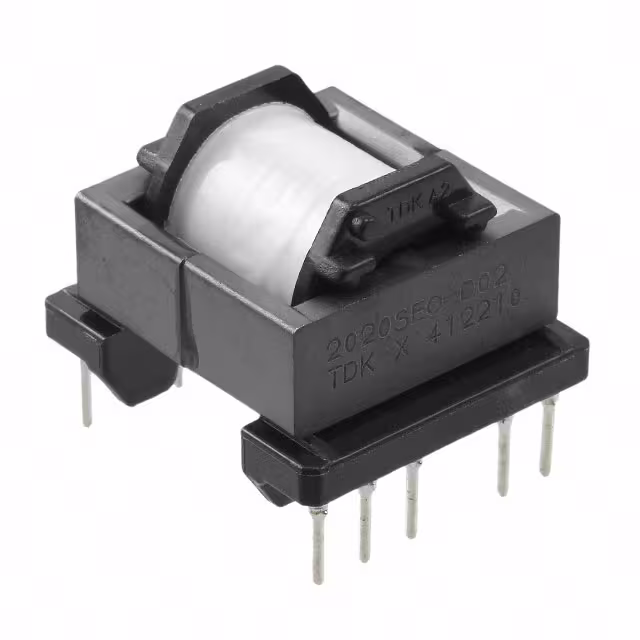

ECO2020SEO-D02H015 INDUCTOR/XFRMR TDK Corporation	2,328	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	75 ~ 326V	12.7V @ 600mA	1500Vrms	534µH @ 10kHz	-	-30°C ~ 120°C	Through Hole	0.925 L x 1.063 W (23.50mm x 27.00mm)	0.787 (20.00mm)	0.925 L x 1.063 W (23.50mm x 27.00mm)

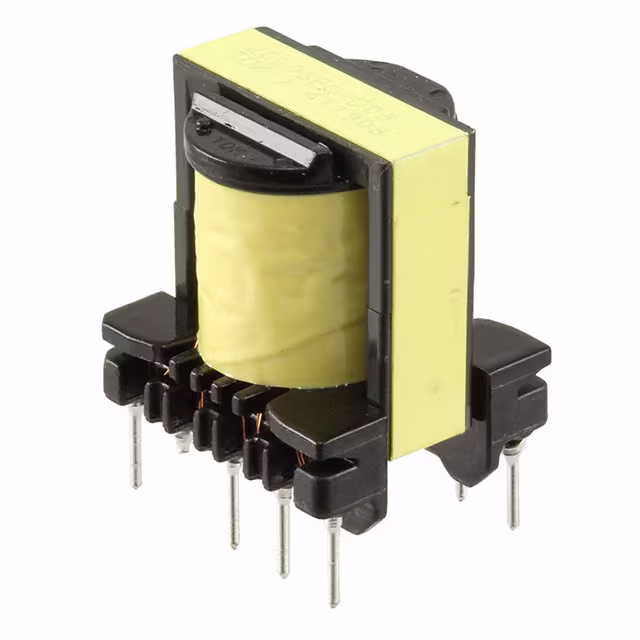

ECO2020SEO-D03V016 INDUCTOR/XFRMR TDK Corporation	3,124	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	85 ~ 276V	12V @ 850mA, 17V @ 150mA	3600Vrms	764µH @ 100kHz	124kHz	-30°C ~ 120°C	Through Hole	0.886 L x 0.768 W (22.50mm x 19.50mm)	1.063 (27.00mm)	0.886 L x 0.768 W (22.50mm x 19.50mm)

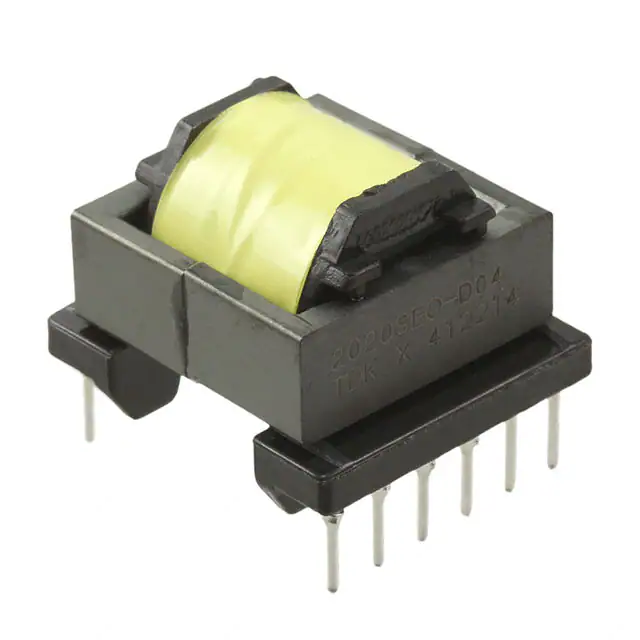

ECO2020SEO-D04H015 INDUCTOR/XFRMR TDK Corporation	2,633	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	96 ~ 144V	12V @ 1.5A	3000Vrms	867µH @ 10kHz	67kHz	-30°C ~ 120°C	Through Hole	0.925 L x 1.063 W (23.50mm x 27.00mm)	0.787 (20.00mm)	0.925 L x 1.063 W (23.50mm x 27.00mm)

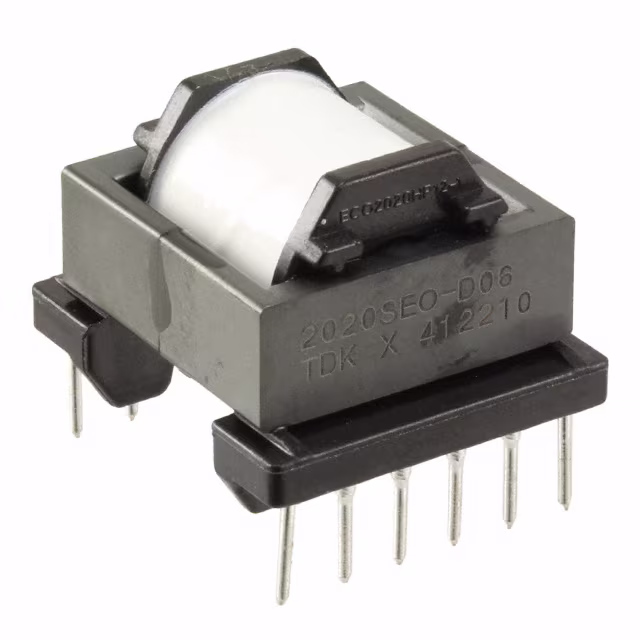

ECO2020SEO-D06H015 INDUCTOR/XFRMR TDK Corporation	3,795	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	80 ~ 276V	19.7V @ 267mA	1500Vrms	1.3mH @ 10kHz	80kHz	-30°C ~ 120°C	Through Hole	0.925 L x 1.063 W (23.50mm x 27.00mm)	0.787 (20.00mm)	0.925 L x 1.063 W (23.50mm x 27.00mm)

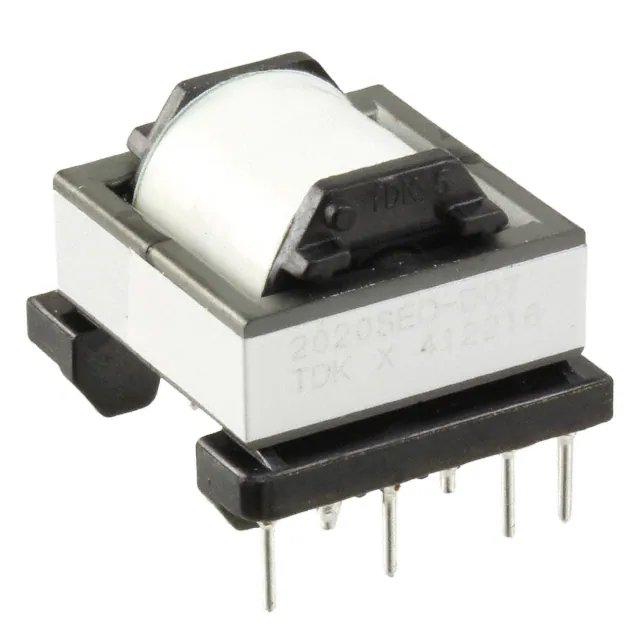

ECO2020SEO-D07H016 INDUCTOR/XFRMR TDK Corporation	3,076	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	85 ~ 264V	21.5V @ 465mA	3600Vrms	1.3mH @ 100kHz	65kHz	-30°C ~ 120°C	Through Hole	0.925 L x 1.063 W (23.50mm x 27.00mm)	0.787 (20.00mm)	0.925 L x 1.063 W (23.50mm x 27.00mm)

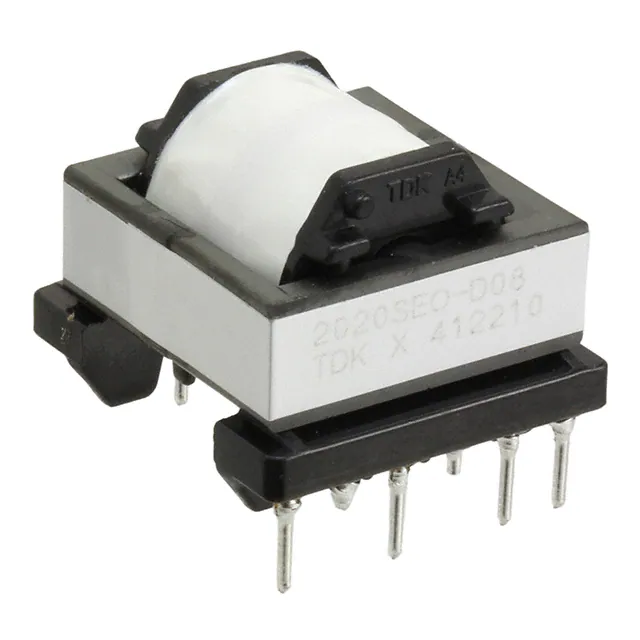

ECO2020SEO-D08H016 INDUCTOR/XFRMR TDK Corporation	3,994	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	85 ~ 264V	30V @ 333mA	3000Vrms	1.3mH @ 100kHz	65kHz	-30°C ~ 120°C	Through Hole	0.925 L x 1.063 W (23.50mm x 27.00mm)	0.787 (20.00mm)	0.925 L x 1.063 W (23.50mm x 27.00mm)

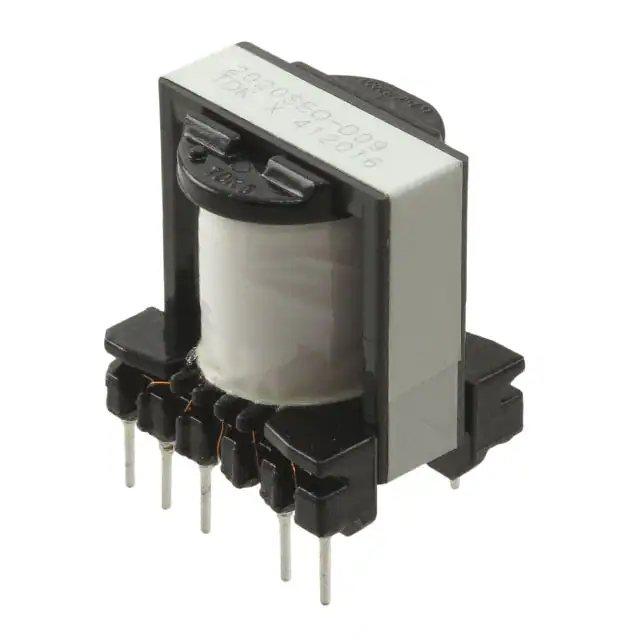

ECO2020SEO-D09V015 INDUCTOR/XFRMR TDK Corporation	2,742	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	154 ~ 312V	12V @ 500mA	2000Vrms	12.6mH @ 10kHz	-	-30°C ~ 120°C	Through Hole	0.886 L x 0.768 W (22.50mm x 19.50mm)	1.063 (27.00mm)	0.886 L x 0.768 W (22.50mm x 19.50mm)

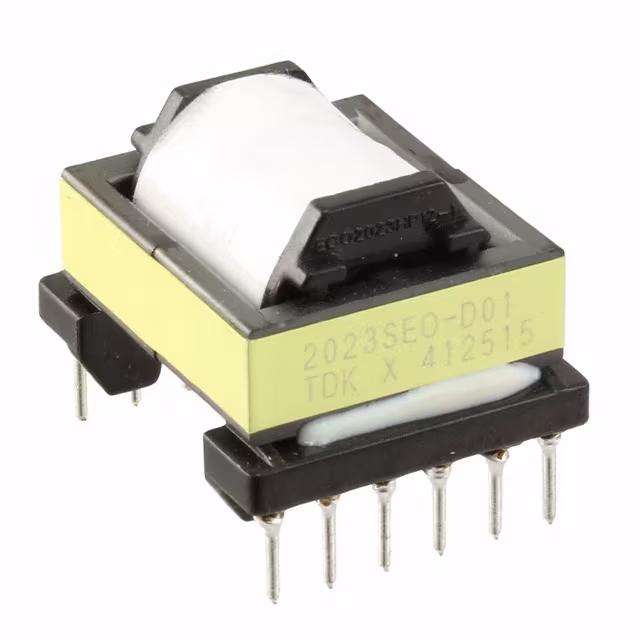

ECO2023SEO-D01H016 INDUCTOR/XFRMR TDK Corporation	3,730	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	85 ~ 276V	12V @ 1.3A	3000Vrms	489µH @ 10kHz	100kHz	-30°C ~ 120°C	Through Hole	0.925 L x 1.161 W (23.50mm x 29.50mm)	0.787 (20.00mm)	0.925 L x 1.161 W (23.50mm x 29.50mm)

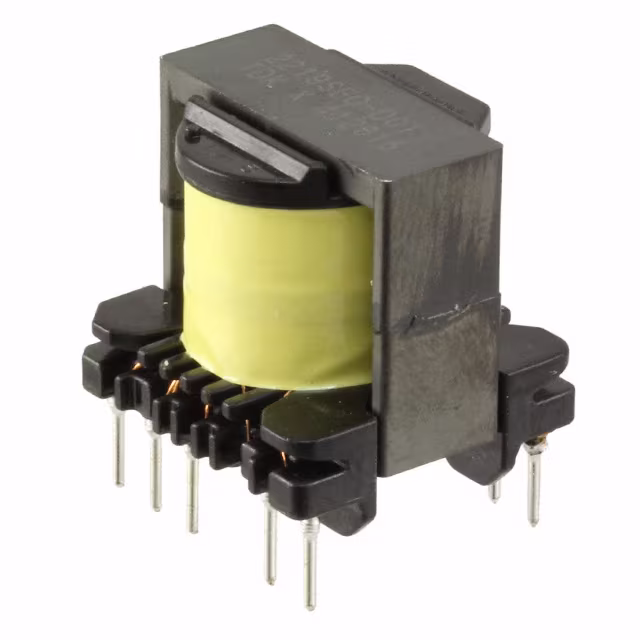

ECO2219SEO-D01V018 INDUCTOR/XFRMR TDK Corporation	2,422	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	85 ~ 276V	8V @ 220mA, 8V @ 300mA, 12V @ 320mA	2500Vrms	816µH @ 10kHz	-	-30°C ~ 120°C	Through Hole	0.945 L x 0.906 W (24.00mm x 23.00mm)	0.984 (25.00mm)	0.945 L x 0.906 W (24.00mm x 23.00mm)
ECO2219SEO-D02V016 INDUCTOR/XFRMR TDK Corporation	2,922	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	264 ~ 373V	5V @ 90mA, 12.4V @ 300mA	1250Vrms	3.22mH @ 10kHz	100kHz	-30°C ~ 120°C	Through Hole	0.945 L x 0.906 W (24.00mm x 23.00mm)	0.984 (25.00mm)	0.945 L x 0.906 W (24.00mm x 23.00mm)

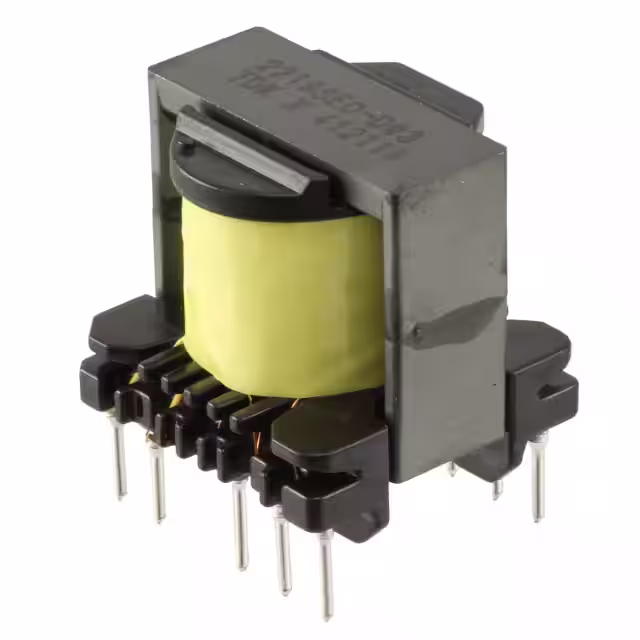

ECO2219SEO-D03V017 INDUCTOR/XFRMR TDK Corporation	3,342	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	170 ~ 400V	5V @ 110mA, 12V @ 540mA, 18V @ 30mA, 19V @ 20mA	2000Vrms	1.77mH @ 10kHz	-	-30°C ~ 120°C	Through Hole	0.945 L x 0.906 W (24.00mm x 23.00mm)	0.984 (25.00mm)	0.945 L x 0.906 W (24.00mm x 23.00mm)

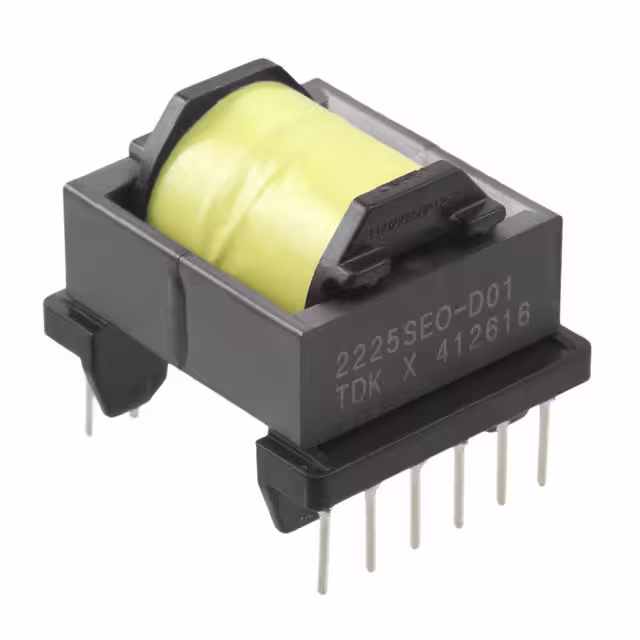

ECO2225SEO-D01H016 INDUCTOR/XFRMR TDK Corporation	3,946	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	85 ~ 276V	12V @ 50mA, 12V @ 1.5A	3000Vrms	567µH @ 10kHz	67kHz	-30°C ~ 120°C	Through Hole	1.024 L x 1.201 W (26.00mm x 30.50mm)	0.945 (24.00mm)	1.024 L x 1.201 W (26.00mm x 30.50mm)

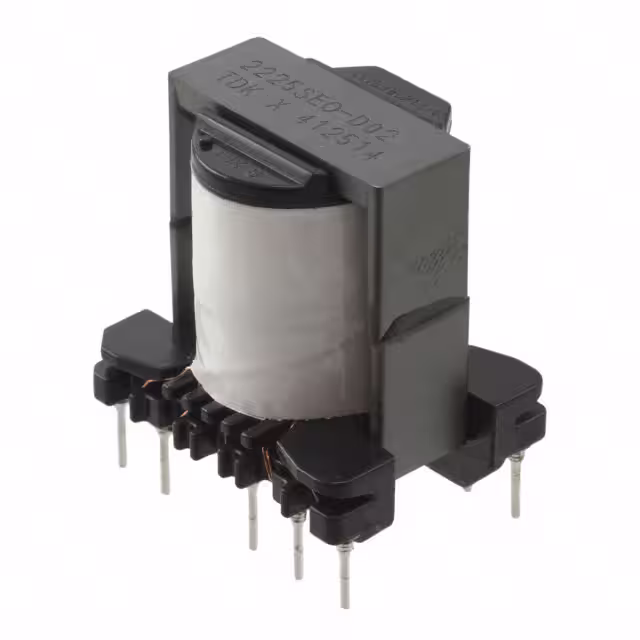

ECO2225SEO-D02V0112 INDUCTOR/XFRMR TDK Corporation	3,701	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	180 ~ 276V	12.3V @ 3.2A	4000Vrms	1.33mH @ 10kHz	-	-30°C ~ 120°C	Through Hole	1.122 L x 0.906 W (28.50mm x 23.00mm)	1.220 (31.00mm)	1.122 L x 0.906 W (28.50mm x 23.00mm)

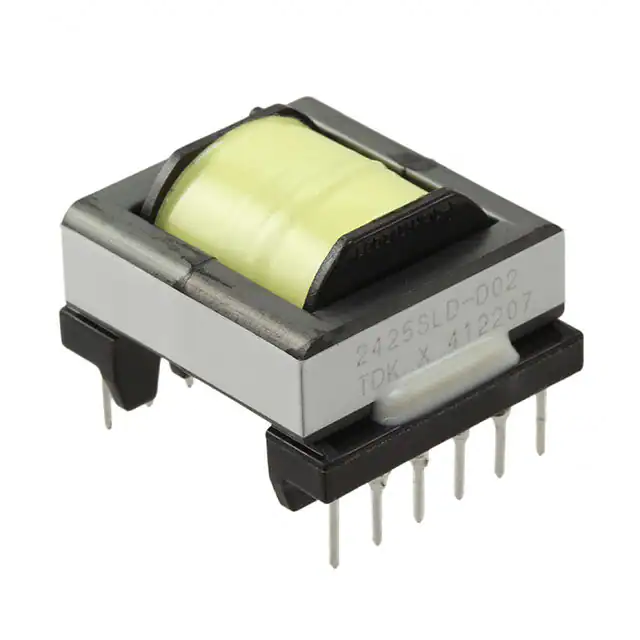

ECO2425SLD-D02H0111 INDUCTOR/XFRMR TDK Corporation	2,669	4.45	RFQ	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	85 ~ 276V	5V @ 2.2A, 12V @ 200mA	3000Vrms	446µH @ 10kHz	67kHz	-30°C ~ 120°C	Through Hole	1.024 L x 1.181 W (26.00mm x 30.00mm)	0.787 (20.00mm)	1.024 L x 1.181 W (26.00mm x 30.00mm)
POE7W2X12-R XFRMR 100UH 7A 0.10A POE/PD Eaton - Electronics Division	2,243	4.90	RFQ	Datasheet	Tape & Reel (TR)	PoE	Active	Configurable (For DC/DC)	Power Over Ethernet (PoE)	-	-	-	-	1500Vrms	100µH @ 100kHz	250kHz	-40°C ~ 85°C	Surface Mount	0.673 L x 0.630 W (17.10mm x 16.00mm)	0.331 (8.40mm)	0.673 L x 0.878 W (17.10mm x 22.30mm)
