Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
PA2007NL PULSE XFMR 1:1 1.49MH Pulse Electronics Power	371	2.61	RFQ	Datasheet	Tube	-	Active	-	1.49mH	53VµS	1:1	Surface Mount	0.355 L x 0.340 W (9.02mm x 8.64mm)	0.300 (7.62mm)
SPOE7-0508 POE PWR OVER ETHERNET EP10 CORE Signal Transformer	3,178	4.61	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SPoE	Active	Power over Ethernet (PoE)	253µH	-	-	Surface Mount	-	-
SPOE7-3308 POE PWR OVER ETHERNET EP10 CORE Signal Transformer	3,198	4.61	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SPoE	Active	Power over Ethernet (PoE)	253µH	-	-	Surface Mount	-	-
H1199FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	600	5.77	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)
PA3855.003NL PULSE XFMR 41UH Pulse Electronics Power	376	3.87	RFQ	Datasheet	Tray	-	Active	-	41µH	-	-	Surface Mount	0.571 L x 0.695 W (14.50mm x 17.65mm)	0.551 (14.00mm)
T3001NLT XFRMR T3/DS3/E3/STS-1 1:1 SMD Pulse Electronics Network	2,948	6.86	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	T3/E3 (Single)	100µH	-	1:1	Surface Mount	0.300 L x 0.275 W (7.62mm x 7.00mm)	0.250 (6.35mm)
PA1836NLT PULSE XFMR 4.5UH Pulse Electronics Power	2,437	6.82	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	4.5µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)

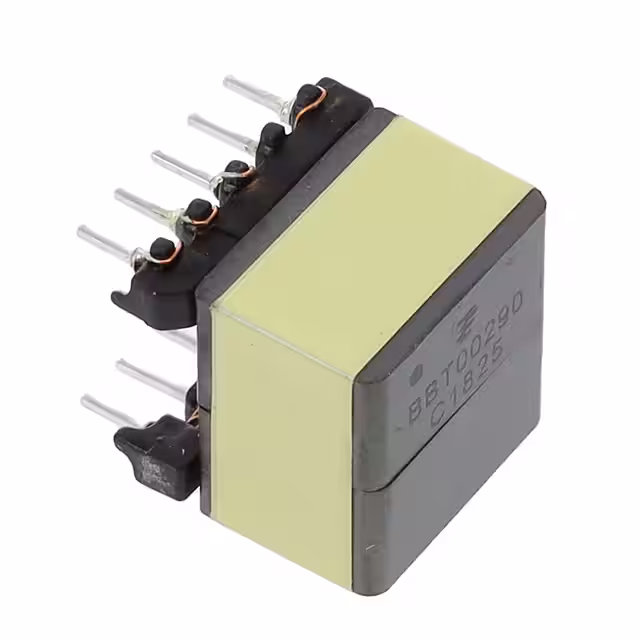

MGBBT-00290-P XFMR PROP EP13 TH, ROHS C1306 TE Connectivity Passive Product	1,110	4.54	RFQ	Datasheet	Bulk	-	Active	-	6.1mH	-	-	Through Hole	0.550 L x 0.550 W (13.97mm x 13.97mm)	0.500 (12.70mm)
H1081NLT XFRMR MODUL 1PORT 1:1.141 10/100 Pulse Electronics Network	603	7.72	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1.141 Transmitter, 1:1 Receiver	Surface Mount	1.000 L x 0.395 W (25.40mm x 10.03mm)	0.230 (5.84mm)

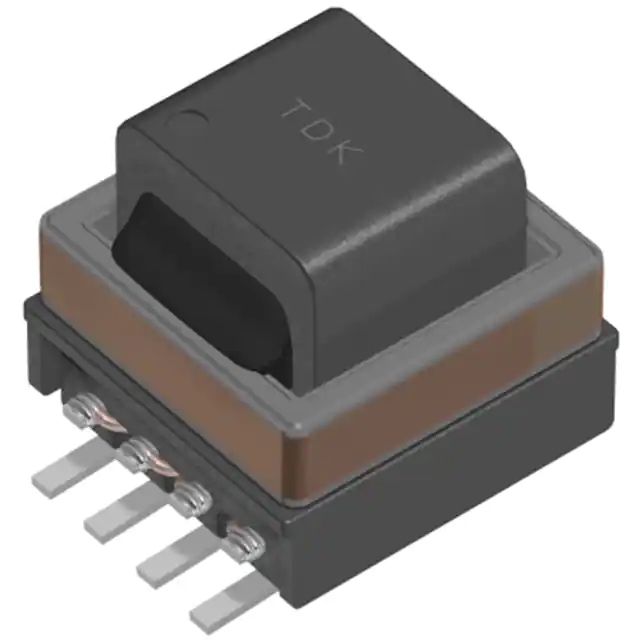

VGT10/9EE-X01S1P4 PULSE TRANSFORMERS FOR BMS (BATT TDK Corporation	775	7.96	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VGT	Active	-	140µH	-	1:1:1:1	Surface Mount	0.409 L x 0.409 W (10.40mm x 10.40mm)	0.417 (10.58mm)

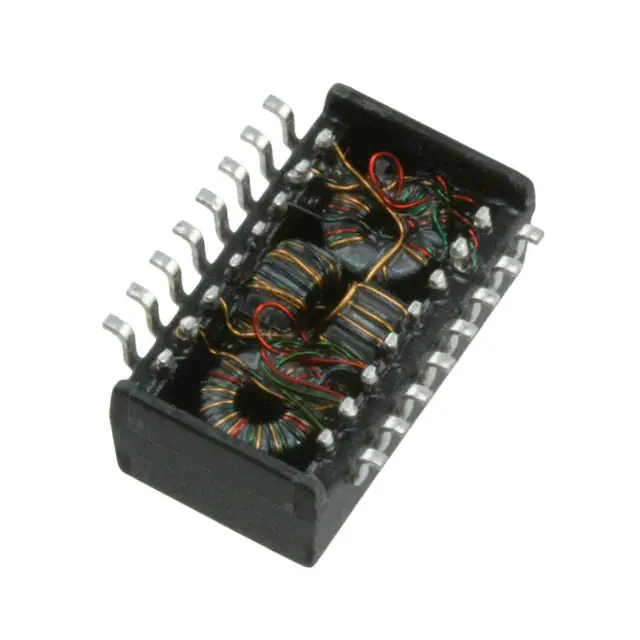

E2023NL XFRMR LAN ISOL 10BASET 1:2.5 SMD Pulse Electronics Network	525	5.14	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	200µH	-	1CT:2.5CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.495 L x 0.280 W (12.57mm x 7.11mm)	0.210 (5.33mm)
HX1178NLT XFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics Network	550	8.44	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	1.000 L x 0.390 W (25.40mm x 9.91mm)	0.245 (6.22mm)
HMU2103NL XFMR CMC MODULE AECQ BATT MNGT Pulse Electronics Network	543	5.17	RFQ	Datasheet	Tube	-	Active	-	150µH	-	-	Surface Mount	0.300 L x 0.365 W (7.62mm x 9.27mm)	0.225 (5.72mm)
E2023FNL XFRMR LAN ISOL 10BASET 1:2.5 SMD Pulse Electronics Network	644	5.18	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	200µH	-	1CT:2.5CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.498 L x 0.350 W (12.65mm x 8.89mm)	0.200 (5.08mm)

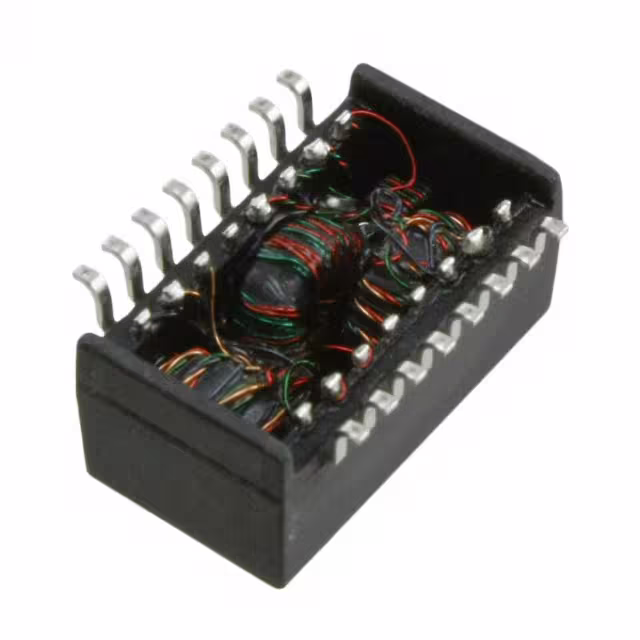

H1302NL XFRMR MAGNETIC 1PORT 1:1 10/100 Pulse Electronics Network	874	5.37	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.241 (6.12mm)
PE-68023NL XFRMR LAN ISOL 1CT:2CT 10B-T SMD Pulse Electronics Network	572	5.45	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	200µH	-	1CT:2CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.285 W (12.70mm x 7.24mm)	0.210 (5.33mm)
TX1287NL XFRMR 1CT:2.42CT/1CT:2.42CT SMD Pulse Electronics Network	312	5.52	RFQ	Datasheet	Tube	-	Active	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:2.42CT, 1CT:2.42CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
S558-5999-AN-F MODULE XFRMR GIGABIT MINIPCI SMD Bel Fuse Inc.	1,652	9.40	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.880 L x 0.540 W (22.35mm x 13.72mm)	0.084 (2.13mm)

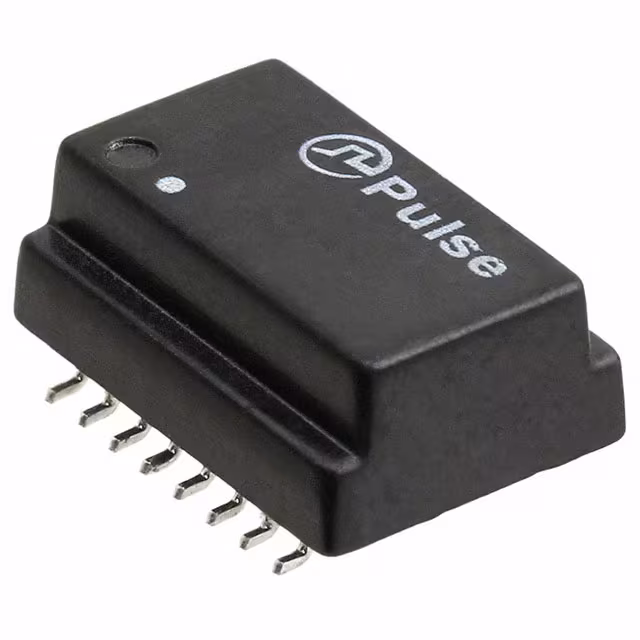

H1199FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	375	5.77	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)

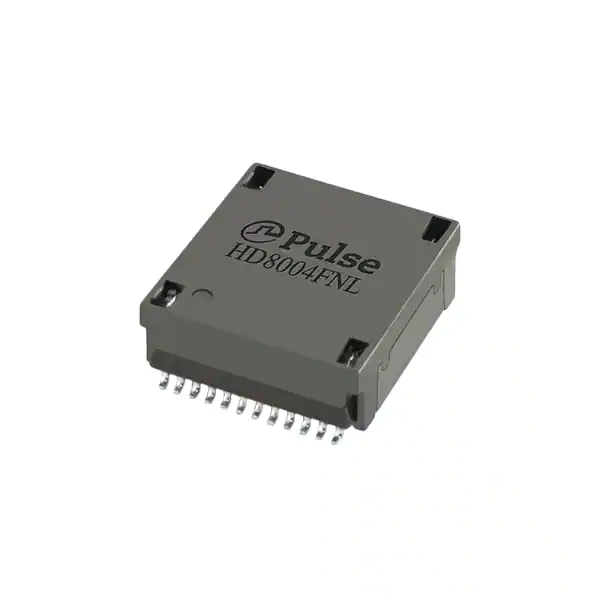

HD8004FNLT TRANSFORMER HDBASE-T 34W Pulse Electronics Network	300	9.99	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	HDBase-T	180µH	-	1:1	Surface Mount	0.539 L x 0.591 W (13.70mm x 15.00mm)	0.230 (5.85mm)
