Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
H5200NL MODULE XFORMR DUAL GIGABIT SMD Pulse Electronics Network	180	15.20	RFQ	Datasheet	Tray	-	Active	-	-	-	1CT:1CT	Surface Mount	0.580 L x 0.680 W (14.73mm x 17.27mm)	0.430 (10.92mm)
H5201NL MODULE XFORMR DUAL GIGABIT SMD Pulse Electronics Network	142	15.20	RFQ	Datasheet	Tray	-	Active	-	-	-	1CT:1CT	Surface Mount	0.580 L x 0.680 W (14.73mm x 17.27mm)	0.430 (10.92mm)
T1176NL MODULE INTERFACE 1CT:2.4CT SMD Pulse Electronics Network	411	16.13	RFQ	Datasheet	Tube	-	Active	T1/E1 (Dual)	1.2mH	-	1CT:2.4CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.227 (5.76mm)
HX5014FNL PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics Network	148	17.31	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.590 W (27.81mm x 14.99mm)	0.285 (7.24mm)
GDE25-3 TRANSF .350 OHM SINGL GATE DRIVE Triad Magnetics	3,782	17.31	RFQ	Datasheet	Bulk	GDE25	Active	Gate Drive	1.5mH	840VµS	1.5:1	Through Hole	1.100 L x 1.040 W (27.94mm x 26.42mm)	1.200 (30.48mm)

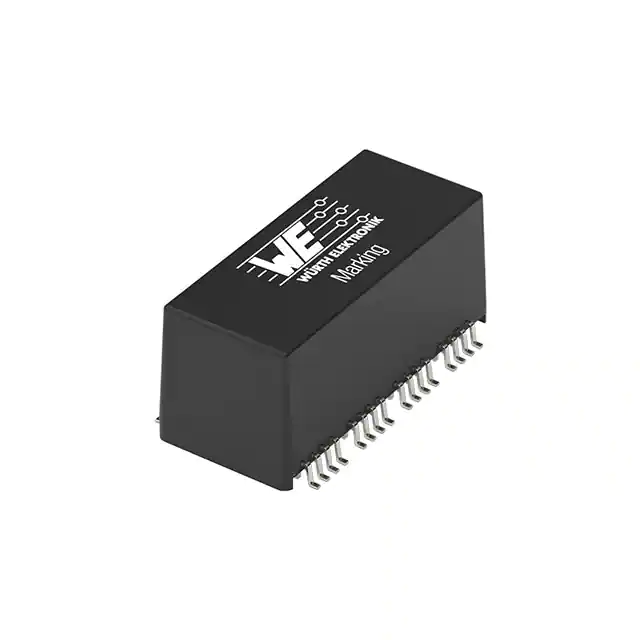

7490240120 XFRMR WE-LAN 10/100/1000 BASE-T Würth Elektronik	391	28.07	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	-	-	-	-	-	-	-
100B-1003FXNL EXTMP XFMR 100BT SMG COM NPB iNRCORE, LLC	710	17.71	RFQ	Datasheet	Bulk	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.500 L x 0.265 W (12.70mm x 6.73mm)	0.245 (6.22mm)
IT314 XFRMR PULSE 3:1:1 DUAL 35MH 1A Schaffner EMC Inc.	130	18.09	RFQ	Datasheet	Tray	IT	Active	Data/Voice Coupling	35mH	-	3:1:1	Through Hole	1.004 L x 1.004 W (25.50mm x 25.50mm)	0.992 (25.20mm)

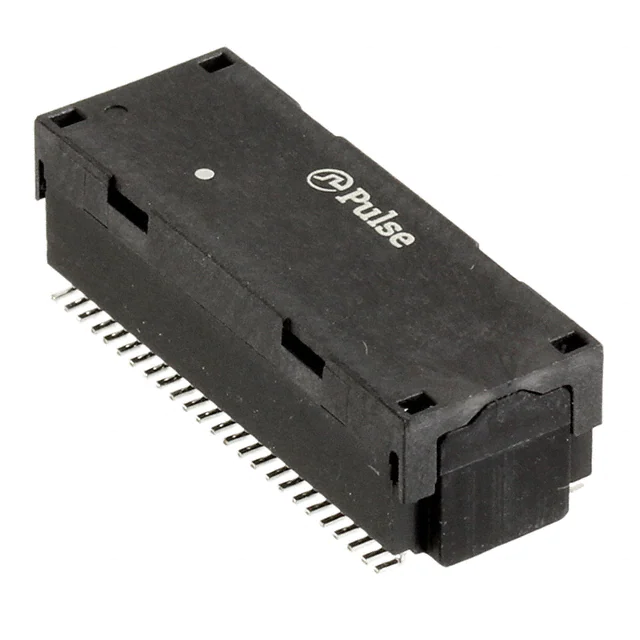

H5020FNL PULSE XFMR 1CT:1 TX 1CT:1 RX Pulse Electronics Network	135	18.38	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1 Transmitter, 1CT:1 Receiver	Surface Mount	1.100 L x 0.395 W (27.94mm x 10.03mm)	0.340 (8.64mm)
100B-1001XNL EXTMP XFMR 100BT SMG COM RPB iNRCORE, LLC	460	18.39	RFQ	Datasheet	Bulk	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.583 L x 0.470 W (14.81mm x 11.94mm)	0.202 (5.13mm)
IT370 XFRMR PULSE 1:1 SINGLE 0.3MH 1A Schaffner EMC Inc.	749	26.24	RFQ	Datasheet	Tray	IT	Active	Data/Voice Coupling	300µH	-	1:1	Through Hole	1.063 L x 1.268 W (27.00mm x 32.20mm)	0.933 (23.70mm)
1000B-5002FXNL MDL SIN 1GD 1:1 SMT TU NPB iNRCORE, LLC	1,285	28.83	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.19mm)	0.235 (5.97mm)
T-330SCT XFMR DUAL 265.6M BAUD iNRCORE, LLC	324	36.81	RFQ	Datasheet	Bulk	Copperhead™	Active	-	-	-	1CT:1CT	Surface Mount	0.500 L x 0.290 W (12.70mm x 7.37mm)	0.180 (4.57mm)
T-1062SCT XFMR DUAL 1062.5M BAUD iNRCORE, LLC	826	38.08	RFQ	Datasheet	Bulk	Copperhead™	Active	-	-	-	1CT:1CT	Surface Mount	0.500 L x 0.290 W (12.70mm x 7.37mm)	0.180 (4.57mm)
Q1553-45 TRANSFORMER PULSE LVL:M PKG:A iNRCORE, LLC	115	42.19	RFQ	Datasheet	Bulk	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
1000B-5014FT XFMR MODULE DUAL 1GD SMT PBC iNRCORE, LLC	1,100	52.90	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.251 (6.38mm)
SPOE3-3308 POE POWER OVER ETHERNET EP7 CORE Signal Transformer	8,996	3.76	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SPoE	Active	Power over Ethernet (PoE)	500µH	-	-	Surface Mount	-	-
PA1131NLT XFRMR 5.0V 3W 500UH POE EP7 SMD Pulse Electronics Power	871	4.01	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP7	Active	Isolation and Data Interface (Encapsulated)	500µH	-	1:0.125:0.208	Surface Mount	0.420 L x 0.525 W (10.67mm x 13.34mm)	0.365 (9.27mm)
SPOE3-1212 POE POWER OVER ETHERNET EP7 CORE Signal Transformer	3,983	4.35	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SPoE	Active	Power over Ethernet (PoE)	310µH	-	1:0.7	Surface Mount	-	-
SPOE13-3308 POE PWR OVER ETHERNET EP13 CORE Signal Transformer	1,997	4.35	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SPoE	Active	Power over Ethernet (PoE)	127µH	-	1:0.3	Surface Mount	-	-
