Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

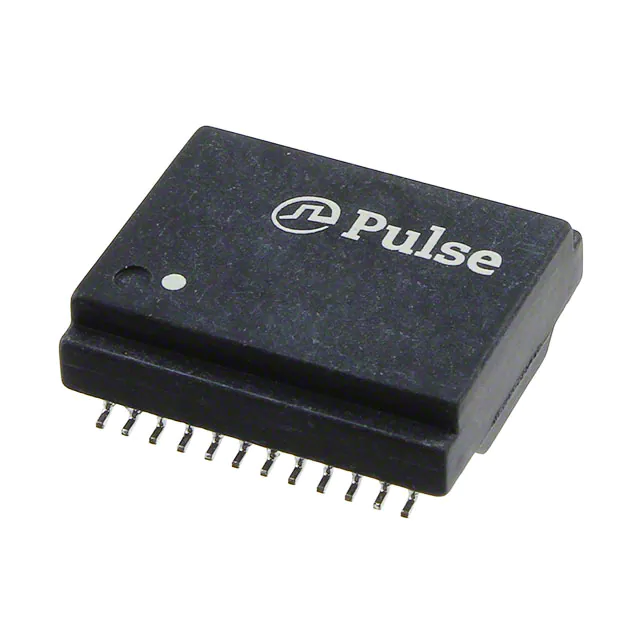

H6062FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	900	7.38	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.689 L x 0.600 W (17.50mm x 15.24mm)	0.225 (5.72mm)

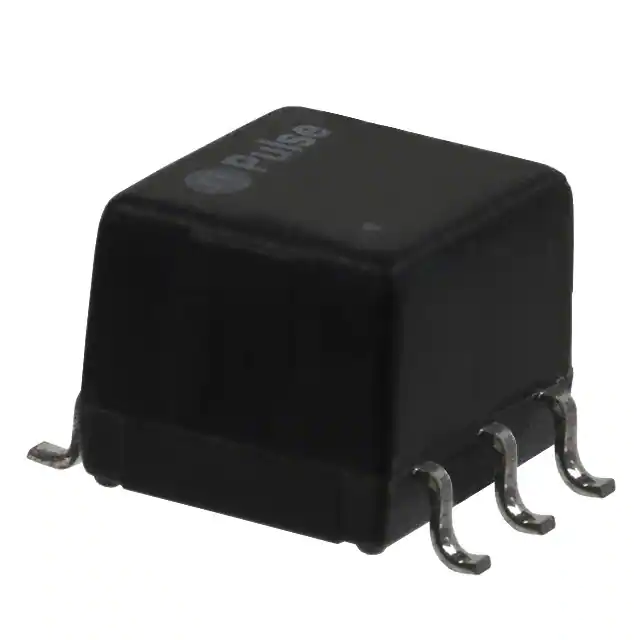

T3001NL TRANSFORMER TELECOM SINGLE T3/E4 Pulse Electronics Network	547	7.44	RFQ	Datasheet	Tube	-	Active	T3/E3 (Single)	100µH	-	1:1	Surface Mount	0.300 L x 0.275 W (7.62mm x 7.00mm)	0.250 (6.35mm)
IT248 XFRMR PULSE 2:1 SGL 17MH .25A Schaffner EMC Inc.	152	7.50	RFQ	Datasheet	Tray	IT	Active	Data/Voice Coupling	17mH	-	2:1	Through Hole	0.693 L x 0.657 W (17.60mm x 16.70mm)	0.445 (11.30mm)

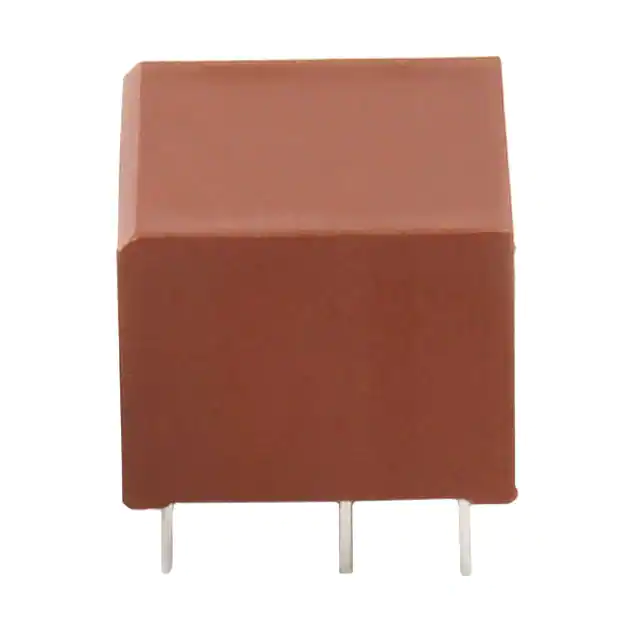

T60403D4721X004 GATE DRIVE TRANSFORMER PTH 1:1:1 VACUUMSCHMELZE	778	7.52	RFQ	Datasheet	Box	-	Active	Gate Drive	850µH	250VµS	1:1:1	Through Hole	0.701 L x 0.669 W (17.80mm x 17.00mm)	0.531 (13.50mm)
HX1294NL MODULE XFRMR LAN 10/100 SMD Pulse Electronics Network	2,760	7.83	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	325µH	-	1CT:1CT	Surface Mount	0.538 L x 0.599 W (13.67mm x 15.21mm)	0.241 (6.12mm)
PE-65848NL XFRMR 1CS:1CS FOR ECHELON/NEURON Pulse Electronics Network	3,890	8.04	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	3.5mH	-	1CS:1CS	Surface Mount	0.475 L x 0.475 W (12.06mm x 12.06mm)	0.340 (8.64mm)

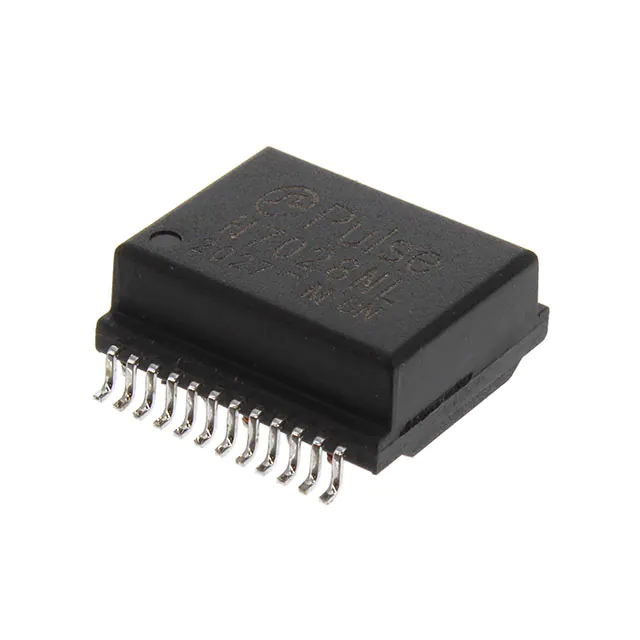

H7028NL 10GBASE-T DISCRETE 4CH BCM PHY Pulse Electronics Network	619	8.65	RFQ	Datasheet	Bulk	-	Active	LAN 10G Base-T	120µH	-	1:1	-	0.537 L x 0.480 W (13.64mm x 12.19mm)	0.250 (6.35mm)

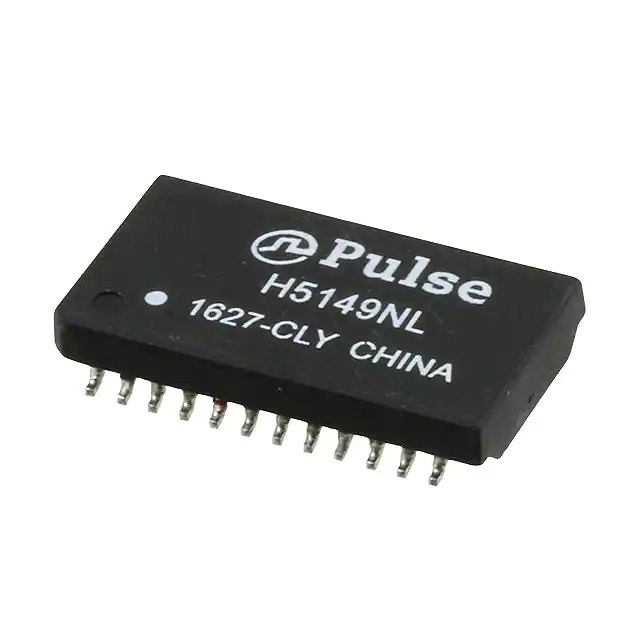

H5149NL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	1,270	8.73	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.701 L x 0.390 W (17.80mm x 9.91mm)	0.126 (3.20mm)

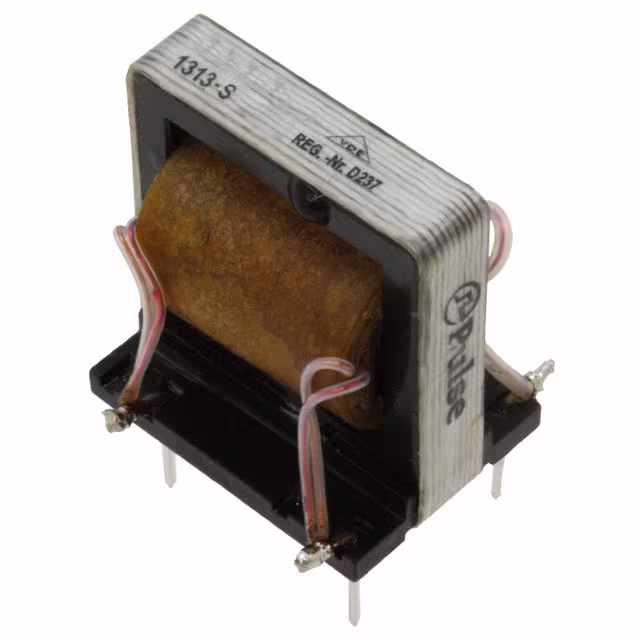

PE-63385NL PULSE XFMR 1:1 1.5MH Pulse Electronics Power	2,791	8.77	RFQ	Datasheet	Tray	-	Active	-	1.5mH	200VµS	1:1	Through Hole	1.090 L x 0.750 W (27.69mm x 19.05mm)	1.200 (30.48mm)

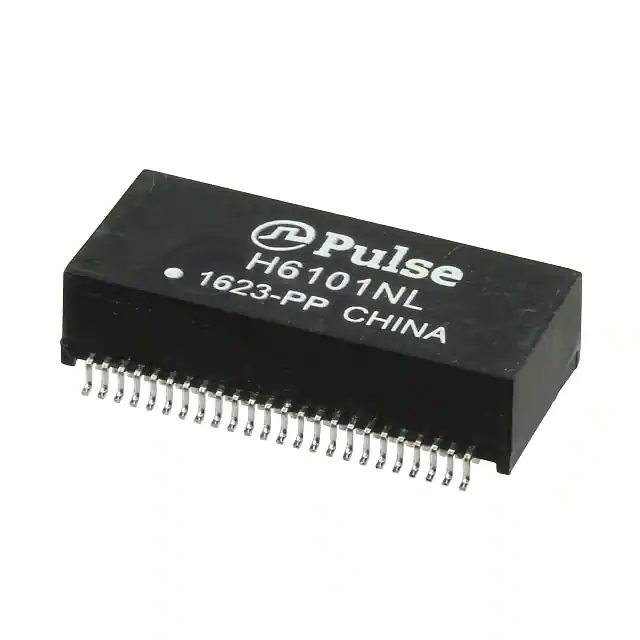

H6101NLT PULSE XFMR 1CT:1CT TX/RX Pulse Electronics Network	1,585	14.05	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	120µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.285 (7.24mm)

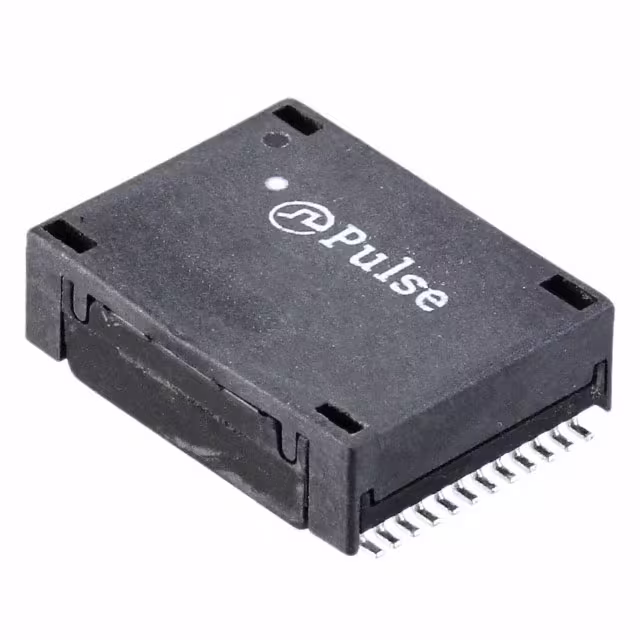

HX1294FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	1,016	9.02	RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	325µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.538 L x 0.726 W (13.67mm x 18.44mm)	0.231 (5.87mm)

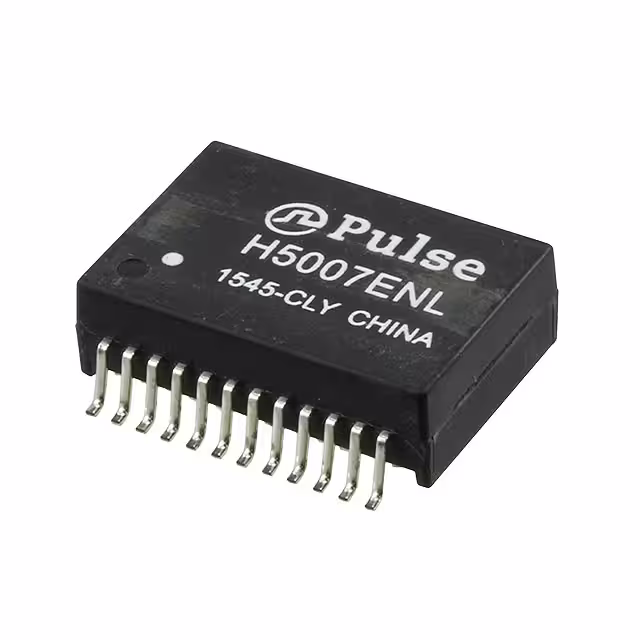

H5007ENL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	2,044	9.05	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.689 L x 0.480 W (17.50mm x 12.20mm)	0.225 (5.72mm)

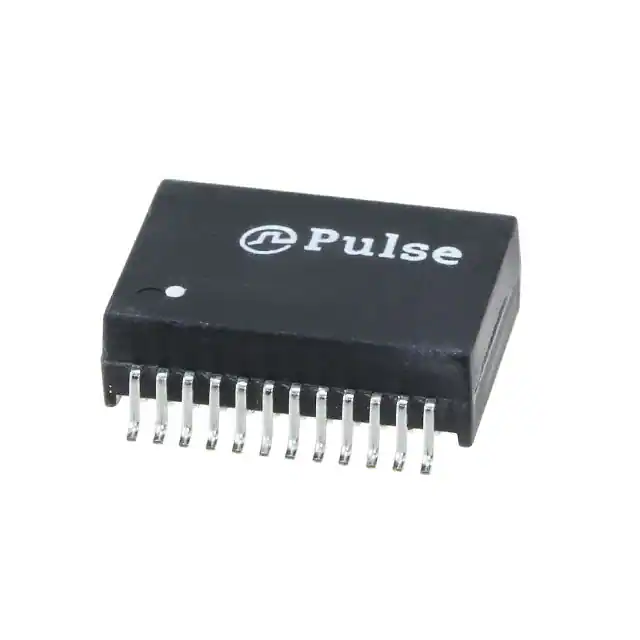

HX6062NL PULSE XFMR 1CT:1CT TX/RX Pulse Electronics Network	324	9.33	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	325µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.689 L x 0.480 W (17.50mm x 12.20mm)	0.225 (5.72mm)
100B-1003XT XFMR MODULE 100BT SMG COM NPB iNRCORE, LLC	353	15.80	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.500 L x 0.265 W (12.70mm x 6.73mm)	0.245 (6.22mm)

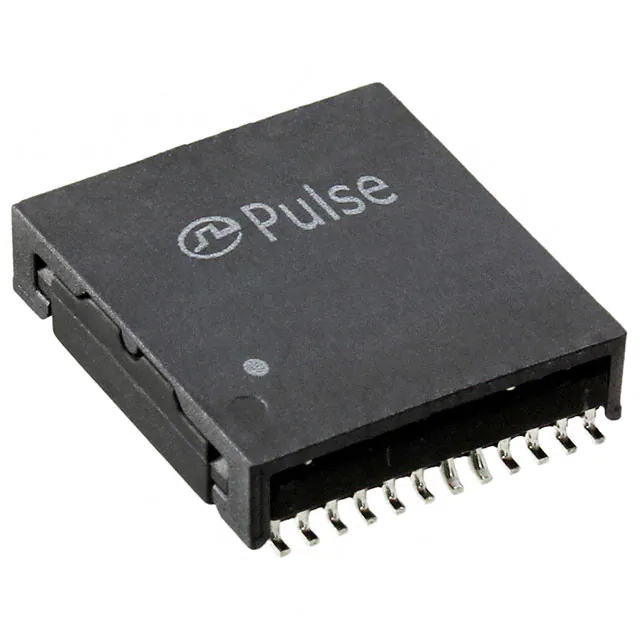

H1270FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	2,604	10.10	RFQ	Datasheet	Tube	-	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.515 L x 0.574 W (13.08mm x 14.58mm)	0.145 (3.68mm)

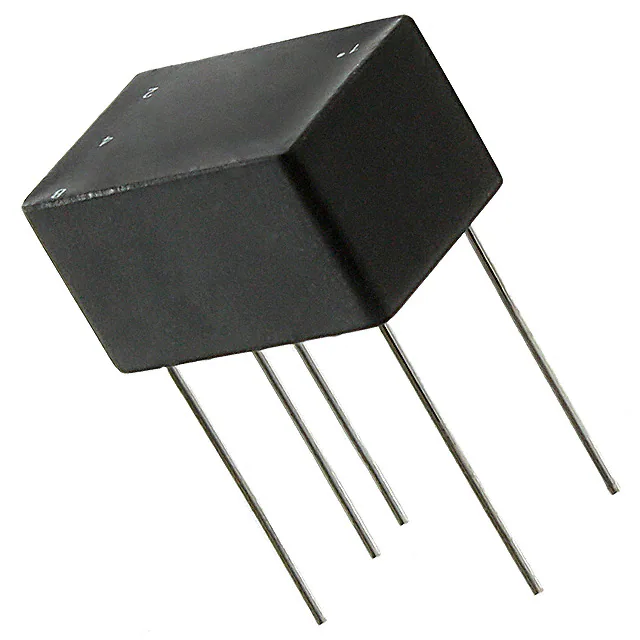

PE-5156XNL TRANSFORMER 1:1 700VRMS Pulse Electronics Network	1,169	10.11	RFQ	Datasheet	Tube	-	Active	-	1.2mH	77VµS	1:1	Through Hole	0.650 L x 0.443 W (16.51mm x 11.25mm)	0.400 (10.16mm)
PE-63388NL XFRMR MOSFET GATE DRIV 1:1.5:1.5 Pulse Electronics Power	2,297	10.54	RFQ	Datasheet	Tray	-	Active	Gate Drive	1.5mH	-	1:1.5:1.5	Through Hole	1.090 L x 0.750 W (27.69mm x 19.05mm)	1.200 (30.48mm)

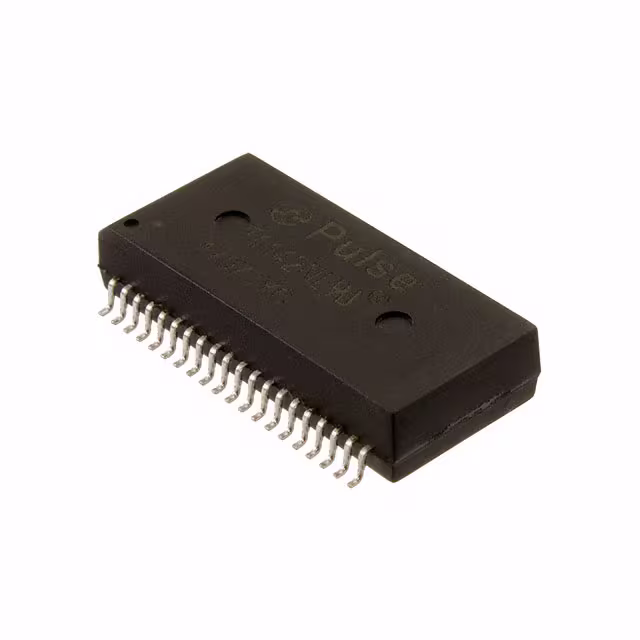

T1142NL XFRMR T1/E1/CEPT/ISDN-PRI 1:2.4 Pulse Electronics Network	1,555	10.64	RFQ	Datasheet	Tube	-	Active	T1/E1 (Quad)	1mH, 1mH	-	1:2.4 Transmitter, 1:1 Receiver	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)

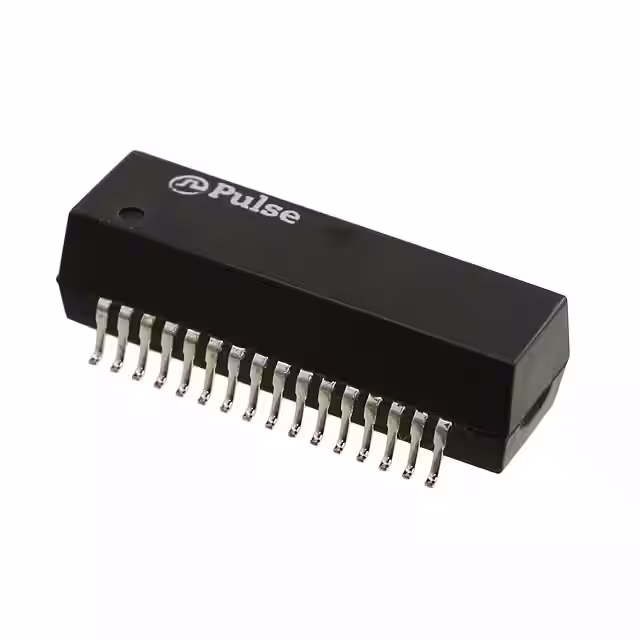

TX1471NL XFRMR OCTAL 1:1 1.2MH SMD Pulse Electronics Network	741	10.64	RFQ	Datasheet	Tube	-	Active	T1/E1 (Octal)	1.2mH	-	1:1	Surface Mount	1.000 L x 0.310 W (25.40mm x 7.87mm)	0.295 (7.49mm)

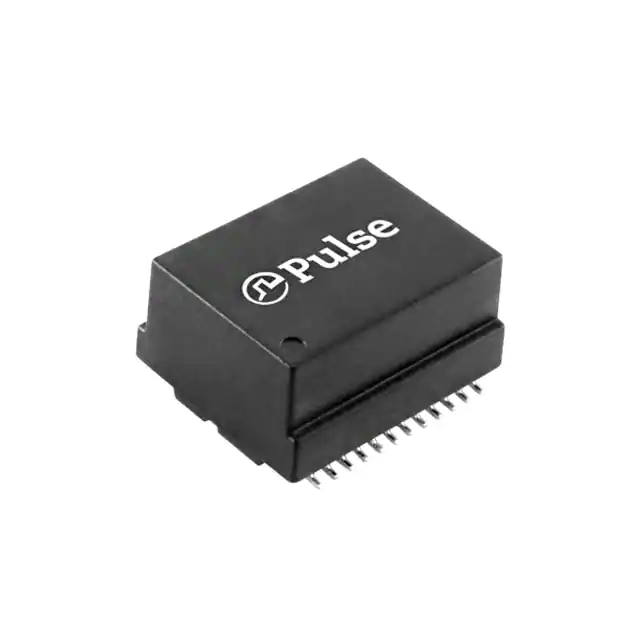

H5187NL XFRMR MODULE 1000B-T 1 CH SMT Pulse Electronics Network	427	11.14	RFQ	Datasheet	Tube	-	Active	General Purpose	350µH	-	1:1	Surface Mount	-	0.385 (9.77mm)
