Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

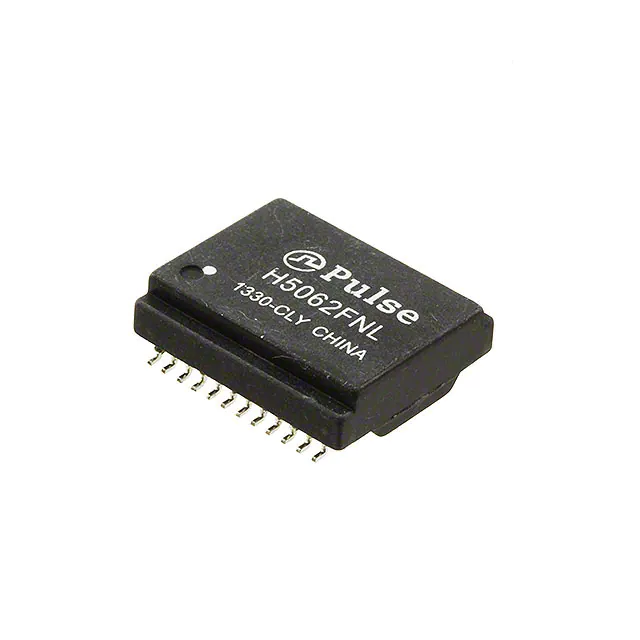

H5062FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	559	7.89	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.689 L x 0.600 W (17.50mm x 15.24mm)	0.225 (5.72mm)

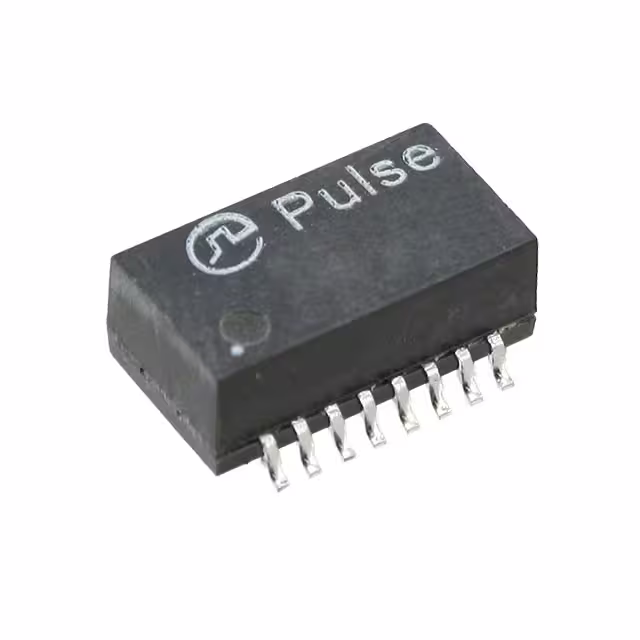

PE-65745NL XFRMR LAN ISOL 1CT:1.414CT 10B-T Pulse Electronics Network	1,161	4.90	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	140µH	-	1CT:1.414CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.285 W (12.70mm x 7.24mm)	0.210 (5.33mm)

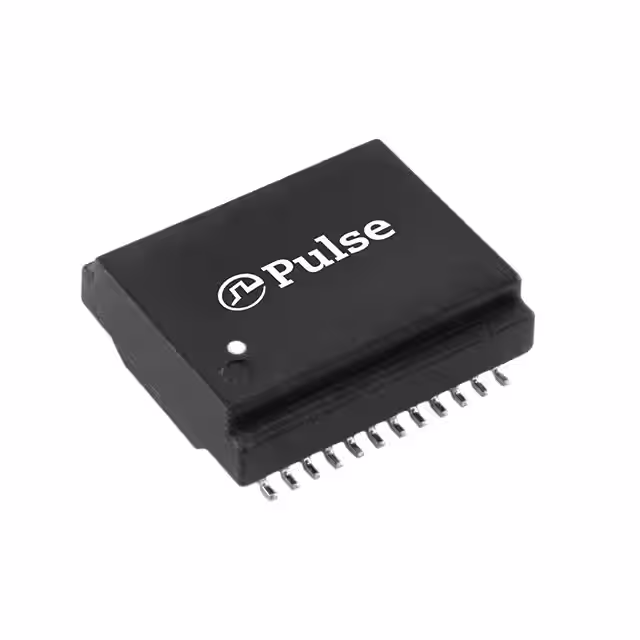

HX5062FNLT PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics Network	892	8.29	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.689 L x 0.600 W (17.50mm x 15.24mm)	0.225 (5.72mm)

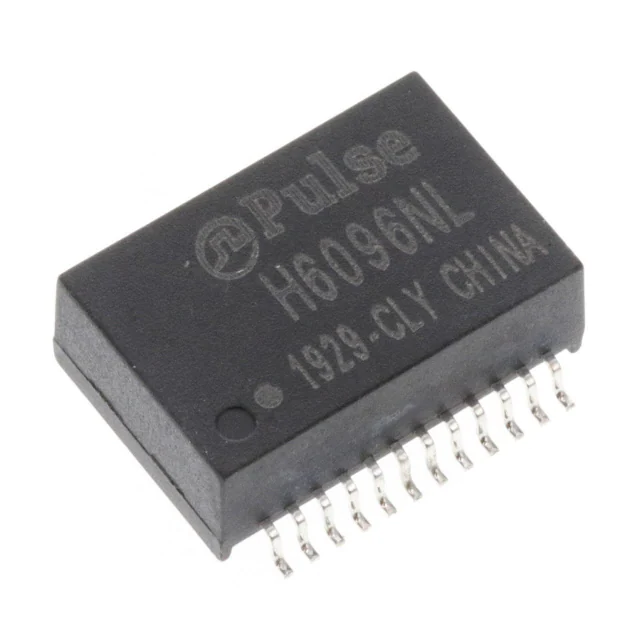

H6096NLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	2,706	8.29	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.715 L x 0.480 W (18.16mm x 12.20mm)	0.260 (6.60mm)

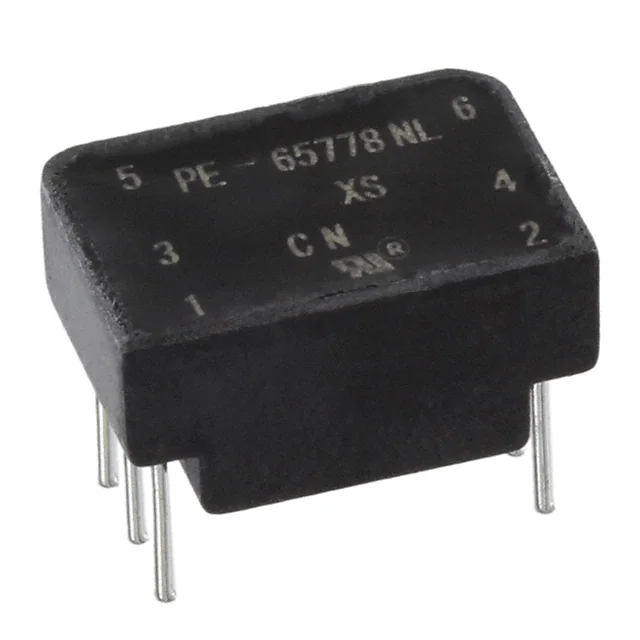

PE-65778NL XFRMR 1CT:1CT 1.20MH T/H Pulse Electronics Network	1,321	5.26	RFQ	Datasheet	Tube	-	Active	T1/E1 (Single)	1.2mH	-	1CT:1CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)

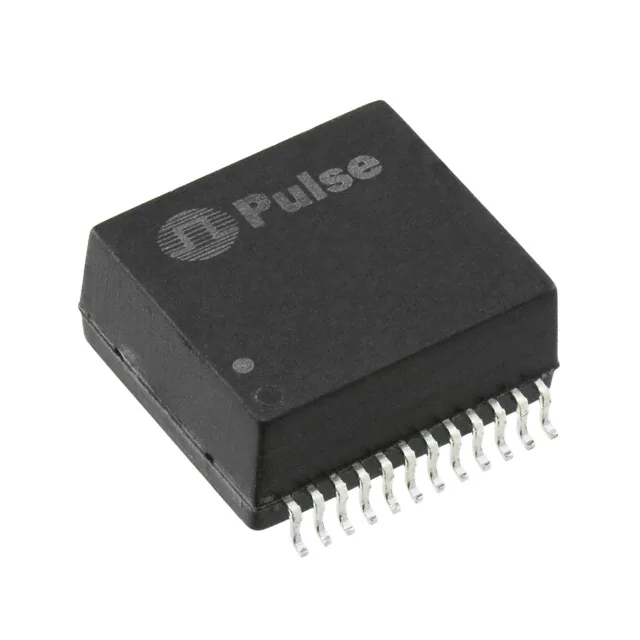

H2006ANLT XFRMR MAGNT MOD 2PORT POE 10/100 Pulse Electronics Network	2,266	8.81	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.537 L x 0.470 W (13.64mm x 11.94mm)	0.254 (6.45mm)
H1260NL MODULE XFRMR FST ETHR LAN 16SOIC Pulse Electronics Network	122	5.38	RFQ	Datasheet	Tube	-	Active	LAN	-	-	1CT:1CT	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.240 (6.10mm)
HX1260NL XFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics Network	3,317	5.49	RFQ	Datasheet	Tube	Star Magnetics™	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)

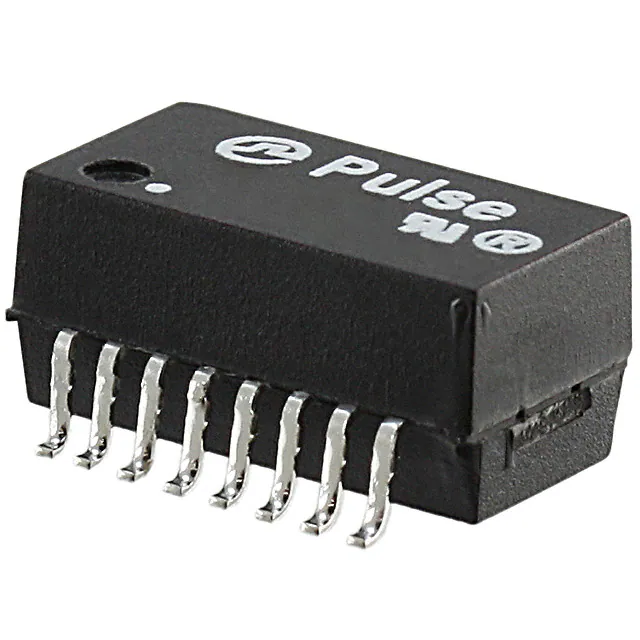

T1144NL TRANSFORMER TELECOM DUAL T1/E1 Pulse Electronics Network	106	5.52	RFQ	Datasheet	Tube	-	Active	T1/E1 (Dual)	1mH, 1mH	-	1CT:1CT, 1CT:2.4CT	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)

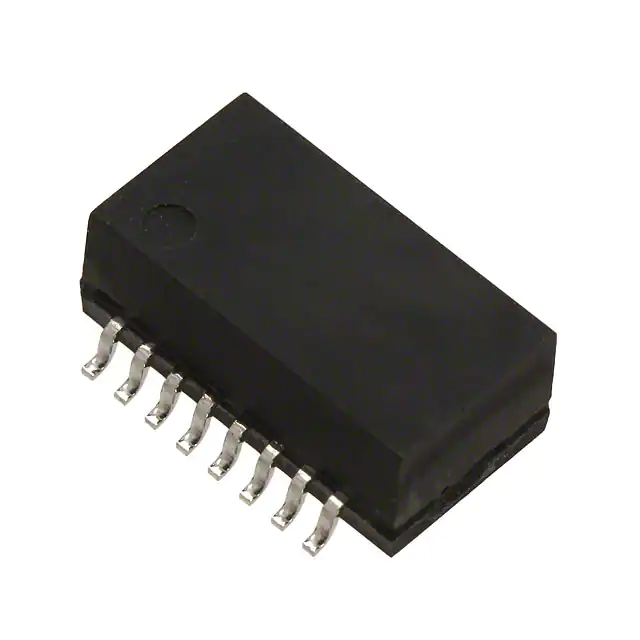

PE-65728NL TRANSFMR AUI ETHERNET LAN 16SOIC Pulse Electronics Network	998	5.52	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	0.500 L x 0.285 W (12.70mm x 7.24mm)	0.210 (5.33mm)
PE-68678NL TRANSFORMER TELECOM DUAL T1/E2 Pulse Electronics Network	765	5.52	RFQ	Datasheet	Tube	-	Active	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1CT, 1CT:2CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
T1094NL TRANSFORMER TELECOM DUAL T1/E2 Pulse Electronics Network	728	5.52	RFQ	Datasheet	Tube	-	Active	T1/E1 (Dual)	1.2mH, 1.2mH	-	1CT:1CT, 1CT:2CT	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.245 (6.22mm)
HX1148NLT XFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics Network	982	9.13	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1 Transmitter, 1CT:1CT Receiver	Surface Mount	1.000 L x 0.390 W (25.40mm x 9.91mm)	0.245 (6.22mm)

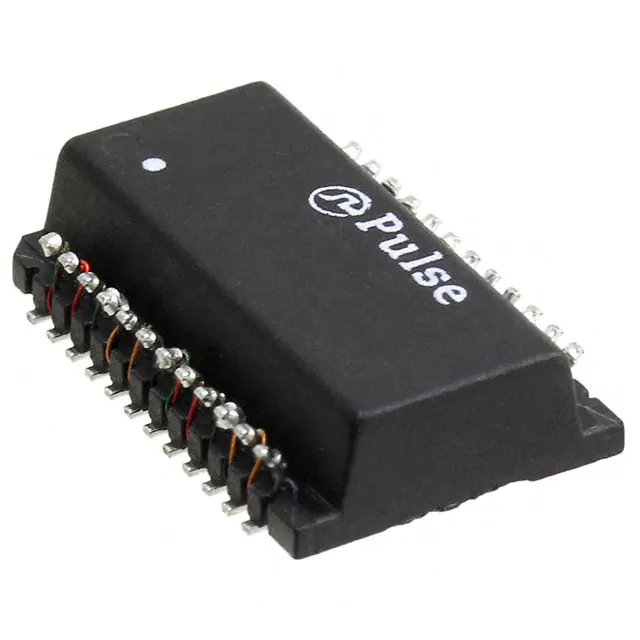

H5084FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	3,708	5.65	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.600 L x 0.385 W (15.24mm x 9.78mm)	0.163 (4.14mm)

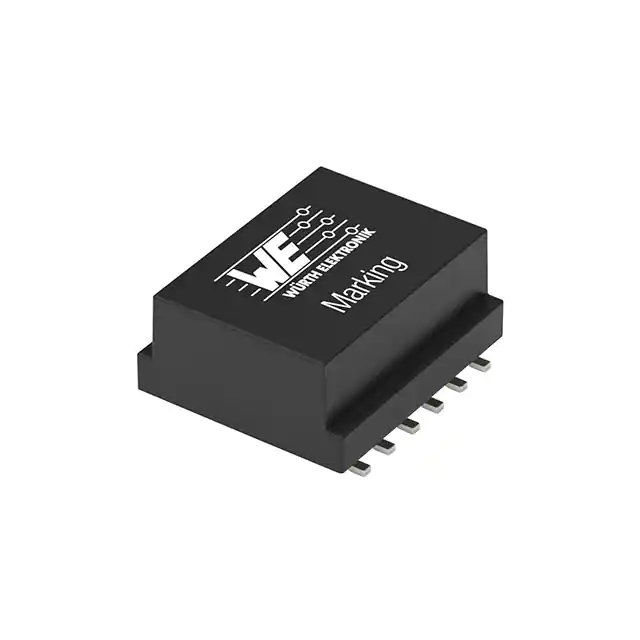

7490140122B XFMR LAN 10/100 BASE-T 1:1 350UH Würth Elektronik	1,026	9.17	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.673 L x 0.581 W (17.10mm x 14.75mm)	0.331 (8.40mm)
HX1198NL MODULE XFRMR SGL ETHR LAN 16SOIC Pulse Electronics Network	832	5.74	RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)
S22100 TRANSFORMER FOR MAX 250/251 2MH Newava Technology Inc.	1,114	5.81	RFQ	Datasheet	Tube	-	Active	-	2mH	-	1:1:1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
S22083 TRANSFORMER ISOLATION DIG/AUDIO Newava Technology Inc.	670	5.81	RFQ	Datasheet	Bulk	-	Active	-	225µH	-	1:1	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)

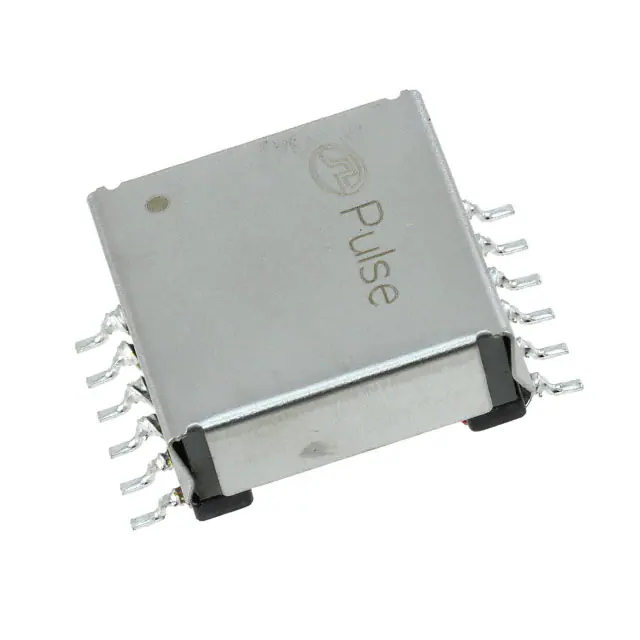

PA1836NL PULSE XFMR 4.5UH Pulse Electronics Power	2,399	5.81	RFQ	Datasheet	Tray	-	Active	-	4.5µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
HX6098FNLT PULSE XFMR 1 CT:1CT TX/RX 120UH Pulse Electronics Network	2,253	9.70	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	120µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.715 L x 0.595 W (18.16mm x 15.11mm)	0.260 (6.60mm)
