Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
YLTH48004-1PT PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	3,352	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	200µH	-	1CT:1CT	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.295 (7.50mm)
YLTH48001T PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	3,549	0.00	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 2.5/5G Base-T	200µH	-	1CT:1CT	Surface Mount	1.094 L x 0.480 W (27.80mm x 12.20mm)	0.295 (7.50mm)
YLTH24707T PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	3,686	0.00	RFQ	Datasheet	Bulk	-	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	200µH	-	1CT:1CT	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)
YLTH24706T PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	3,786	0.00	RFQ	Datasheet	Bulk	-	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	200µH	-	1CT:1CT	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)
YLTH24706-1PT PULSE TRANSFORMER LAN 2.5G/5G Trigon Components	3,871	0.00	RFQ	Datasheet	Bulk	-	Active	LAN 2.5/5G Base-T, Power over Ethernet (PoE)	200µH	-	1CT:1CT	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)
R1003NLT XFRMR ETHERNET MOD IND 10/100B-T iNRCORE, LLC	3,996	2.13	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	-	Surface Mount	0.510 L x 0.280 W (12.95mm x 7.11mm)	0.245 (6.22mm)
IF-11-0141 II1 PULSE TRANSFORMER THT SPEZ SCHURTER Inc.	2,369	2.21	RFQ		Bulk	IF	Active	-	-	-	-	-	-	-
R1022NLT XFRMR ETHERNET MOD IND 10/100B-T iNRCORE, LLC	3,858	2.33	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	-	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.235 (5.97mm)
ITNA-0235-D103 ITNA PULSE TRANSFORMER THT 0.1A SCHURTER Inc.	2,181	2.39	RFQ	Datasheet	Bulk	IT	Active	SCR and Triac Trigger (Encapsulated)	2.8mH	200VµS	1:1	Through Hole	0.598 L x 0.512 W (15.20mm x 13.00mm)	0.417 (10.60mm)

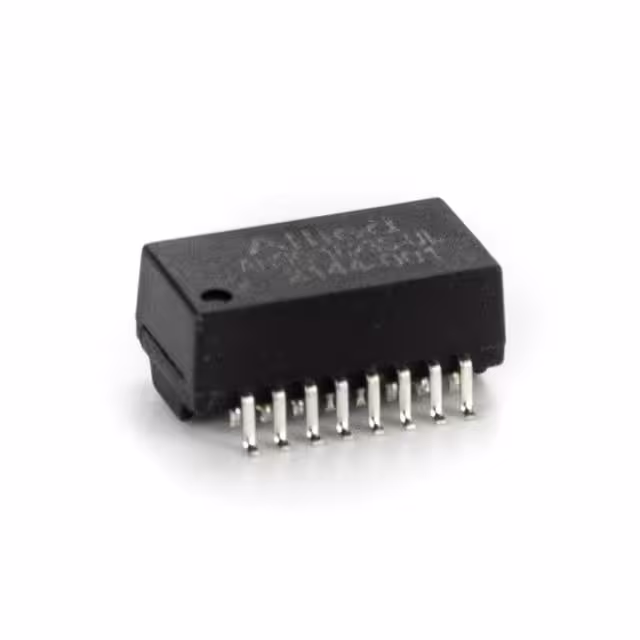

AHSC-1623S-UL 10/100 Base-T 1-Port LAN Filter Allied Components International	2,986	2.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1:1CT	Surface Mount	0.516 L x 0.281 W (13.10mm x 7.15mm)	0.244 (6.20mm)

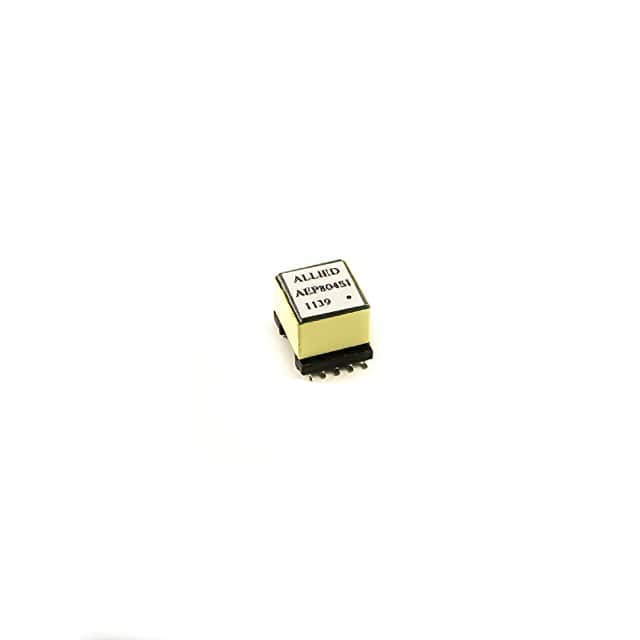

AEP804SI 430uH +/-10% ADSL Transformer Allied Components International	2,953	2.50	RFQ	Datasheet	Tape & Reel (TR)	AEP804SI	Active	ADSL	430µH	-	1:1	Surface Mount	-	0.500 (12.70mm)

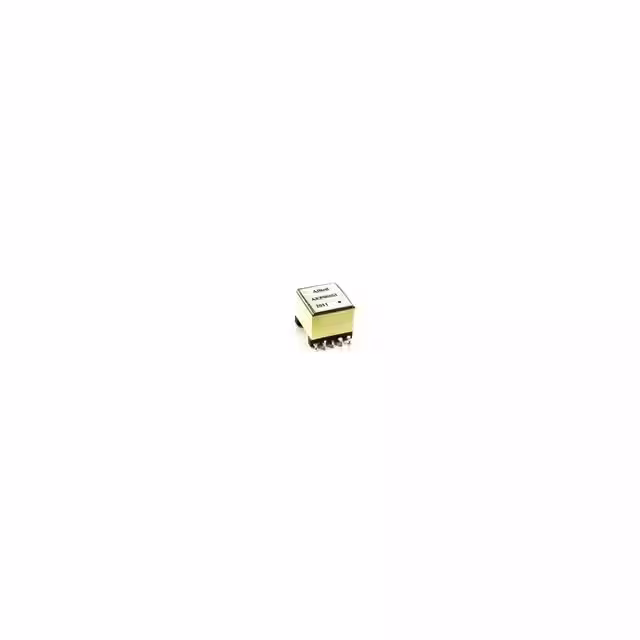

AEP006SI 409.5UH 10% ADSL LINE TRANSF. Allied Components International	2,367	2.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	ADSL	409.5µH	-	2:1	Surface Mount	-	0.500 (12.70mm)

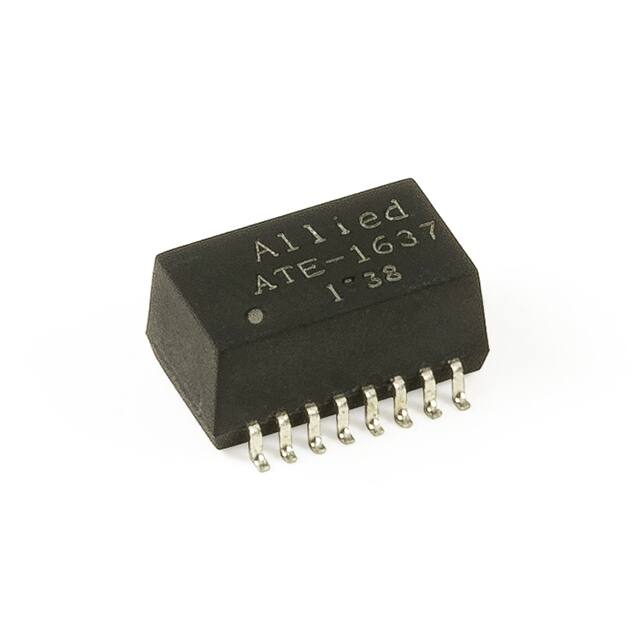

ATE-1637 T1/CEPT/ISDN PRIMARY FILTER MODU Allied Components International	2,257	2.50	RFQ	Datasheet	Tube	-	Active	T1/E1 (Single)	1.2mH	-	1CT:2.42CT	Surface Mount	0.500 L x 0.281 W (12.70mm x 7.15mm)	0.244 (6.20mm)
AEP035SI 109UH 10% VSDL EP7 TRANSFORMER Allied Components International	3,929	2.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	VDSL	109µH	-	4:1	Surface Mount	-	0.425 (10.80mm)

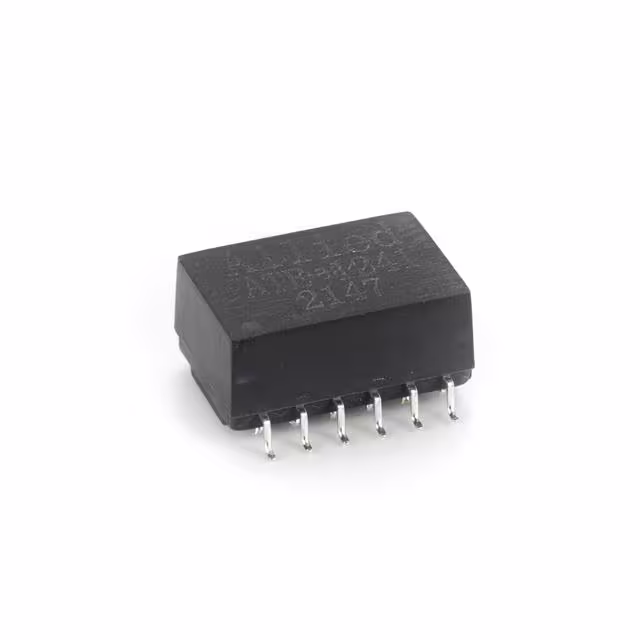

ATE-1241I T1/CEPT/ISDN 12-pin Prim.Filter Allied Components International	2,874	2.50	RFQ	Datasheet	Tube	-	Active	T1/E1 (Single)	1.2mH	-	2:1CT, 1:2CT	Surface Mount	0.665 L x 0.449 W (16.90mm x 11.40mm)	0.333 (8.45mm)
AEP-108SI 2.4UH 10% ADSL EP5 TRANSFORMER Allied Components International	2,746	2.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	ADSL	2.4µH	-	1.7:1 Transmitter, 1.7:1 Receiver	Surface Mount	-	0.220 (5.59mm)

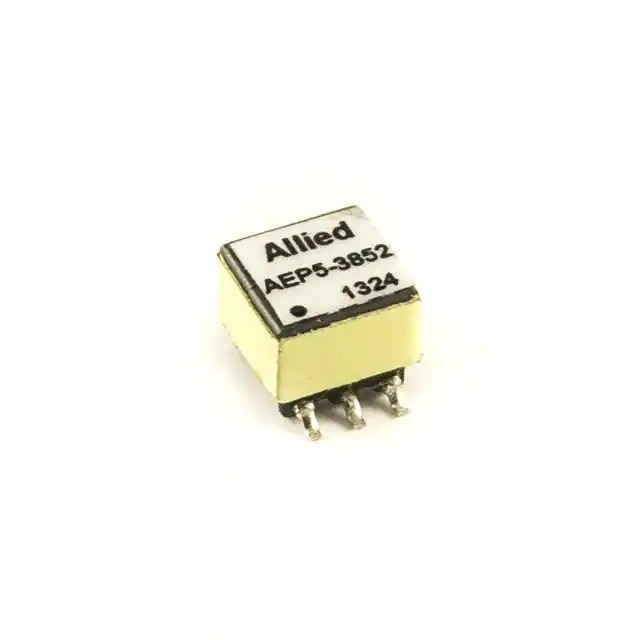

AEP5-3852 296UH MIN EP5 6-PIN SMD TRANSF. Allied Components International	3,223	2.50	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Gate Drive	296µH	-	1:1	Surface Mount	-	0.213 (5.40mm)
ITNA-0239-D202 ITNA PULSE TRANSFORMER THT 0.17A SCHURTER Inc.	3,333	2.60	RFQ	Datasheet	Bulk	IT	Active	SCR and Triac Trigger (Encapsulated)	2.2mH	400VµS	1:1	Through Hole	0.878 L x 0.894 W (22.30mm x 22.70mm)	0.535 (13.60mm)
ISNA-0235-D103 ISNA PULSE TRANSFORMER SMD 0.1A SCHURTER Inc.	2,119	2.74	RFQ	Datasheet	Tape & Reel (TR)	IS	Active	SCR and Triac Trigger (Encapsulated)	2.8mH	200VµS	1:1	Surface Mount	0.512 L x 0.748 W (13.00mm x 19.00mm)	0.433 (11.00mm)

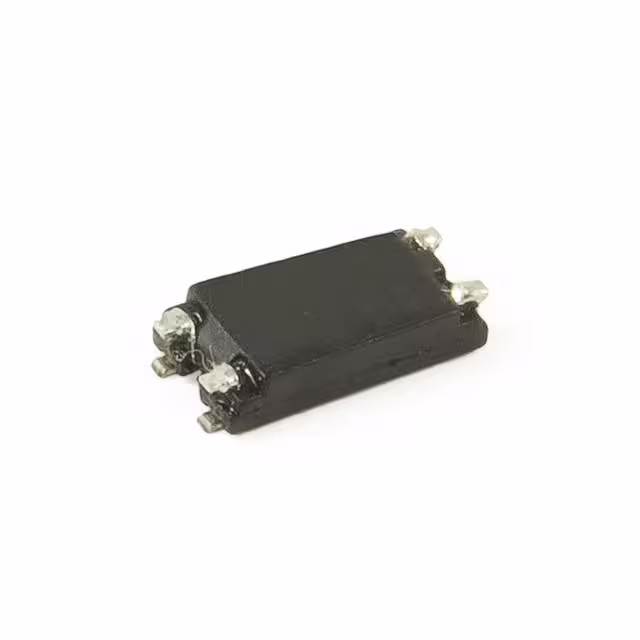

SMT-3745 30UH MIN 4-PIN SMD TOROIDAL Allied Components International	2,847	2.75	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	30µH	-	1.67:1	Surface Mount	0.327 L x 0.173 W (8.30mm x 4.40mm)	0.077 (1.95mm)
