Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
ALANS10002-6N41JT DUAL 10/100/1000BASE-T LAN XFMR Abracon LLC	2,143	10.43	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.285 (7.24mm)
ALANS10002-7P11JT DUAL 10/100/1000BASE-T LAN XFMR Abracon LLC	2,658	10.43	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.100 L x 0.297 W (27.94mm x 7.54mm)	0.341 (8.66mm)

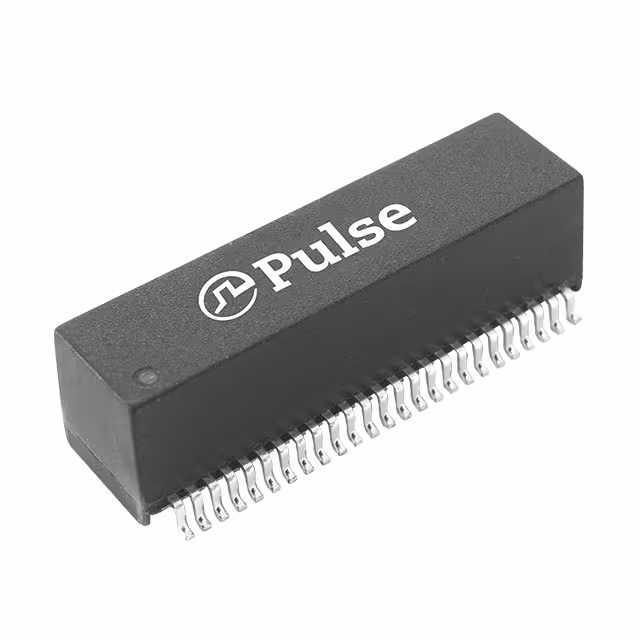

HU4103NL MODULE MAG DUAL POE 2.5GB SMT Pulse Electronics Network	2,864	10.20	RFQ	Datasheet	Tube	-	Active	-	-	-	-	Surface Mount	1.100 L x 0.430 W (27.94mm x 10.92mm)	0.328 (8.33mm)
HX6080NLT PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics Network	2,344	10.34	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.285 (7.24mm)
HX5G2003NLT MDL DUAL 5GD 1:1 SMT TR Pulse Electronics Network	3,128	10.34	RFQ		Tape & Reel (TR)	-	Active	General Purpose	120µH	-	1:1	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.285 (7.25mm)
T1176NLT MODULE INTERFACE 1CT:2.4CT SMD Pulse Electronics Network	2,610	10.37	RFQ	Datasheet	Tape & Reel (TR)	-	Active	T1/E1 (Dual)	1.2mH	-	1CT:2.4CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.227 (5.76mm)
GU4629RM LF MDL 1G DIP 4 PORT POE 60W Pulse Electronics Network	3,666	10.38	RFQ		Tube	-	Active	LAN 1000 Base-T	350µH	-	1:1CT Transmitter, 1:1CT Receiver	Through Hole	1.319 L x 1.142 W (33.50mm x 29.00mm)	0.661 (16.80mm)
ALANS10002-6N41KT DUAL 10/100/1000BASE-T LAN XFMR Abracon LLC	2,500	10.74	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.285 (7.24mm)
ALANS10002-6N11KT DUAL 10/100/1000BASE-T LAN XFMR Abracon LLC	3,500	10.74	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.285 (7.24mm)
ALANS10002-7P11KT DUAL 10/100/1000BASE-T LAN XFMR Abracon LLC	2,000	10.74	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.100 L x 0.297 W (27.94mm x 7.54mm)	0.341 (8.66mm)
ALANS10002-7PA1KT DUAL 10/100/1000BASE-T LAN XFMR Abracon LLC	3,503	10.74	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.100 L x 0.297 W (27.94mm x 7.54mm)	0.341 (8.66mm)
ALANS10002-6NA1KT DUAL 10/100/1000BASE-T LAN XFMR Abracon LLC	3,513	10.74	RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.285 (7.24mm)
MTBAUGDT125050 TRANSFORMER, MICRO GATE DRIVE, 1 Vishay Dale	3,055	10.50	RFQ	Datasheet	Tape & Reel (TR)	MTBAUGDT	Active	Gate Drive	330µH	63VµS	1:0.5:0.5	Surface Mount	-	0.220 (5.59mm)
MTBAUGDT125075 TRANSFORMER, MICRO GATE DRIVE, 1 Vishay Dale	2,736	10.50	RFQ	Datasheet	Tape & Reel (TR)	MTBAUGDT	Active	Gate Drive	360µH	66VµS	1:0.75:0.75	Surface Mount	-	0.220 (5.59mm)
MTBAUGDT125050-LF TRANSFORMER, MICRO GATE DRIVE, 1 Vishay Dale	2,516	10.50	RFQ	Datasheet	Tape & Reel (TR)	MTBAUGDT	Active	Gate Drive	330µH	63VµS	1:0.5:0.5	Surface Mount	-	0.220 (5.59mm)
MTBAUGDT125075-LF TRANSFORMER, MICRO GATE DRIVE, 1 Vishay Dale	2,370	10.50	RFQ	Datasheet	Tape & Reel (TR)	MTBAUGDT	Active	Gate Drive	360µH	66VµS	1:0.75:0.75	Surface Mount	-	0.220 (5.59mm)
HX7137NLT MDL SIN 10GD 1:1 SM TR Pulse Electronics Network	2,303	10.64	RFQ		Tape & Reel (TR)	-	Active	LAN 10 Base-T	120µH	-	1:1	Surface Mount	0.698 L x 0.480 W (17.73mm x 12.19mm)	0.285 (7.24mm)
HX7028NLT MDL SIN 10G 1:1 SM TR Pulse Electronics Network	2,405	10.64	RFQ		Tape & Reel (TR)	-	Active	LAN 10G Base-T	-	-	-	Surface Mount	0.537 L x 0.480 W (13.64mm x 12.19mm)	0.250 (6.35mm)
HX7019NLT MDL SIN 10G 1:1 GEN2 SM TU Pulse Electronics Network	3,115	10.64	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
HX6621NLT MDL SIN 1GPP 1:1 SMT TR Pulse Electronics Network	2,361	10.64	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-
