Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

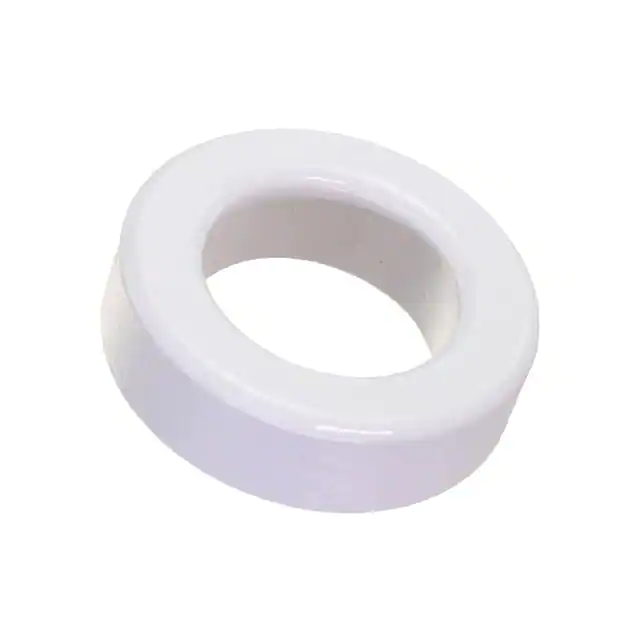

TX42/26/13-3E10-M FERRITE CORES ROUND Ferroxcube	2,795	4.92	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 42 x 26 x 13	-	1.697 (43.15mm)	-	±30%	Ungapped	10000	-	1.076	103	95.8	-	9860	Epoxy	0.531 (13.50mm)

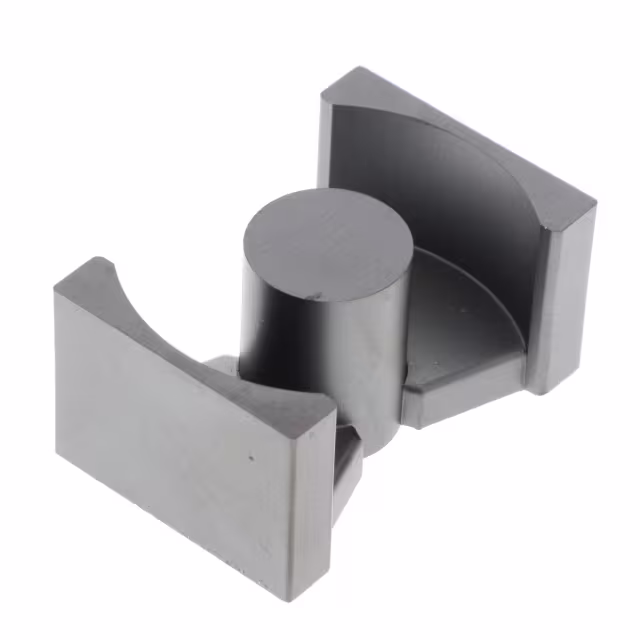

6698404121 98 PQ CORE SET Fair-Rite Products Corp.	3,144	5.35	RFQ	Datasheet	Bulk	-	Active	PQ	-	-	-	-	±25%	Ungapped	-	2400	52.3	103.6	198	170	20500	Uncoated	-
B66367G2000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	2,124	5.81	RFQ	Datasheet	Box	ETD49/25/16	Active	ETD	ETD 49 x 25 x 16	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.980 (24.90mm)
PLT58/38/4-3F36 FERRITE CORE Ferroxcube	2,651	6.33	RFQ	Datasheet	Bulk	-	Active	PLT	PLT 58 x 38 x 4	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)

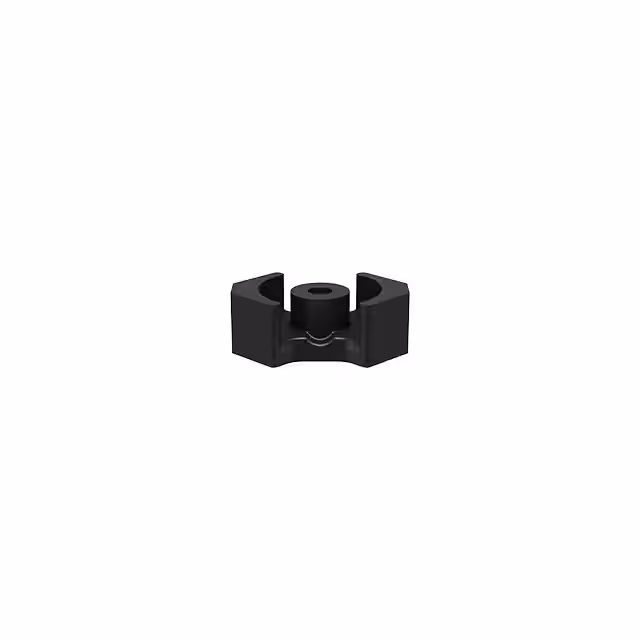

B65811F0400A048 FERRITE CORE RM 400NH N48 2PCS EPCOS - TDK Electronics	461	7.05	RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N48	-	400 nH	±3%	Gapped	215	-	0.68	35.1	52	-	1825	Uncoated	0.324 (8.25mm)
B65877A0000R095 FERRITE CORE PQ 5.7UH N95 2PCS EPCOS - TDK Electronics	2,049	7.63	RFQ	Datasheet	Box	PQ26/25	Active	PQ	PQ 26 x 25	N95	-	5.7 µH	-20%, +30%	Ungapped	1980	2000	0.44	53.6	122	108.7	6530	Uncoated	0.487 (12.38mm)

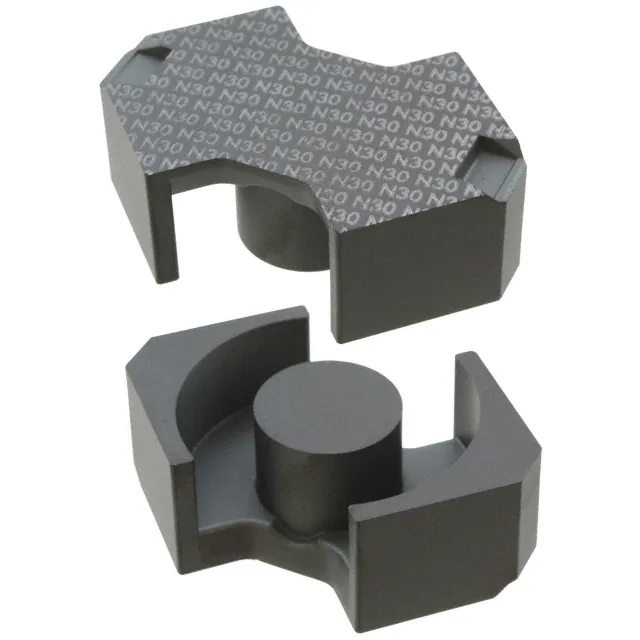

B65815E0000R030 FERRITE CORE RM 8.7UH N30 2PCS EPCOS - TDK Electronics	3,768	8.52	RFQ	Datasheet	Box	RM12	Active	RM	RM 12	N30	-	8.7 µH	-20%, +30%	Ungapped	2700	4300	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)
TX40/24/16-3E12 FERRITE CORES ROUND Ferroxcube	2,558	8.69	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 40 x 24 x 16	-	1.640 (41.65mm)	-	±30%	Ungapped	12000	-	0.769	96.3	125	-	12100	Epoxy	0.673 (17.10mm)

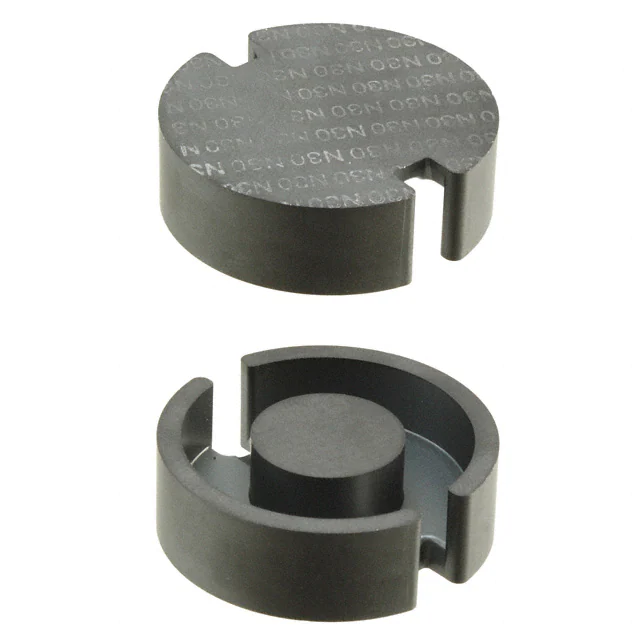

B65611W0000R030 FERRITE CORE P 15.2UH N30 2PCS EPCOS - TDK Electronics	3,230	9.29	RFQ	Datasheet	Box	P36/22	Active	P (Pot Core)	P 36 x 22	N30	1.417 (36.00mm)	15.2 µH	-20%, +30%	Ungapped	3040	4300	0.25	53.5	213	173	11400	Uncoated	0.433 (11.00mm)
TX51/32/19-3E10-M FERRITE CORES ROUND Ferroxcube	3,933	9.39	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 51 x 32 x 19	-	2.069 (52.55mm)	-	±30%	Ungapped	9500	-	0.73	125	172	-	21500	Epoxy	0.783 (19.90mm)
PC47EI60-Z EI CORE SMPS TRANSFORMER 1 SET TDK Corporation	3,371	9.81	RFQ	Datasheet	Tray	E	Active	E	-	PC47	-	5.67 µH	±25%	Ungapped	-	2500	0.441	109	247	-	26900	Uncoated	-
TX55/32/18-3E10-M FERRITE CORES ROUND Ferroxcube	3,766	10.40	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 55 x 32 x 18	-	2.264 (57.50mm)	-	±30%	Ungapped	9500	-	0.651	132	202	-	26580	Epoxy	0.756 (19.20mm)

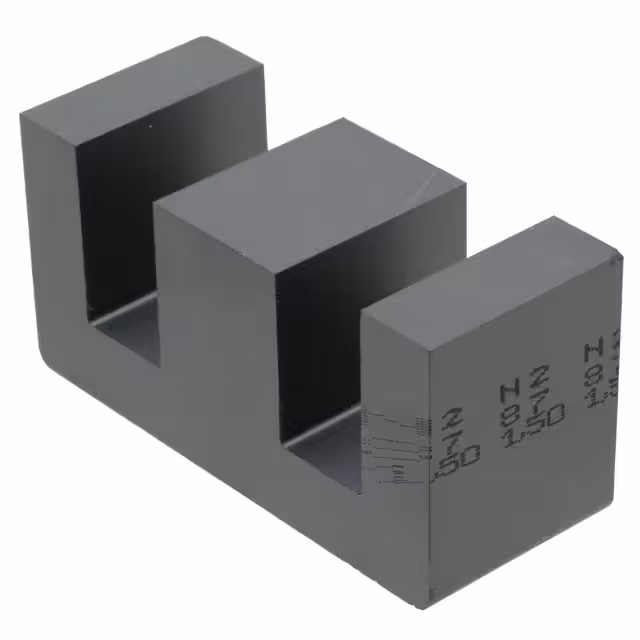

B66387G1500X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3,567	11.15	RFQ	Datasheet	Box	E65/32/27	Active	E	E 65 x 32 x 27	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
TX51/32/19-3C90 FERRITE CORES ROUND Ferroxcube	3,442	11.85	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 51 x 32 x 19	3C90	2.069 (52.55mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.783 (19.90mm)

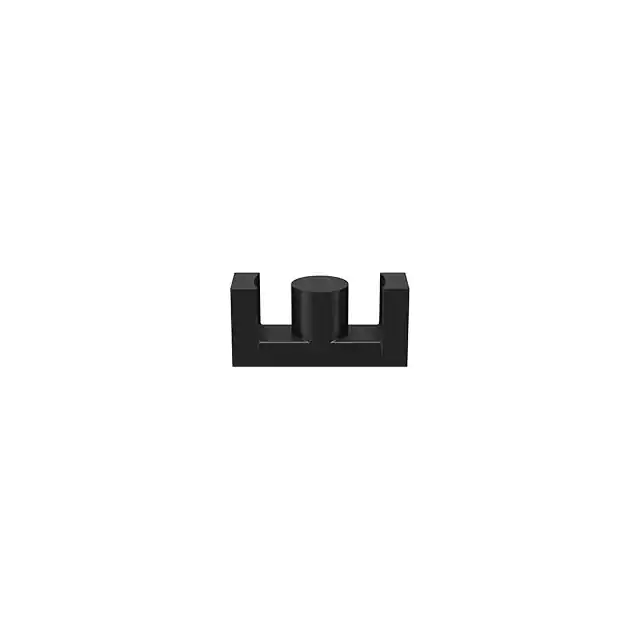

B66397G1000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	3,992	12.49	RFQ	Datasheet	Box	ETD59/31/22	Active	ETD	ETD 59 x 31 x 22	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.228 (31.20mm)
B65883A0000R049 FERRITE CORE PQ 3.2UH N49 2PCS EPCOS - TDK Electronics	3,392	12.58	RFQ	Datasheet	Box	PQ40/40	Active	PQ	PQ 40 x 40	N49	-	3.2 µH	-20%, +30%	Ungapped	2145	1500	0.49	92.5	188.3	159.9	17430	Uncoated	0.783 (19.90mm)

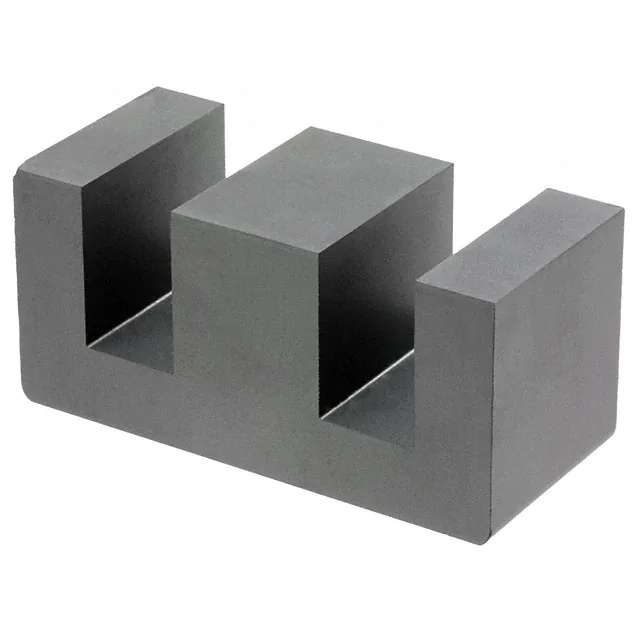

B66371G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,079	13.24	RFQ	Datasheet	Box	E70/33/32	Active	E	E 70 x 33 x 32	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.307 (33.20mm)

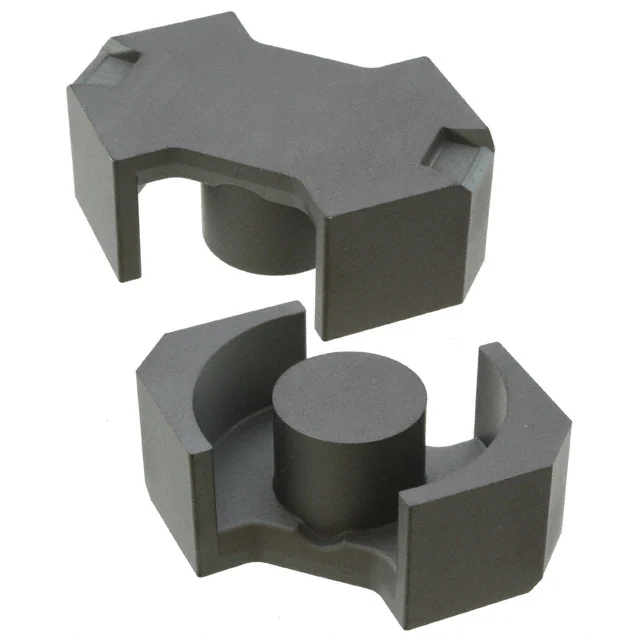

B65887E0000R049 FERRITE CORE RM 3.9UH N49 2PCS EPCOS - TDK Electronics	3,059	13.89	RFQ	Datasheet	Box	RM14	Active	RM	RM 14	N49	-	3.9 µH	-20%, +30%	Ungapped	1090	2200	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)

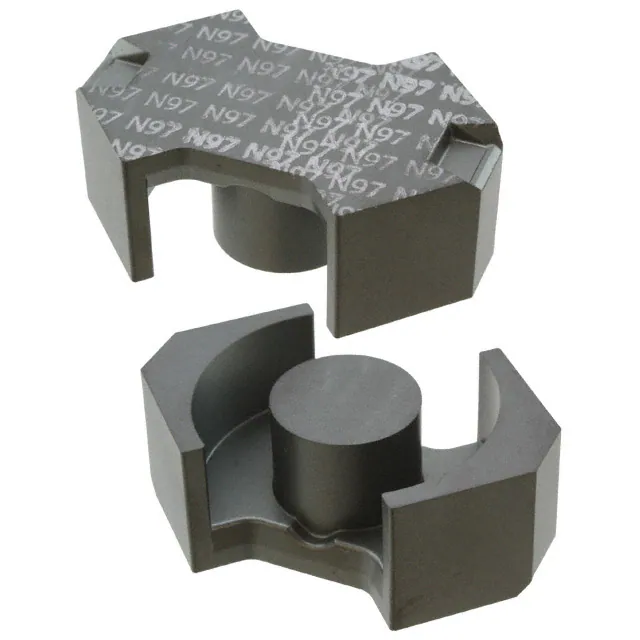

B65887E0000R097 FERRITE CORE RM 6UH N97 2PCS EPCOS - TDK Electronics	2,170	13.99	RFQ	Datasheet	Tray	RM14	Active	RM	RM 14	N97	-	6 µH	-20%, +30%	Ungapped	1670	2300	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)

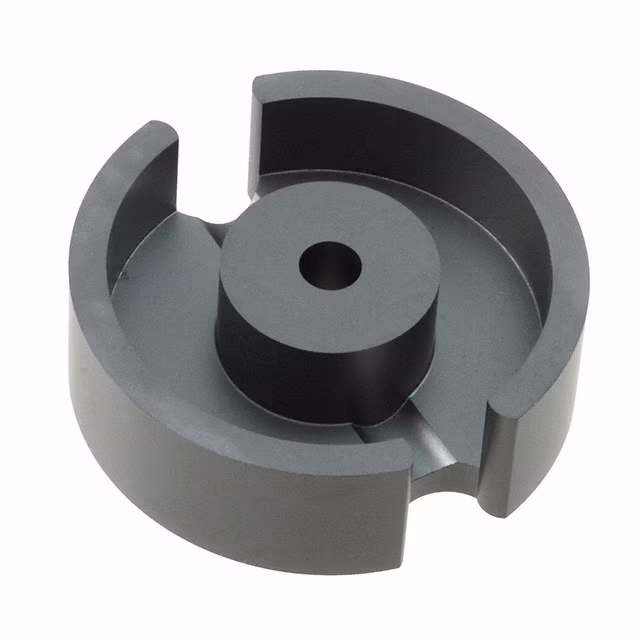

B65943A0000X022 FERRITE CORE PS N22 EPCOS - TDK Electronics	100	15.19	RFQ	Datasheet	Box	PS47/14.9	Active	PS	PS 47 x 14.9	N22	1.850 (47.00mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.587 (14.90mm)
