Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
TX26/15/20-3E12 FERRITE CORES ROUND Ferroxcube	118	3.44	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 26 x 15 x 20	-	1.061 (26.95mm)	-	±30%	Ungapped	12000	-	0.538	60.1	112	-	6720	Epoxy	0.827 (21.00mm)
B66363G0500X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	370	3.50	RFQ	Datasheet	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)

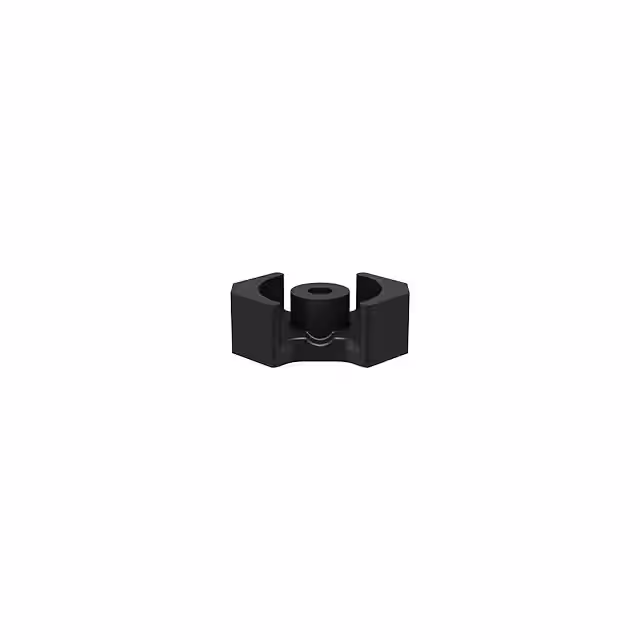

B65803N0100A048 FERRITE CORE RM 100NH N48 2PCS EPCOS - TDK Electronics	140	3.52	RFQ	Datasheet	Box	RM4	Active	RM	RM 4	N48	-	100 nH	±3%	Gapped	152	-	1.9	21	11	-	231	Uncoated	0.207 (5.25mm)

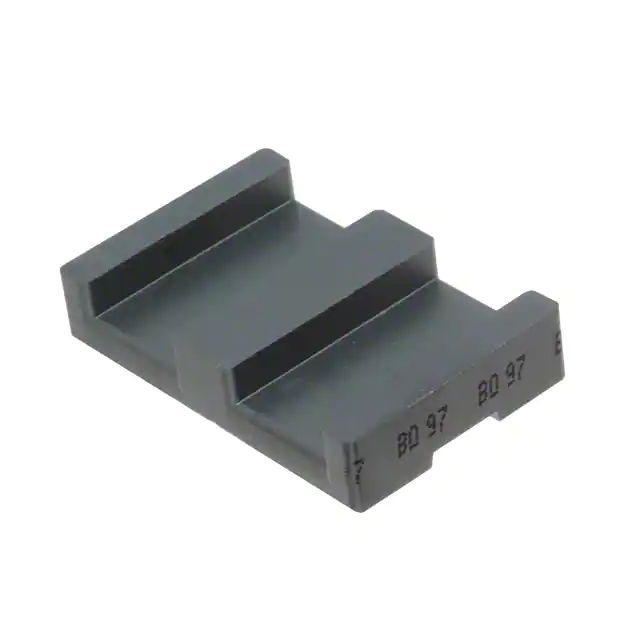

B66287G0000X197 FERRITE CORE ELP N97 1PC EPCOS - TDK Electronics	940	3.57	RFQ	Datasheet	Box	ELP32/6/20	Active	ELP	ELP 32 x 6 x 20	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)

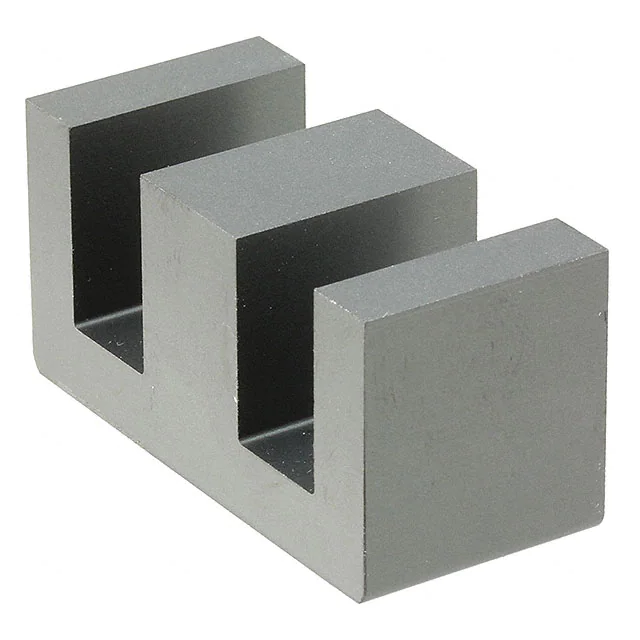

B66329G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	159	3.66	RFQ	Datasheet	Box	E42/21/20	Active	E	E 42 x 21 x 20	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)

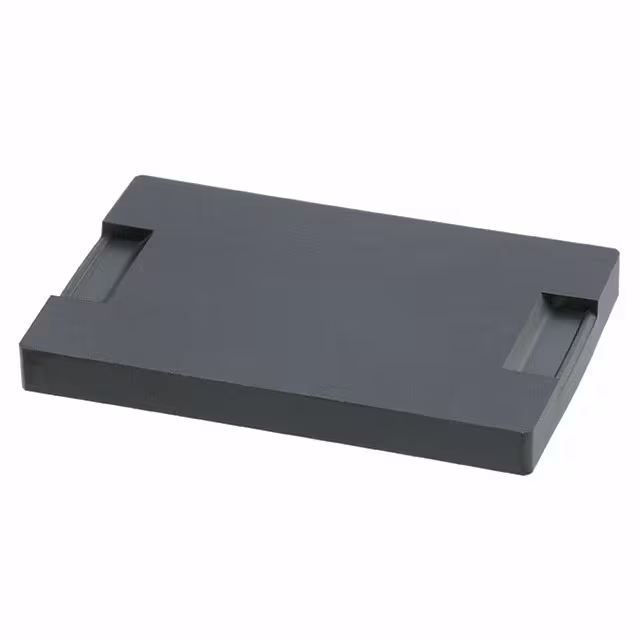

B66457K0000X187 FERRITE CORE I N87 EPCOS - TDK Electronics	947	3.69	RFQ	Datasheet	Tray	I32/3/20	Active	I	I 32 x 3 x 20	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.124 (3.15mm)

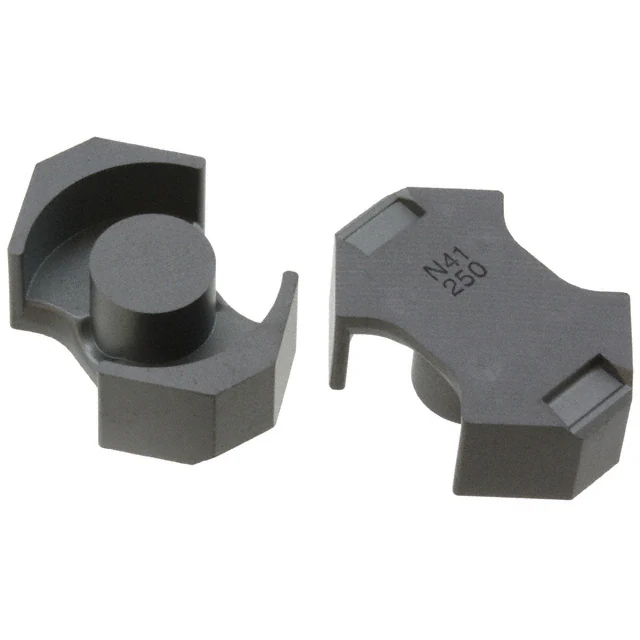

B65811J0250J041 FERRITE CORE RM 250NH N41 2PCS EPCOS - TDK Electronics	639	3.85	RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N41	-	250 nH	±5%	Gapped	118	2800	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)

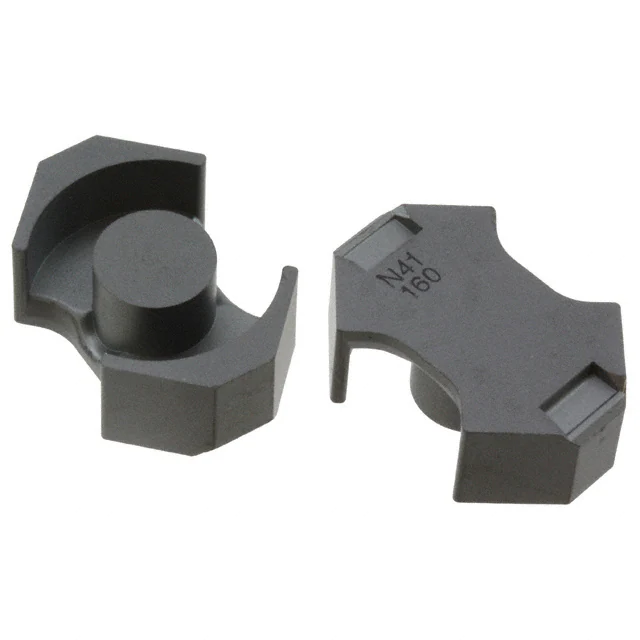

B65811J0160A041 FERRITE CORE RM 160NH N41 2PCS EPCOS - TDK Electronics	2,681	3.85	RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N41	-	160 nH	±3%	Gapped	76	2800	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)
B65811J0000R097 FERRITE CORE RM 3.3UH N97 2PCS EPCOS - TDK Electronics	697	3.97	RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N97	-	3.3 µH	-20%, +30%	Ungapped	1560	2300	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)

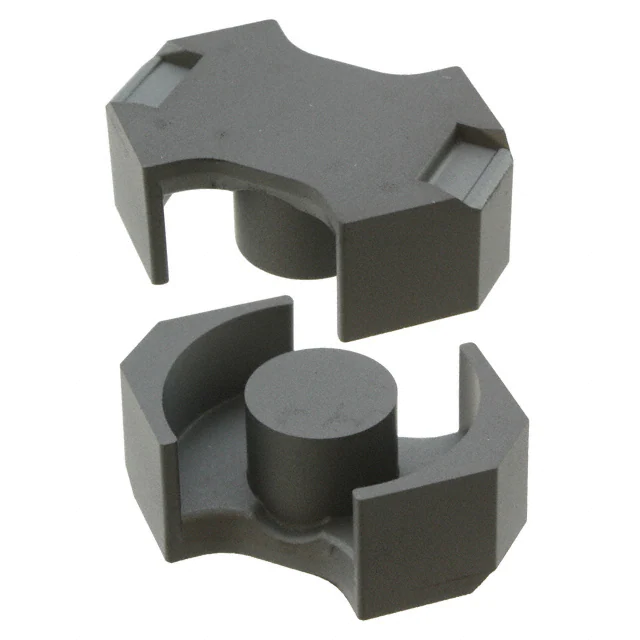

B65811J0000R049 FERRITE CORE RM 2.2UH N49 2PCS EPCOS - TDK Electronics	2,218	3.97	RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N49	-	2.2 µH	-20%, +30%	Ungapped	1040	1500	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)
B65807J0000Y038 FERRITE CORE RM 8.6UH T38 2PCS EPCOS - TDK Electronics	469	4.00	RFQ	Datasheet	Box	RM6	Active	RM	RM 6	T38	-	8.6 µH	-30%, +40%	Ungapped	5350	2300	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
B64290L0616X087 FERRITE CORE TOROID 4.68UH N87 EPCOS - TDK Electronics	947	4.13	RFQ	Datasheet	Box	TX25.3/14.8/20	Active	Toroid	-	N87	1.047 (26.60mm)	4.68 µH	±25%	Ungapped	-	2200	0.59	60.07	102.5	-	6157	Epoxy	0.839 (21.30mm)
B66506G0000X197 FERRITE CORE EQ N97 1PC EPCOS - TDK Electronics	803	4.21	RFQ	Datasheet	Box	EQ30/8/20	Active	EQ	EQ 30 x 8	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.315 (8.00mm)
B65651W0000R030 FERRITE CORE P 5.9UH N30 2PCS EPCOS - TDK Electronics	583	4.25	RFQ	Datasheet	Box	P18/11	Active	P (Pot Core)	P 18 x 11	N30	0.724 (18.40mm)	5.9 µH	-20%, +30%	Ungapped	2680	4300	0.57	26.6	46.7	33.9	1242	Uncoated	0.209 (5.30mm)

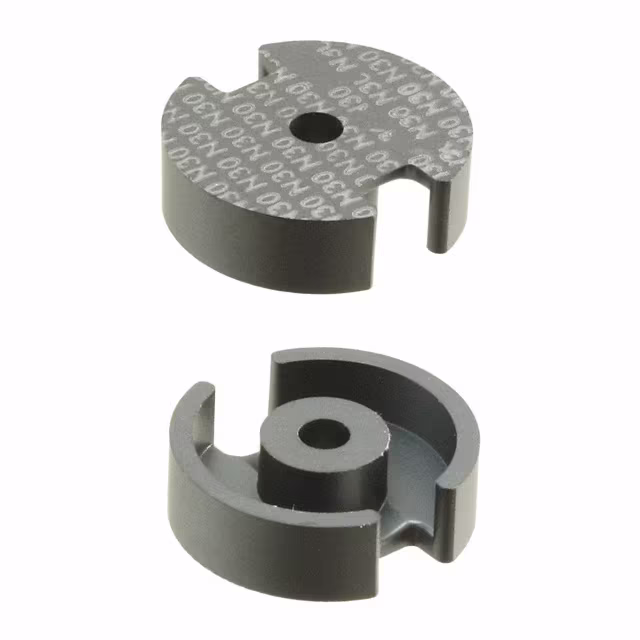

B65651D0000R030 FERRITE CORE P N30 2PCS EPCOS - TDK Electronics	333	4.25	RFQ	Datasheet	Box	P18/11	Active	P (Pot Core)	P 18 x 11	N30	0.724 (18.40mm)	-	-	Ungapped	-	-	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B65875A0000R097 FERRITE CORE PQ 2.75UH N97 2PCS EPCOS - TDK Electronics	3,668	4.35	RFQ	Datasheet	Box	PQ20/20	Active	PQ	PQ 20 x 20	N97	-	2.75 µH	-20%, +30%	Ungapped	1565	2300	0.718	45.2	62.9	54.4	2843	Uncoated	0.398 (10.10mm)

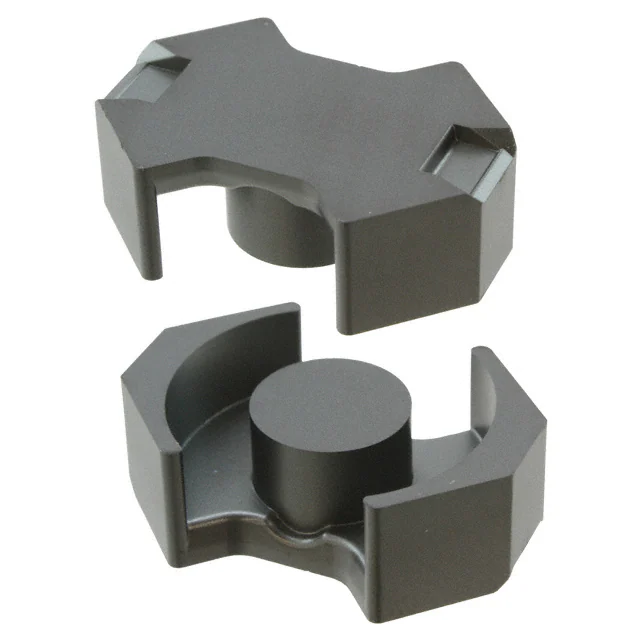

B65813J0160A087 FERRITE CORE RM N87 2PCS EPCOS - TDK Electronics	146	4.37	RFQ	Datasheet	Box	RM10	Active	RM	RM 10	N87	-	-	-	Gapped	-	-	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
B66457K0000X197 FERRITE CORE I N97 EPCOS - TDK Electronics	498	4.50	RFQ	Datasheet	Tray	I32/3/20	Active	I	I 32 x 3 x 20	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.124 (3.15mm)
B66287G0000X195 FERRITE CORE ELP N95 1PC EPCOS - TDK Electronics	312	4.61	RFQ	Datasheet	Box	ELP32/6/20	Active	ELP	ELP 32 x 6 x 20	N95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)

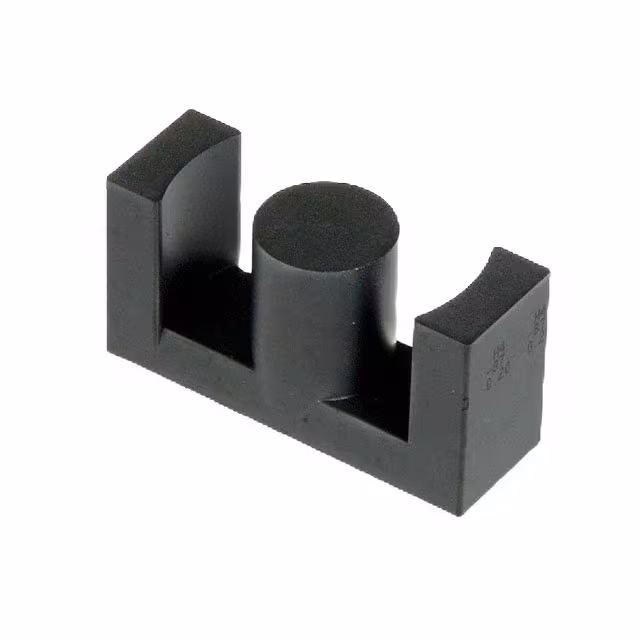

B66365G0200X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	2,300	4.61	RFQ	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)
